Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View of Middle)

Dashboard Wire Harness (View of Middle)

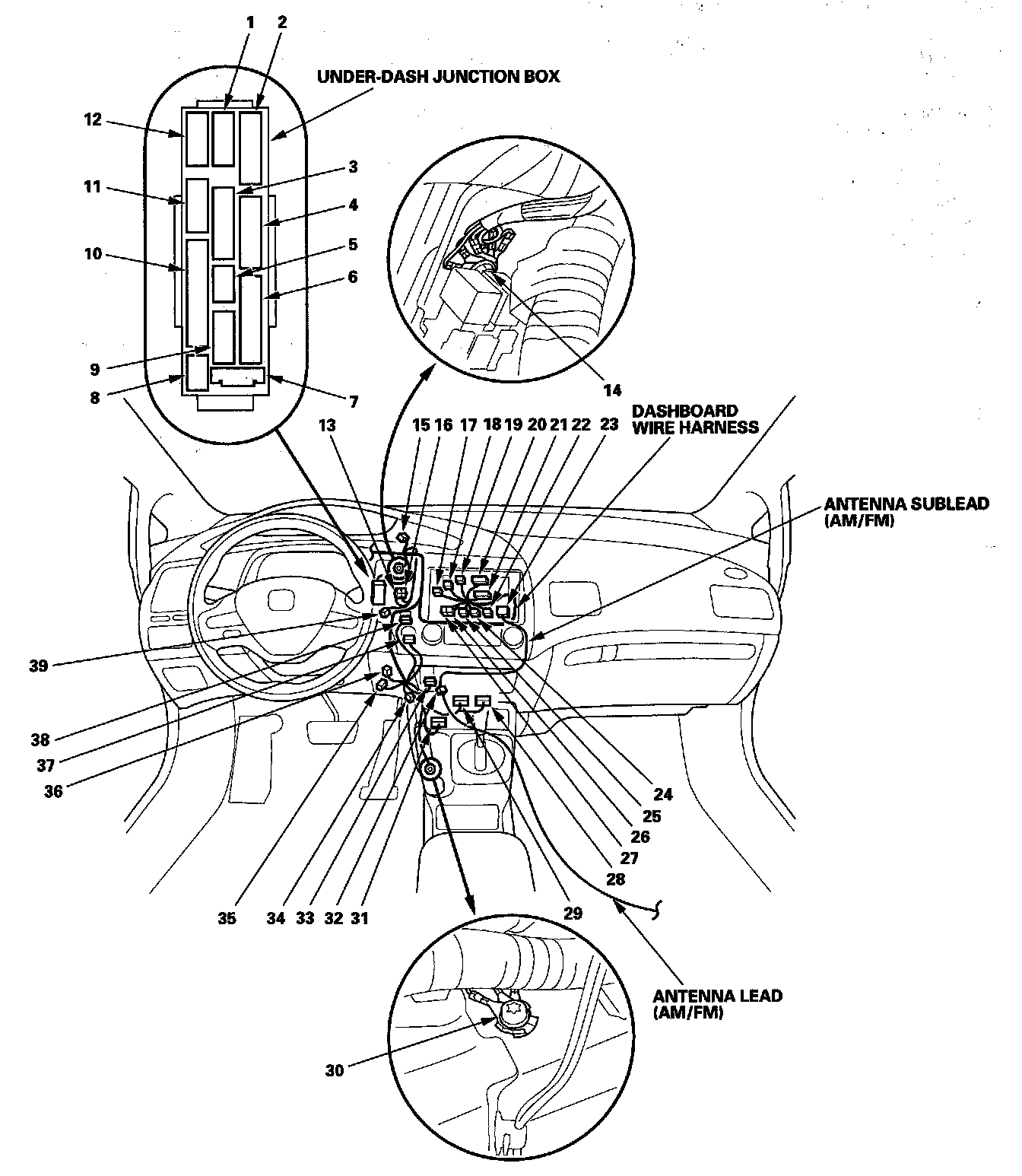

Harness Location View:

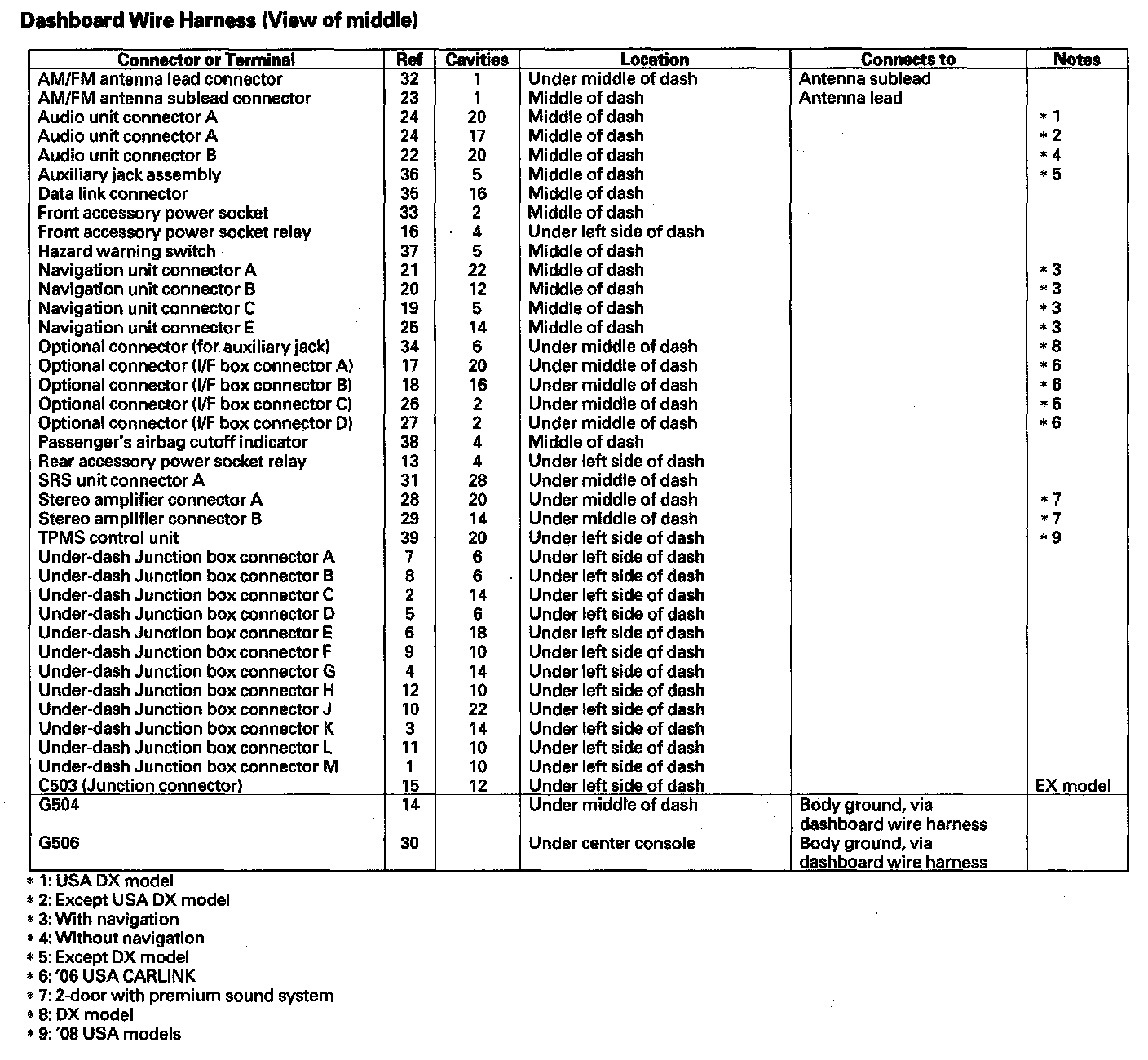

Dashboard Wire Harness (View Of Middle):
