Civic Si L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Transmission Disassembly
Transmission Disassembly
Transmission Disassembly

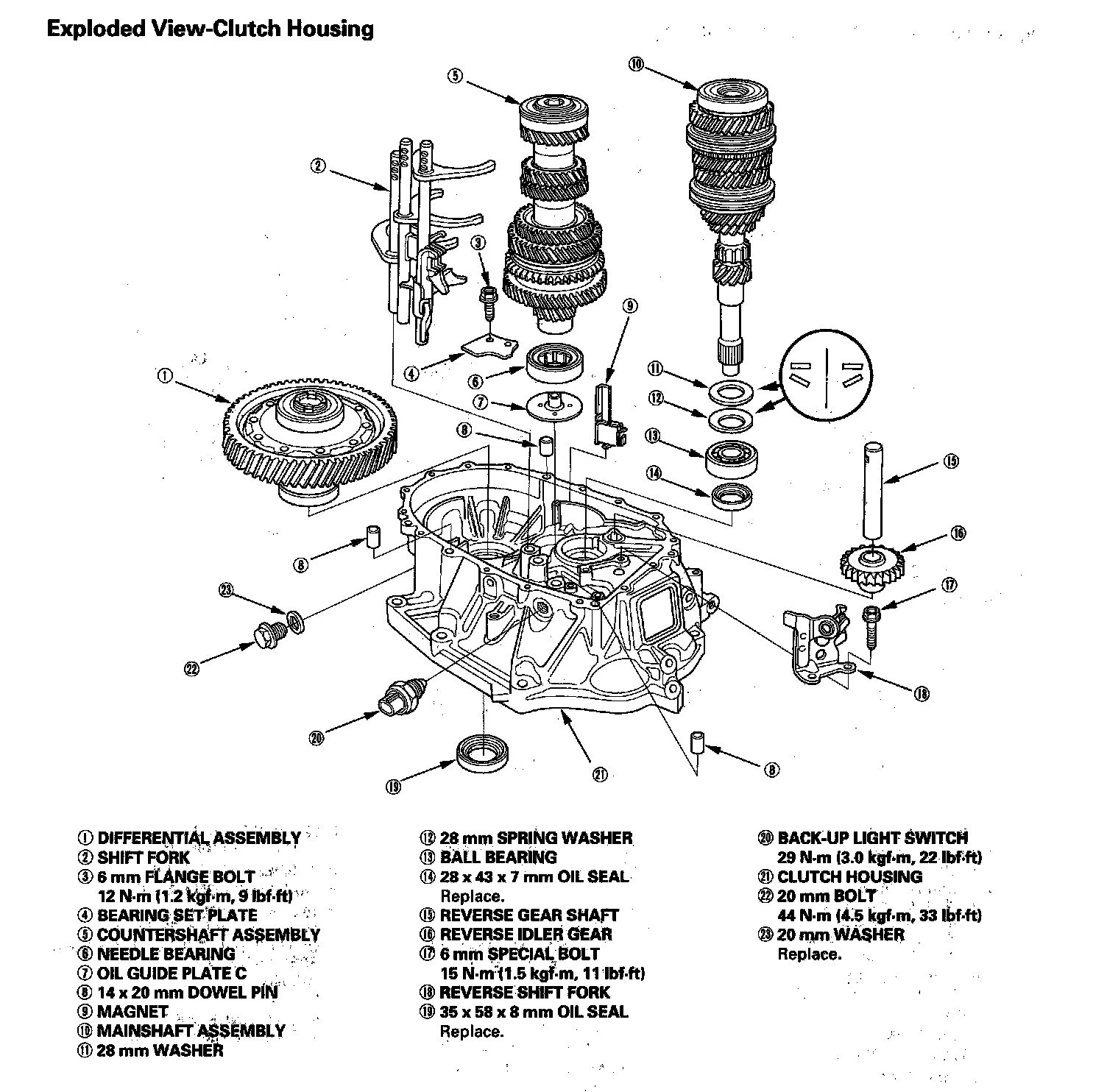

Manual Transmission Clutch Housing L4-2.0L:
Manual Transmission Housing L4-2.0L:
