Wiring Diagrams

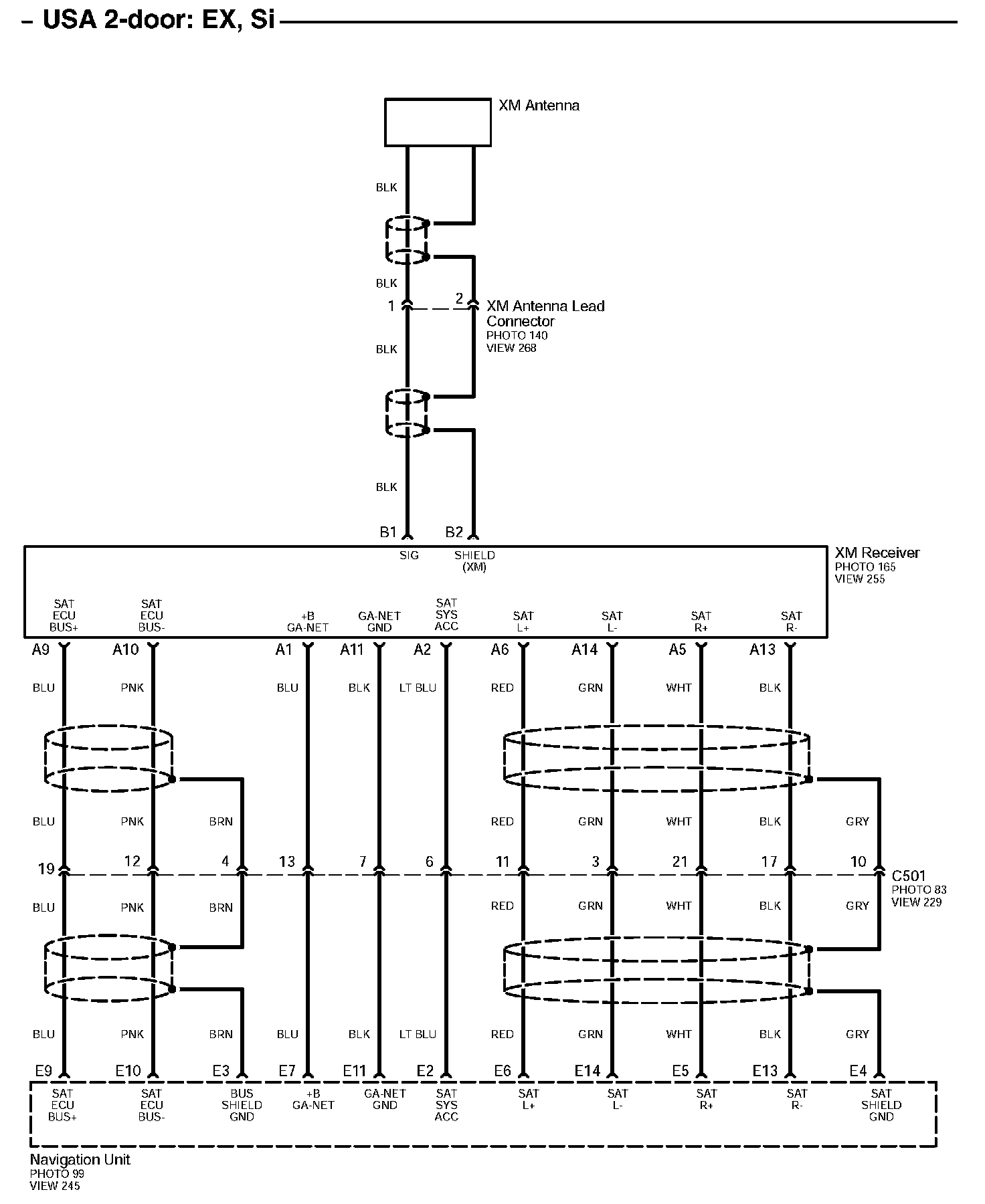

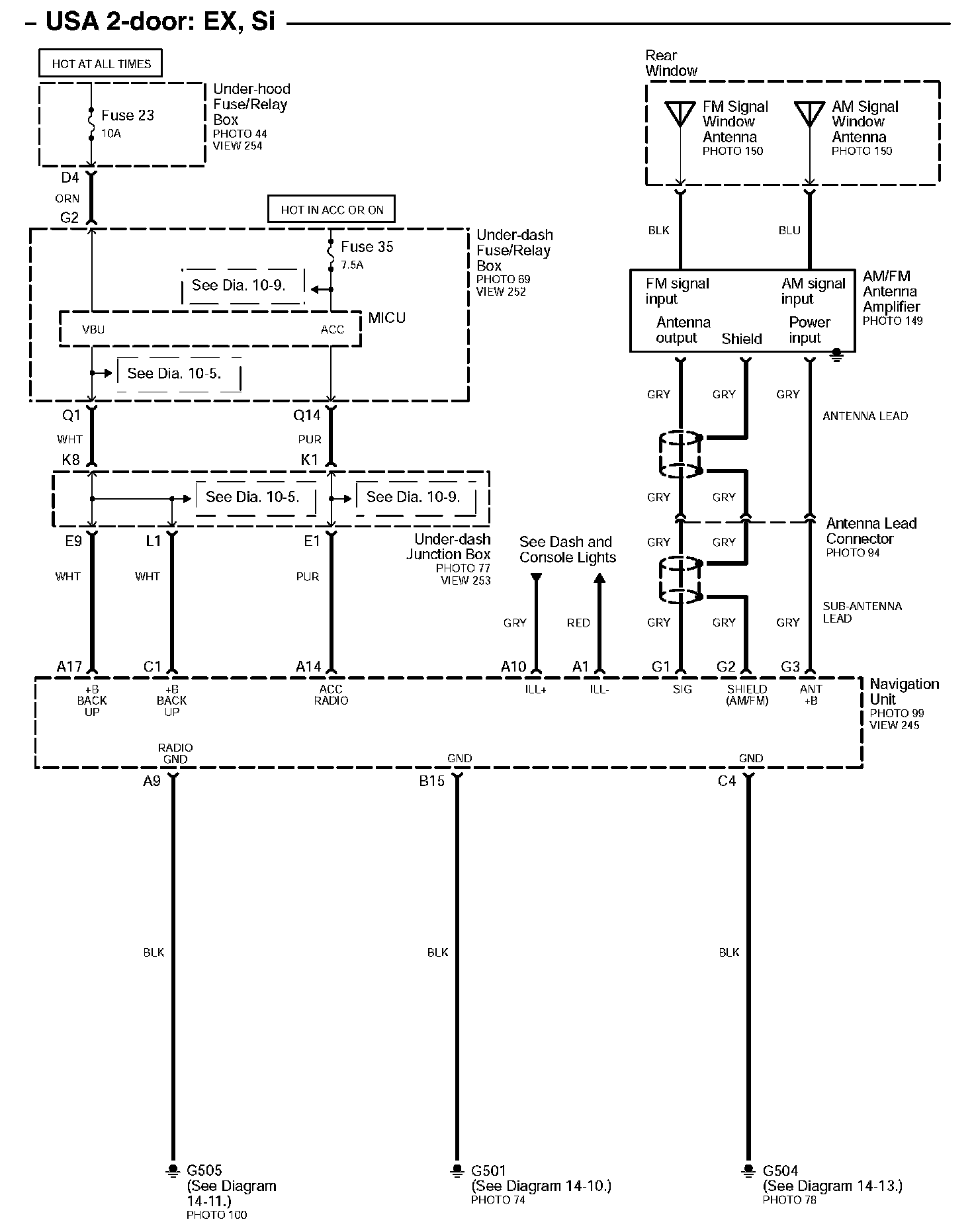

Diagram 156-7:

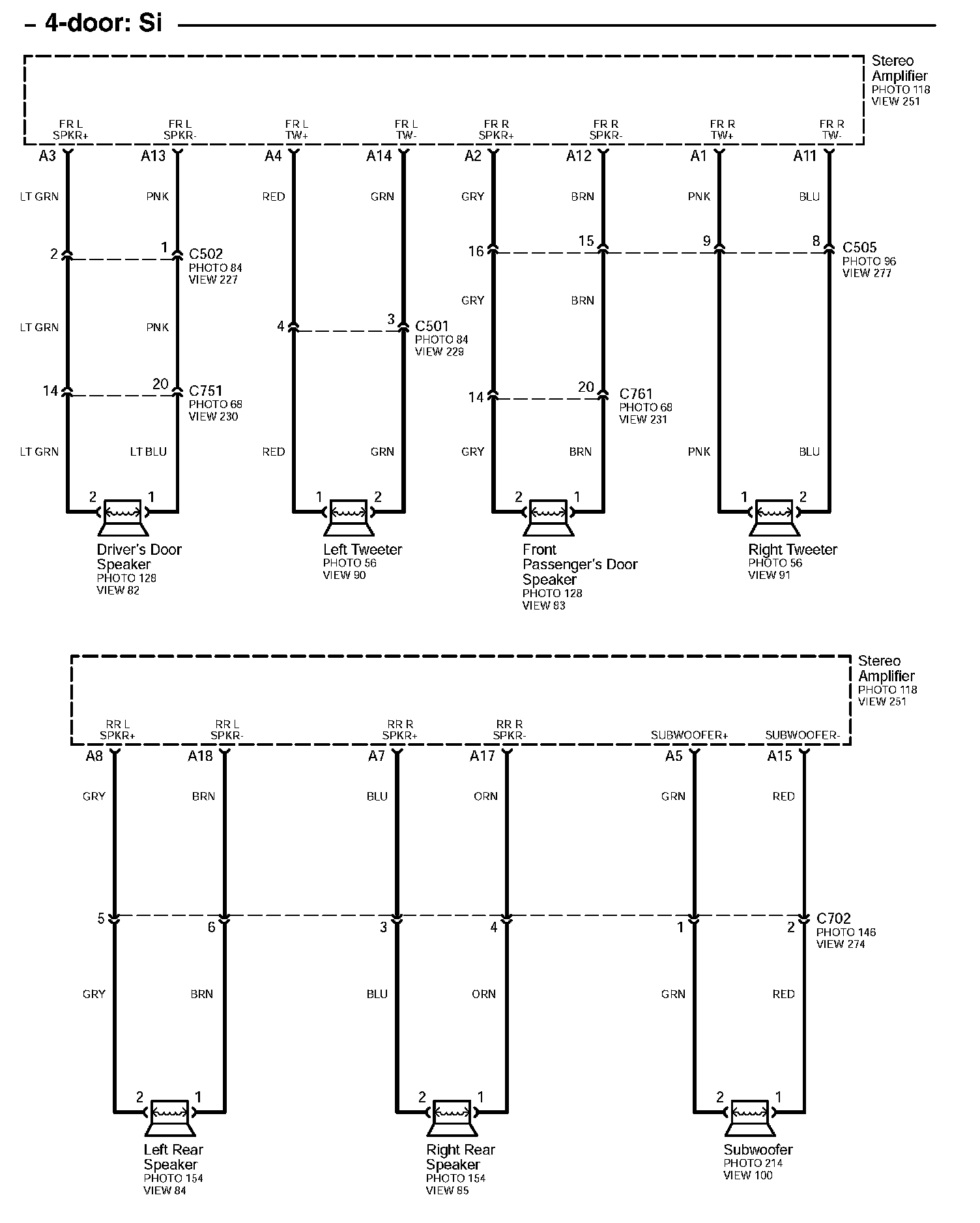

Diagram 156-8:

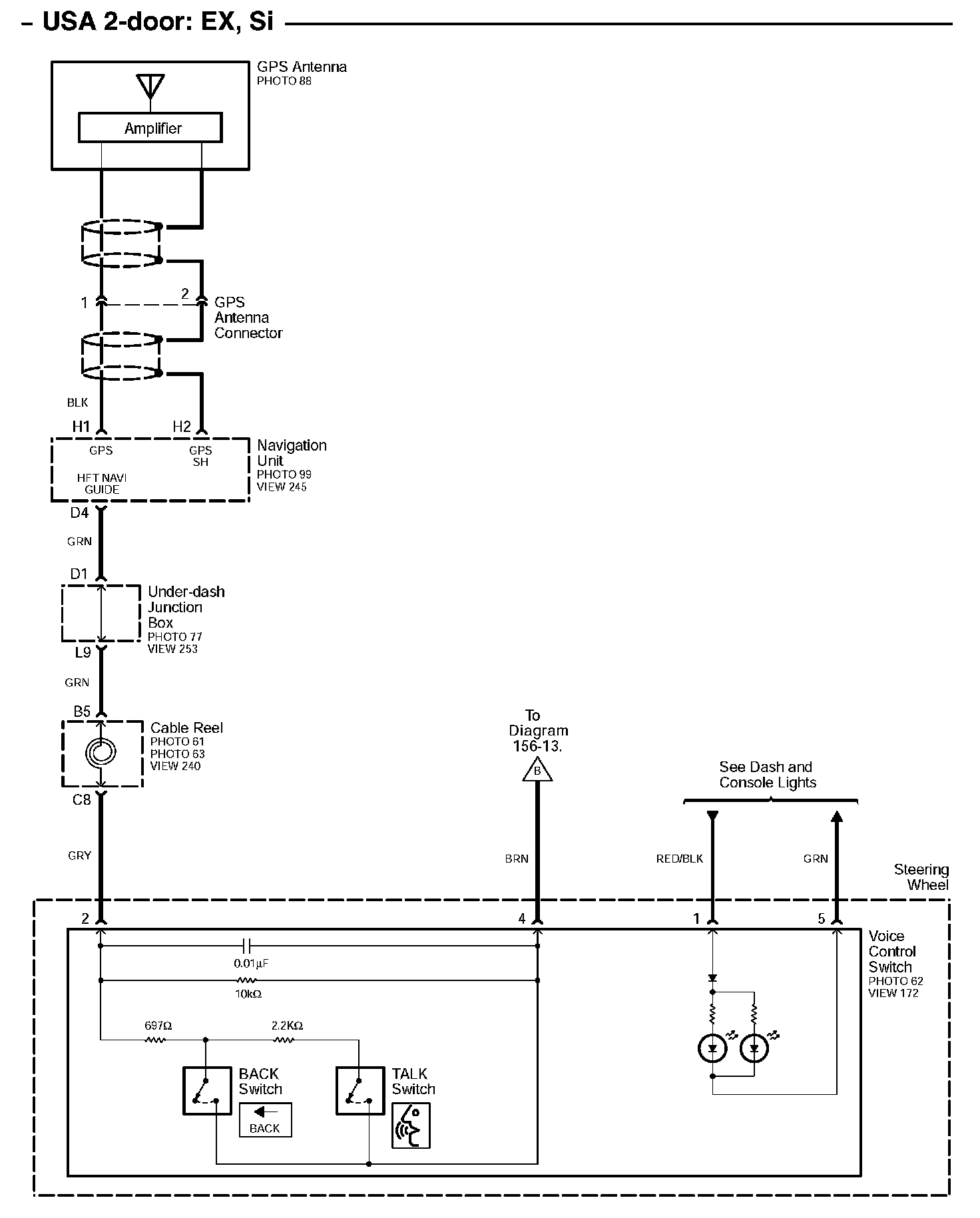

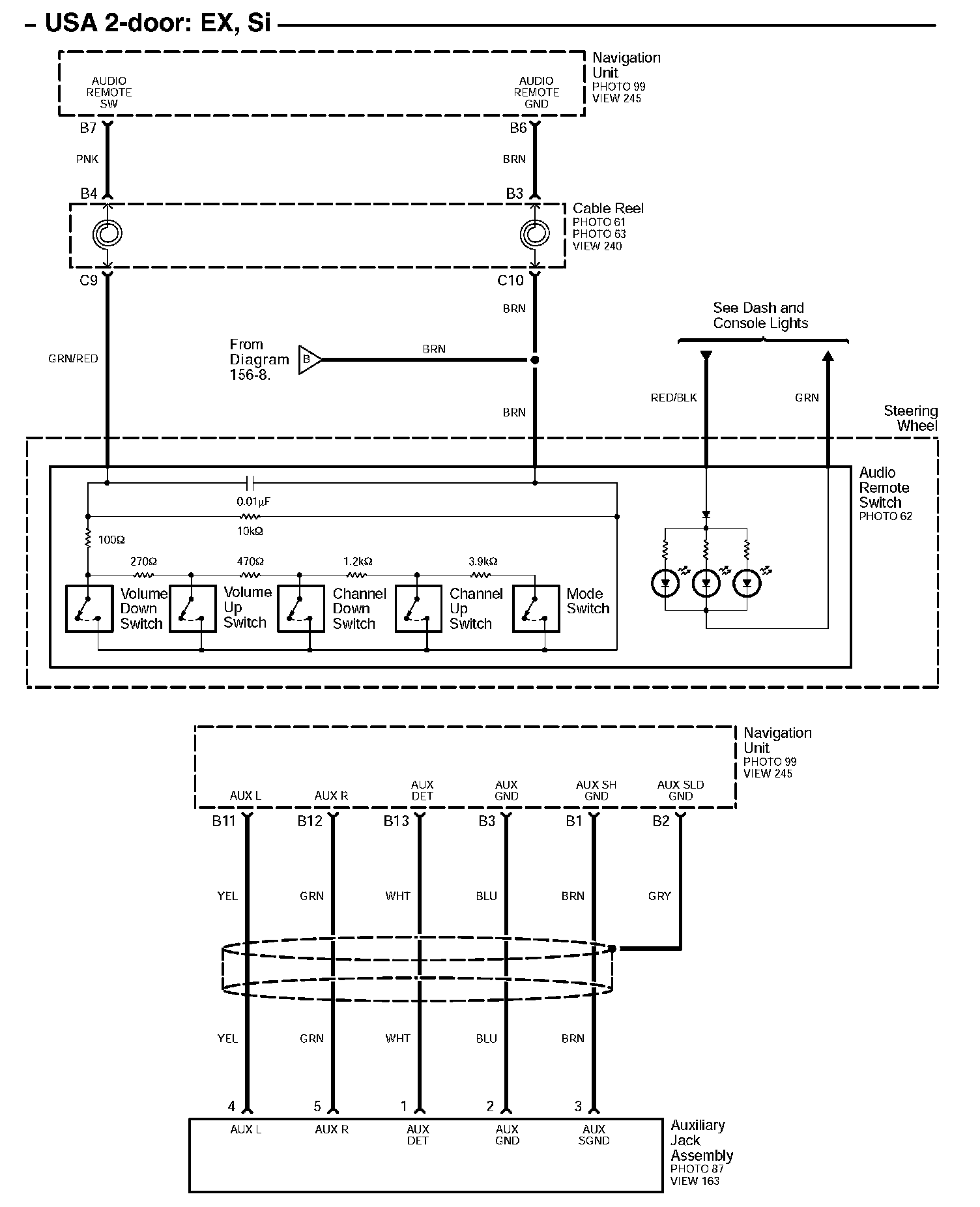

Diagram 156-9:

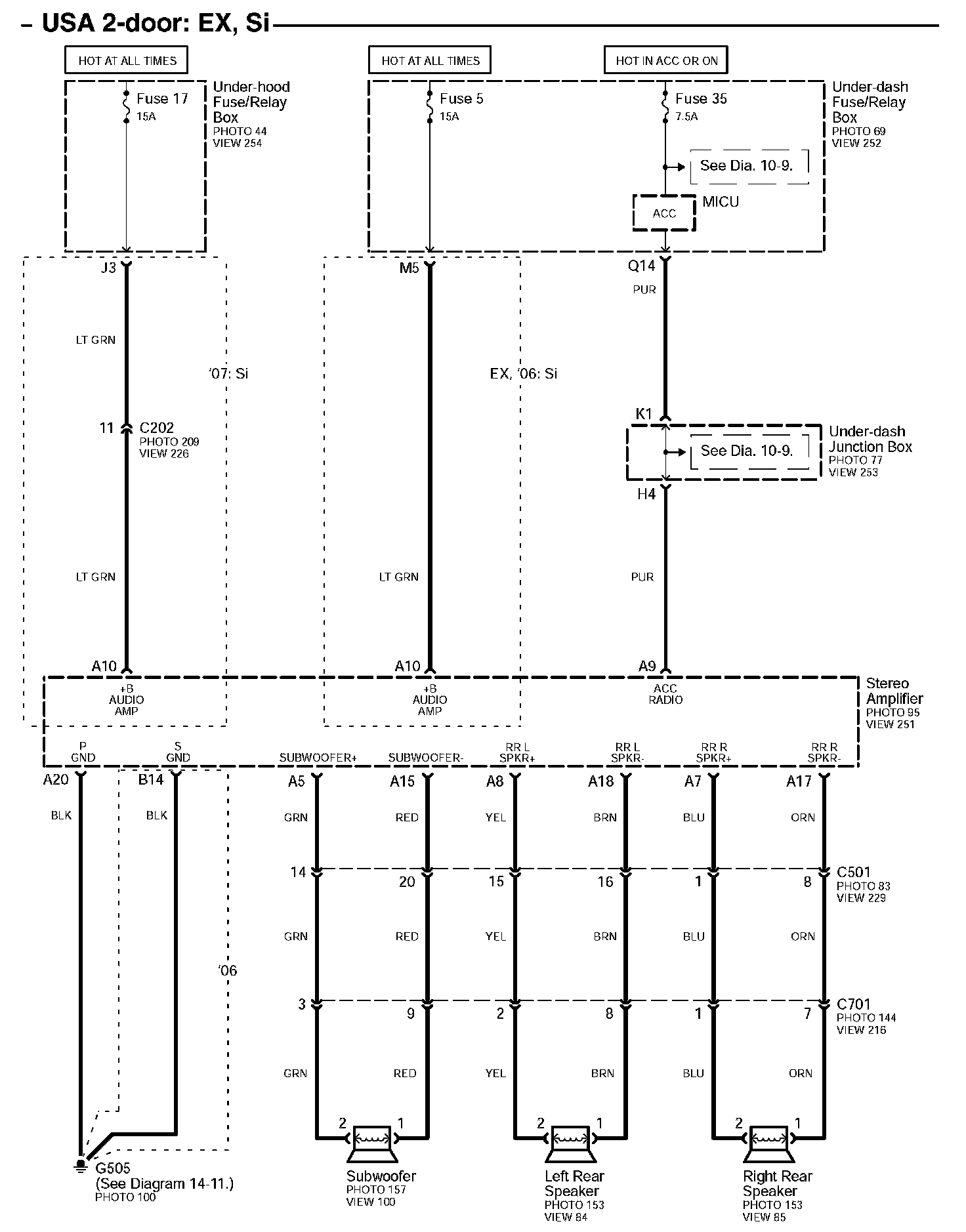

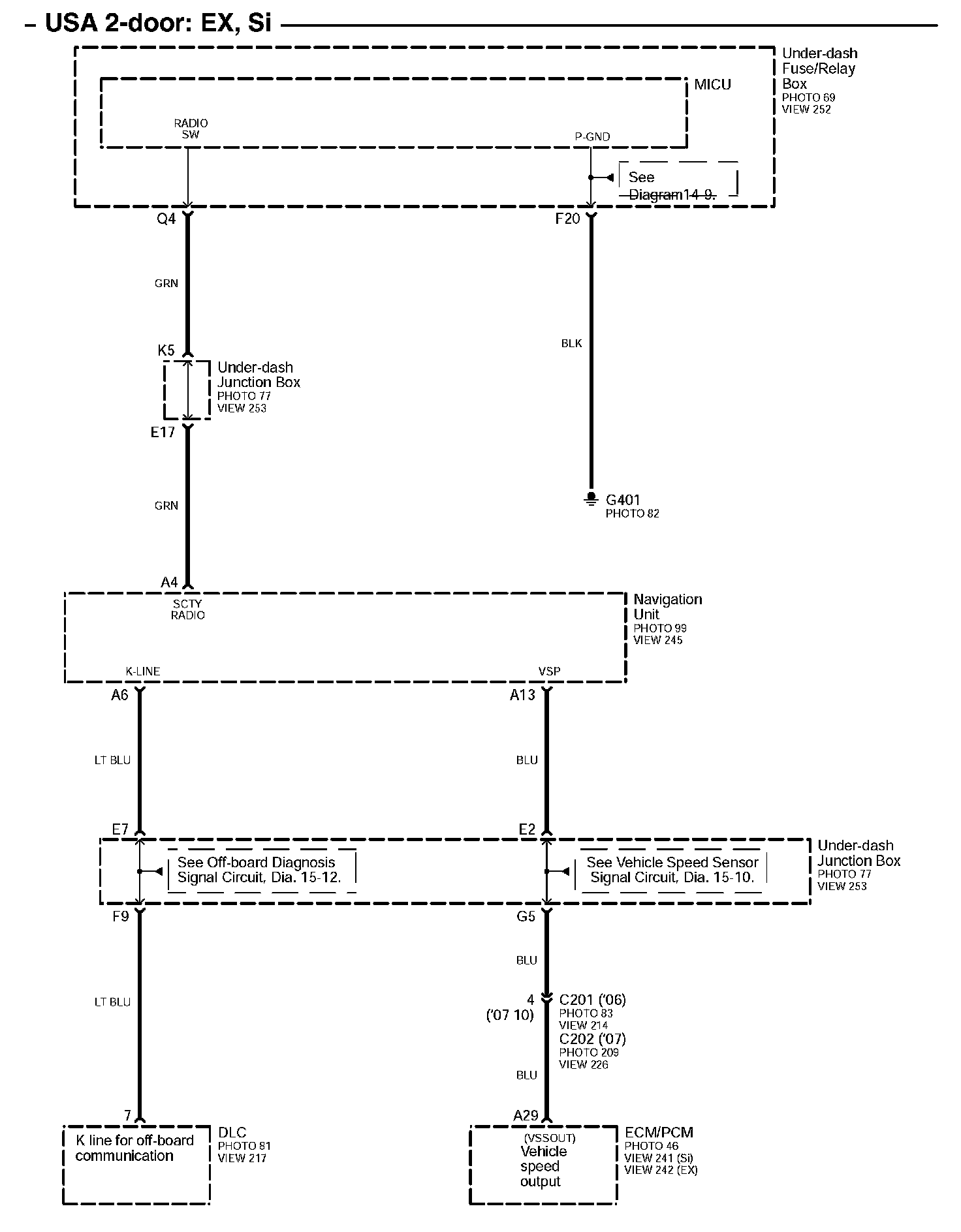

Diagram 156-10:

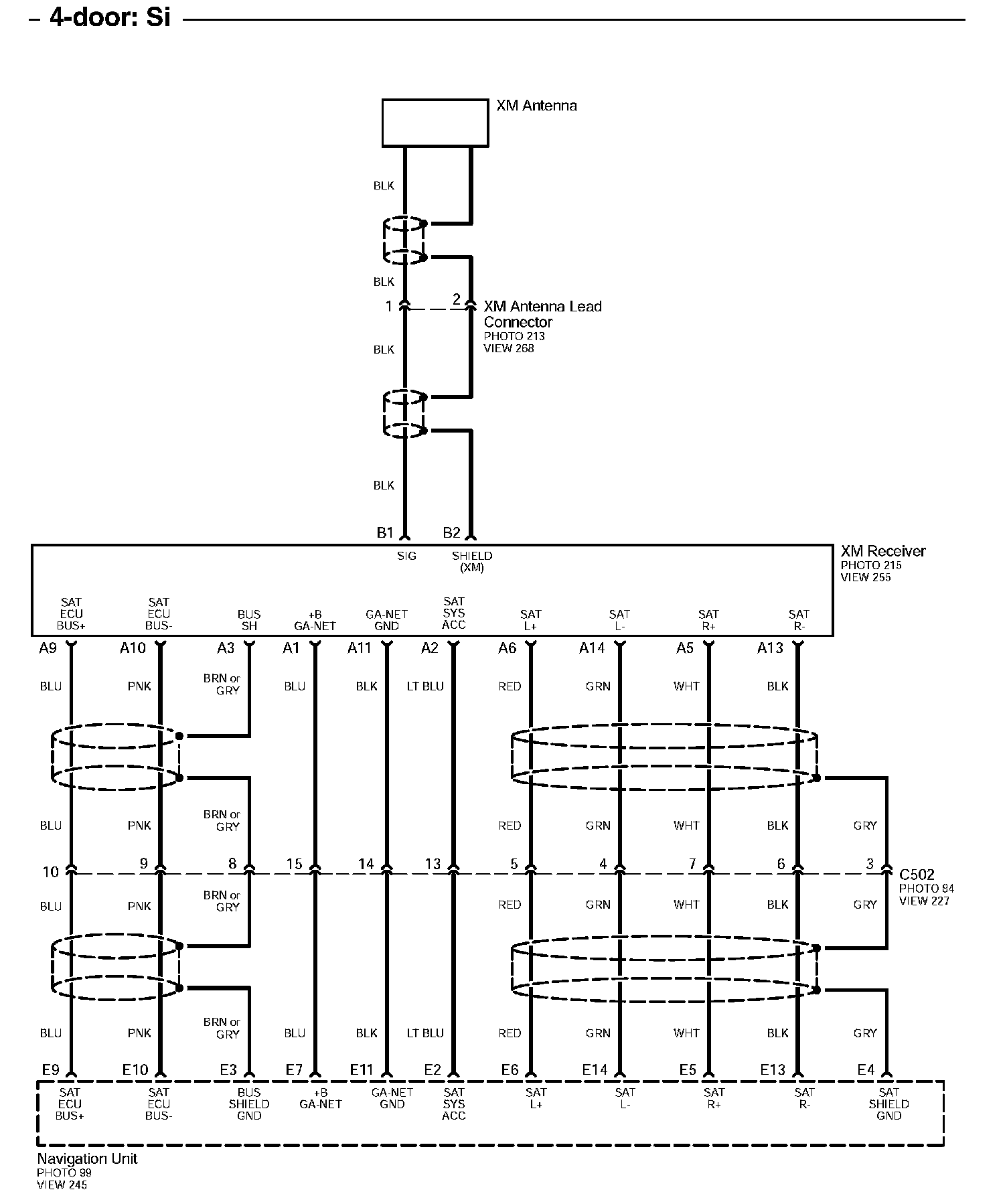

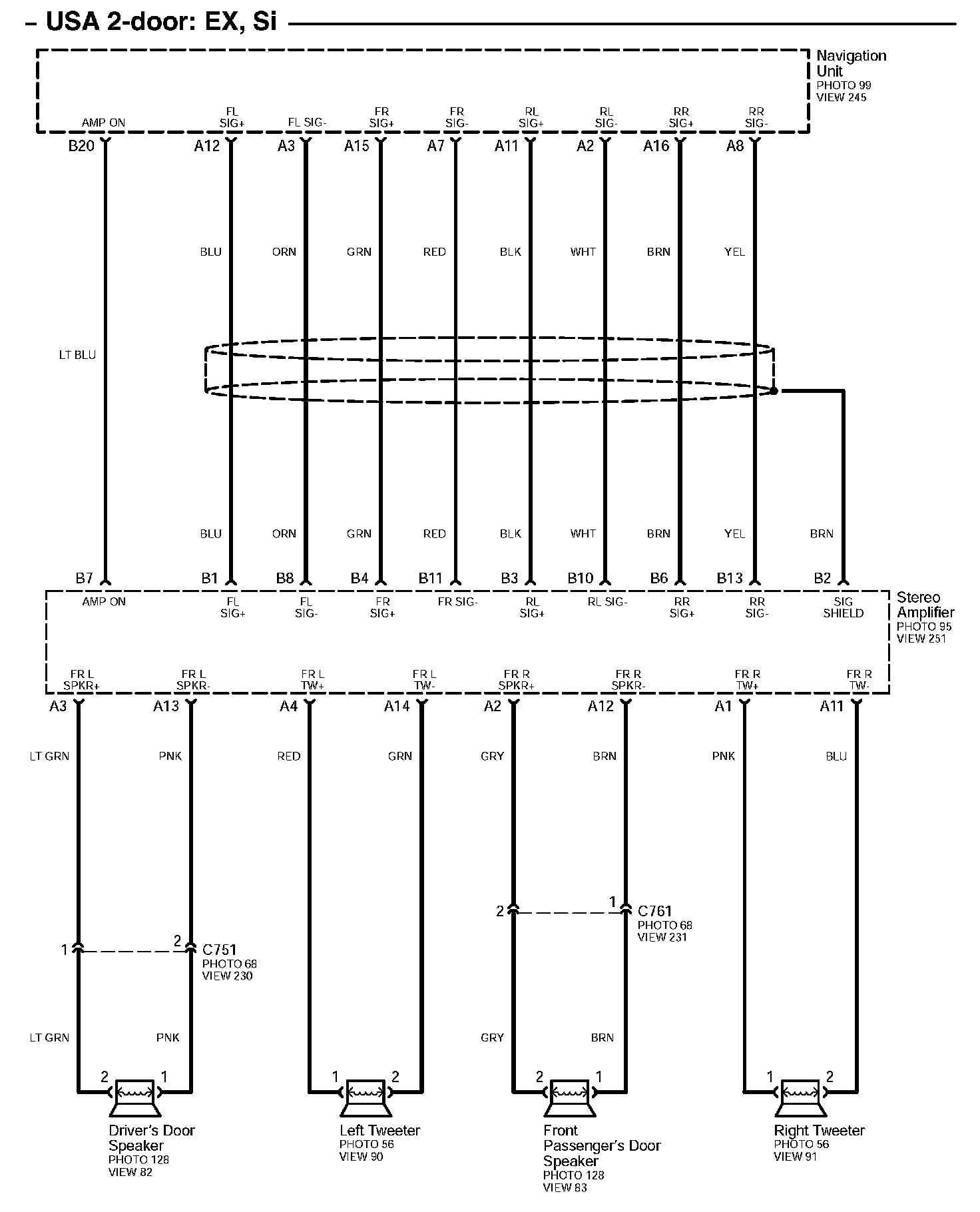

Diagram 156-11:

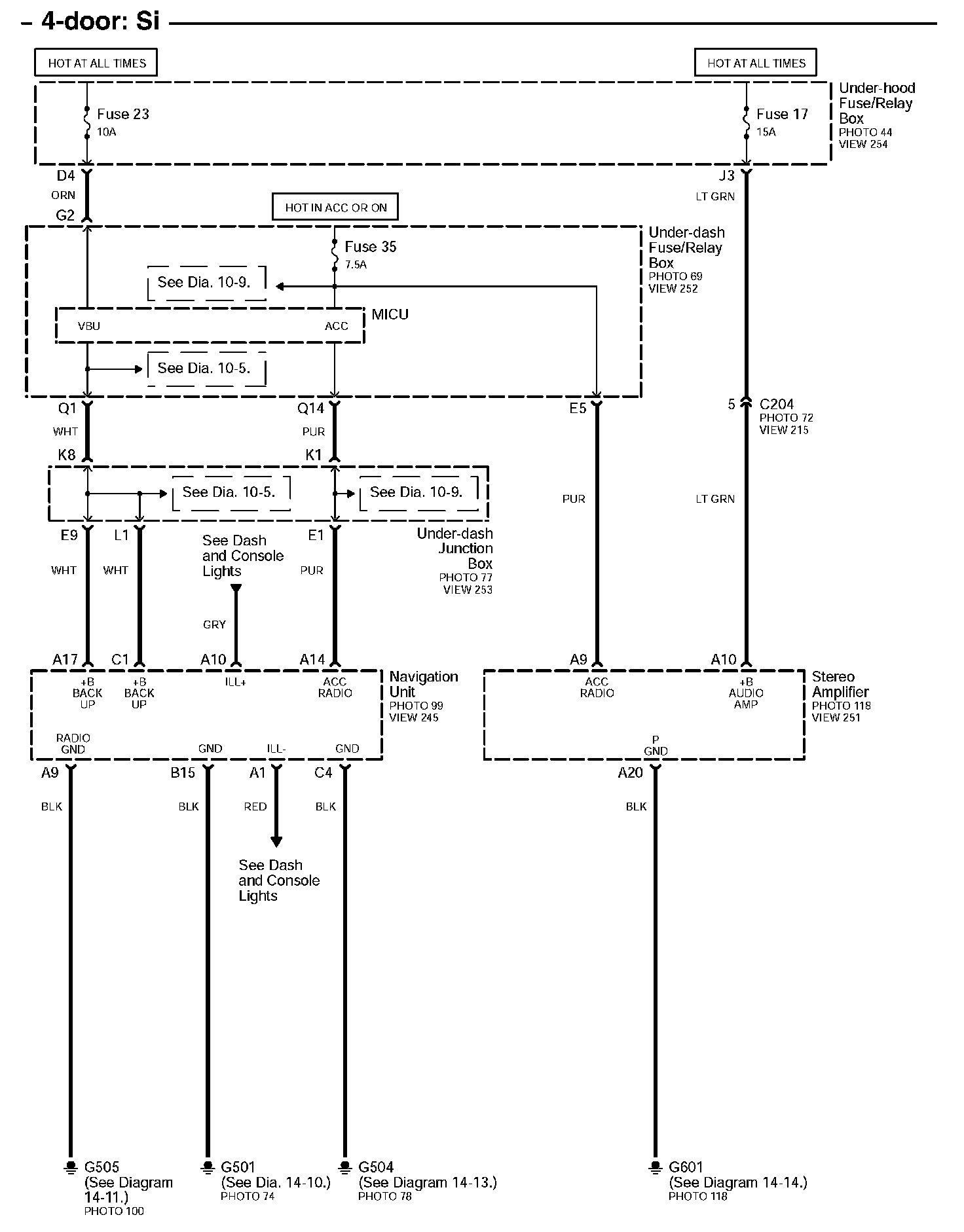

Diagram 156-12:

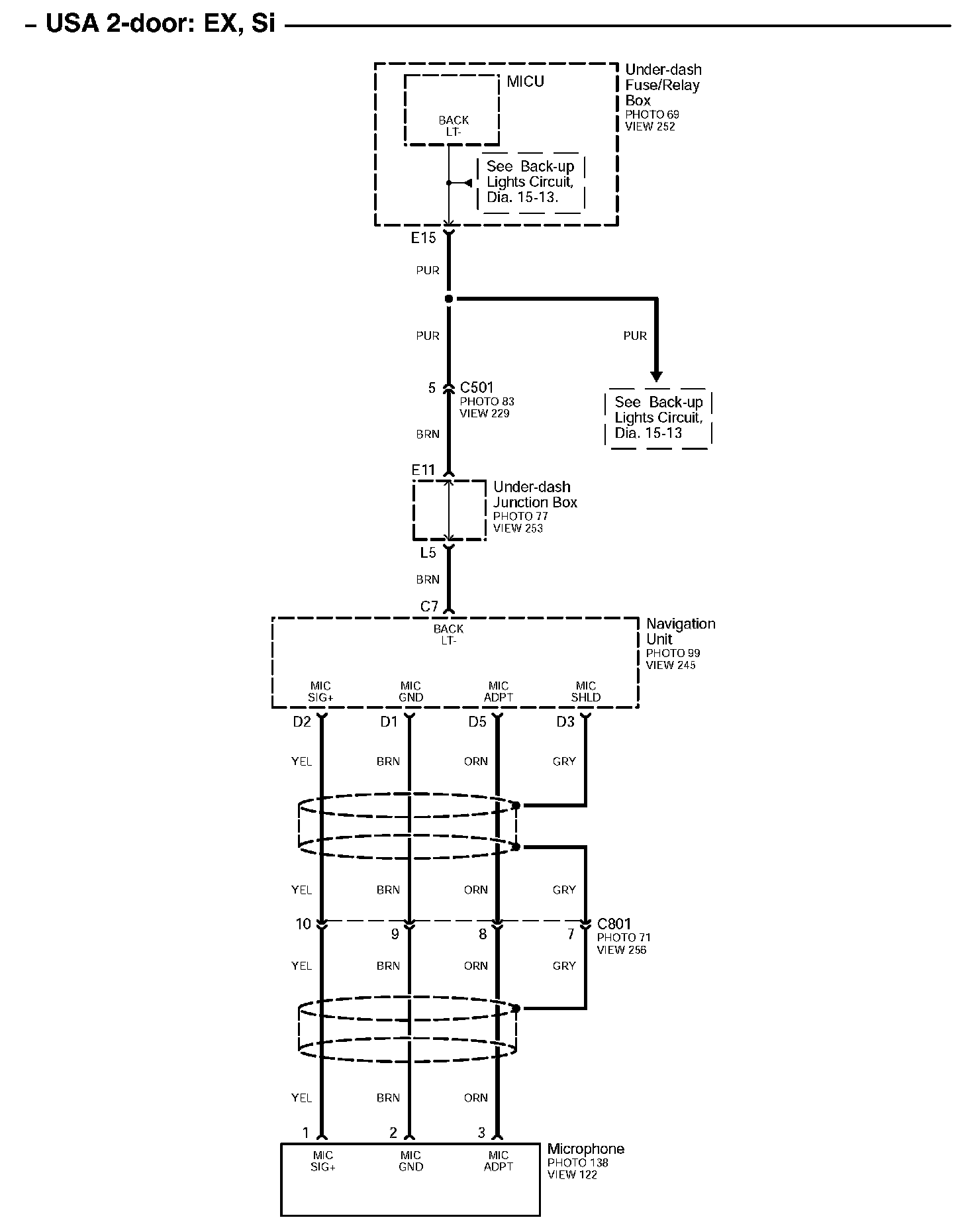

Diagram 156-13:

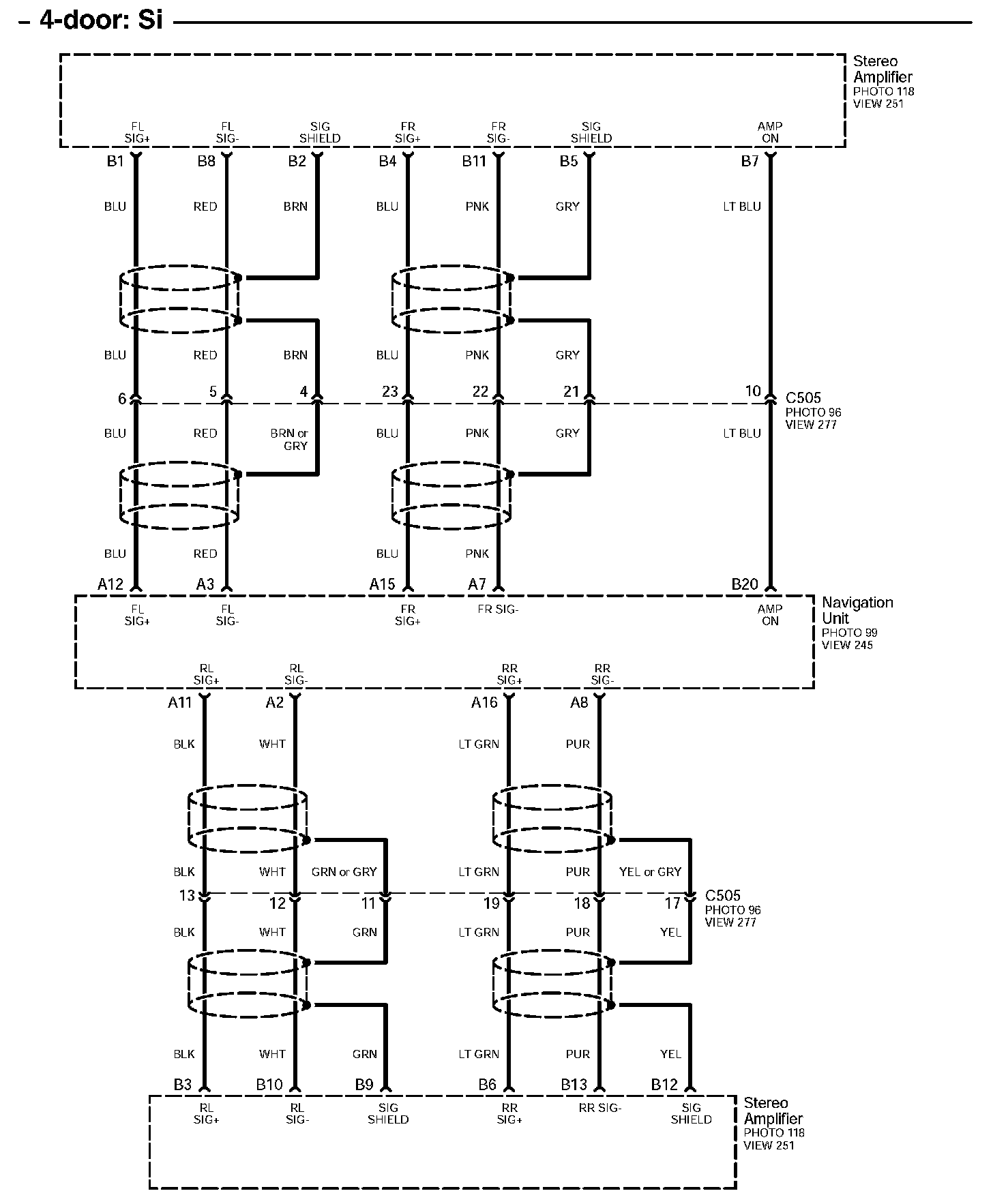

Diagram 156-14:

Diagram 156-15:

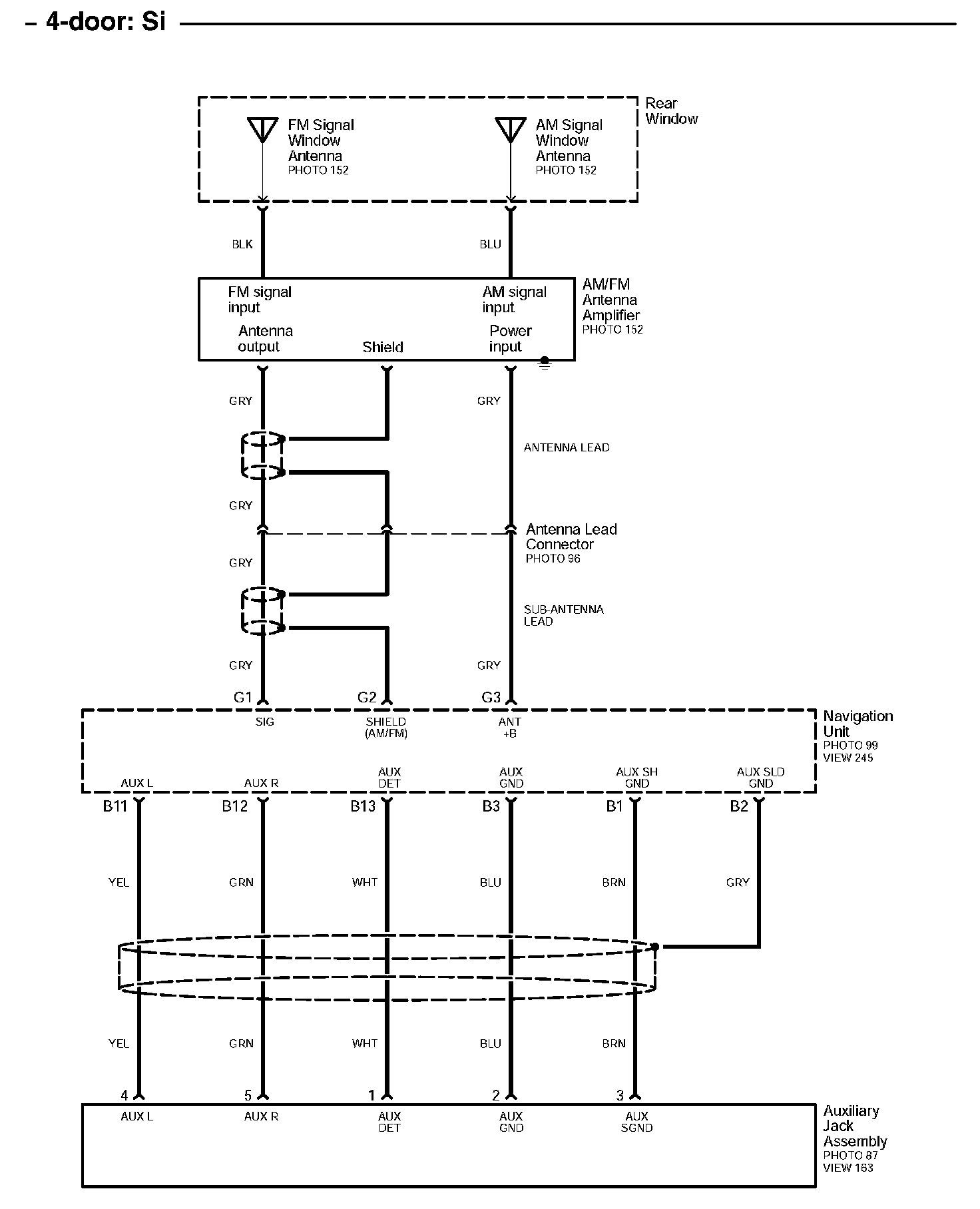

Diagram 156-16:

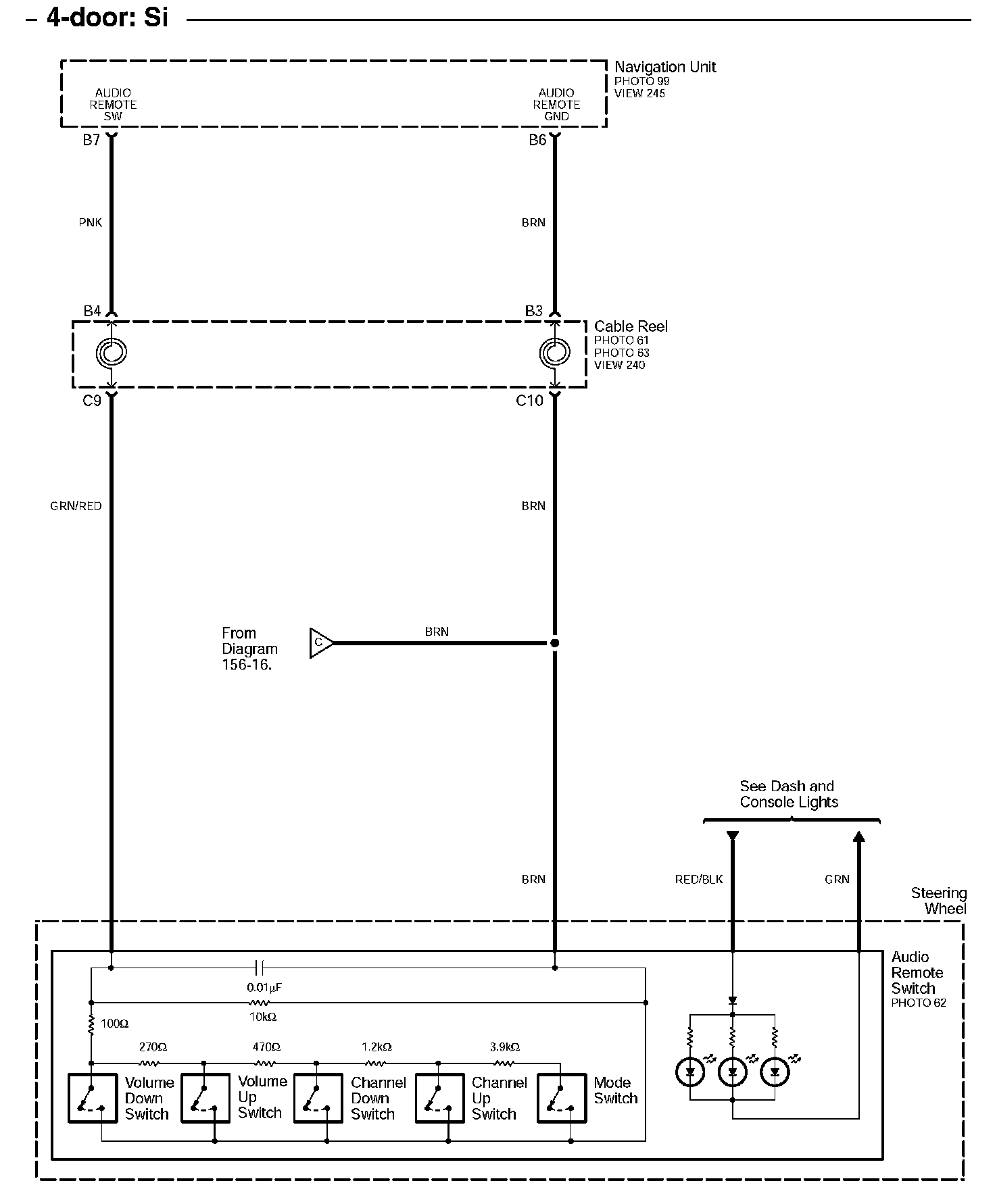

Diagram 156-17:

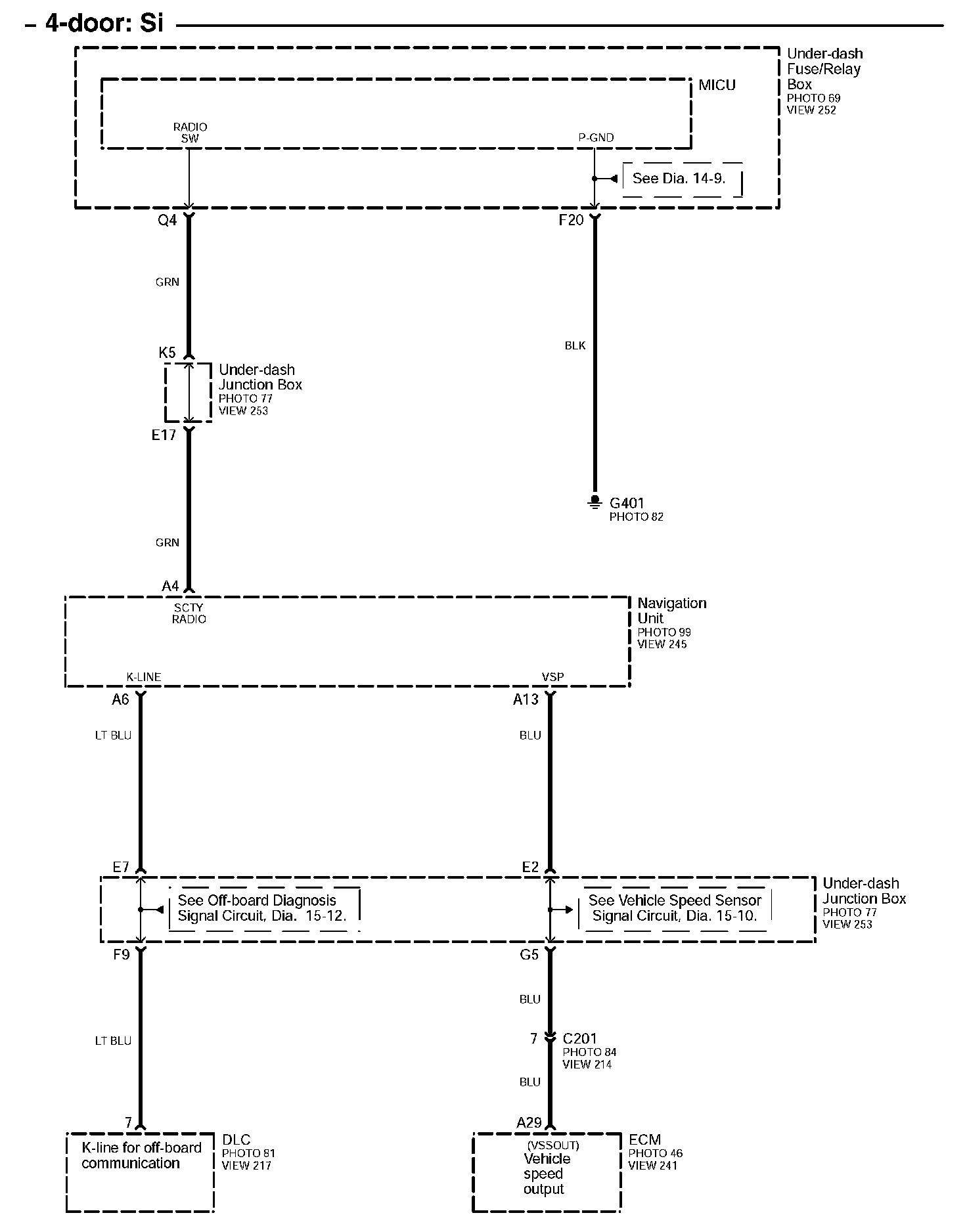

Diagram 156-18:

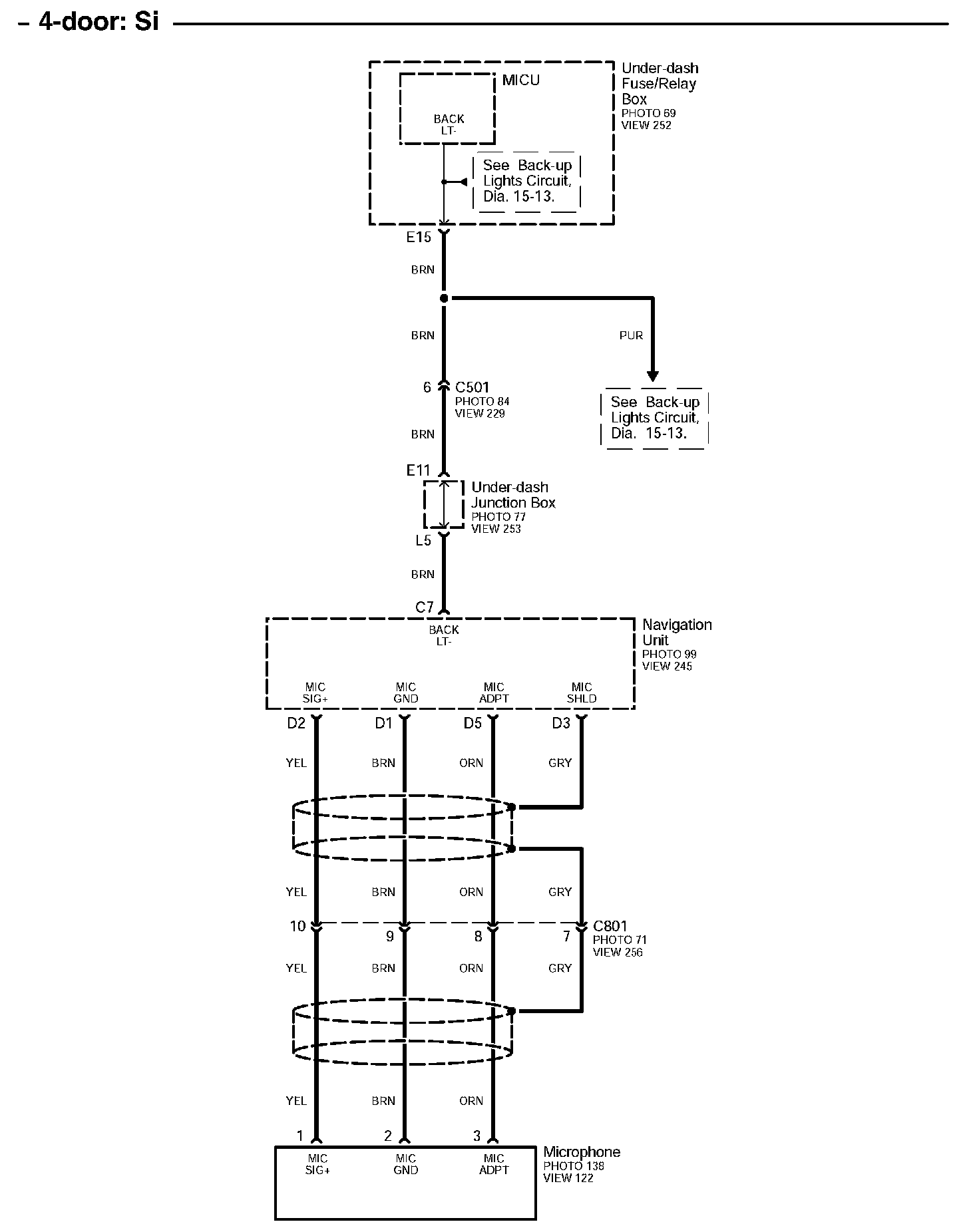

Diagram 156-19:

Diagram 156-20:

Diagram 156-21:

Diagram 156-22:

Diagram 156-23:

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
