Diagram Set 21 (Starting System)

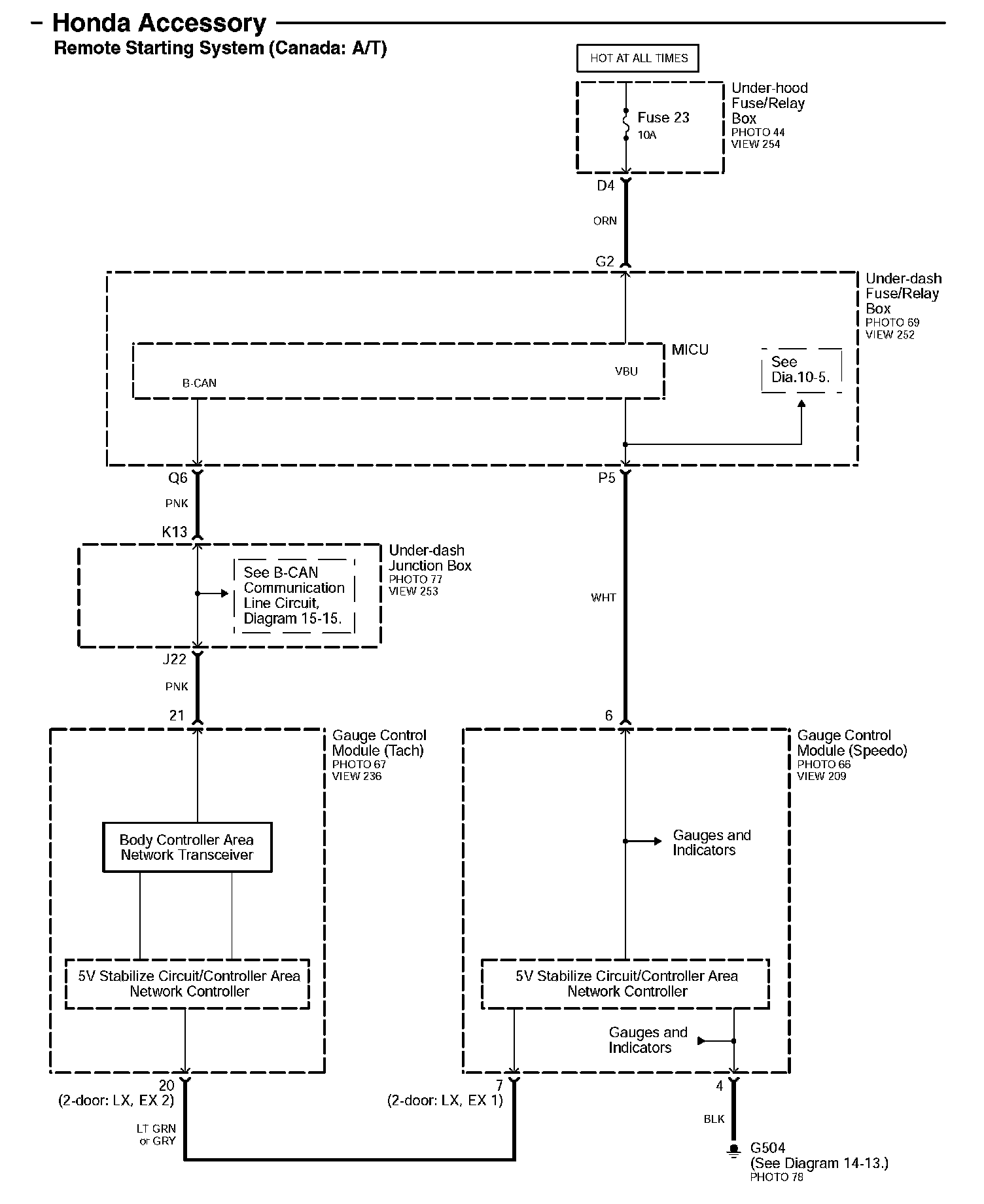

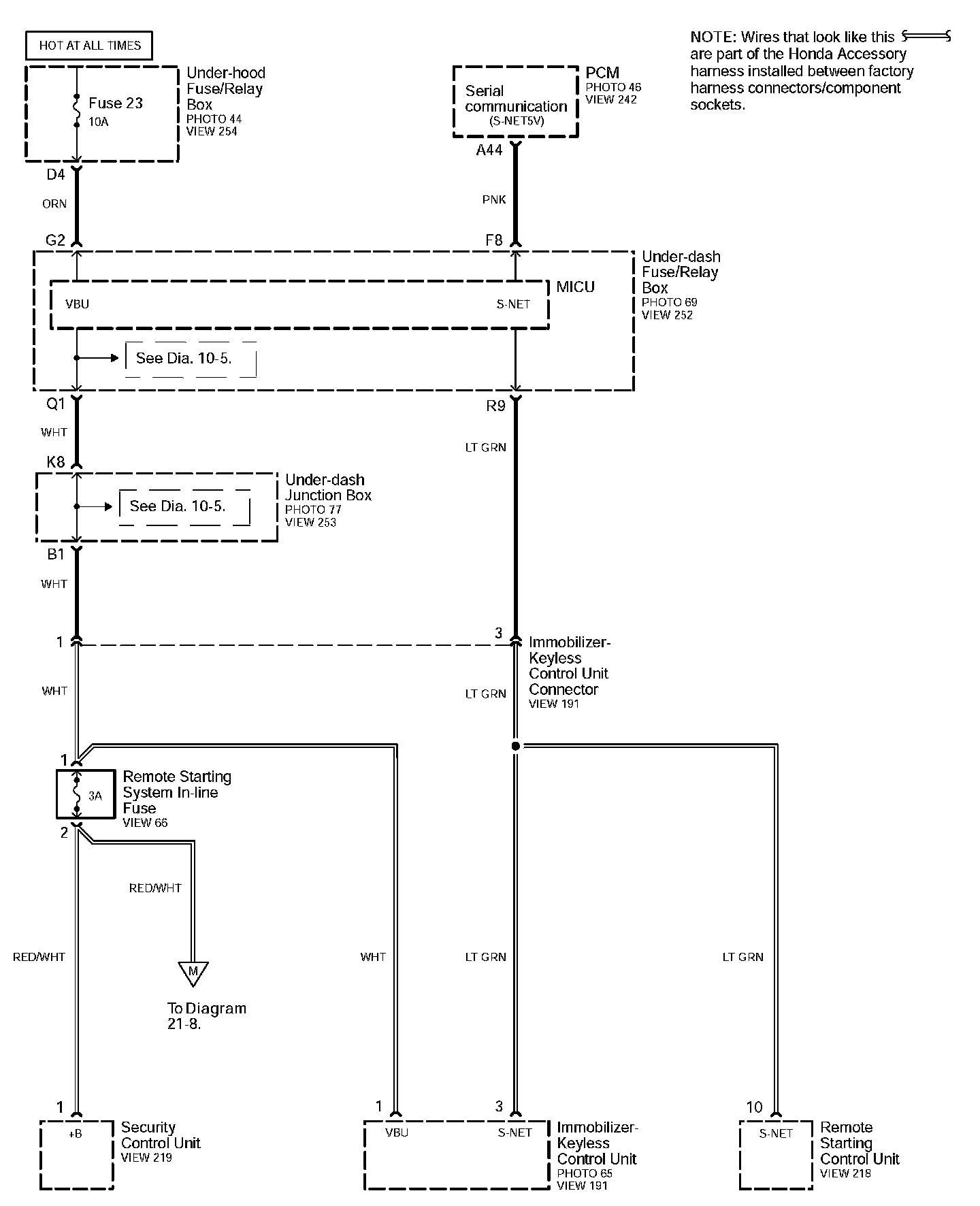

Diagram 21-0:

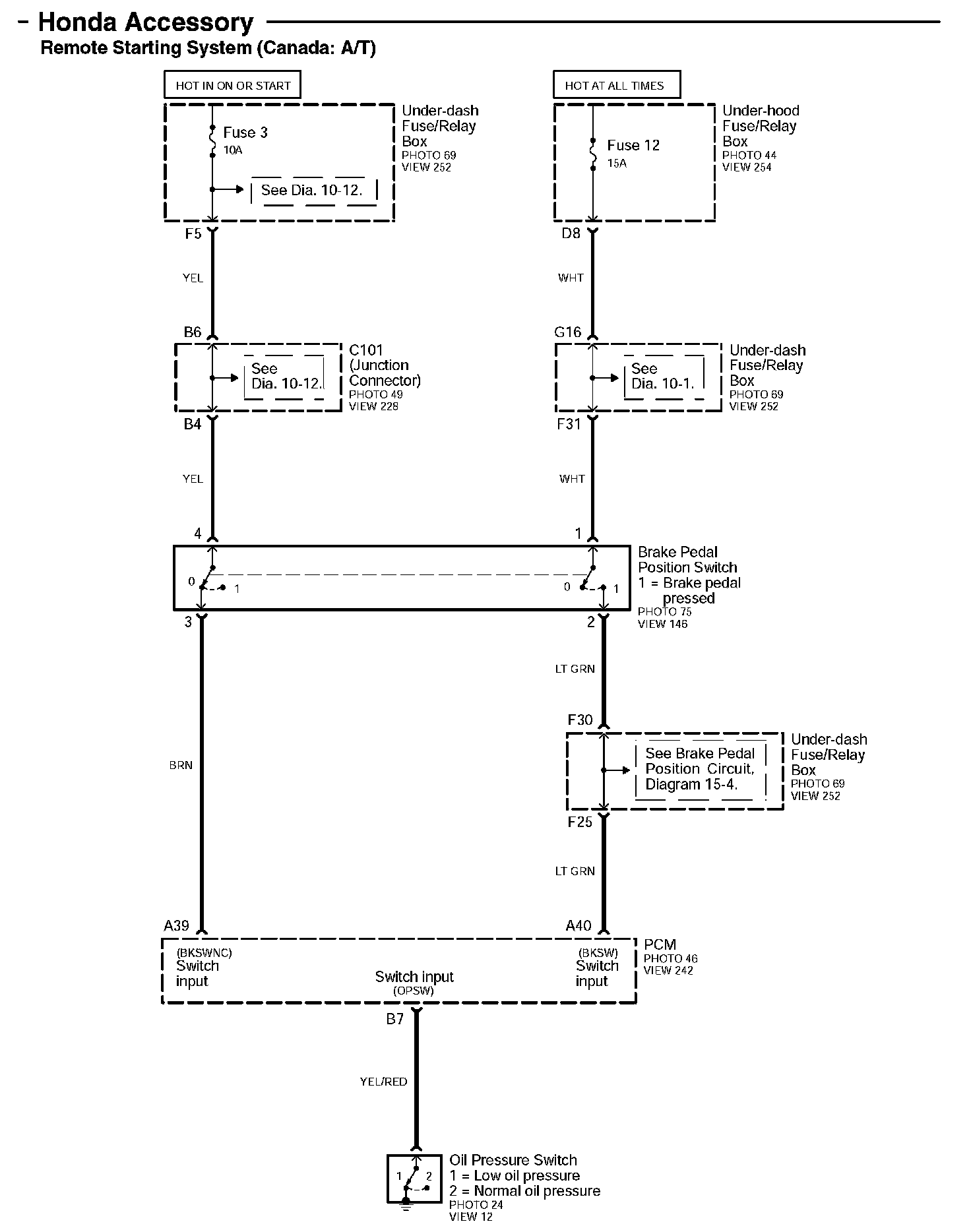

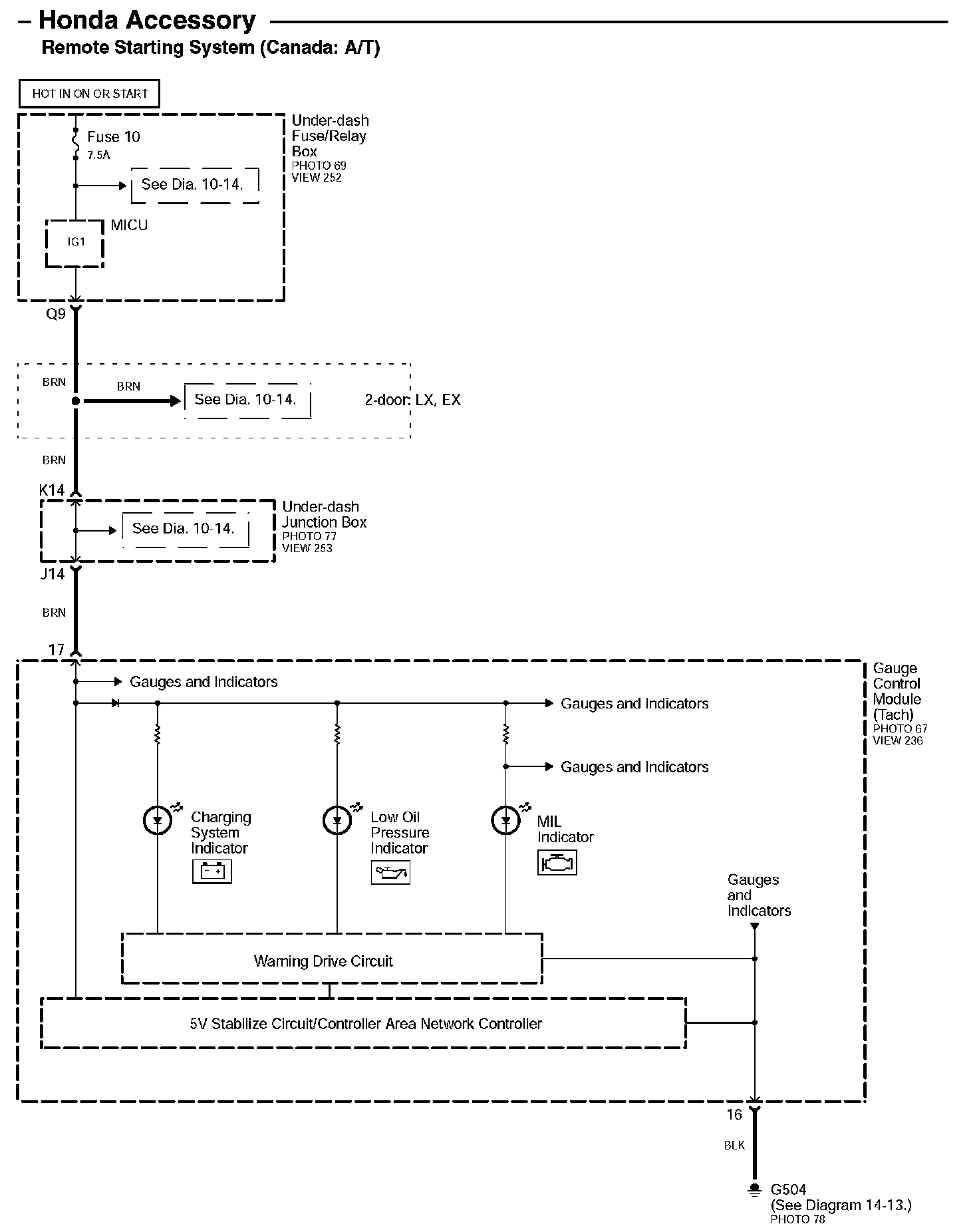

Diagram 21-2:

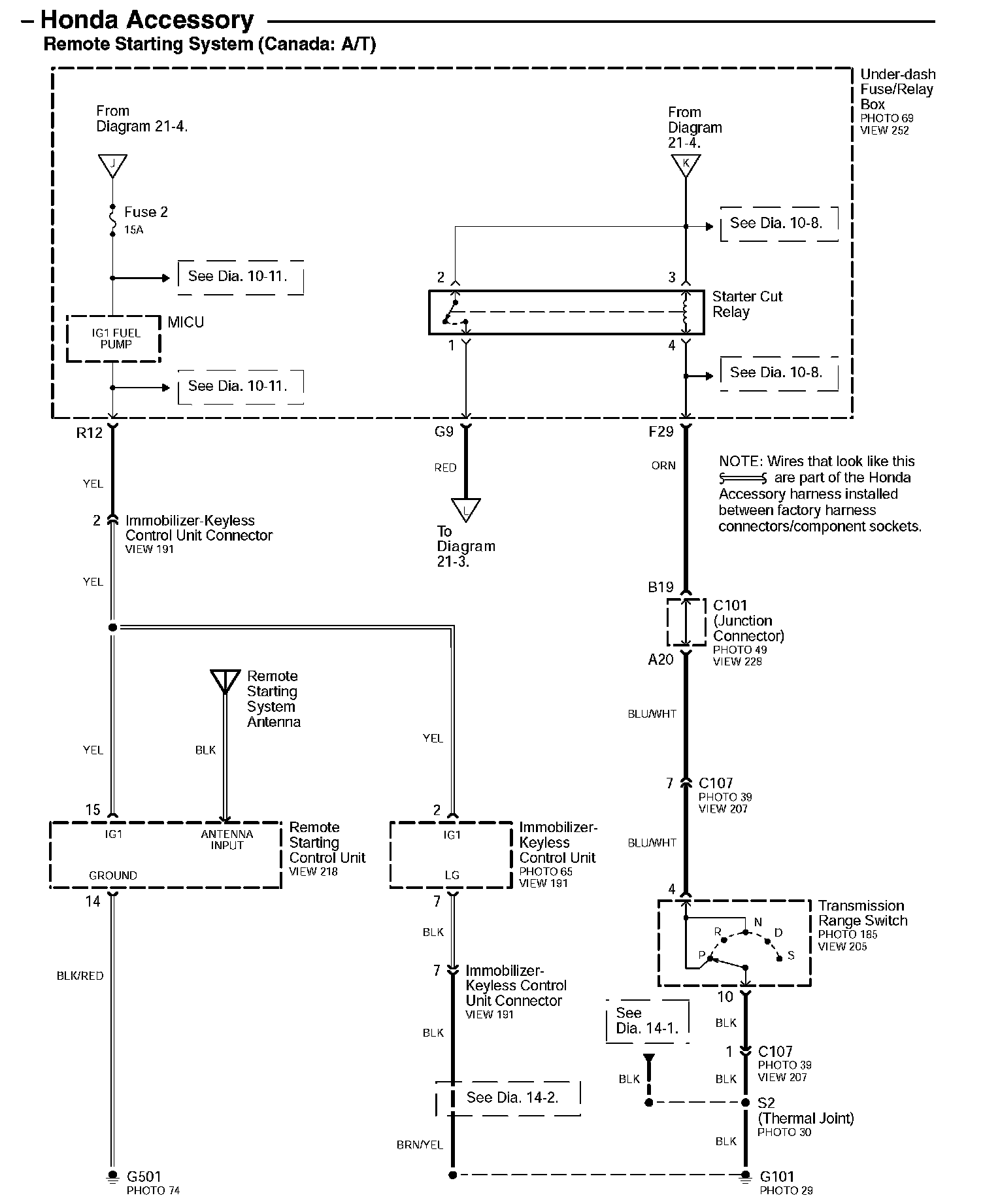

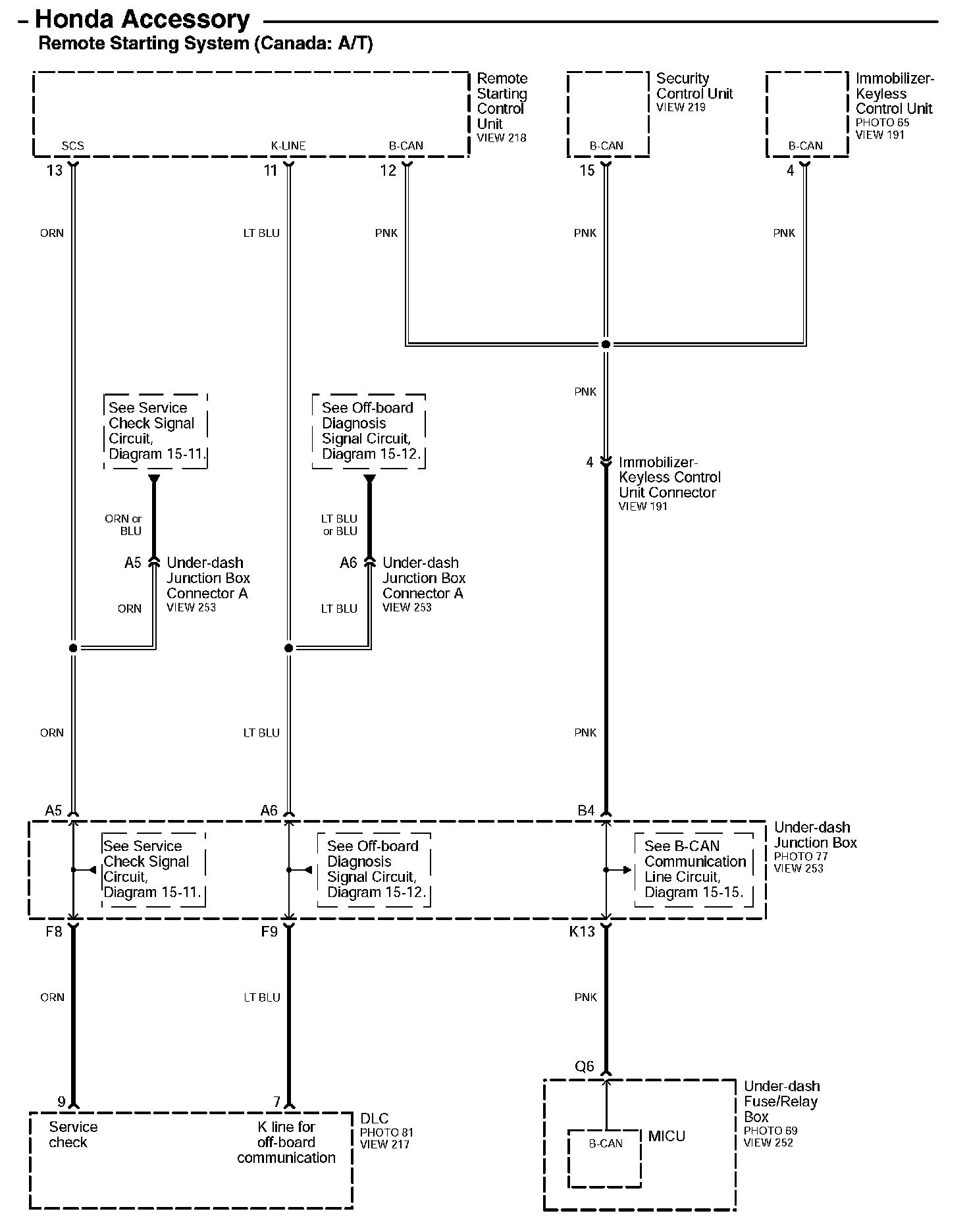

Diagram 21-3:

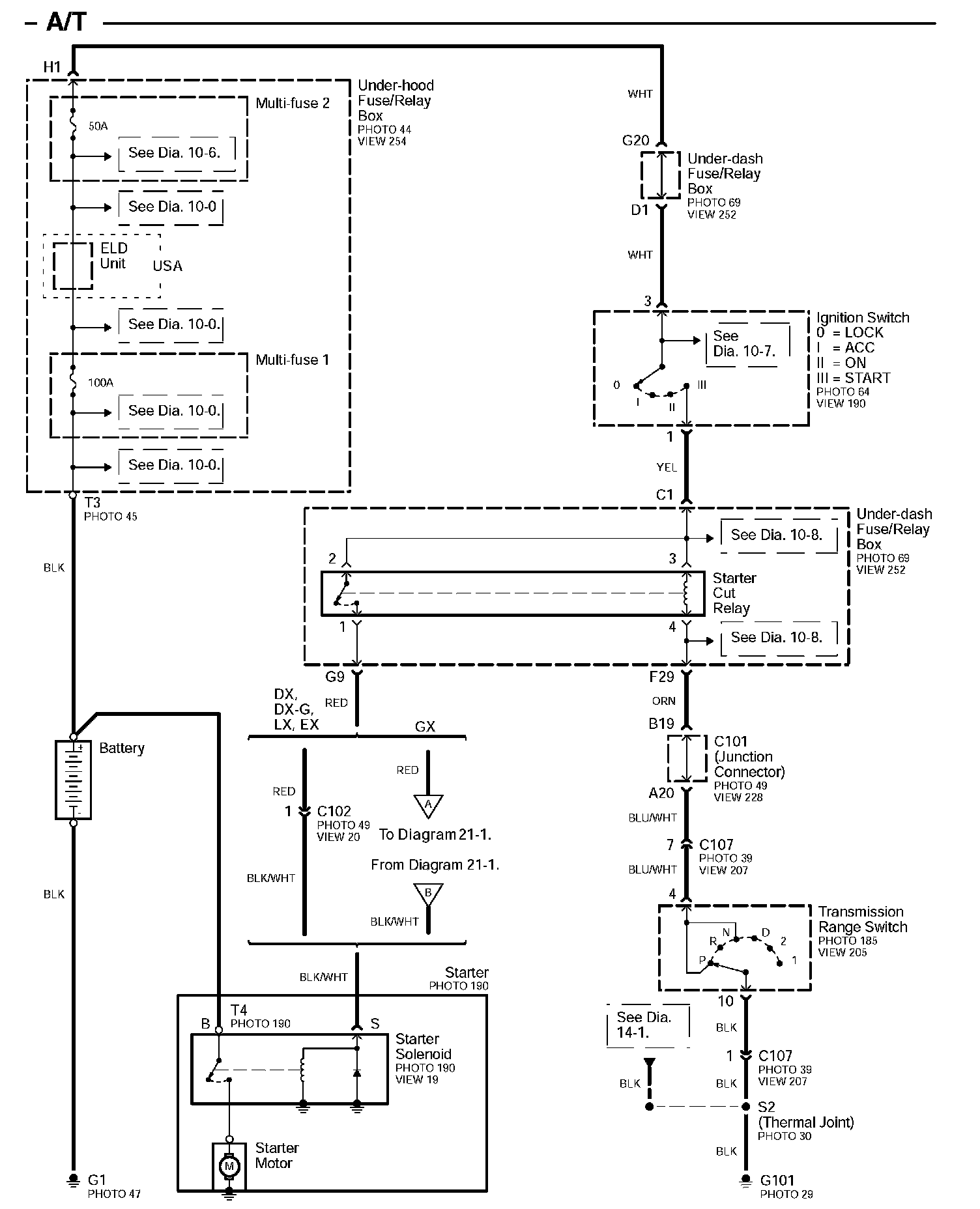

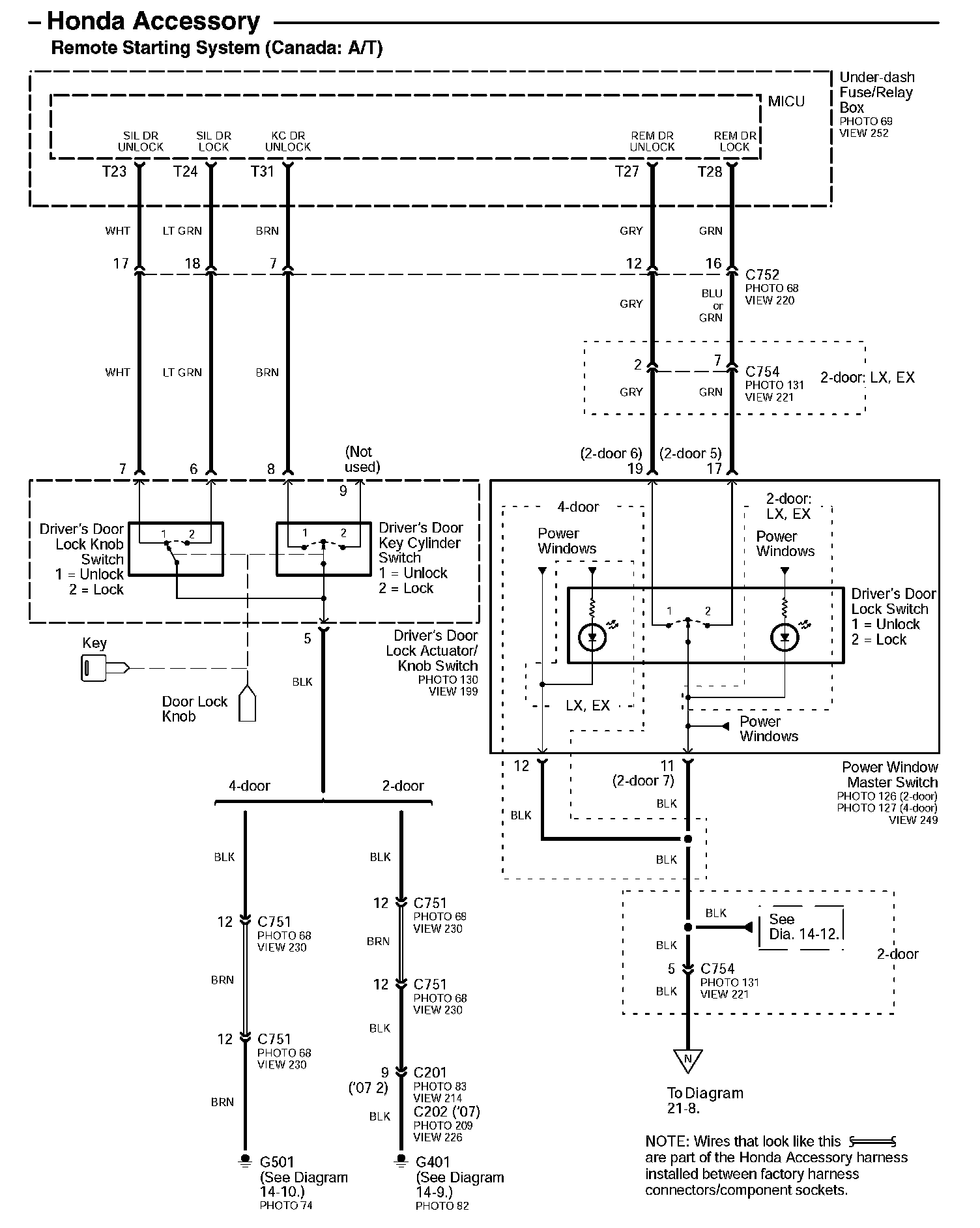

Diagram 21-4:

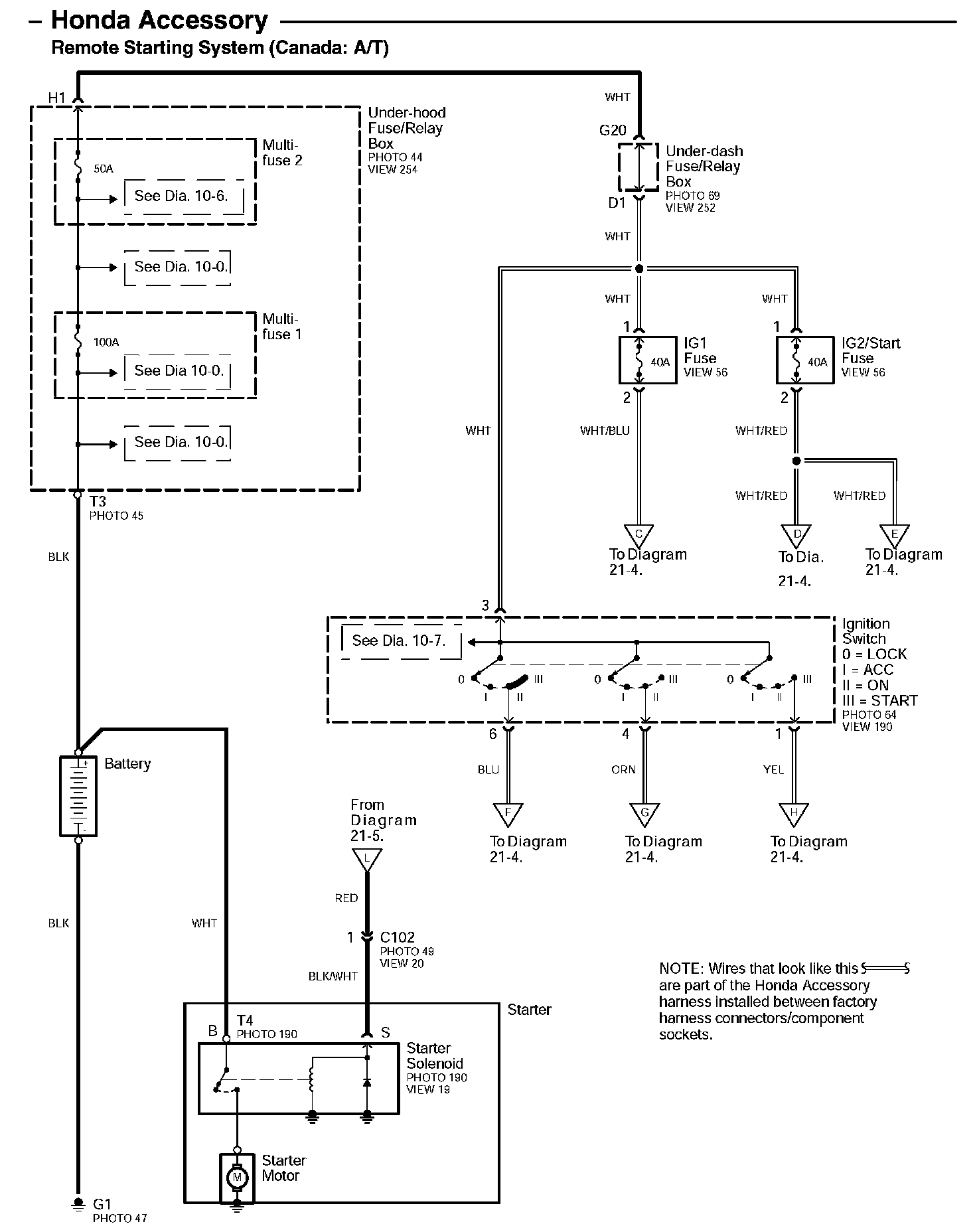

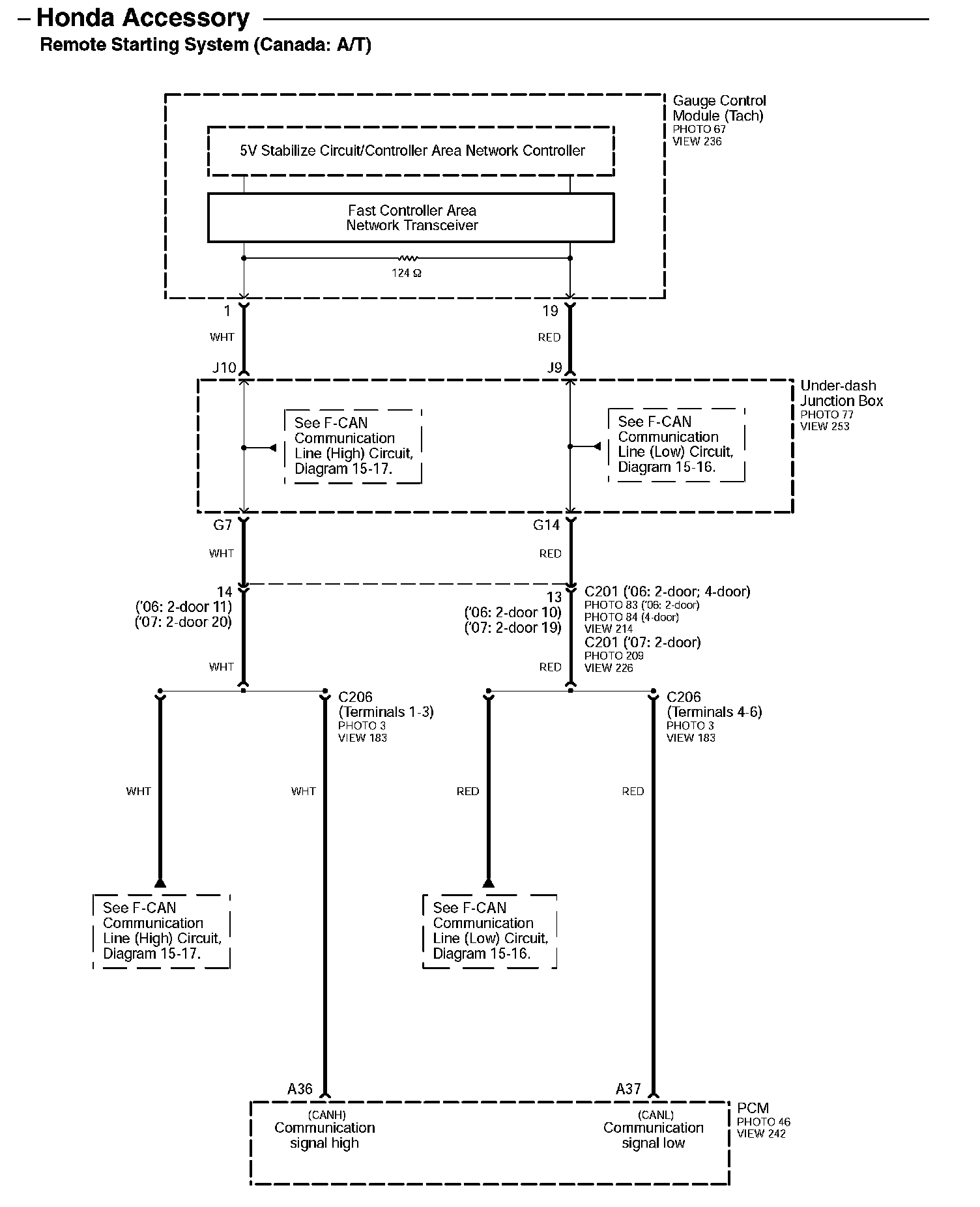

Diagram 21-5:

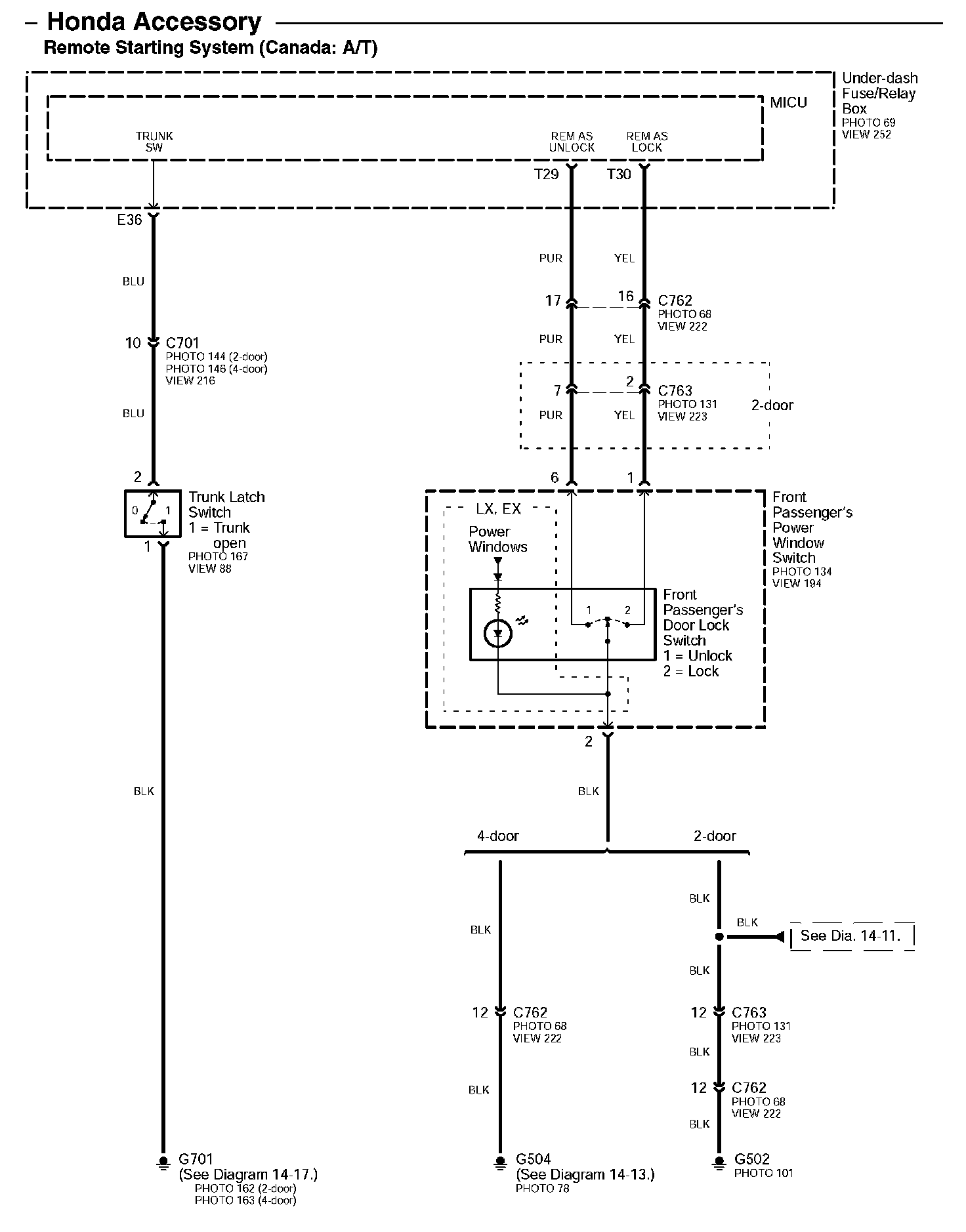

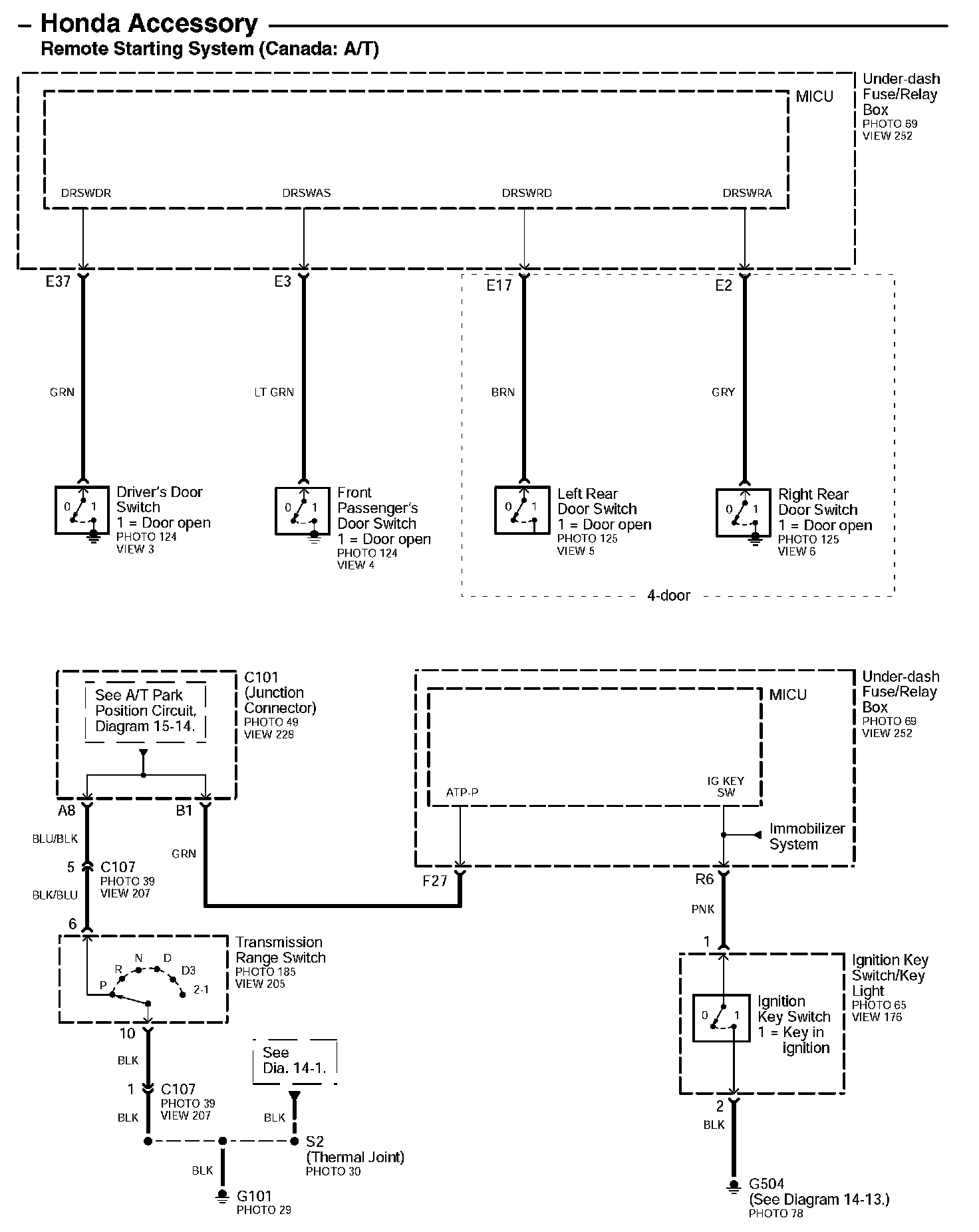

Diagram 21-6:

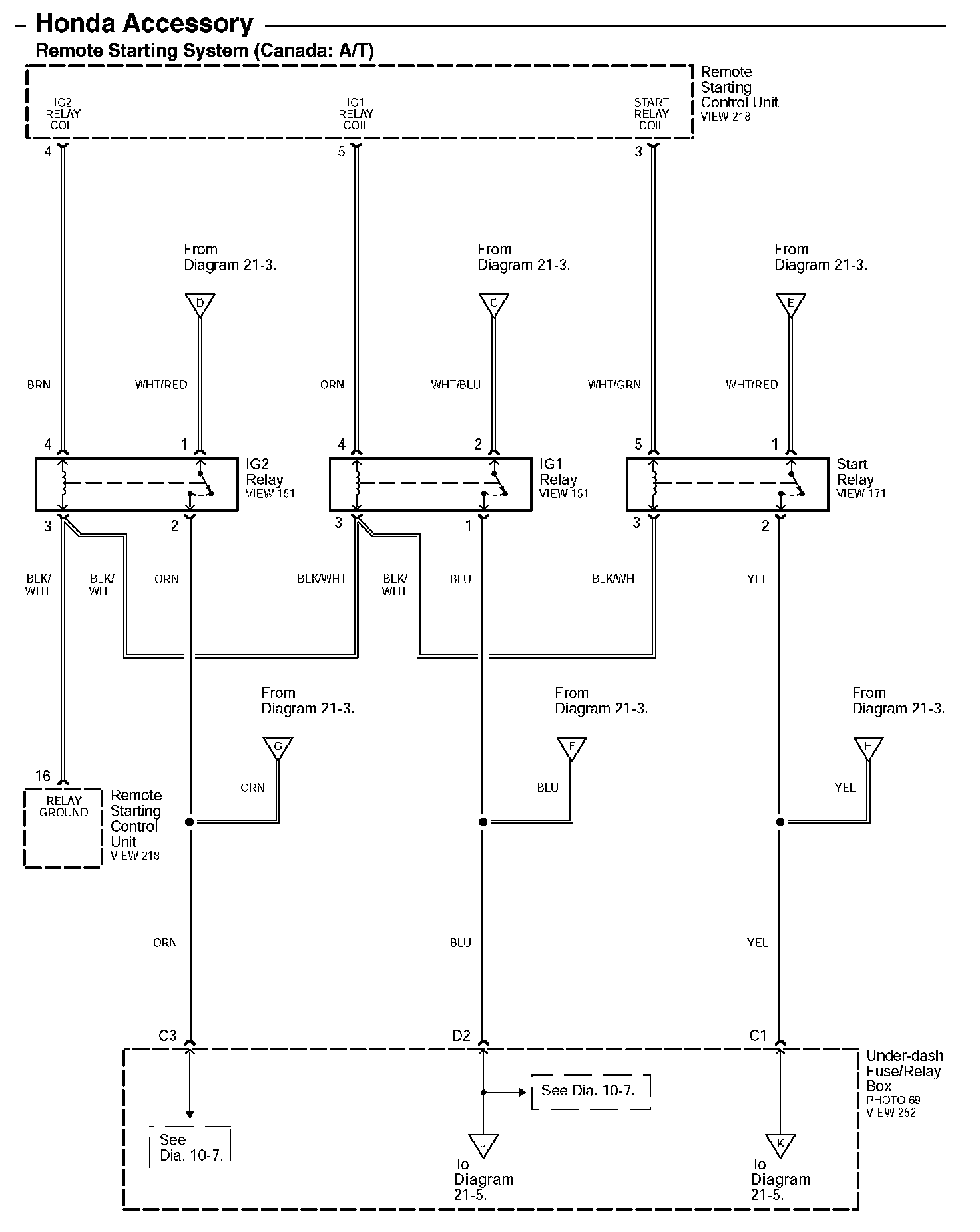

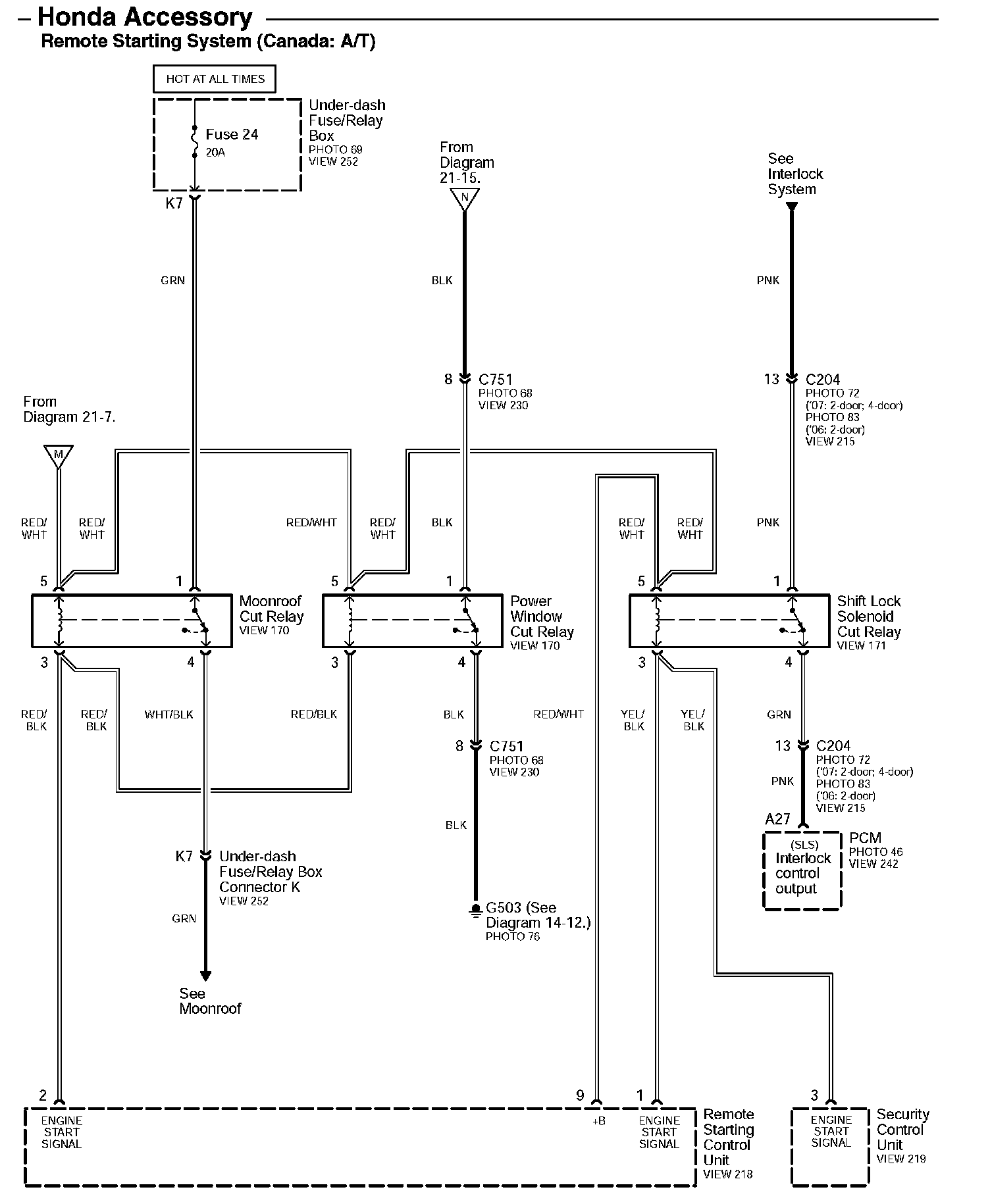

Diagram 21-7:

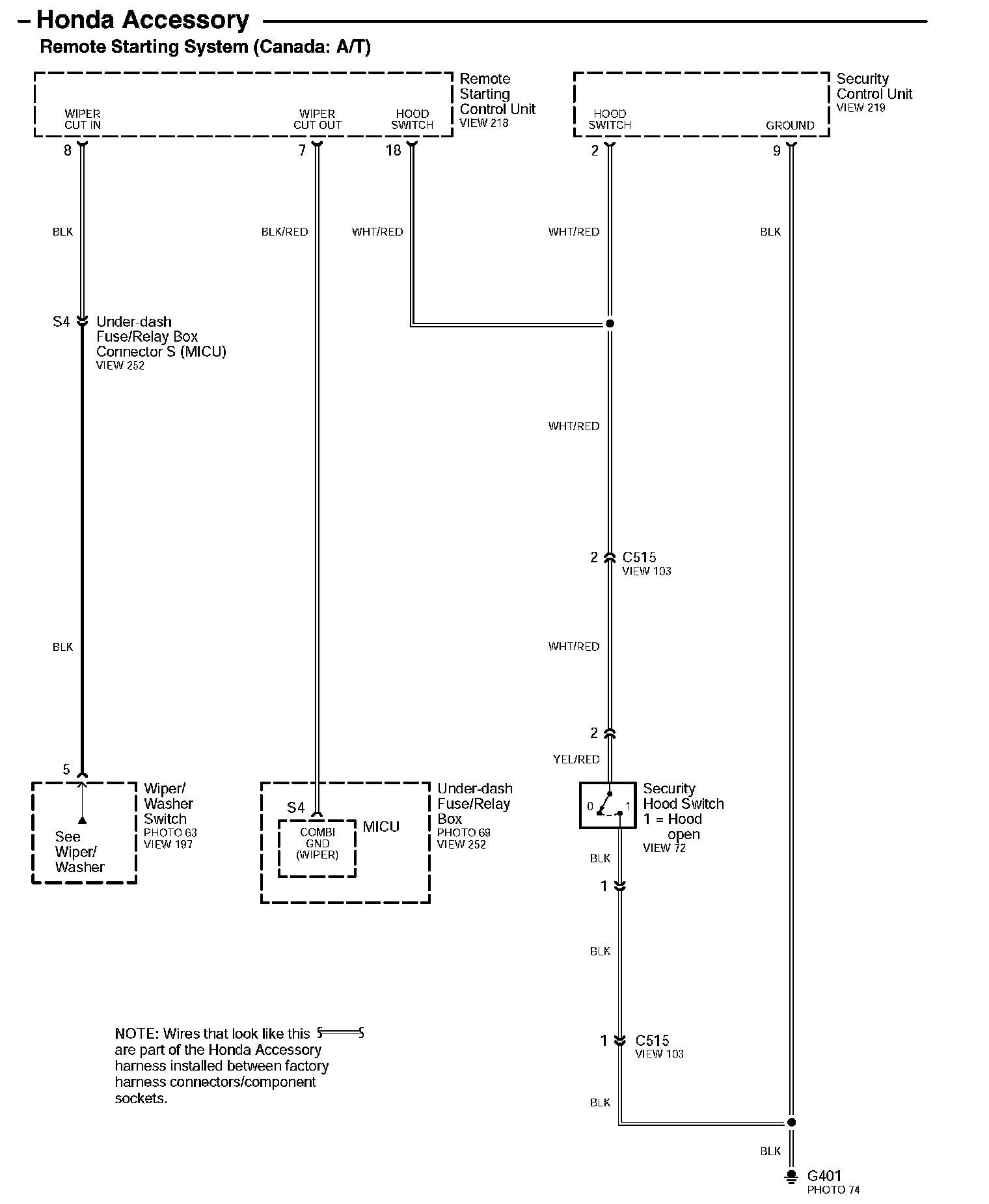

Diagram 21-8:



Diagram 21-9:



Diagram 21-10:



Diagram 21-11:



Diagram 21-12:



Diagram 21-13:



Diagram 21-14:



Diagram 21-15:



Diagram 21-16:
