ABS/TCS Circuit Diagram

Circuit Diagram

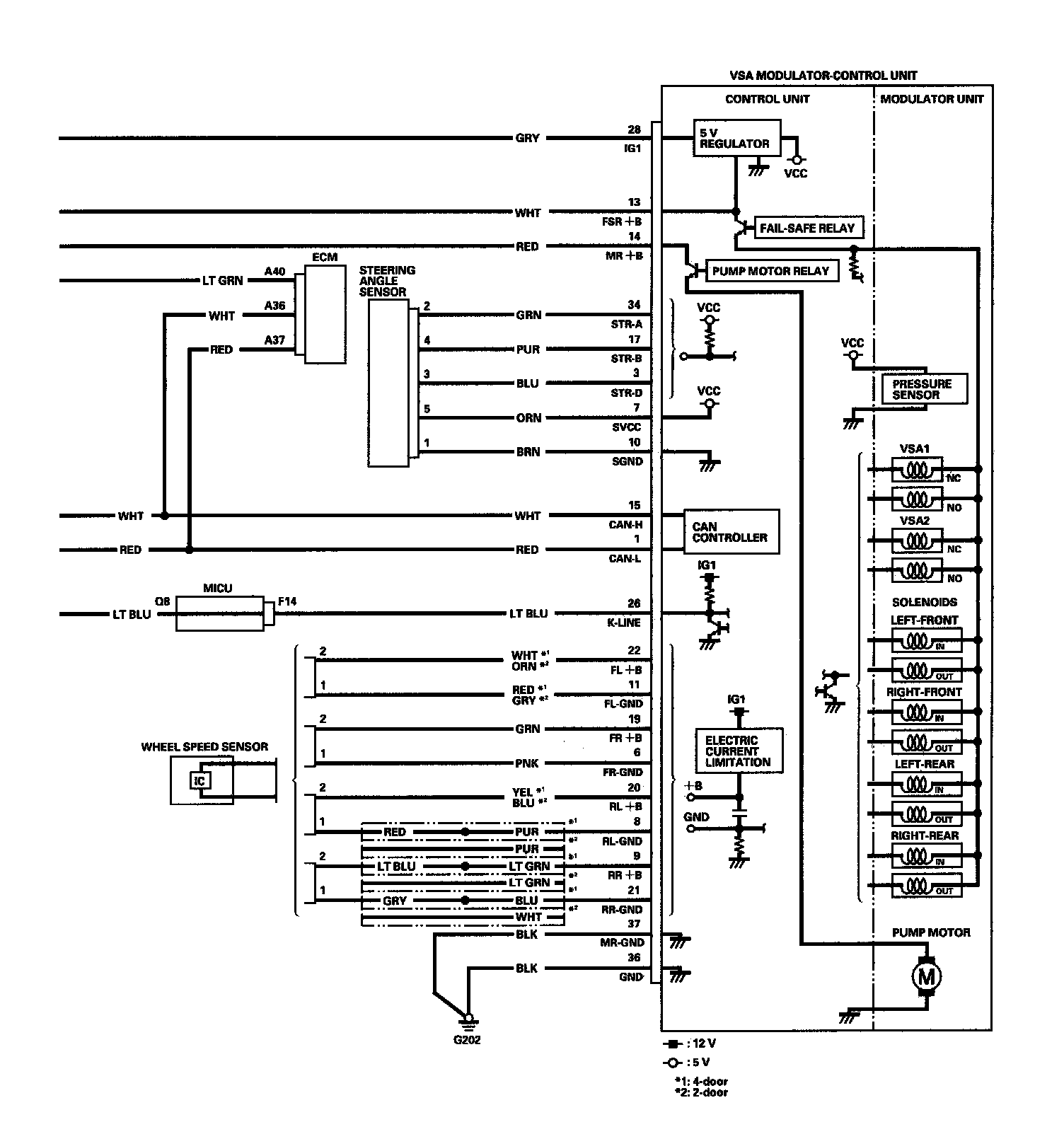

VSA (Vehicle Stability Assist) System Circuit Diagram (Part 1):

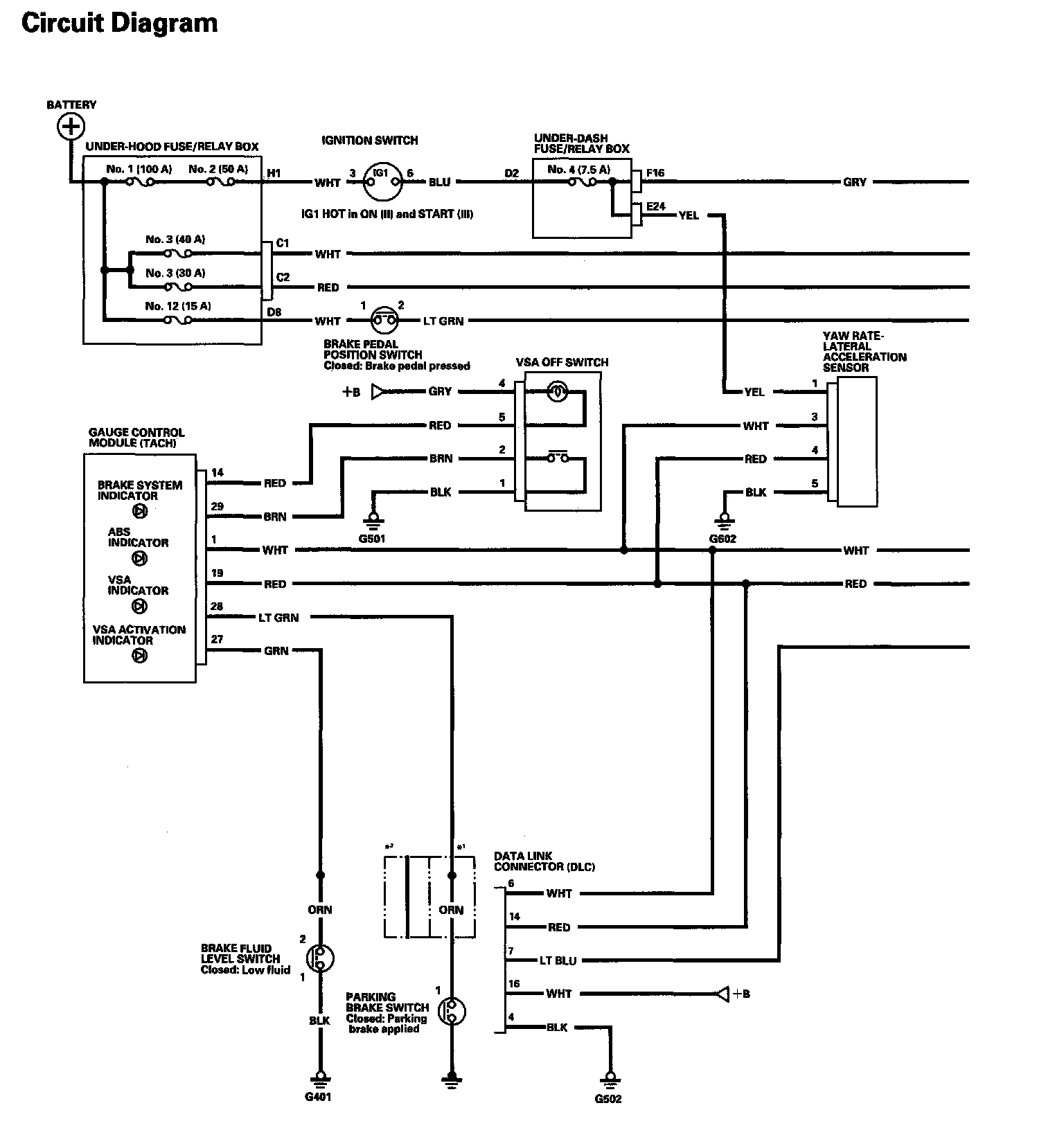

VSA (Vehicle Stability Assist) System Circuit Diagram (Part 2):

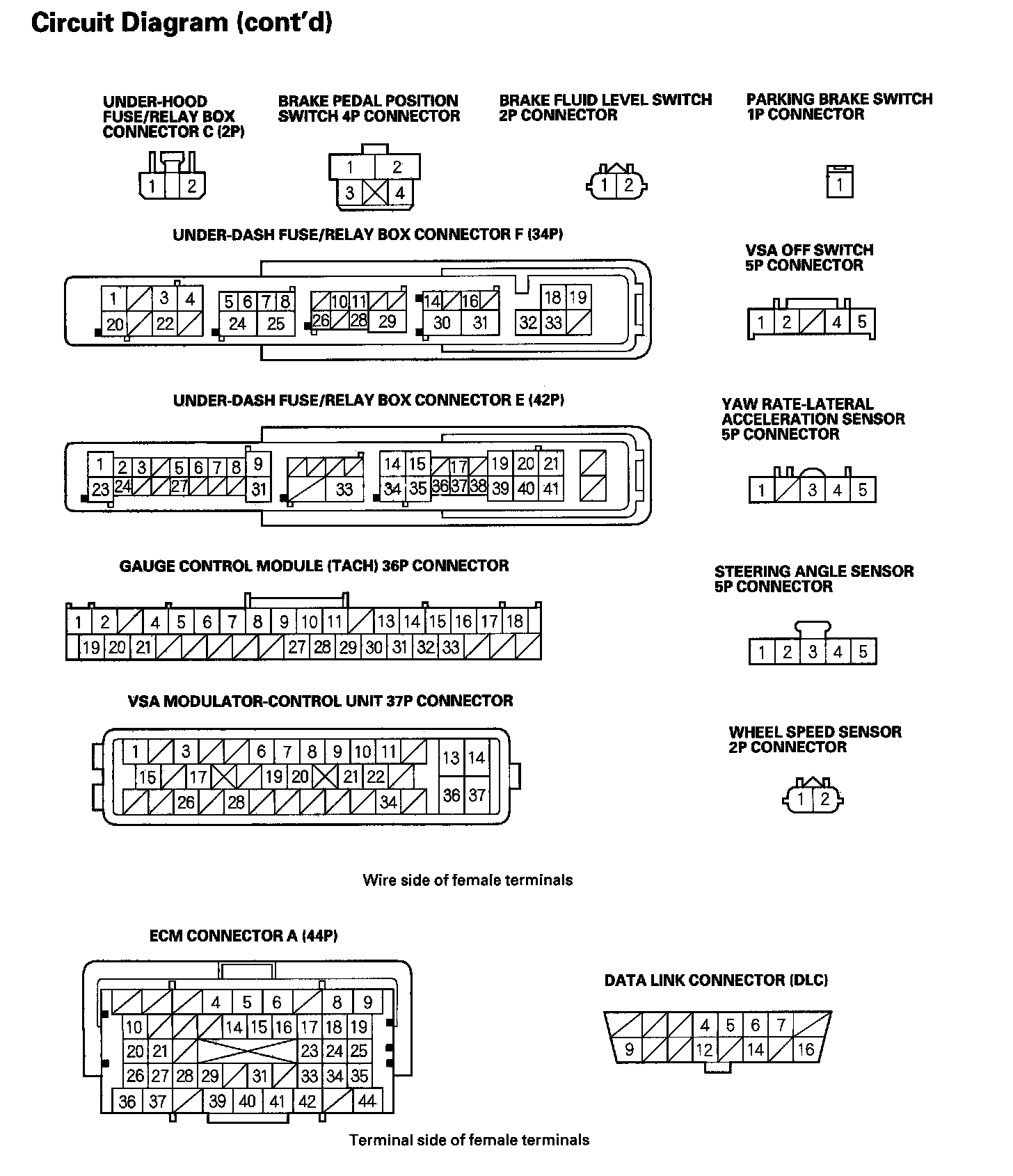

VSA (Vehicle Stability Assist) System Circuit Diagram (Part 3):
