System Diagram
System Diagram

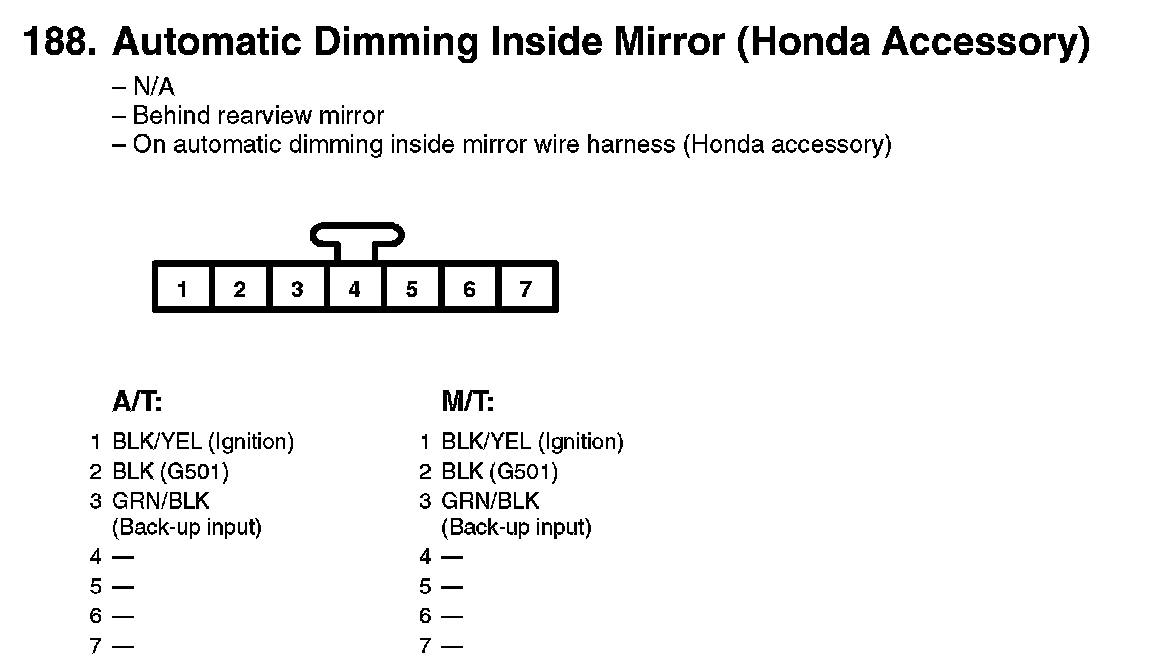

188. Automatic Dimming Inside Mirror (Honda Accessory):

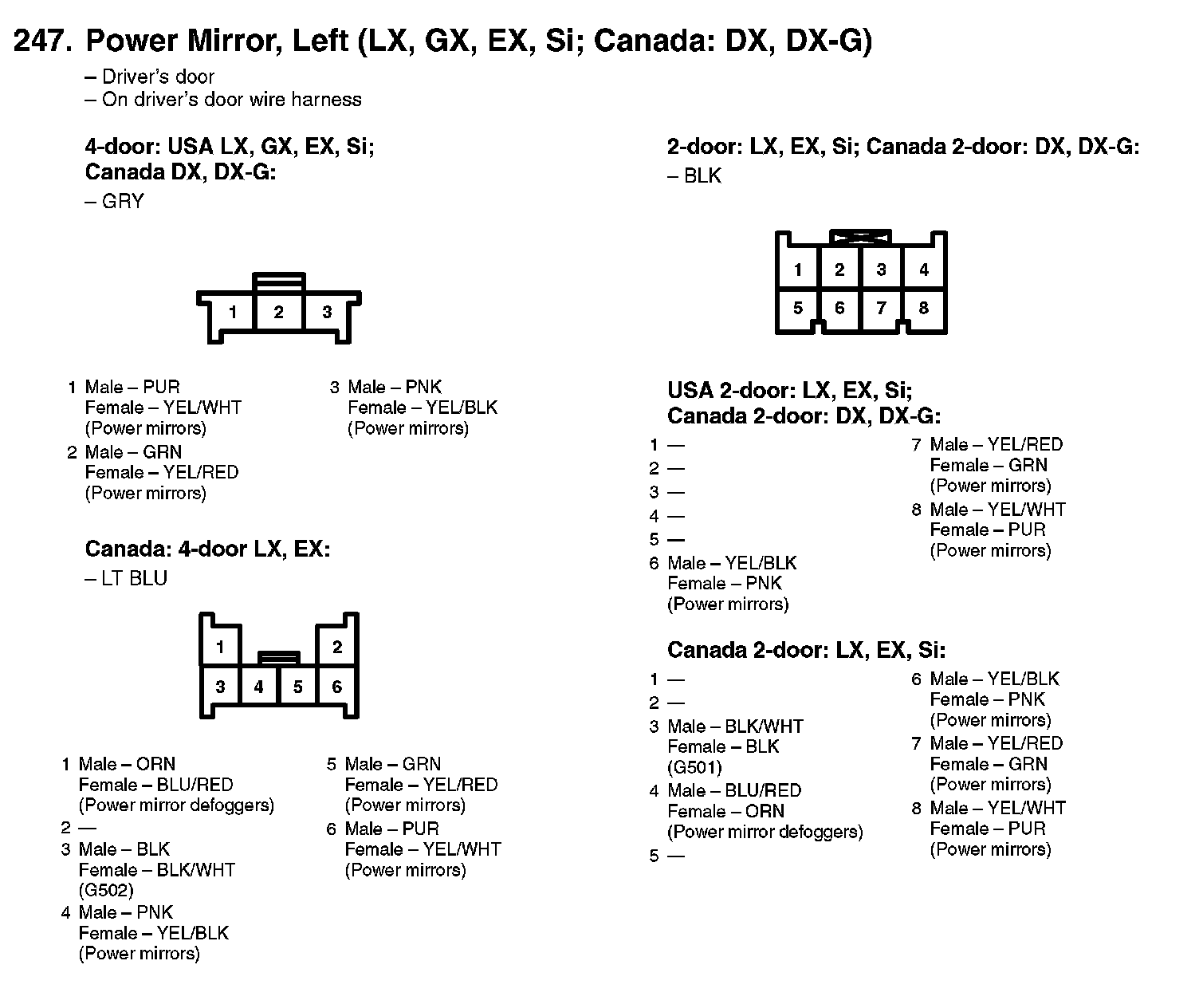

247. Power Mirror, Left (LX, GX, EX, Si; Canada: DX, DX-G):

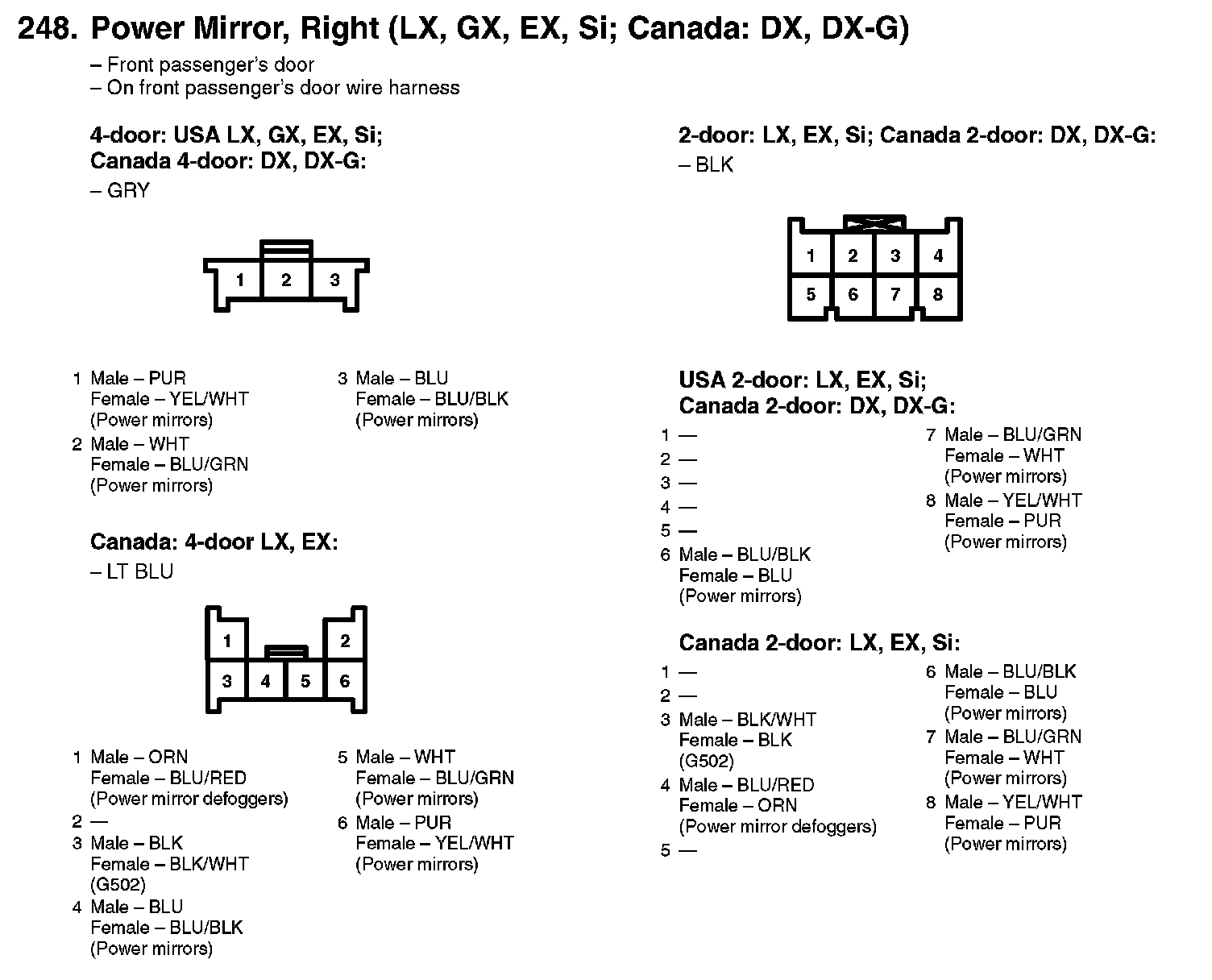

248. Power Mirror, Right (LX, GX, EX, Si; Canada: DX, DX-G):
