Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Starting System >> Keyless Start Control Module

Keyless Start Control Module

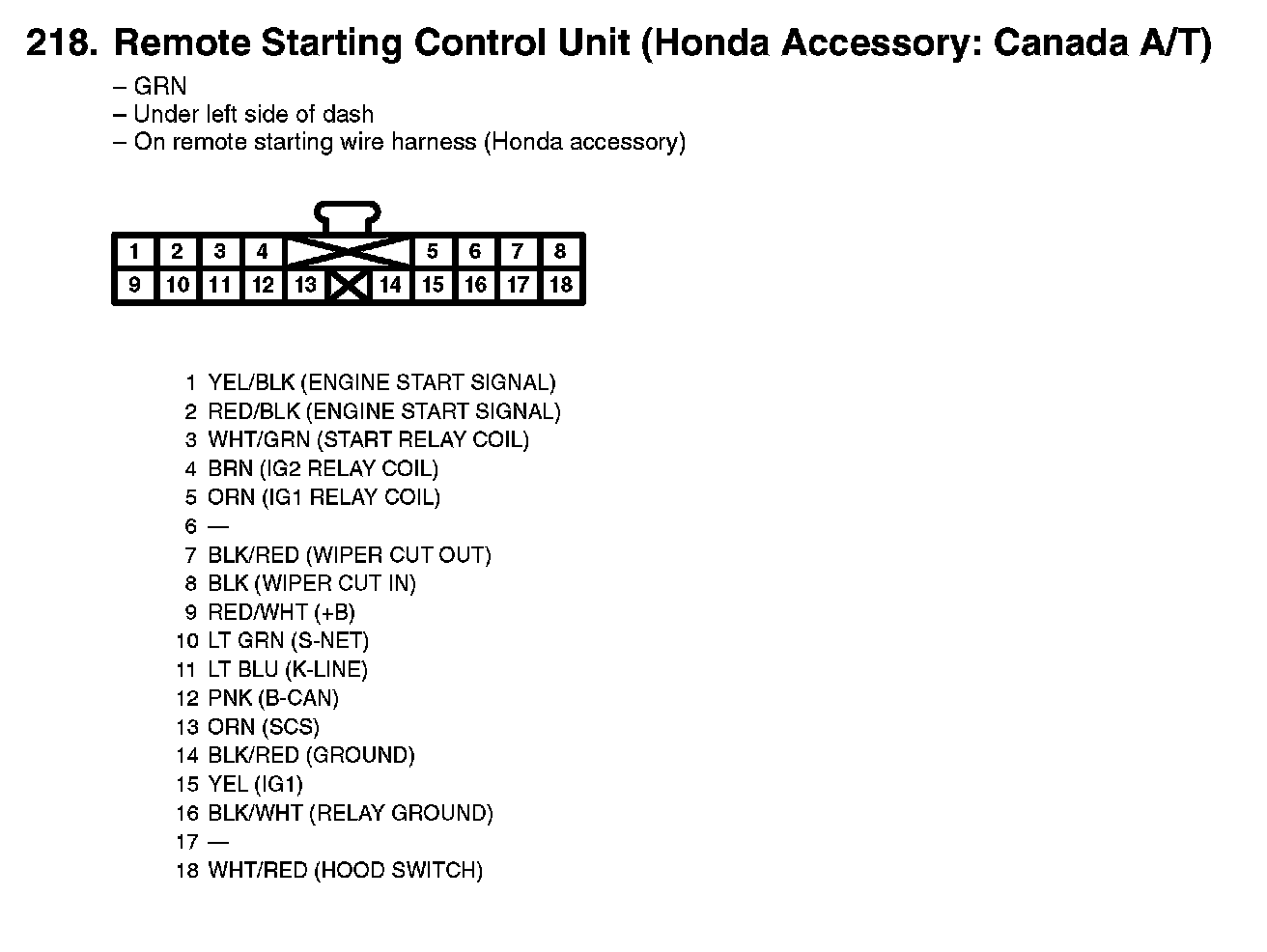

218. Remote Starting Control Unit (Honda Accessory: Canada A/T):
