Electronic Brake Control Module
Electronic Brake Control Module

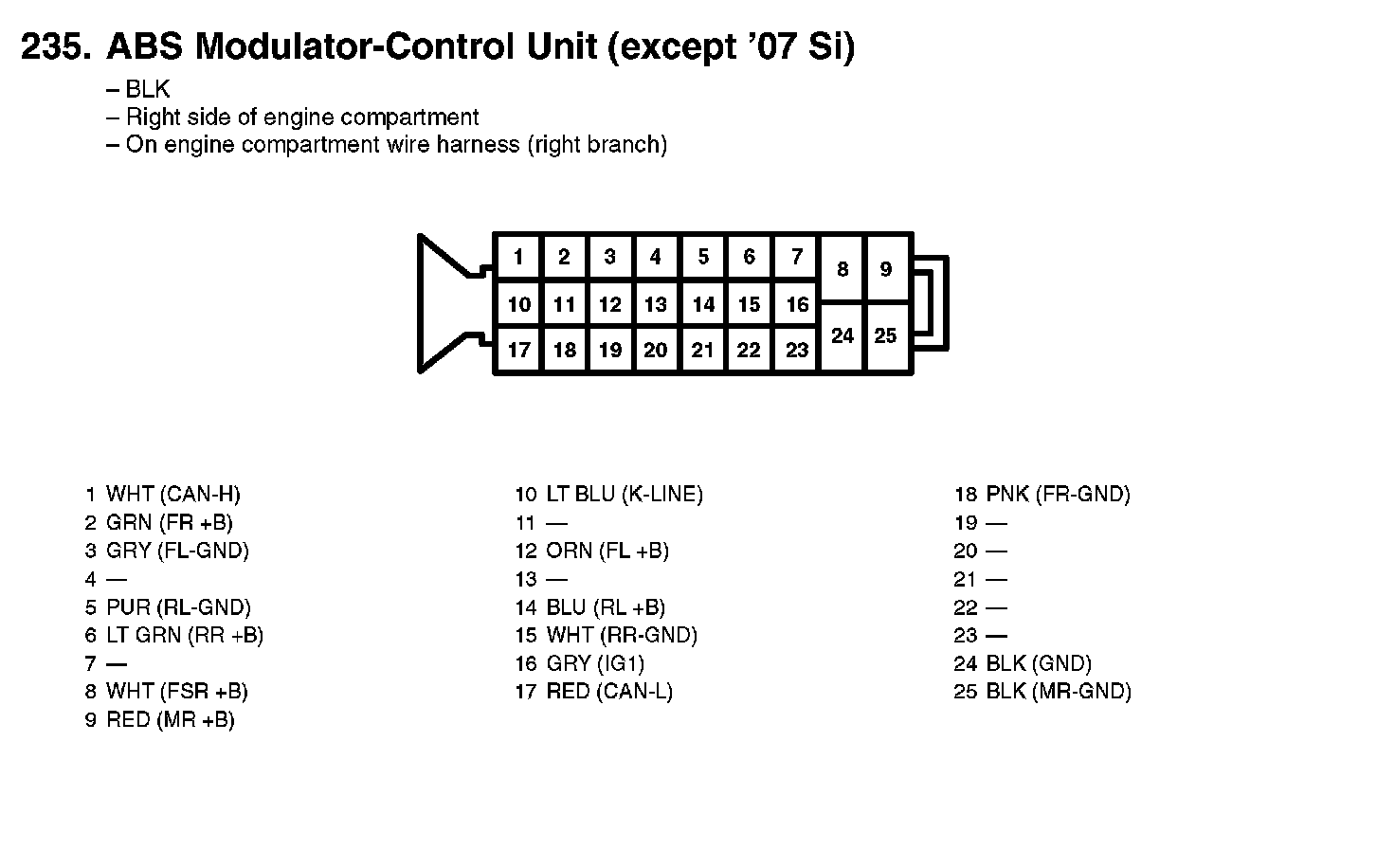

235. ABS Modulator-Control Unit (except '07 Si):

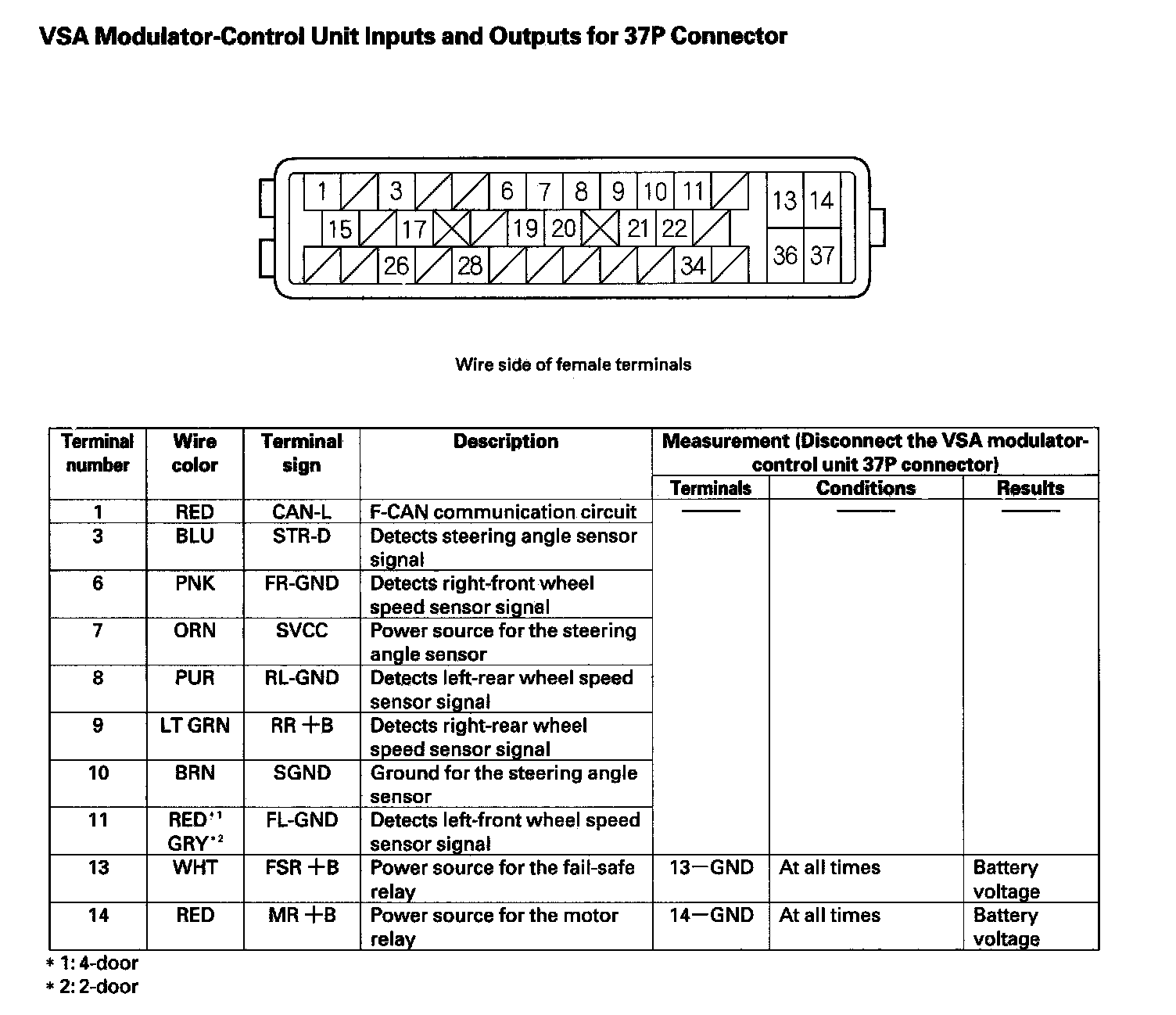

VSA Modulator-Control Unit Inputs And Outputs, Part 1:

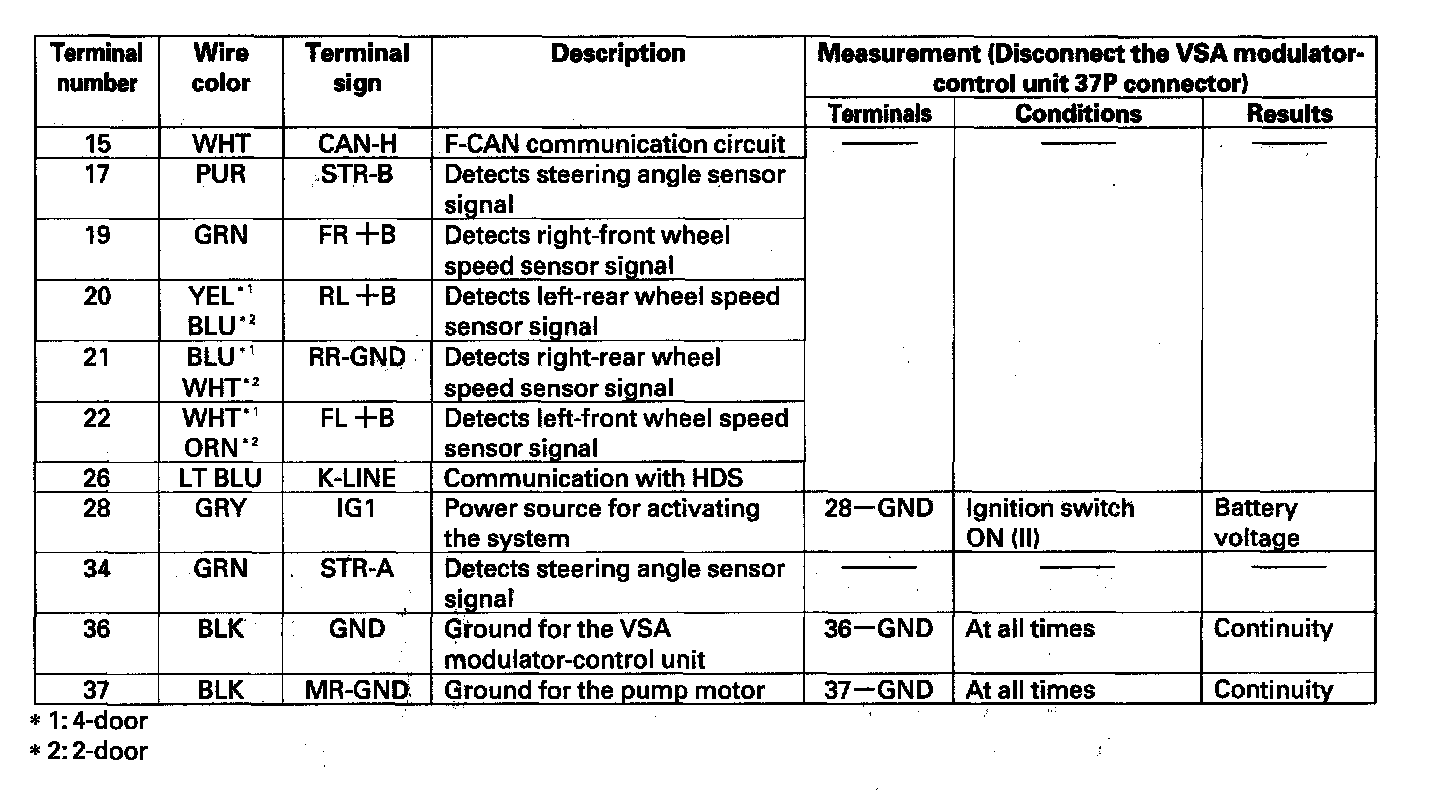

VSA Modulator-Control Unit Inputs And Outputs, Part 2:
