Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 76-100 >> 90

View 76-100: 90

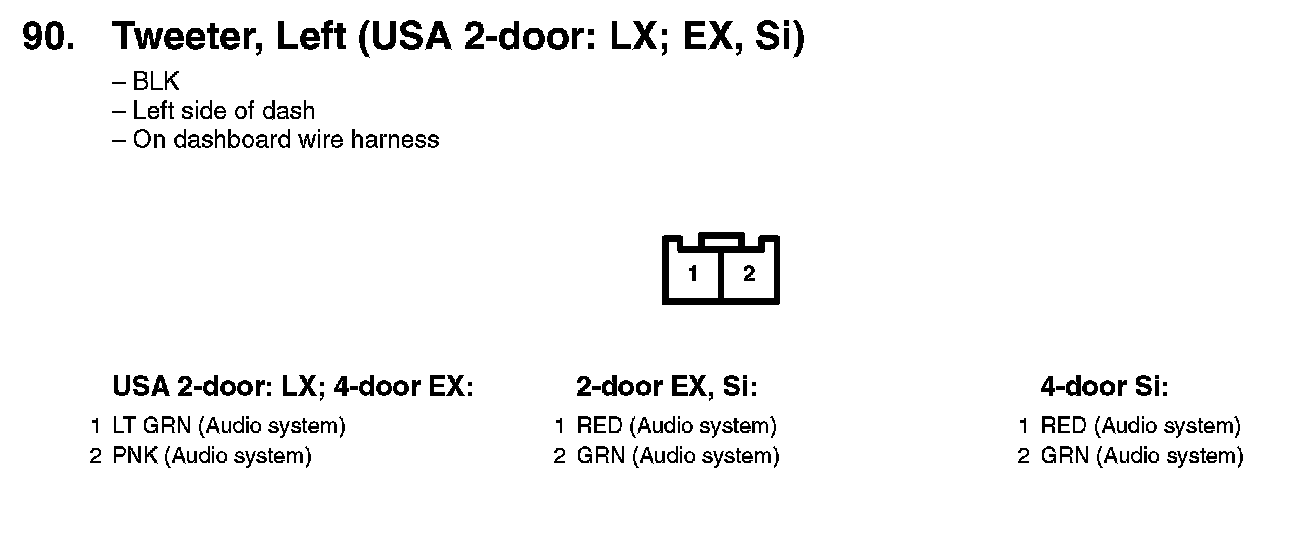

90. Tweeter, Left (USA 2-door: LX; EX, Si):
