View 26-50: 43

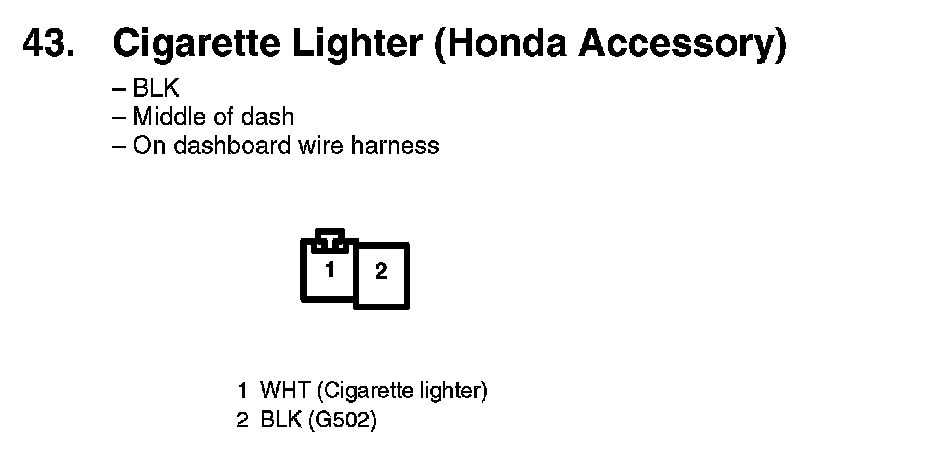

43. Cigarette Lighter (Honda Accessory):

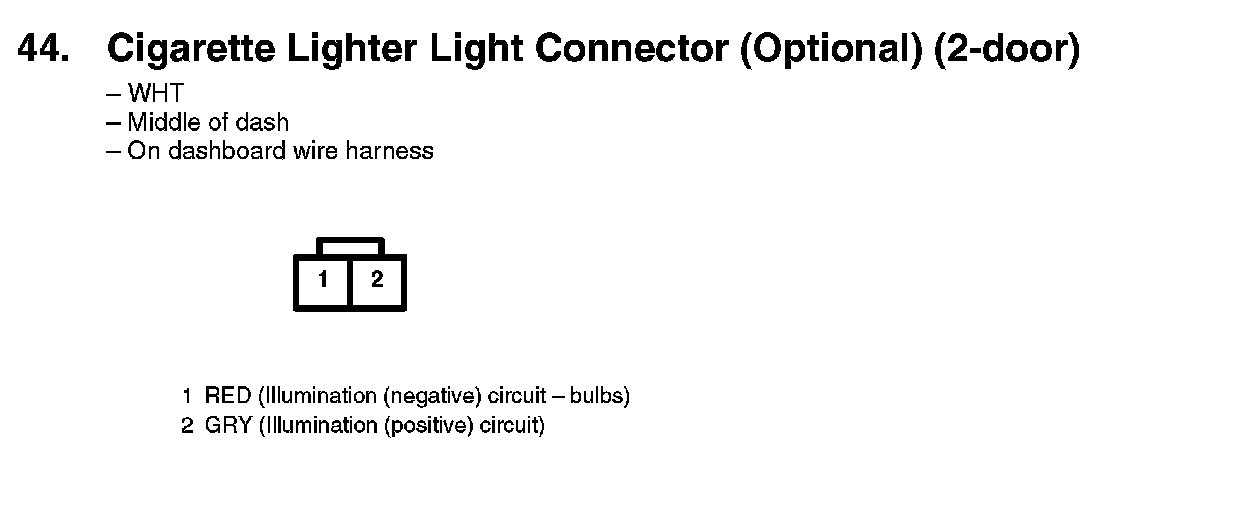

44. Cigarette Lighter Light Connector (Optional) (2-door):
