Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

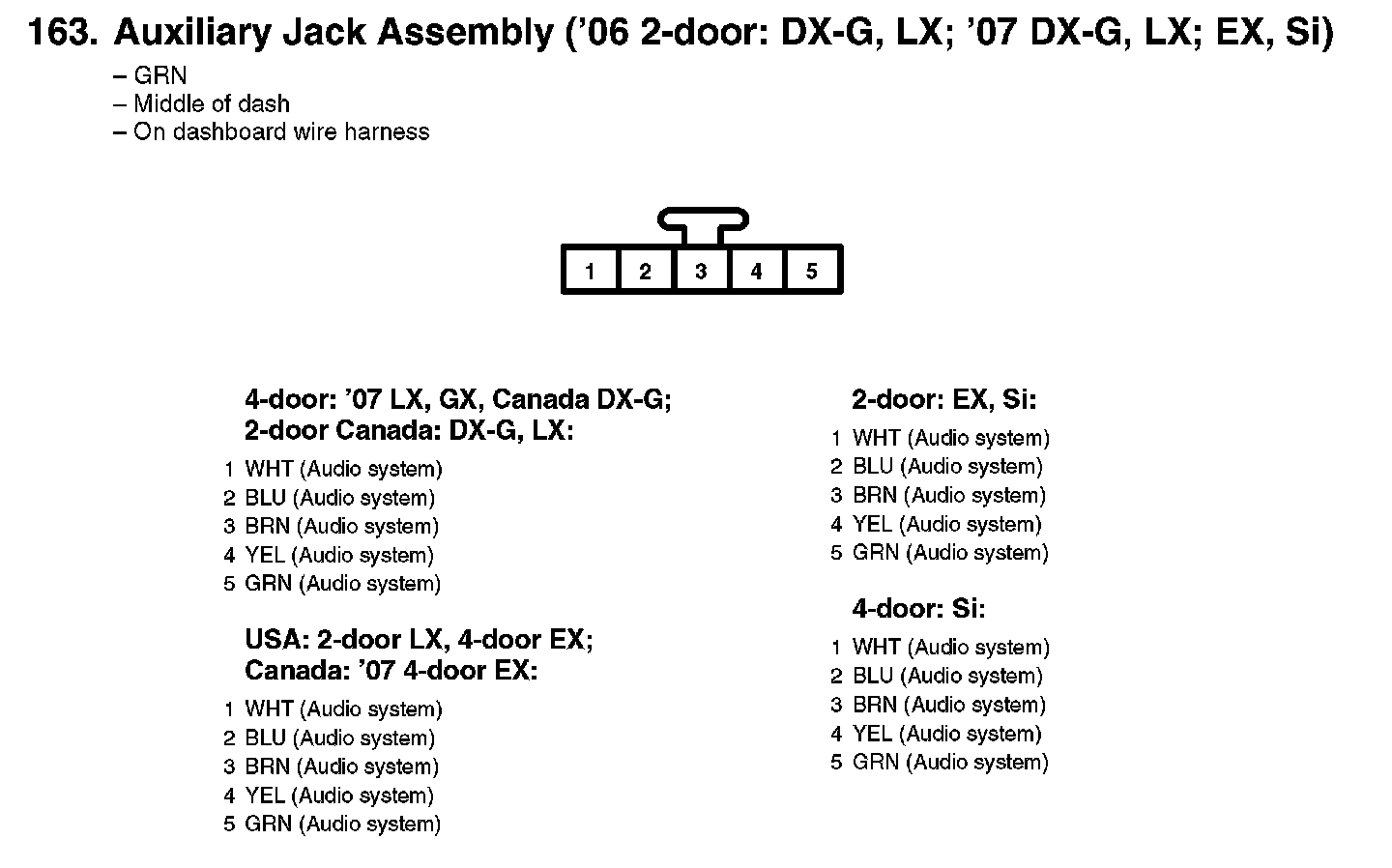

163. Auxiliary Jack Assembly ('06 2-door: DX-G, LX; '07 DX-G, LX; EX, Si):
