Alarm Module, (Vehicle Antitheft)

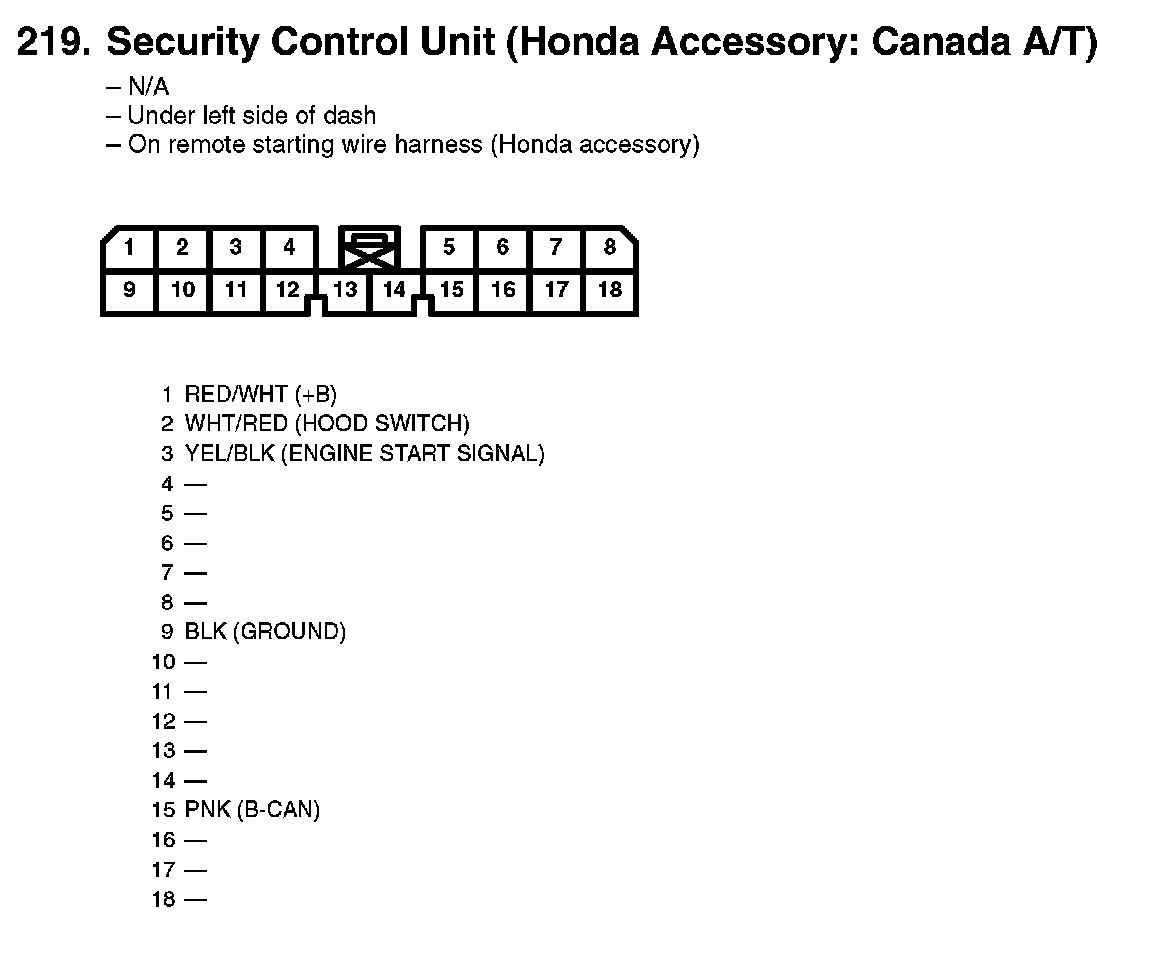

219. Security Control Unit (Honda Accessory: Canada A/T):

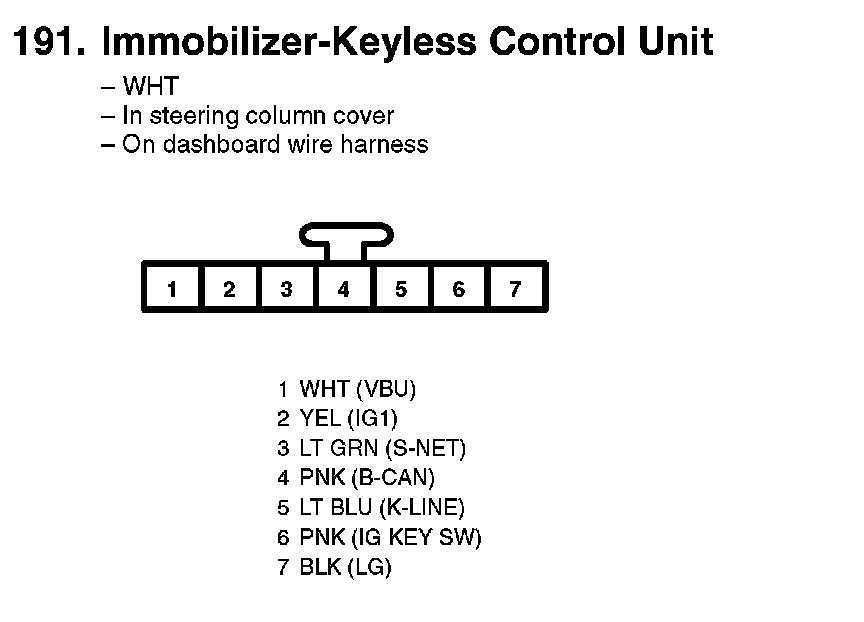

191. Immobilizer-Keyless Control Unit:
