Rear Floor Undercover Replacement

Rear Floor Undercover Replacement

For Some Models

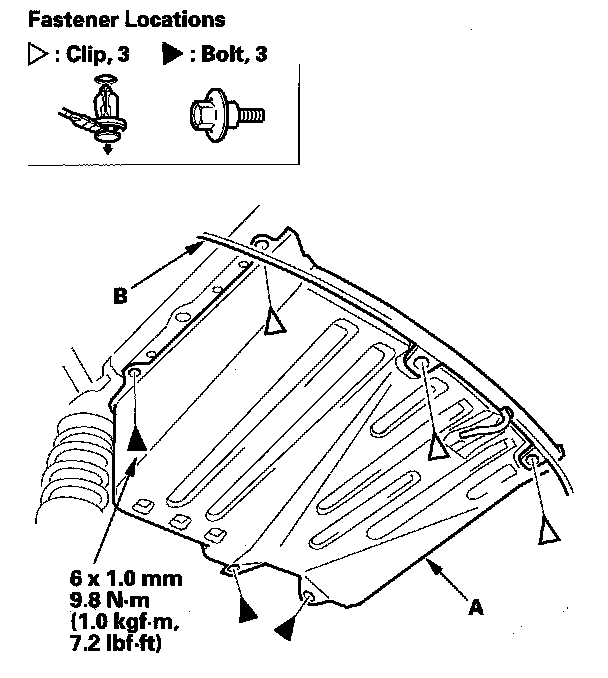

1. Remove the clips and bolts, then remove the rear floor undercover (A). Take care not to scratch the rear bumper (B).






2. Install the cover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
