Home >> Honda >> 2008 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Body and Frame >> Sound Proofing / Insulation >> Locations

Sound Proofing / Insulation: Locations

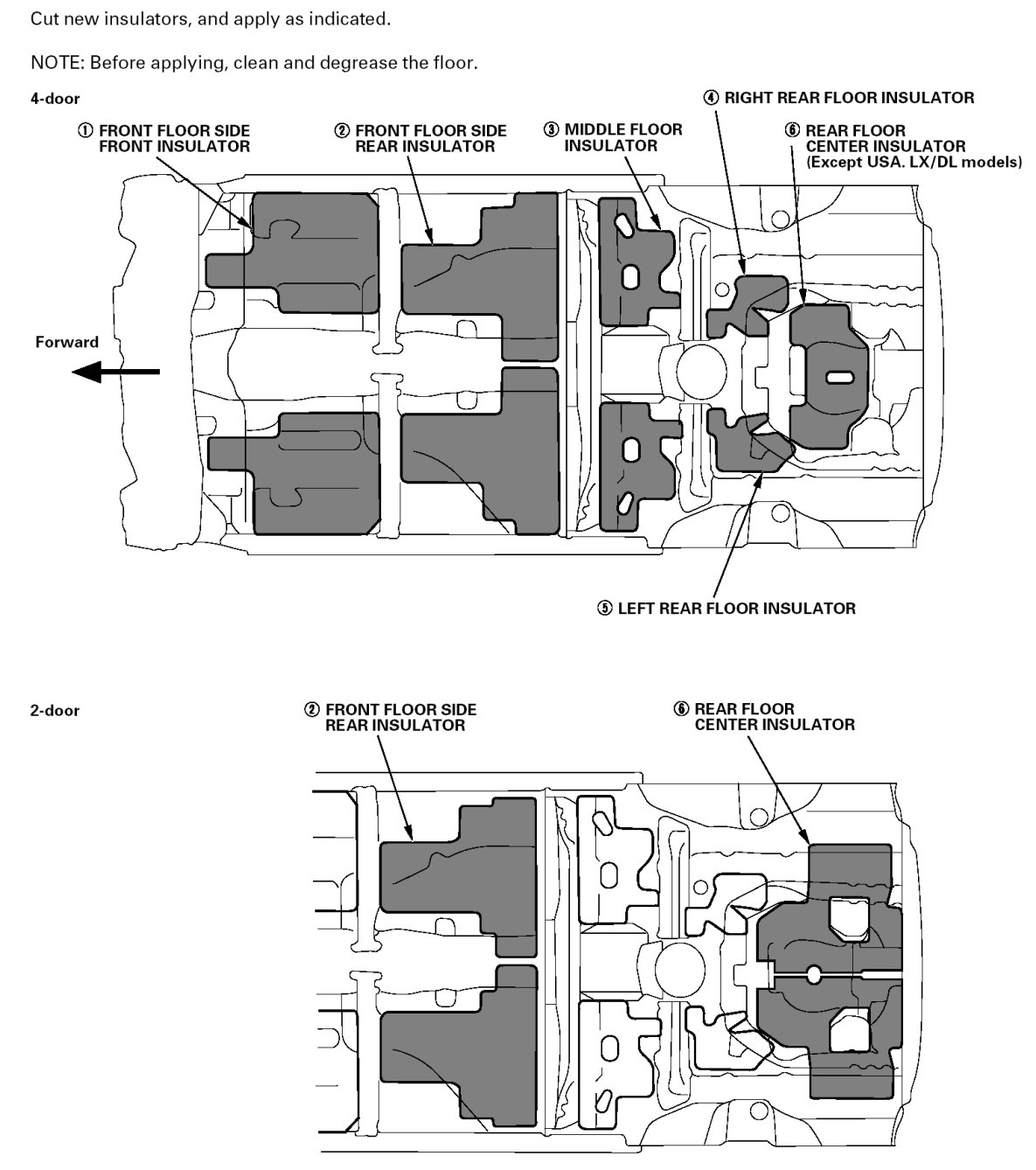

Insulator Locations:

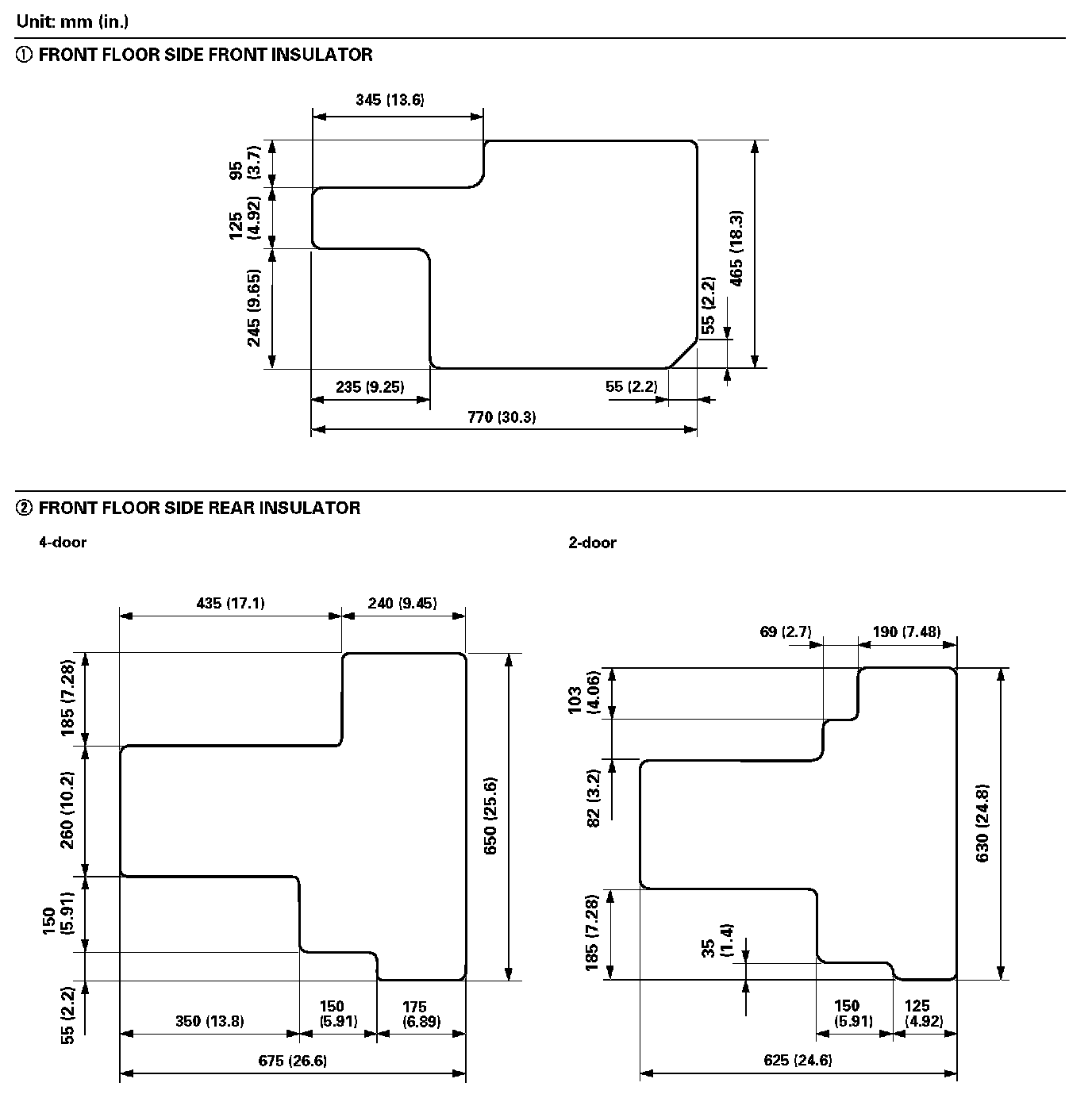

Insulator Sizes (Part 1):

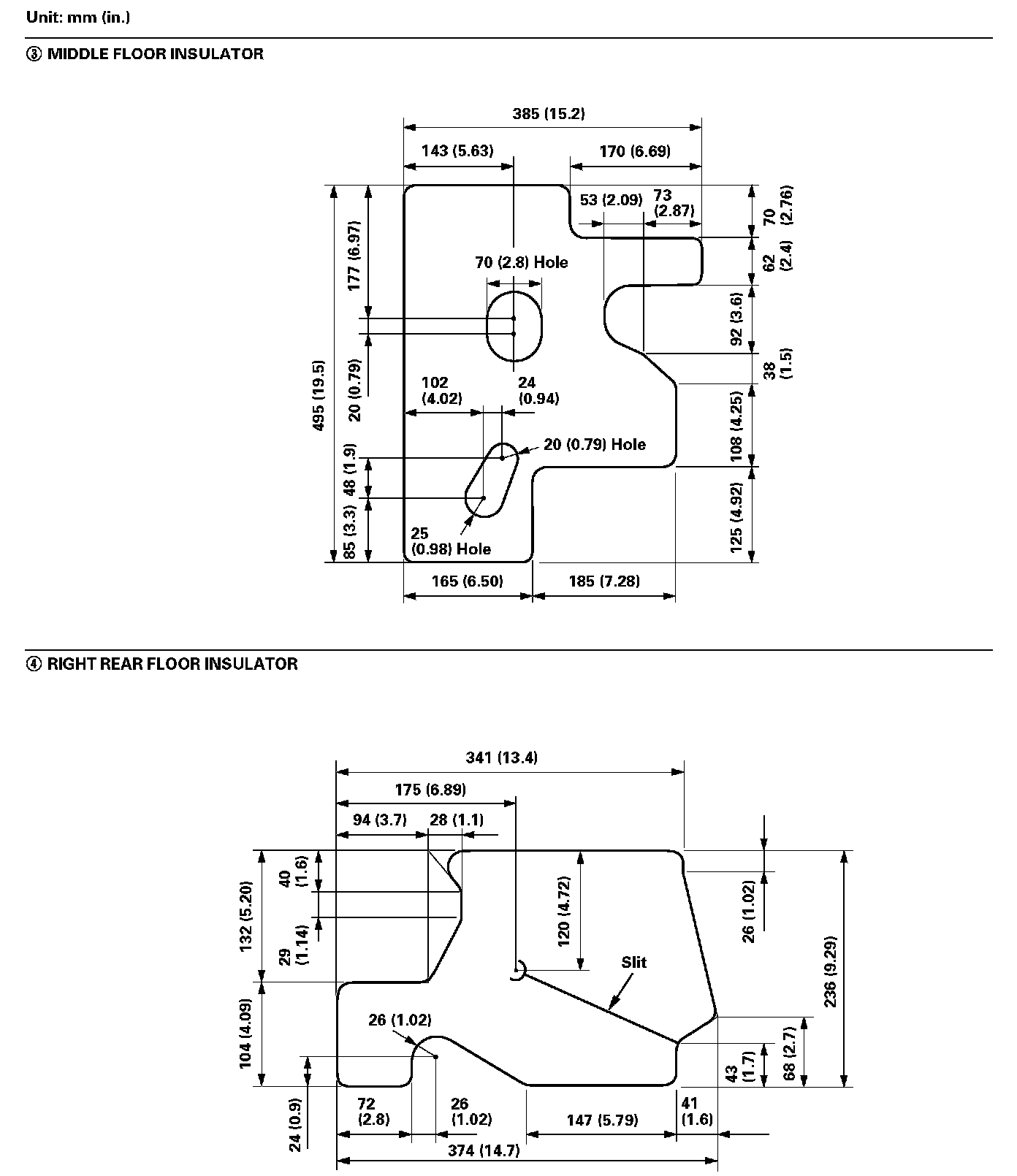

Insulator Sizes (Part 2):

Insulator Sizes (Part 3):
