Power Door Lock Switch: Diagrams

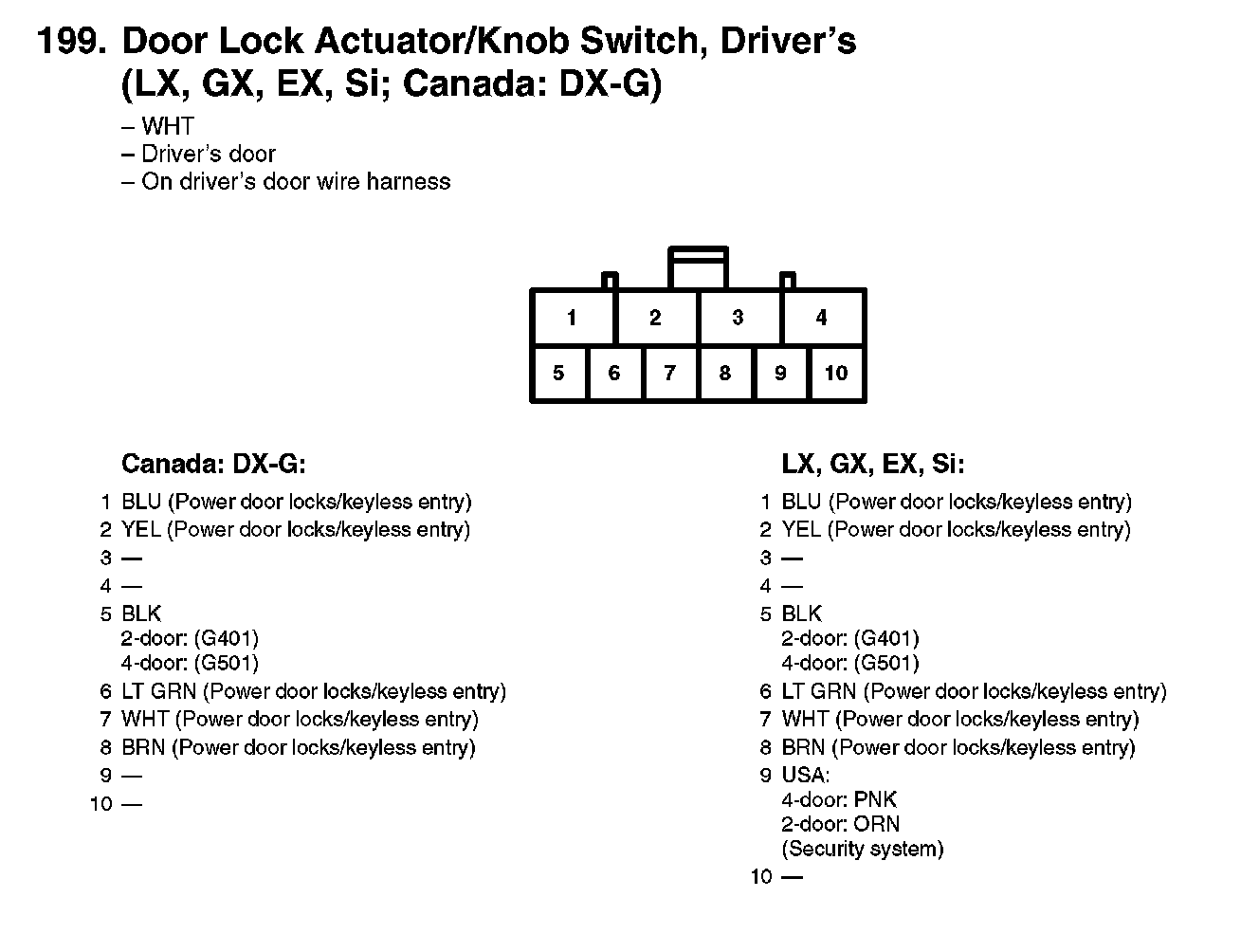

199. Door Lock Actuator/Knob Switch, Driver's (LX, GX, EX, Si; Canada: DX-G):

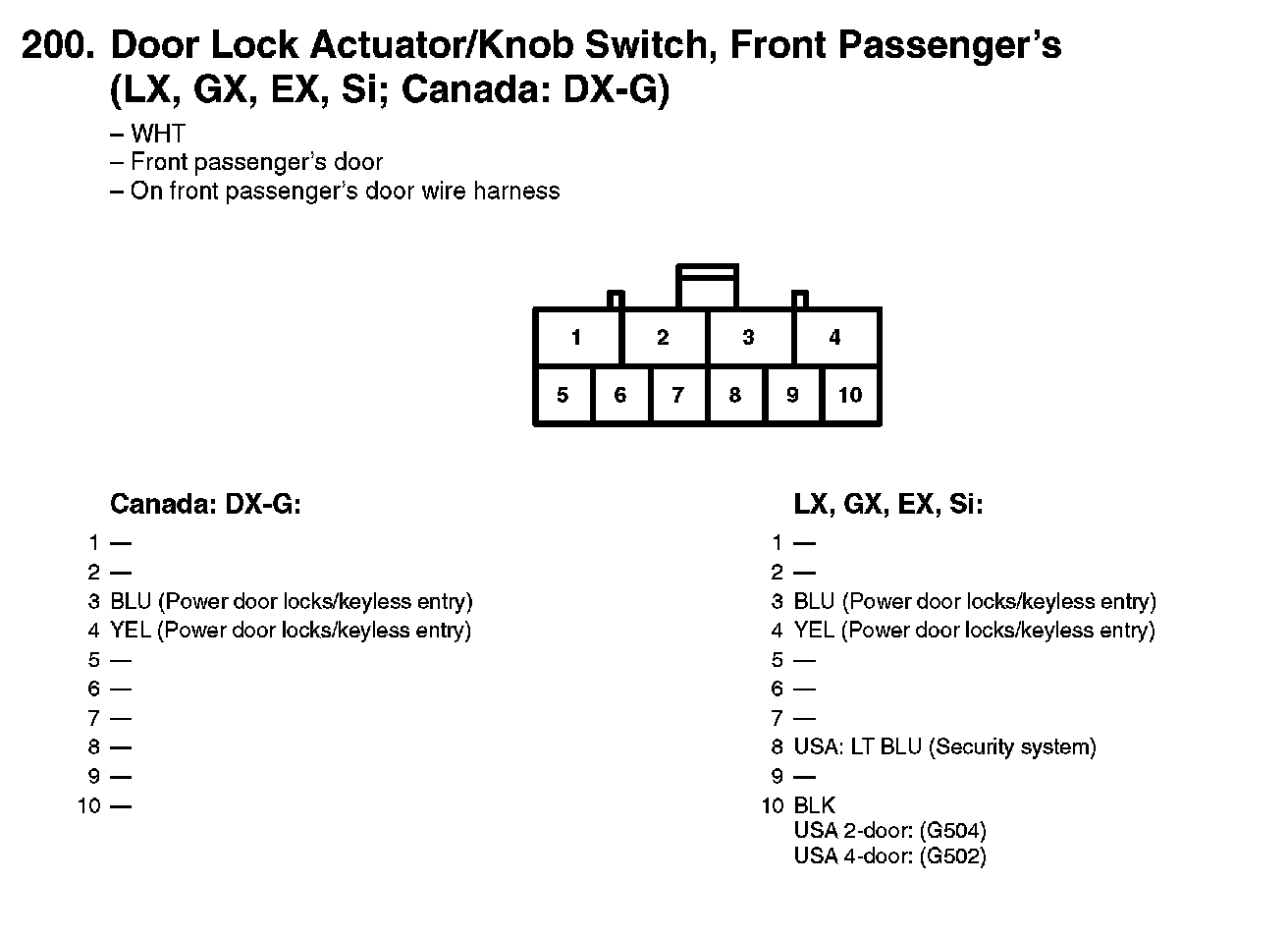

200. Door Lock Actuator/Knob Switch, Front Passenger's (LX, GX, EX, Si; Canada: DX-G):

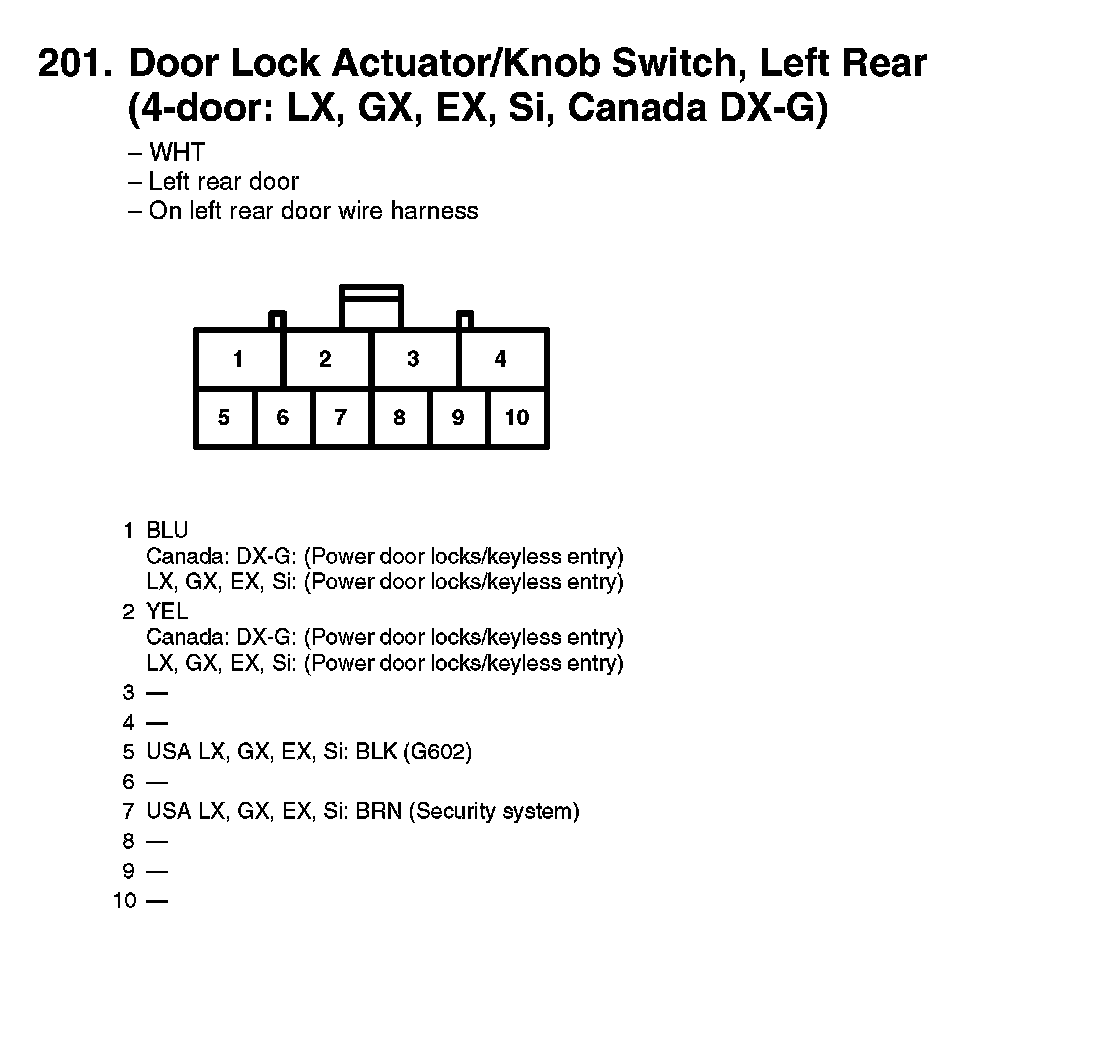

201. Door Lock Actuator/Knob Switch, Left Rear (4-door: LX, GX, EX, Si, Canada DX-G):

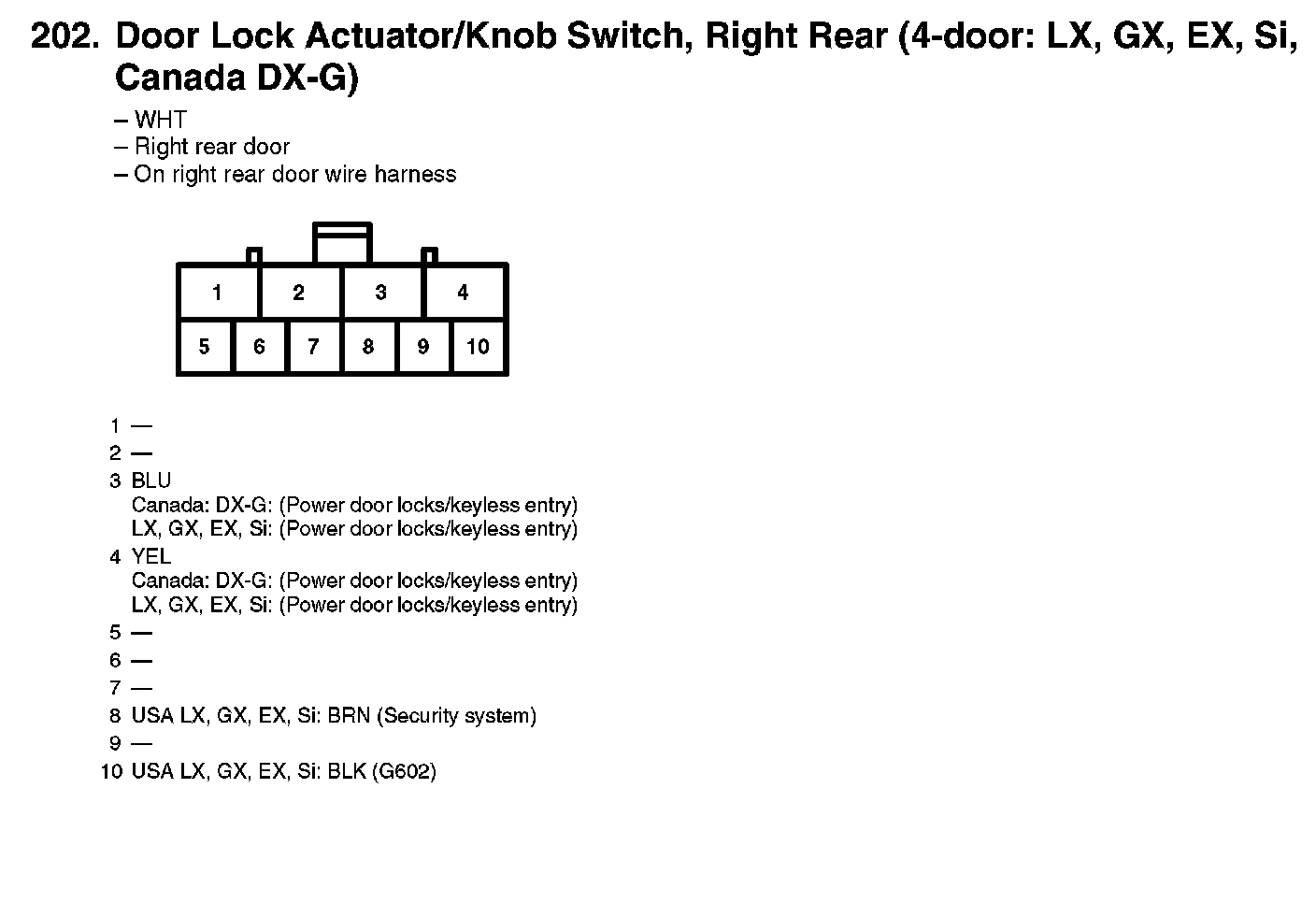

202. Door Lock Actuator/Knob Switch, Right Rear (4-door: LX, GX, EX, Si, Canada DX-G):
