Moonroof Switch Test/Replacement

Moonroof Switch Test/Replacement

'08 model

1. Remove the front individual map lights.

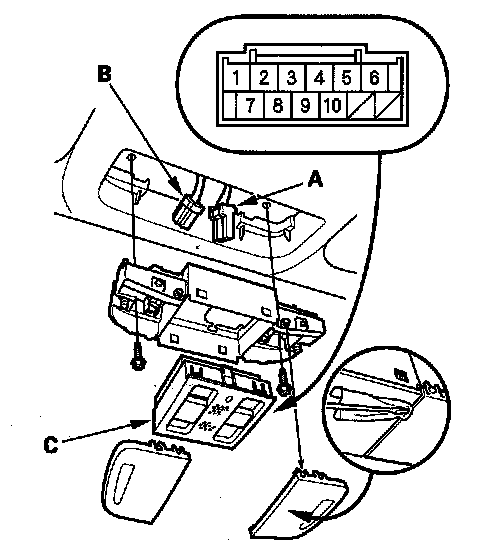

2. Disconnect the moonroof switch 12P connector (A) and map light switch 3P connector (B).






3. Remove the moonroof switch (C).

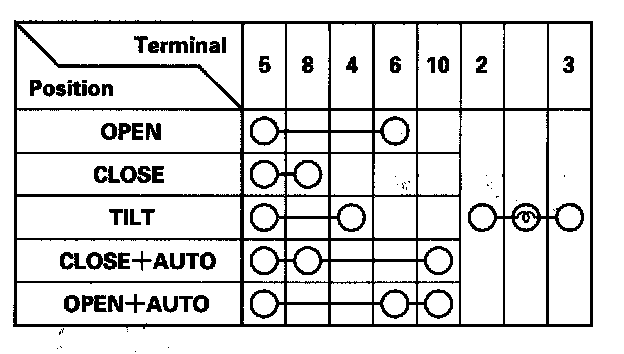

4. Check for continuity between the terminals in each switch position according to the table.






5. If the continuity check is not as specified, replace the switch.
6. Install the switch and light in the reverse order of removal.
