Sunroof / Moonroof: Adjustments

Glass Position Adjustment

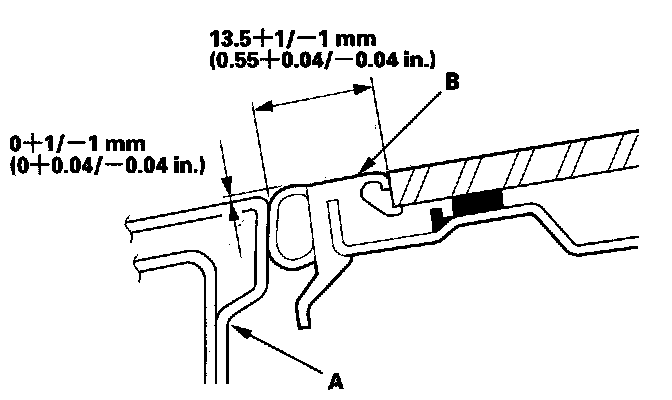

The roof panel (A) should be even with the glass weatherstrip (B), to within 0+1/-1 mm (0+0.04/-0.04 in.) all the way around, and should be to length of between the roof panel and glass, to within 13.5+1/-1 mm (0.55+0.04/-0.04 in). If not, make the following adjustment:






1. Remove the bracket cover.

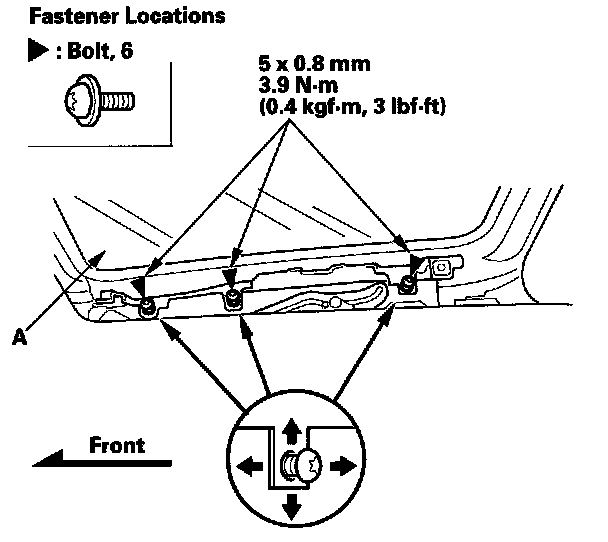

2. Adjust the glass (A).
1. Slightly loosen the TORX bolts using a TORX T25 bit.
2. Move the glass up or down and forward or rearward.
3. Tighten all bolts securely.






3. If necessary, repeat on the opposite side.
