Dashboard Side Trim Removal/ Installation

Dashboard Side Trim Removal/ Installation

NOTE: Take care not to scratch the dashboard and related parts.

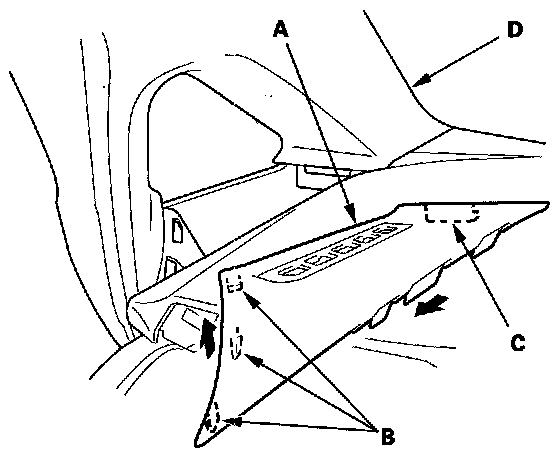

1. Remove the dashboard side trim (A).
1. Gently pull up the rear edge to release the rear hooks (B).
2. Pull the trim away to release the front hook (C) from the A-pillar trim (D).






2. Install the side trim in the reverse order of removal.
