Structural Brace: Service and Repair

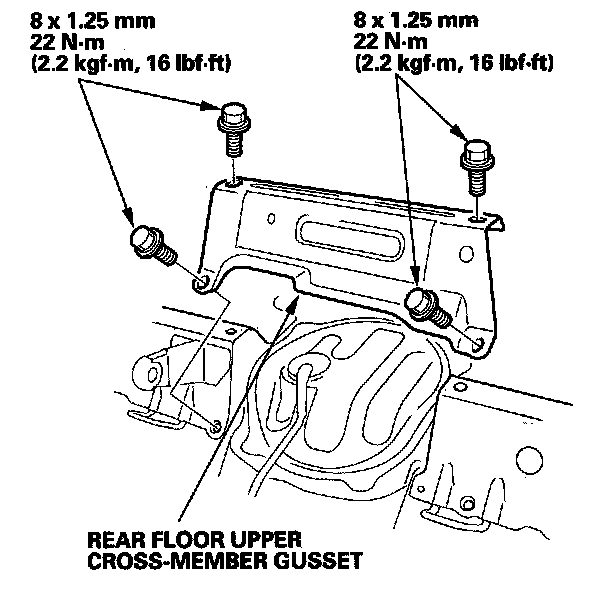

Rear Floor Upper Cross-member Gusset Replacement

Rear Floor Upper Cross-member Gusset Torque

NOTE: Take care not to scratch the body.
