System Diagnostic Mode
System Diagnostic ModeStart-up procedure and Diagnosis Menu
1. Turn the ignition switch to ON (II).
Press and hold the Menu, the Map/Guide, and the Cancel buttons. Keep them pressed for approximately 3 seconds. The display screen then goes directly to the Diagnostic Menu.

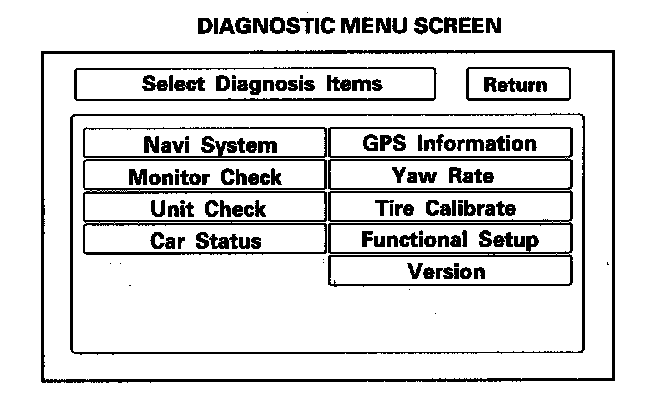

2. After the display changes to the Diagnostic Menu, select the item you want to check, and the test will begin. To return to the previous screen, select Return.
- Navi System (Link)
- Monitor Check
- Unit Check
- Car Status
- GPS Information
- Yaw Rate
- Tire Calibrate
- Functional Setup
- Version
Navi System Link
- This diagnostic step tests the cables connecting the navigation components. Ensure that the ignition switch is in the ON (II) position. When the diagnosis begins, you hear a bong sound. The system is in a Detecting mode, and is waiting for all the items in white to be tested. This includes the voice control switch (TALK/BACK buttons), and the microphone. Press the TALK button on the steering wheel, and in a normal voice, say "testing". The Talk indicator on the screen should turn green, and the voice level indicator should move to at least the 6th bar to pass. Next, press the BACK button. The Cancel indicator should turn green.
- If all of the communication lines connecting the system components, and the TALK/BACK buttons/microphone check out OK (all block diagram items green), then the OK indicator turns green.
- If there is a problem with the system, the faulty system component item turns red, and the screen will show NG in red. Use the troubleshooting index, and other diagnostic screens to help locate the problem.
- The indicator on the screen may not change until you cycle the ignition switch. After repairing the affected cable or system, repeat this diagnostic.
NOTE: Green boxes and green OK indicate that the communications lines (cables) are intact. This diagnostic does not necessarily imply that the individual components are functioning properly. For instance, the GPS antenna wire may be crushed, but still show as green. A road test, or other diagnostic may be necessary to find the problem.
- Select Return to return to the Diagnostic Menu, or the Exit Diag button to exit.
NOTE: The Mid Level indicator must reach the 6th bar or greater to pass the test.
Monitor Check
Overview of navigation display
The illumination input from the gauge brightness control provides back lighting for the buttons surrounding the screen.
These screens allow troubleshooting of the navigation display. Select the item you want to troubleshoot, and follow the diagnostic instructions.
- RGB Color
- Gray Tone
- White Raster
- Black Raster
- Color Pattern
- Monitor Adjustment
- Touch Panel Check
- Touch Panel Calibration
RGB Color

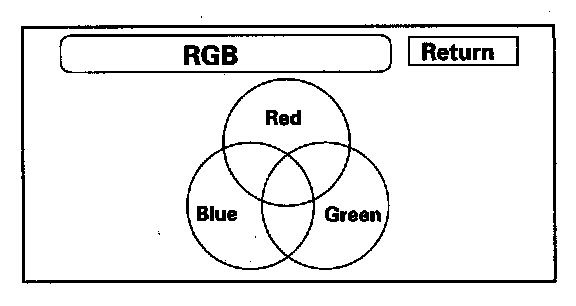

This screen verifies that the navigation display is receiving the video (R, G, B and Composite sync) signals properly. The three primary colors should all be shown without distortion. The combination of all three should produce a central white section. If the picture has lines in it, or scrolls horizontally or vertically, and any of the colors are missing, troubleshoot for a Composite sync and color signal problem.
Gray Tone

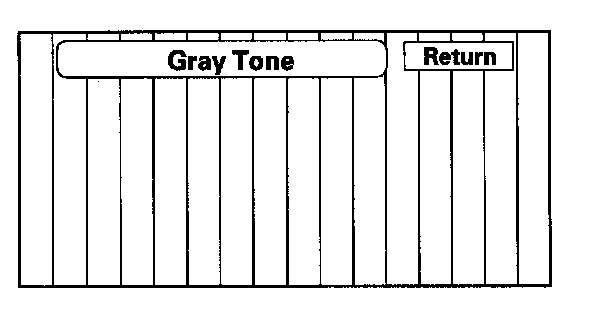

This screen looks for problems with contrast. You should be able to see the changes from bar to bar across the scale. If you can't see the shade changes from bar to bar, replace the navigation unit.

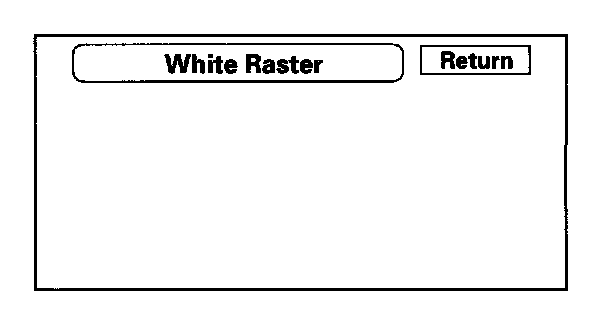

White Raster
This diagnostic screen checks for pixels that may be dead (off). The entire display must be white. If pixels are dead, replace the navigation unit.
Black Raster

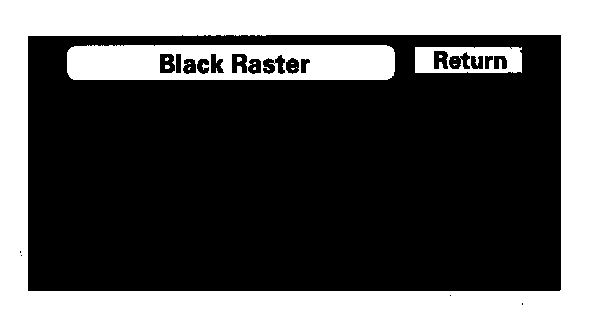

The entire display must be black. This diagnostic screen checks for pixels that may be stuck (on). If pixels are stuck on, replace the navigation unit.
Color Pattern

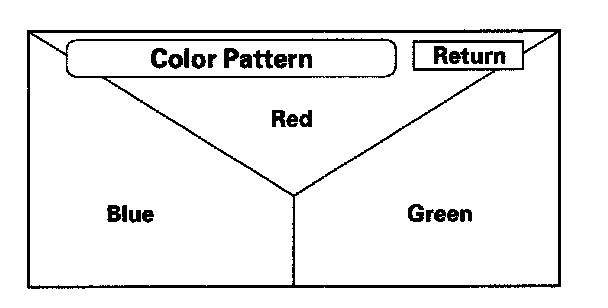

The chart below shows the colors being used for the Map and Menu screens. This is for factory use only. To check the color signal use the RGB test.

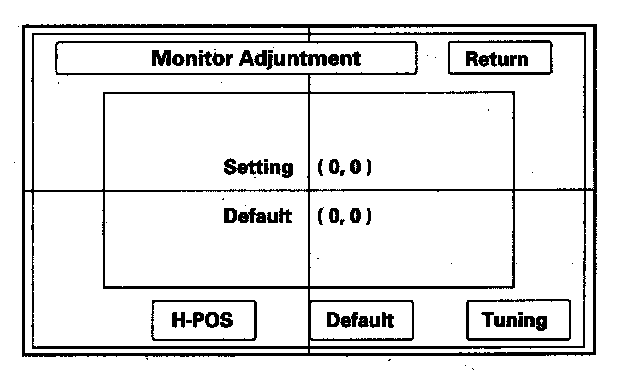

Monitor Adjustment
This allows you to center the navigation display. Use the joystick to move the picture up/down or left/right. It is unlikely that you will ever need to adjust the monitor position. The Default button will reset the display position to factory specifications. The factory default is 0,0. The H-POS button is for factory use only.
Touch Panel Check
The panel touch sensing system consists of a touch sensitive resistive membrane covering the display. Contrary to other systems using infrared beams, the screen has to be physically touched to make it work. The display has the capability of 479 touch locations (left to right), and 233 touch locations (top to bottom). The upper left hand corner is position (0,0) and the lower right hand corner is (479,233) as displayed. Touching anywhere on the screen will display the coordinate of the location, and cause the place you touch to display a + icon. If any area of the screen either doesn't respond, or responds at some other location when touched, then replace the navigation unit.
NOTE: Unlike earlier screens that used infrared sensors, direct sunlight will not affect this test.
Touch Panel Calibration
The display screen uses a touch sensitive membrane. This means that every location of the entire surface of the display is touch sensitive. This diagnostic allows alignment of these touch locations with the location of the buttons images on the screen.
Normally this should never need adjustment, and is used only to adjust the touch locations for parallax (the touch locations appear different when viewed at an angle). However, if an adjustment is necessary, follow this procedure:

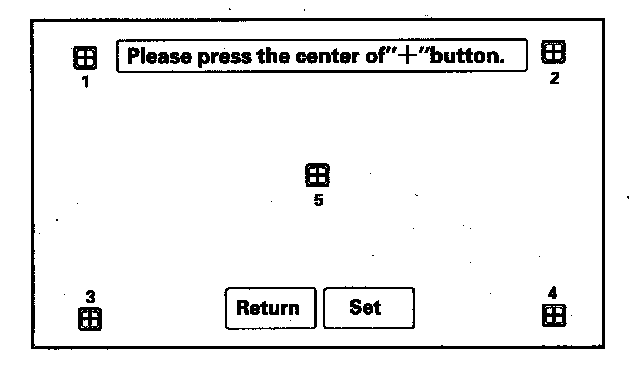

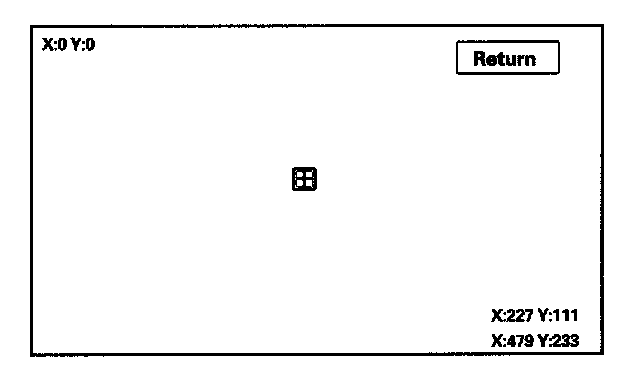

- The screen consists of the + button icons. Touch the center of the five + buttons on order 1-5.
- To store any change you make, touch the Set button.
- Use the Return key to exit the diagnostic.
Unit Check

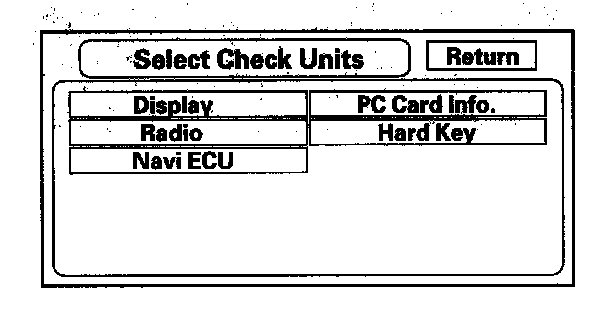

Select the item you want to check, and the test starts.
- Display
- Radio
- Navi ECU
- PC Card Info
- Hard Key
Display
This performs additional checks on the communication bus between the navi CPU and the display. In addition, the internal electronics and touch screen functionality are confirmed.
If the connection is NG, replace the navigation unit.

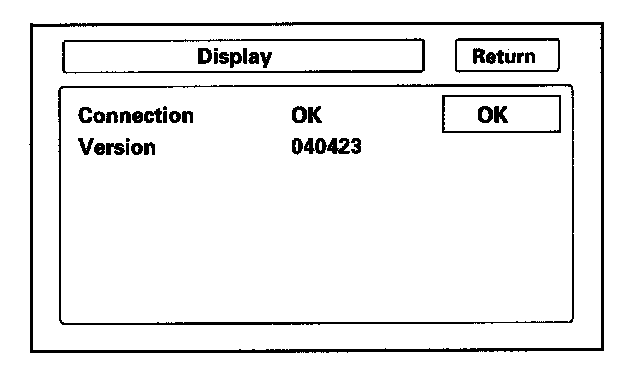

- Connection verifies internal communications.
- Version represents the software version for the display.
Radio
This diagnostic screen checks the internals of the radio (AM and FM) and CD player. If NG, replace the navigation unit.
Navi ECU
This screen looks for problems with the navigation unit. When you initiate this diagnostic, the navigation unit may delay up to a minute while the diagnostic runs.
- If V-RAM or D-RAM is NG, then replace the navigation unit.
- If GPS indicates NG (ANT), then check the entire GPS antenna wire from the navigation unit to the antenna. If the wire is crushed or damaged, try a known-good antenna. If this diagnostic reads OK, then order a new GPS antenna. If the diagnostic still reads NG (ANT), then replace the navigation unit.
- DVD ROM represents the database version on the DVD. You can also find this information in setup by selecting System Information.
- Serial No. should be the same as the serial number found on the underside of the navigation unit. You need this number to obtain the security code from the Interactive Network system.
- Memory Clear is for factory use, and should never be used unless instructed by the factory. Accidental selection will erase the customer's personal data, PINS, and settings. If selected, a popup box appears asking if you want to clear the memory. If so, select Yes.
PC Card info

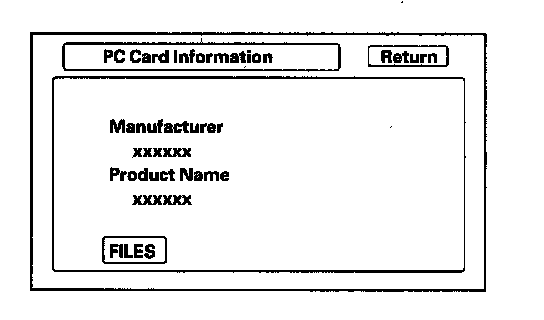

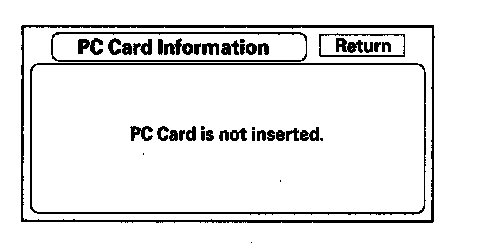

There is no PC card in the PC slot, and the screen should say, "PC card is not inserted".
If the factory provides a PC card and instructs you to insert a card, then the screen displays the Manufacturer, and Product Name as shown in the following screen. Touch the FILES button to see the contents of the card.
Hard Key

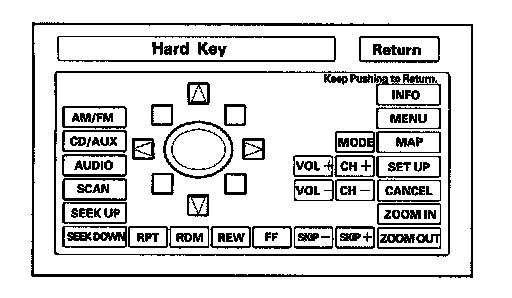

This diagnostic screen checks the status of each of the hard buttons surrounding the navigation display. When you press each hard button, the corresponding item on the screen should flash blue. Touch the return key, or press and hold the joystick to exit.
NOTE: It is normal for the VOL (+, -) CH (+, -) and MODE button to be inactive.
Car Status
Use this screen to confirm that navigation unit is properly receiving input signals. Signals equal to (0) are OFF, and signals equal to (1) are ON. If the value on the display does not match the actual vehicle status, then check the wire carrying the signal.
- VSP-Vehicle Speed Pulse from ECM/PCM connector A (Navigation unit connector A (17P) terminal No. 13)
a. OFF (0) when vehicle is not moving
b. ON (1) when vehicle is moving
The VSP comes from the ECM/PCM as a dedicated signal. Internally, the navigation unit compares the actual VP on the map against street data to adjust the pulse to speed scaling factor.
- BACK-Reverse indication from taillight relay (Navigation unit connector C (12P) terminal No. 7)
a. OFF (0) when shift lever is in any position other than reverse
b. ON (1) when shift lever is in reverse
The Back signal is used by the navigation unit to allow the map screen to show the VP moving backwards when in reverse and to trigger the optional rear view camera. This signal is needed because the Speed Pulse does not provide any directional information to the system.
- ILL CANCEL
a. OFF (0) when the dash lights brightness control button is less than 90 % brightness with the headlights turned on.
b. ON (1) when the dash lights brightness control button is more than 90 % brightness with the headlights turned on.
- ILL-Illumination Indication
(Navigation unit connector A (17P) terminal No. 10)
a. OFF (0) when parking lights, or headlights are off
b. ON (1) when parking lights, or headlights are on
The navigation unit uses the signal to determine whether to put the navigation screen into the Day or Night brightness mode. (Setup screen 1)
- Display-this displays the current position of the display
a. (Close) when the display is closed
b. (Open) when the display is open
The navigation unit has a microswitch to detect this. If open is indicated when the display is closed, replace the navigation unit.

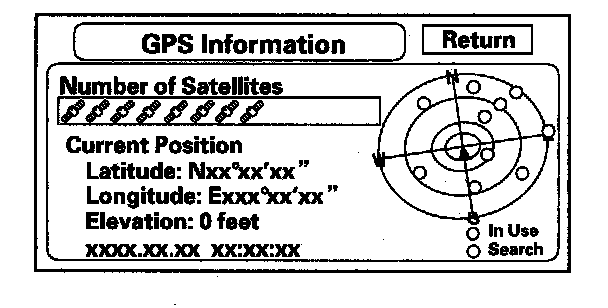

GPS Information
This screen shows the current status of GPS reception. The circular diagram shows the current location of the GPS satellites (yellow balls) as they would appear in the sky. The outer circle represents the horizon (0 degrees elevation). The middle and inner circles represents 30 and 60 degrees respectively. The very center of the diagram (90 degrees elevation) is directly overhead. Nearby obstructions, like tall buildings, will block satellites in that direction. That is why it is necessary to be in an open area to effectively troubleshoot GPS reception issues. The satellites shown on the diagram correspond to the PRN number in the GPS Details screen. There are always 24 active GPS satellites in orbit. Because satellites fail, and have to be removed from service, spares are always parked in orbit, ready to be activated. This is why the PRN (satellite ID number) can be greater than 24.
NOTE:
- To use this screen for troubleshooting, the vehicle should be outside, away from buildings, tall trees, and high-tension wires for at least 10 minutes with the engine running.
- Metallic window tinting on the front or side window or after-market electronic accessories mounted near the navigation unit, GPS antenna, or navigation display can interfere with GPS acquisition.
- The Number of Satellites box shows the number of acquired satellites (maximum of 12). It should contain 4 or more icons. If not, troubleshoot for GPS icon is white or not shown.
- The Current Position shows latitude, longitude, and elevation (in meters). If there are less than 4 satellites, the elevation can be grossly inaccurate.
- The Date/Time field shows the current date, and also a time that includes daylight savings and other offsets entered by the customer in Setup function Adjust Time Zone/Clock.
NOTE: Push and hold the Map/Guide button, and the dots on the diagram are replaced with the PRN # (satellite numbers). These numbers correspond to the numbers in the PRN column on the GPS details screen.
GPS Detail

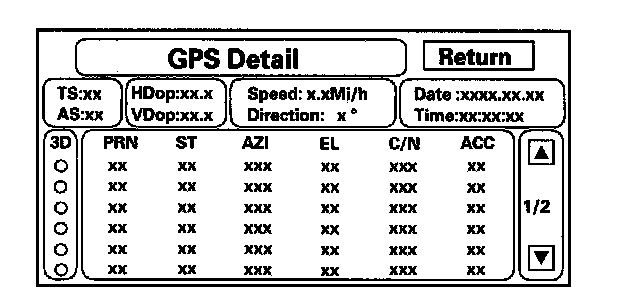

By pressing and holding the MENU button for 10 seconds, a GPS Detail screen appears. This screen displays real time incoming satellite positional data. Most of the information shown on this screen is for factory use, however some of the data can indicate partial GPS signal interference.
- The box TS/AS and HDop/VDop is for factory use.
- The Speed and Direction information is updated in real time when driving, and can be used to detect intermittent speed sensor problems.
- The Date/Time Information is the same as in Setup screen 2 Adjust Time Zone/Clock.
- If the 3D icon is shown above the yellow dots, this implies that at least 4 satellites are available for map positioning, and the GPS indicator on the map screen will be green. See the Global Positioning System detailed explanation in the System Description.

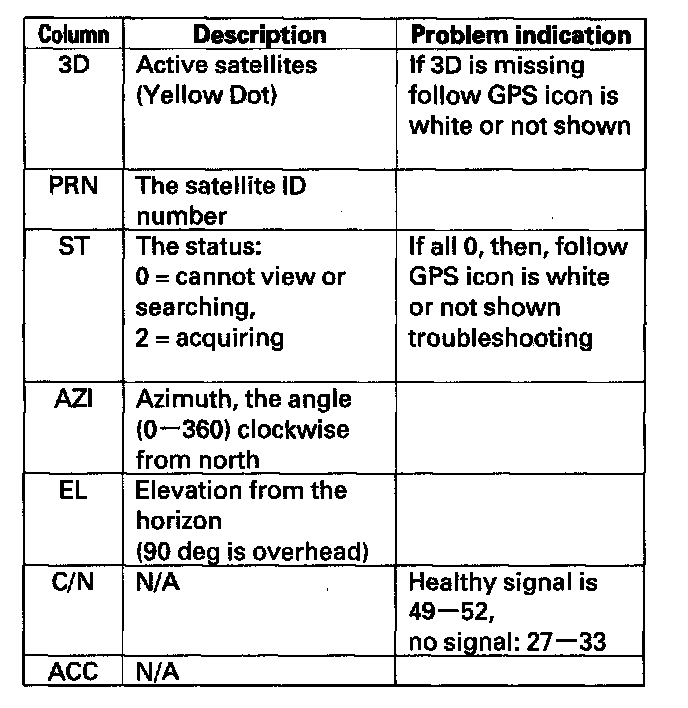

- If the row of data in the table below begins with a yellow dot, the AZI and EL fields can be used to locate each satellite PRN # on the circular GPS diagram (see prior screen).
NOTE: The data shown in the GPS Detail screen is an example only.
Yaw Rate

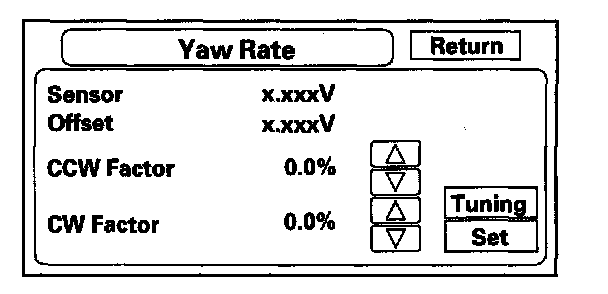

This diagnostic checks the yaw rate sensor in the control unit. This device detects when the vehicle turns, and repositions the vehicle position icon on the map screen. For more detailed information, see the yaw rate sensor theory of operation under System Description.
- Sensor indicates the voltage output from the yaw rate sensor. It should indicate about 2.500 V when stopped.
- Offset is the reference voltage or standard within the yaw rate sensor. It also should indicate about 2.500 V when stopped.
- A sensor output voltage LOWER than the Offset voltage indicates that the vehicle is turning to the right.
A sensor output voltage HIGHER than the Offset voltage indicates that the vehicle is turning to the left.
- The yaw rate offset and sensor should both indicate about 2.500 V when stopped. If either reads zero or 5.000 V, replace the navigation unit.
- The yaw rate offset and sensor should be within +/- 0.01 V of each other when stopped. The sensor value should change relative to the offset as the car is turned while driving. If not, replace the navigation unit.
Example: Vehicle stopped
Normal
Offset 2.526 V
Sensor 2.516 - 2.536 V
Abnormal
Offset 2.526 V
Sensor 2.623 V
Example: Vehicle turning
Normal
Offset 2.526 V
Sensor 2.678 V (right turn) , 2.478 V (left turn)
Abnormal
Offset 2.526 V
Sensor 2.623 V (no change on turns)
The settings CCW Cal Factor, CW Cal Factor, and Set are for factory use only. THIS SHOULD NEVER BE USED.
NOTE: Do not try to adjust the yaw rate sensor without instructions from the factory. See next paragraph for tuning.
Yaw Rate Tuning

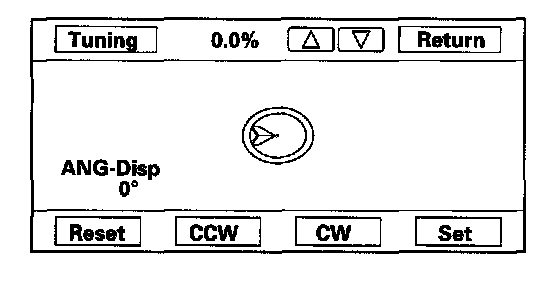

This diagnostic allows you to graphically display problems with the yaw rate sensor.
- The ANG-Disp value accumulates any differences between the offset, and sensor voltages (see Yaw Rate diagnostic). When the sensor is healthy, the random changes in these two voltages generally cancels out, so the value is 0. However if one voltage is consistently higher than the other, then the ANG-Disp value accumulates the constant change.
- The Reset button temporarily clears the angular accumulation (ANG-Disp), and clears the display dots.
- Do not touch the CCW or CW, or Set buttons. These are used for factory setup only.
For serious problems with the sensor, the stationary test usually confirms whether the sensor is defective. For yaw rate issues related to driving, perform the road test described below.
1. Stationary test: If the VP icon spins in place and the ANG-Disp value slowly increases or decreases in value, the yaw rate sensor is defective. Replace the Navigation unit.
2. Road test: Drive the vehicle on a very straight road. Enter the diagnostic mode, select Yaw rate, and touch the Tuning button. While driving down a straight road, the white dots should trace a straight line across the screen. However, if you are driving on a straight road, and you notice the dots constantly dropping down or heading up as you drive, the navigation unit's yaw sensor is defective. You can touch Reset to clear ANG-Disp, and dotted line.
3. If either test fails, please enter "Yaw rate sensor defective" for the problem description, on the "Navigation core return form".
Tire Calibration

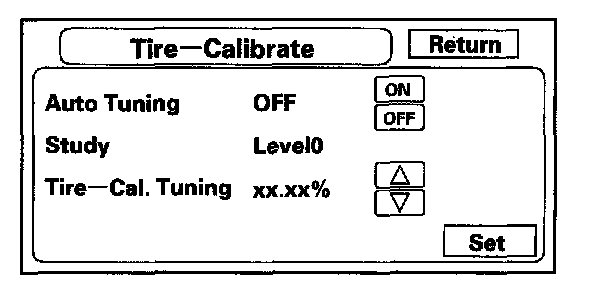

As the vehicle moves, the navigation system receives speed pulses from the ECM/PCM. These pulses are converted using a conversion factor to a mph speed that moves the vehicle position (VP) on the map. The navigation system has an internal tuning function that generates and refines this factor based on actual driving. The Level indicates the status of the tuning. At navigation initialization, it begins at 0, and increases to 10 as the navigation system is used.
- The Auto Tuning is factory set to ON, and should remain on.
- The Study indicates the tuning status. If it is less than 10, the unit is still calibrating.
- The Tire-Cal. Tuning and Set should not be used. It is for factory use only.

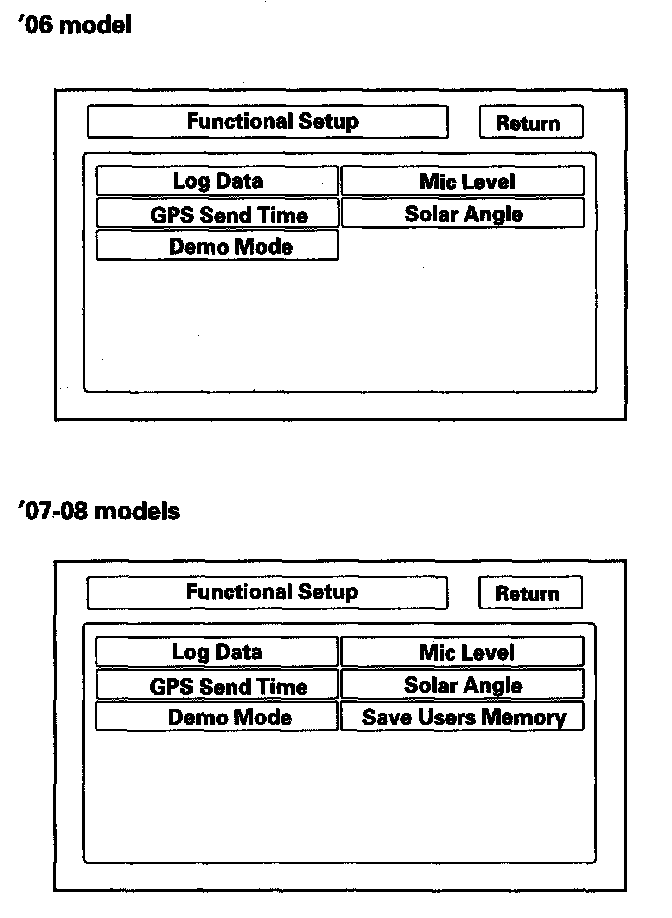

Functional Setup
Select the item you want to check.
- Log Data
- GPS Send Time
- Demo Mode
- Mic Level
- Solar Angle
- Save Users Memory ('07-08 models)

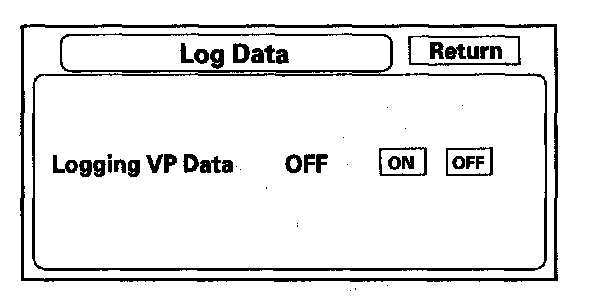

Log Data
This screen allows the factory to collect log data to troubleshoot navigation system issues.

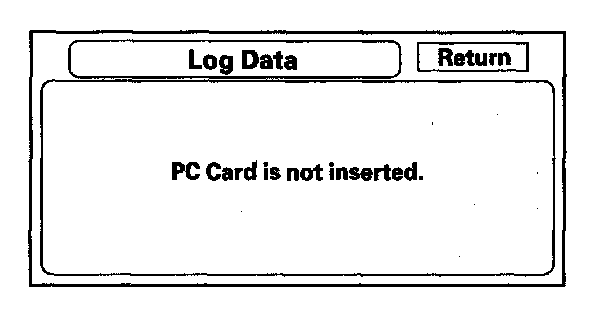

- There is no card in the PC card Slot, the screen appears as:
- However, if the factory provides a PC card, insert it into the card slot (label side up). Follow the factory logging VD data procedure for gathering test data and properly ending the test.

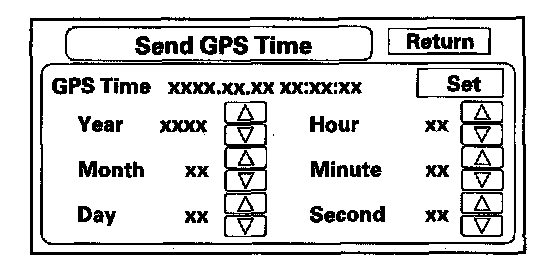

GPS Send Time
This screen is for factory use only. It allows adjustment of the GPS time. This display updates in real time.
- GPS Time is the time as received from the GPS satellites. It is in Greenwich Mean Time (GMT).
- Date, Hour, Minute, and Set should not be used.
Demo Mode
This screen allows the navigation system to drive a route, when the vehicle is stationary. Typical applications include auto shows, and other events. This feature allows a visitor to enter a destination, and see the system drive to the destination. No speed signal is needed.
- To initiate the mode select ON.
- Changing the speed rate in ms (milliseconds) is optional, and represents the time between updates of the VP (vehicle position) movement.
- When you increase the rate, the VP slows down because it is updated (moved) at a slower rate.
- When you decrease the rate, VP is faster because it is updated (moved) more frequently.
- 1500 ms is VP at its slowest in demo mode.
- 150 ms is VP at its fastest in demo mode (Default).
- At key off, the setting automatically returns to the default of Off.
Mic Level

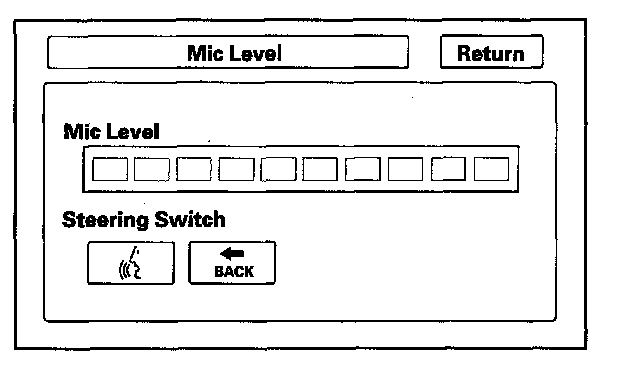

This diagnostic screen allows you to independently test the microphone and the TALK and BACK buttons. They are used to activate the voice control system. The microphone is located near the map light in the ceiling. It is directional, and works best if the voice is coming from the drivers seat.
- Press the TALK button on the steering wheel, and in a normal voice say "testing". The TALK indicator on the screen should momentarily turn green, and the text "Now Recording..." should appear in yellow. If the Mic Level indicator on the screen does not briefly turn green, then check the wiring from the TALK button to the navigation unit.
- If there is no Mic Level movement when you speak, then you should check the wire running from the microphone to the navigation unit.
- If the mic level bar is full or almost full without you speaking or other back ground noise, replace the microphone and recheck.
- Press the BACK button on the steering wheel. The Cancel indicator on the screen should momentarily turn green. If it does not briefly turn green, then check the wiring from the steering wheel BACK button to the navigation unit.
NOTE:
If the radio is off, and there is movement in the indicator-even without speaking, ensure that the vents are not blowing on the microphone.
This should resolve voice control complaints such as:
- Sometimes the system does not understand my commands.
- I have to shout at the navi for a command to be recognized.
- The system just says "pardon".

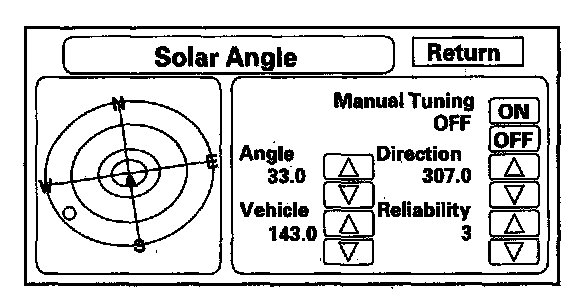

Solar angle
This screen graphically displays the sun's position as determined by GPS.
This screen is for factory use only, and allows simulation of this feature for development purposes.
- The manual tuning button should always be OFF
- The Angle is the angle that the sun (shown with the red dot) is above the horizon.
- The vehicle value represents the angle, clockwise from North, to the direction that the vehicle position (VP) icon is pointing (always points straight up).
- The direction value is the angle, measured clockwise from the VP (straight up) to the suns position.
- The reliability ranges from 1 to 3, and represents the accuracy of the Vehicle Position relative to the sun.
Version

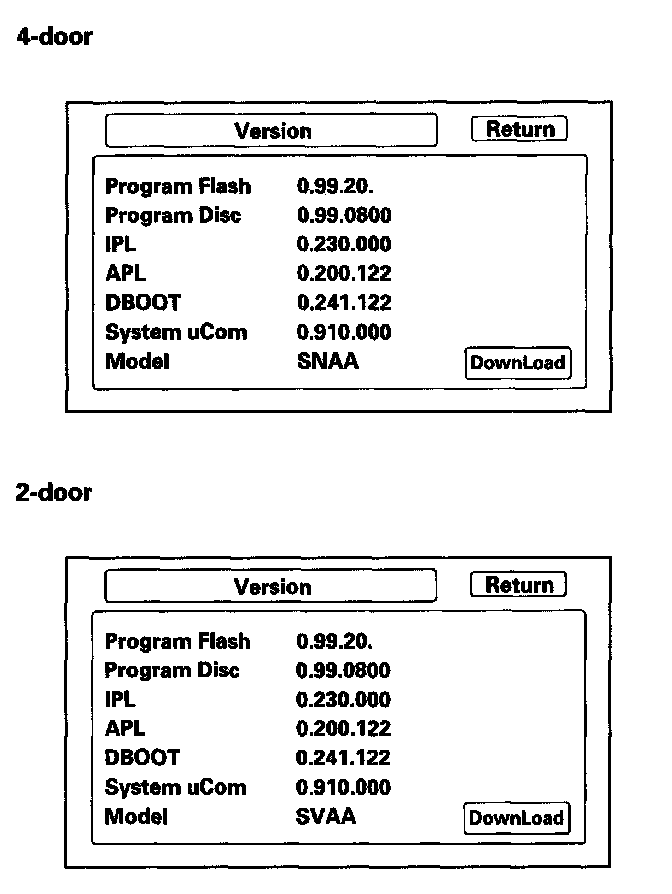

This screen displays the current version of the program, and allows the loading of a new version of the program either from a CD/DVD or from a PC card.
The Program Flash version should always be greater than or equal to the Program Disc version. IPL, APL, DBOOT, and system ucom are for factory use only.
The Model code is SNA for the 4-door and SVA for the 2-door, and is for factory use only. This code is stored on a chip in the navigation unit. Therefore, every model has a unique part number for the navigation unit.
NOTE: If any model number other than SNA or SVA is displayed, replace the navigation unit with the correct part. The model code tells the navigation unit what software to load off the DVD.
Do not use Download, unless instructed to do so by the factory.
Save Users Memory
When replacing the navigation unit, this function allows the dealer to transfer the customer's personal data to the new navigation unit. The transferred information includes their Setup settings, and personal addresses. The dealer inserts a PC card to the navigation unit, and then selects the Save Users Memory function. The two functions in this diagnostic screen are EXPORT and IMPORT. EXPORT saves the customer's data to the PC card, and IMPORT moves the PC card files to the new navigation unit.
Before starting this function, see the PC Card FAQs for information regarding PC cards, and the use of this function.

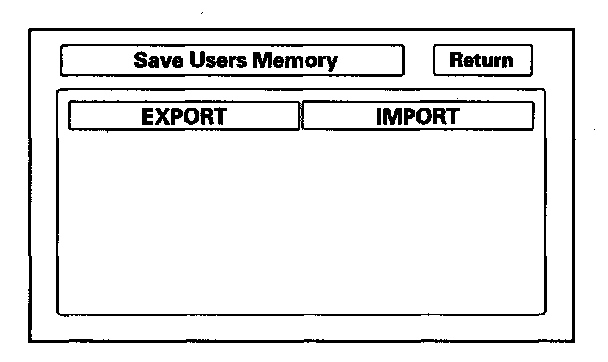

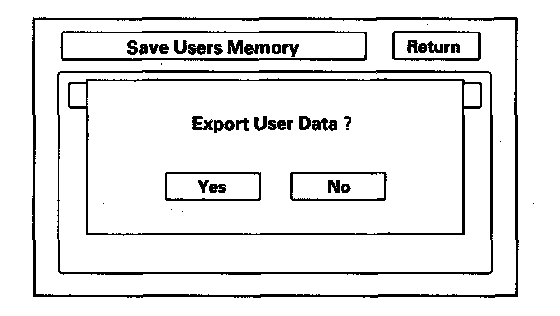

1. Select EXPORT button to move the customer's data from the original navigation unit to the PC card. Select YES on the Export User Data Confirmation screen. The process takes only a couple of seconds. The system stores two files on the card.
NOTE: If the EXPORT button is grayed out, check the PC card's edge connector, and the pins inside the navigation unit (with a flashlight) for damage.
2. After installing the customer's original DVD in the new navigation unit, allow the system to boot up. Insert the PC card in the new navigation unit and enter the Save Users Memory in the navigation system diagnostic mode.

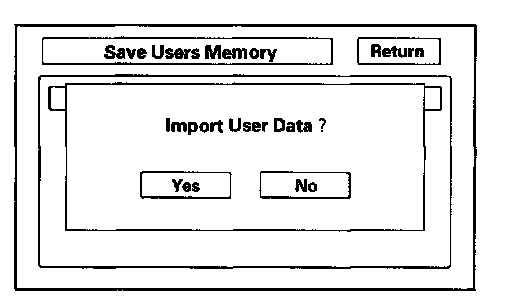

3. Select IMPORT button to move the two files stored by the Export process from the PC card to the new navigation unit. Select YES on the Import User Data Confirmation screen. When the transfer is finished (a few seconds) the system will automatically reboot. After the system reboots, remove the PC card from the PC card slot.
NOTE: If the IMPORT button is grayed out, check if the Model and the Program Flash shown on the Version screen are the same.

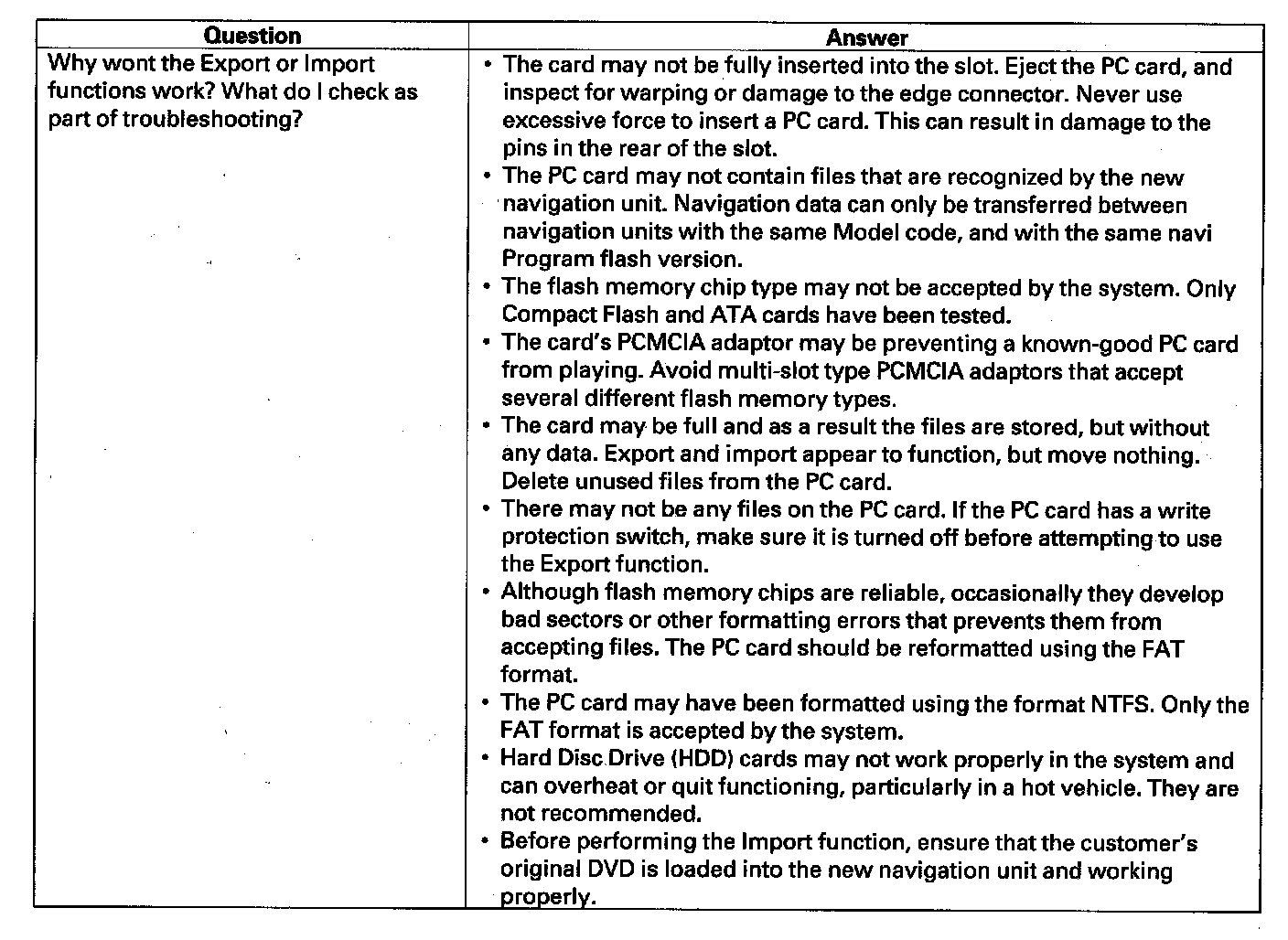

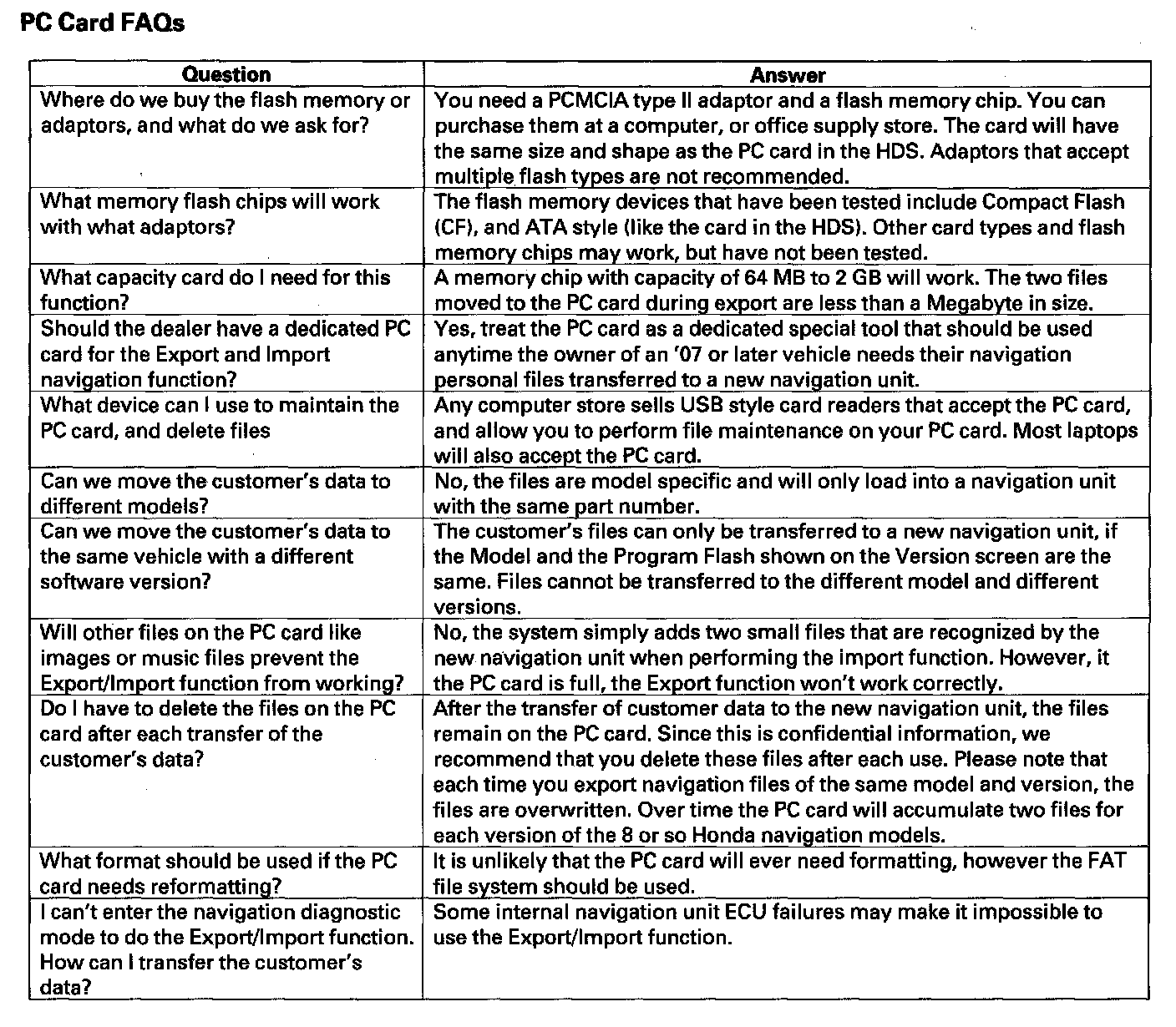

PC Card FAQS

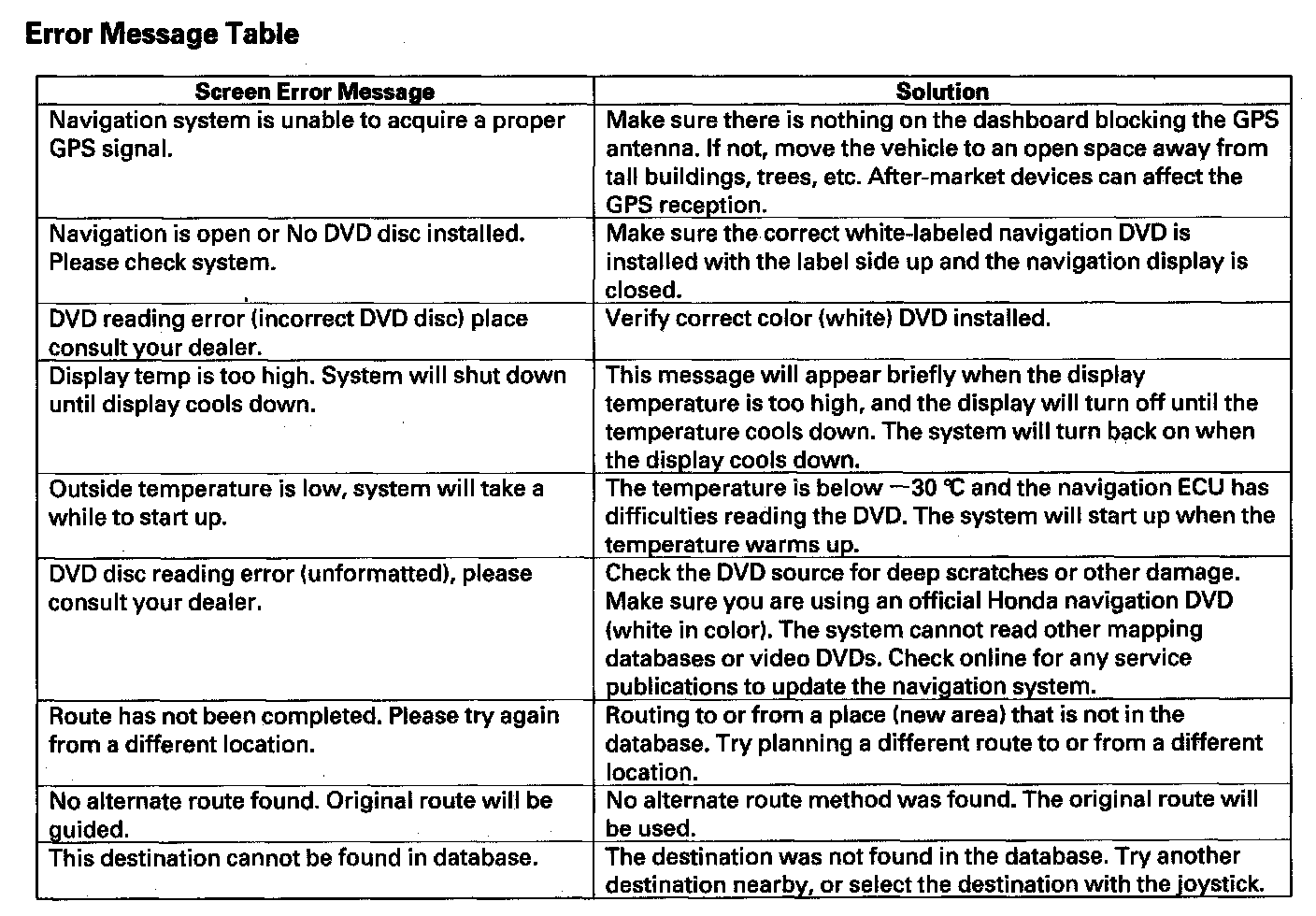

Error Message Table
