2-Door

Voice Control Switch Test

2-door

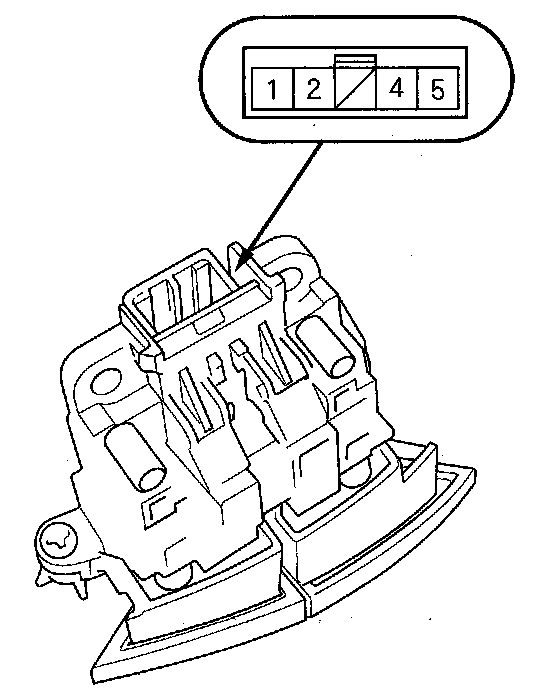

1. Remove the voice control switch.

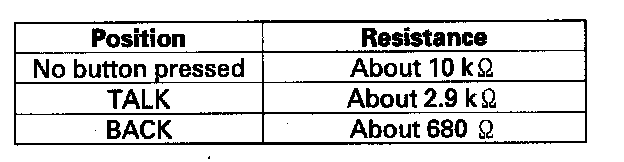

2. Measure the resistance between the No. 2 and No. 4 terminals in each switch position according to the table.






3. If the resistance is not as specified, replace the voice control switch.

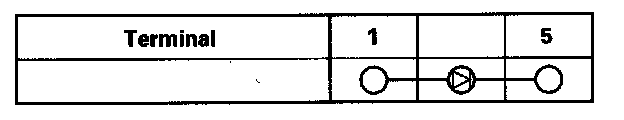

4. Use a diode tester between the terminals in each switch position according to the table.






5. If the diode test is not as specified, replace the switch.
