Immobilizer-Keyless Control Unit Input Test

Immobilizer-keyless Control Unit Input Test

NOTE: Before testing the immobilizer system, troubleshoot the system using B-CAN System Diagnosis Test Mode A and check the No. 10 (7.5 A) and No. 38 (30 A) fuses in the under-dash fuse/relay box.

1. Remove the driver's dashboard lower cover.
2. Remove the steering column covers.

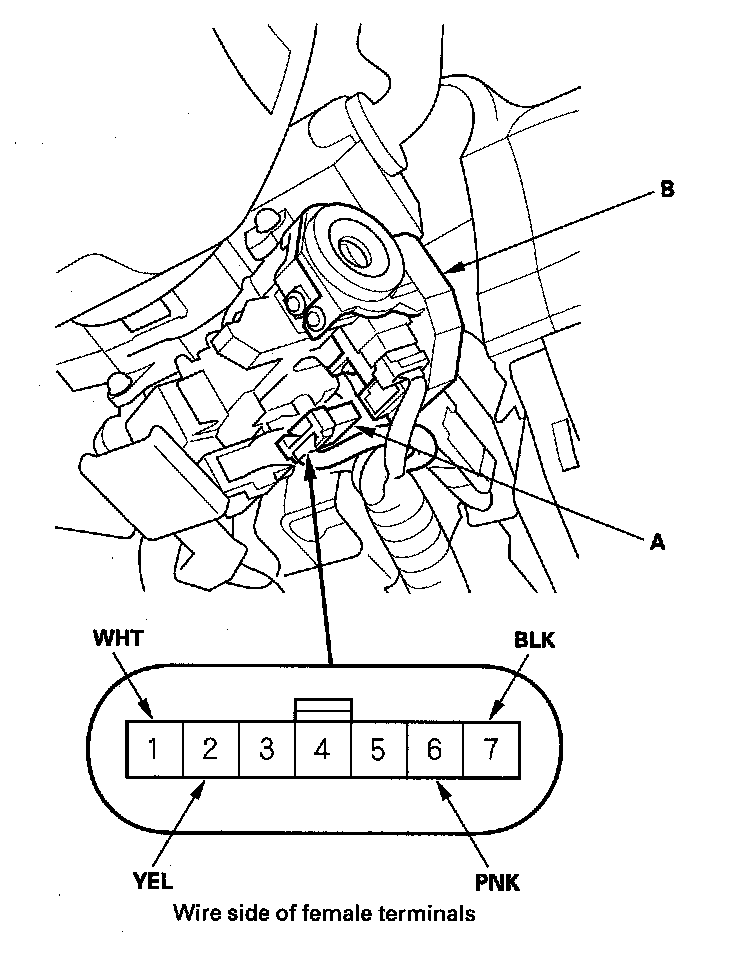

3. Disconnect the 7P connector (A) from the immobilizer-keyless control unit.






4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 5.

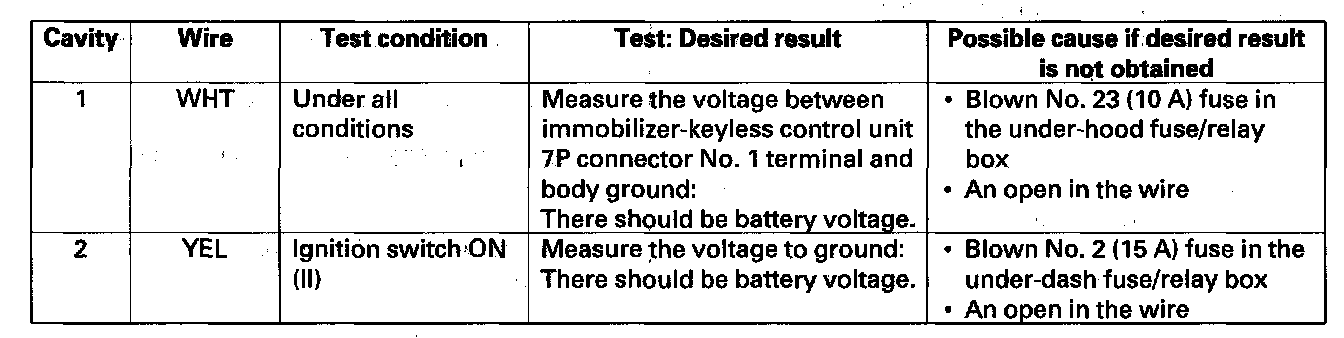

5. With the connector still disconnected, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 6.

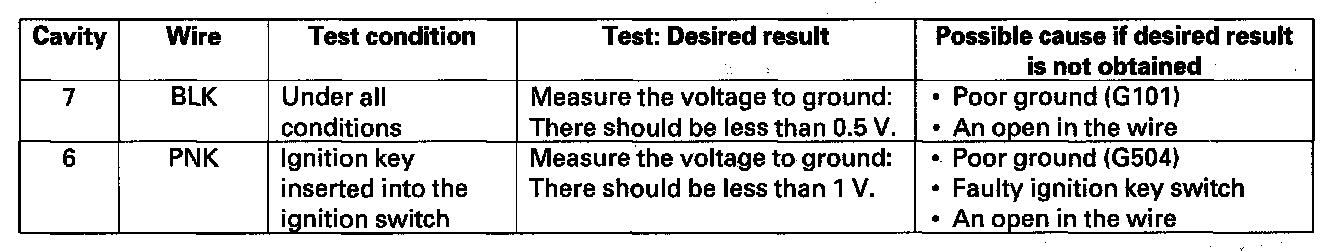

6. Reconnect the connectors to the immobilizer-keyless control unit, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the immobilizer-keyless control unit must be faulty; replace it.
