DTC P108: Manifold Absolute Pressure (MAP) Sensor Circuit High Voltage Input




General Description
The manifold absolute pressure (MAP) sensor senses manifold absolute pressure (vacuum) and converts it into electrical signals. The MAP sensor outputs low signal voltage. at high-vacuum (throttle valve closed) and high signal voltage at low-vacuum (throttle valve wide open). If a signal voltage from the MAP sensor is a set value or more, the powertrain control module (PCM) detects a malfunction and a DTC is stored.

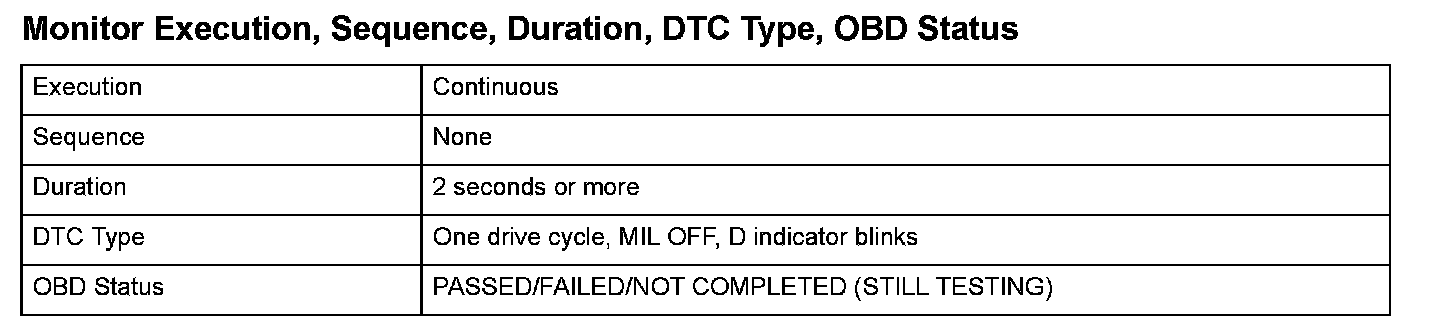

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

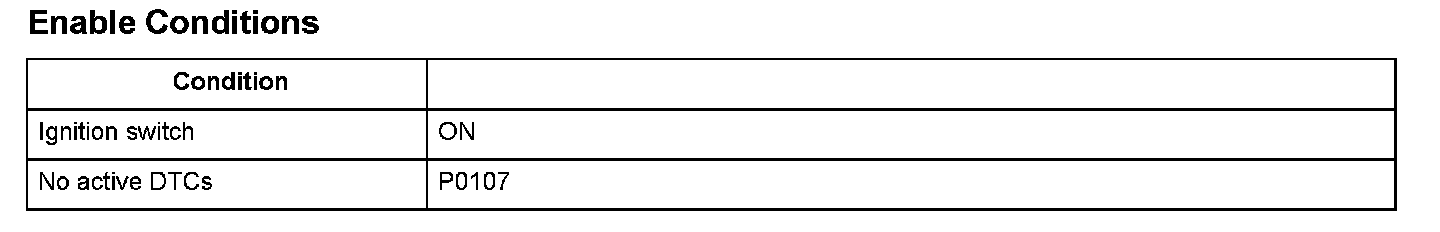

Enable Conditions

Malfunction Threshold
The MAP sensor output voltage is 4.49 V or more for at least 2 seconds.

Diagnosis Details

Conditions for illuminating the indicator
When a malfunction is detected, the D indicator blinks, and the DTC and the freeze frame data are stored in the PC memory. The MIL does not come on.

Conditions for clearing the DTC
The DTC and the freeze frame data can be cleared by using the scan tool Clear command or by disconnecting the battery.
