Heating
DTC indicator 5: A Problem in the Mode Control Linkage, Doors, or Motor1. Clear the DTC.
2. Turn the ignition switch to LOCK (0), and then turn to ON (II).
3. Do the self-diagnostic with the heater control panel.
4. Check for DTCs.
Is DTC 5 indicated?
YES - Go to step 5.
NO - Intermittent failure.
5. Turn the ignition switch to LOCK (0).
6. Test the mode control motor.
Is the mode control motor OK?
YES - Go to step 7.
NO - Replace the mode control motor, or repair the mode control linkage or doors.

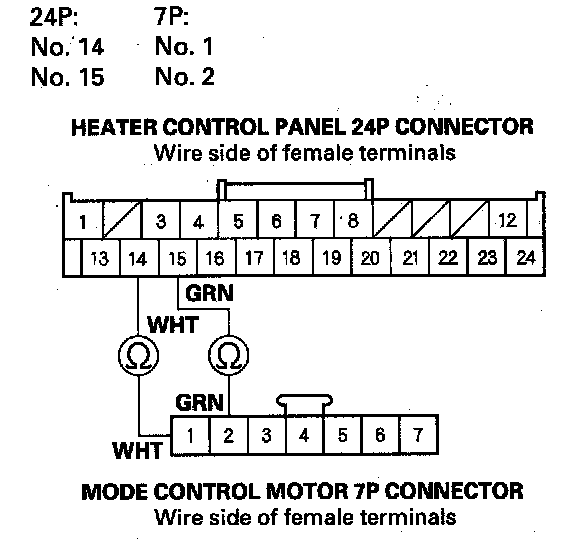

7. Check for continuity between the following terminals of the heater control panel 24P connector and the mode control motor 7P connector.
Is there continuity?
YES - Go to step 8.
NO - Repair open in the wires between the heater control panel and the mode control motor.

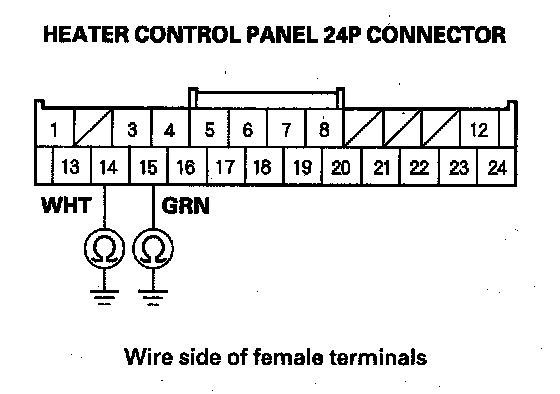

8. Check for continuity between body ground and the heater control panel 24P connector No. 14 and No. 15 terminals individually.
Is there continuity?
YES - Repair short to body ground in the wires between the heater control panel and the mode control motor.
NO - Substitute a known-good heater control panel, and recheck. If the symptom/indication goes away, replace the original heater control panel.
