DTC 44-1x

DTC 44-1x ("x" can be 0 thru 9 or A thru F): No Signal from the Right Side Impact Sensor (first)

Special Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead L 070AZ-SNAA300

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information.

1. Clear the DTC memory.
2. Turn the ignition switch ON (II), then wait for 10 seconds.
3. Read the DTC.

Is DTC 44-11 indicated?

YES - Go to step 5.

NO - Go to step 4.

4. Read the DTC.

Is DTC 44-12 indicated?

YES - Faulty right side impact sensor (first); replace the right side impact sensor (first).

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Troubleshooting Intermittent Failures If DTC 44-1x except DTC 44-11 and 44-12 is indicated, faulty right side impact sensor (first). Replace the right side impact sensor (first).

5. Turn the ignition switch OFF.
6. Disconnect the negative cable from the battery, then wait for 3 minutes.
7. Disconnect both seat belt tensioner connectors and both seat belt buckle tensioner connectors.

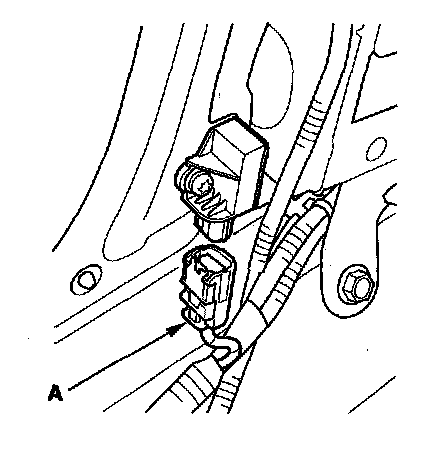

8. Disconnect the floor wire harness 4P connector (A) from the right side impact sensor (first).






9. Disconnect SRS unit connector B (28P) from the SRS unit.

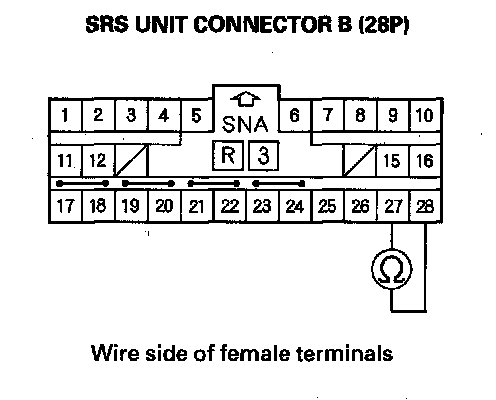

10. Measure the resistance between the No. 27 and No. 28 terminals of SRS unit connector B (28P). There should be an open circuit or at least 1 Mohms.






Is the resistance as specified?

YES - Go to step 11.

NO - Short in the floor wire harness; replace the floor wire harness.

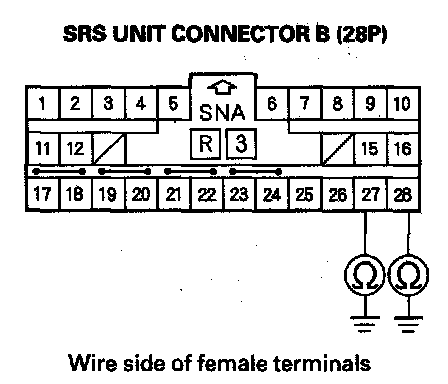

11. Measure the resistance between the No. 27 terminal of SRS unit connector B (28P) and body ground, and between the No. 28 terminal and body ground. There should be an open circuit or at least 1 Mohms.






Is the resistance as specified?

YES - Go to step 12.

NO - Short to ground in the floor wire harness; replace the floor wire harness.

12. Reconnect the negative cable to the battery.
13. Turn the ignition switch ON (II).

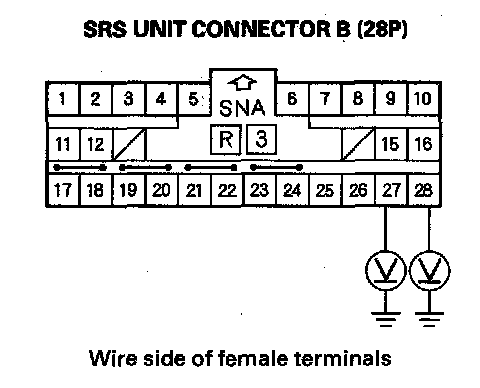

14. Measure the voltage between the No. 27 terminal of SRS unit connector B (28P) and body ground, and between the No. 28 terminal and body ground. There should be 1 V or less.






Is the voltage as specified?

YES - Go to step 15.

NO - Short to power in the floor wire harness; replace the floor wire harness.

15. Turn the ignition switch OFF.

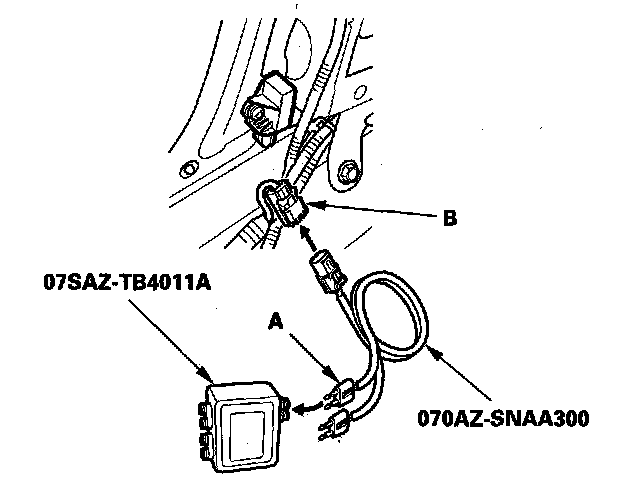

16. Connect the SRS inflator simulator (jumper connector) and the black lead (A) of simulator lead L to the right side impact sensor 4P connector (B).

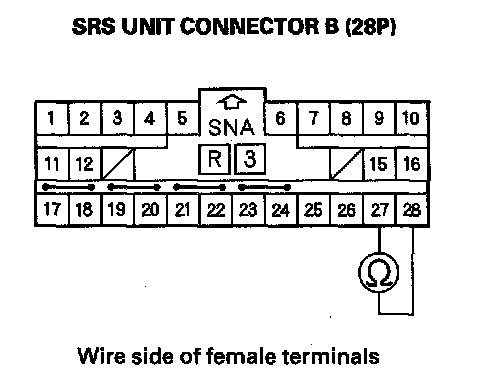

17. Measure the resistance between the No. 27 and No. 28 terminals of SRS unit connector B (28P). There should be 0 - 1.0 ohm.






Is the resistance as specified?

YES - Faulty right side impact sensor (first) or SRS unit; replace the right side impact sensor (first). If the problem is still present, replace the SRS unit.

NO - Open in the floor wire harness; replace the floor wire harness.
