DTC 27-9x

DTC 27-9x ("x" can be 0 thru 9 or A thru F): Short to Ground in Driver's Seat Belt Buckle Tensioner

Special Tools Required
- SRS inflator simulator 07SAZ-TB4011A
- SRS simulator lead K 070AZ-SNAA200

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures and General Troubleshooting Information.

1. Clear the DTC memory.
2. Turn the ignition switch ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

Does the SRS indicator stay on, and is DTC 27-9x indicated?

YES - Go to step 3.

NO - Intermittent failure, system is OK at this time. Go to Troubleshooting Intermittent Failures. Troubleshooting Intermittent Failures If another DTC is indicated, troubleshoot the DTC.

3. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.

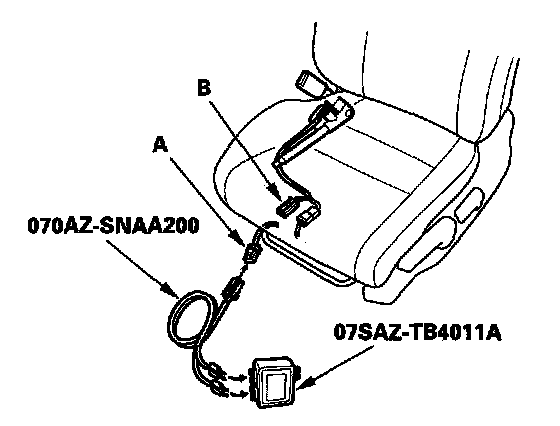

4. Disconnect the floor wire harness 4P connector (A) from the driver's seat belt buckle tensioner connector (B).






5. Connect the SRS inflator simulator (2 ohms connectors) and simulator lead K to the floor wire harness connector.
6. Reconnect the negative cable to the battery.
7. Clear the DTC memory.
8. Read the DTC.

Is DTC 27-9x indicated?

YES - Go to step 9.

NO - Short to ground in the driver's seat belt buckle tensioner; replace the driver's seat belt buckle.

9. Turn the ignition switch OFF. Disconnect the negative cable from the battery, then wait for 3 minutes.
10. Disconnect both seat belt tensioner 4P connectors and the front passenger's seat belt buckle tensioner 4P connector.
11. Disconnect SRS unit connector B (28P) from the SRS unit.
12. Disconnect the simulator lead from the floor wire harness.

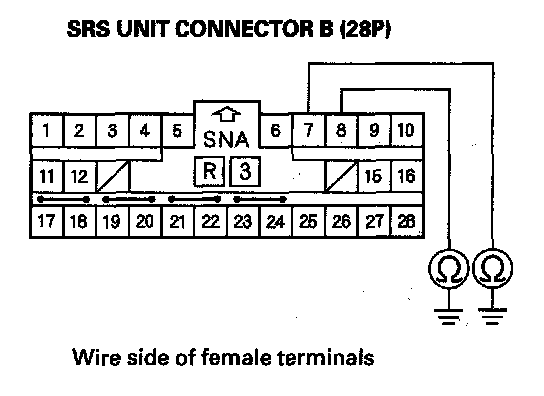

13. Measure the resistance between the No. 7 terminal of SRS unit connector B (28P) and body ground, and the No. 8 terminal and body ground. There should be an open circuit or at least 1 Mohms.






Is the resistance as specified?

YES - Faulty SRS unit or poor connection at SRS unit connector B (28P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit.

NO - Short to ground in the floor wire harness; replace the floor wire harness.
