B1173

DTC B1173: Gauge Control Module Lost Communication with the TPMS Control Unit (TPMS message)

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A.

1. Clear the DTCs with the HDS.
2. Turn the ignition switch OFF, and then back ON (II).
3. Wait for 6 seconds or more.
4. Check for DTCs with the HDS.

Is DTC B1173 indicated?

YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for loose or poor connections.

5. Check for TPMS DTCs with the HDS.

Is any DTCs indicated?

YES - Go to the indicated DTCs, then recheck.

NO - Go to step 6.

6. Turn the ignition switch OFF.
7. Disconnect the gauge control module (tach) 36P connector.
8. Disconnect the TPMS control unit 20P connector.

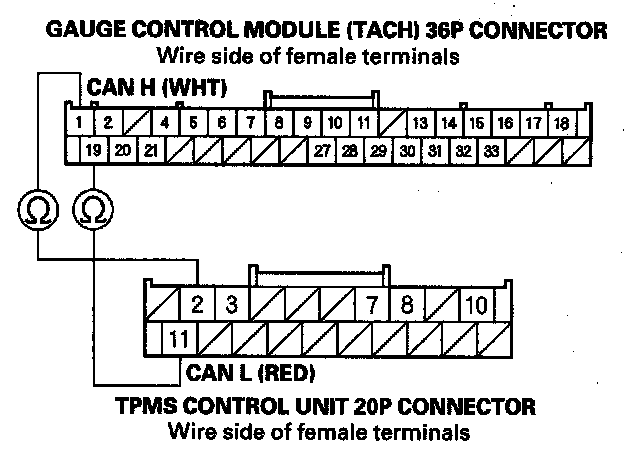

9. Check for continuity between the gauge control module (tach) 36P connector No. 1 and No. 19 terminals and the TPMS control unit 20P connector No. 2 and No. 11 terminals respectively.






Is there continuity?

YES - Substitute a known-good TPMS control unit, and recheck. If the indication goes away, replace the original TPMS control unit. If the DTC is still present, replace the gauge control module (tach).

NO - Repair an open in the wire.
