Wiper/Washer Switch Test
Wiper/Washer Switch Test1. Remove the wiper/washer switch.
2. Disconnect the dashboard wire harness 8P connector (A) from the wiper/washer switch (B).

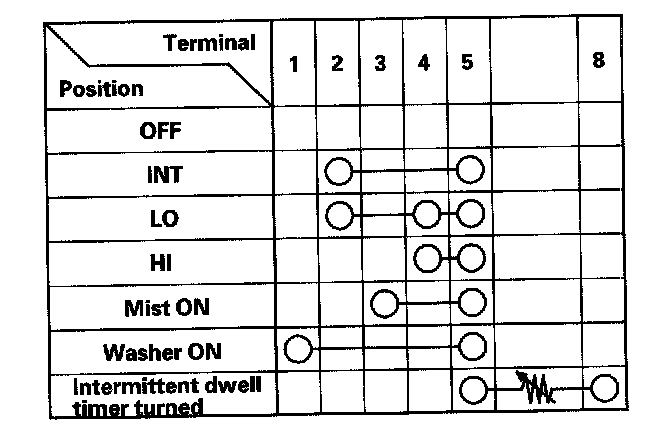

3. Check for continuity between the terminals in each switch position according to the table.
4. If the continuity is not as specified, replace the switch.
