Power Windows Circuit Diagram

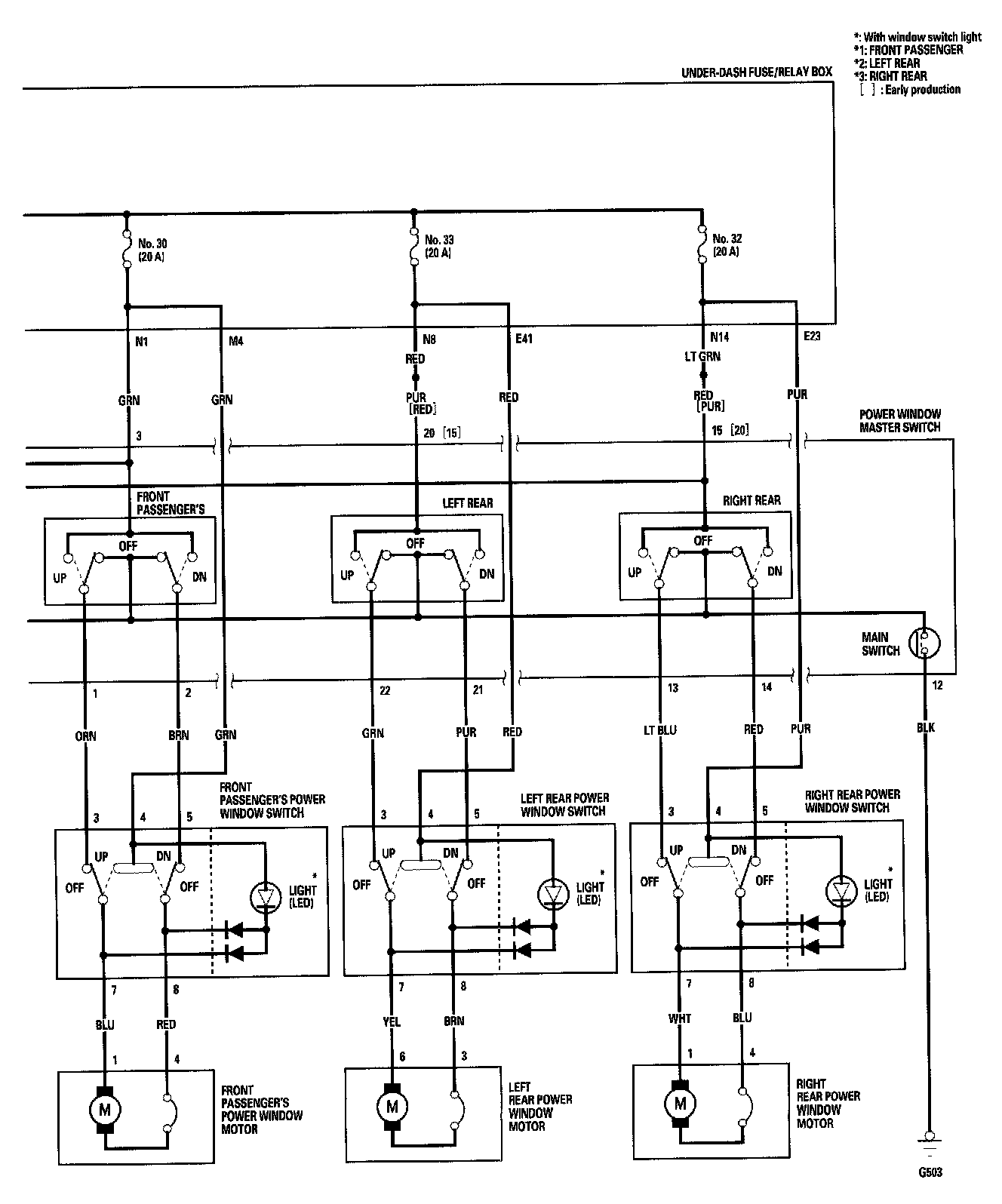

Power Windows Circuit Diagram Part 1:

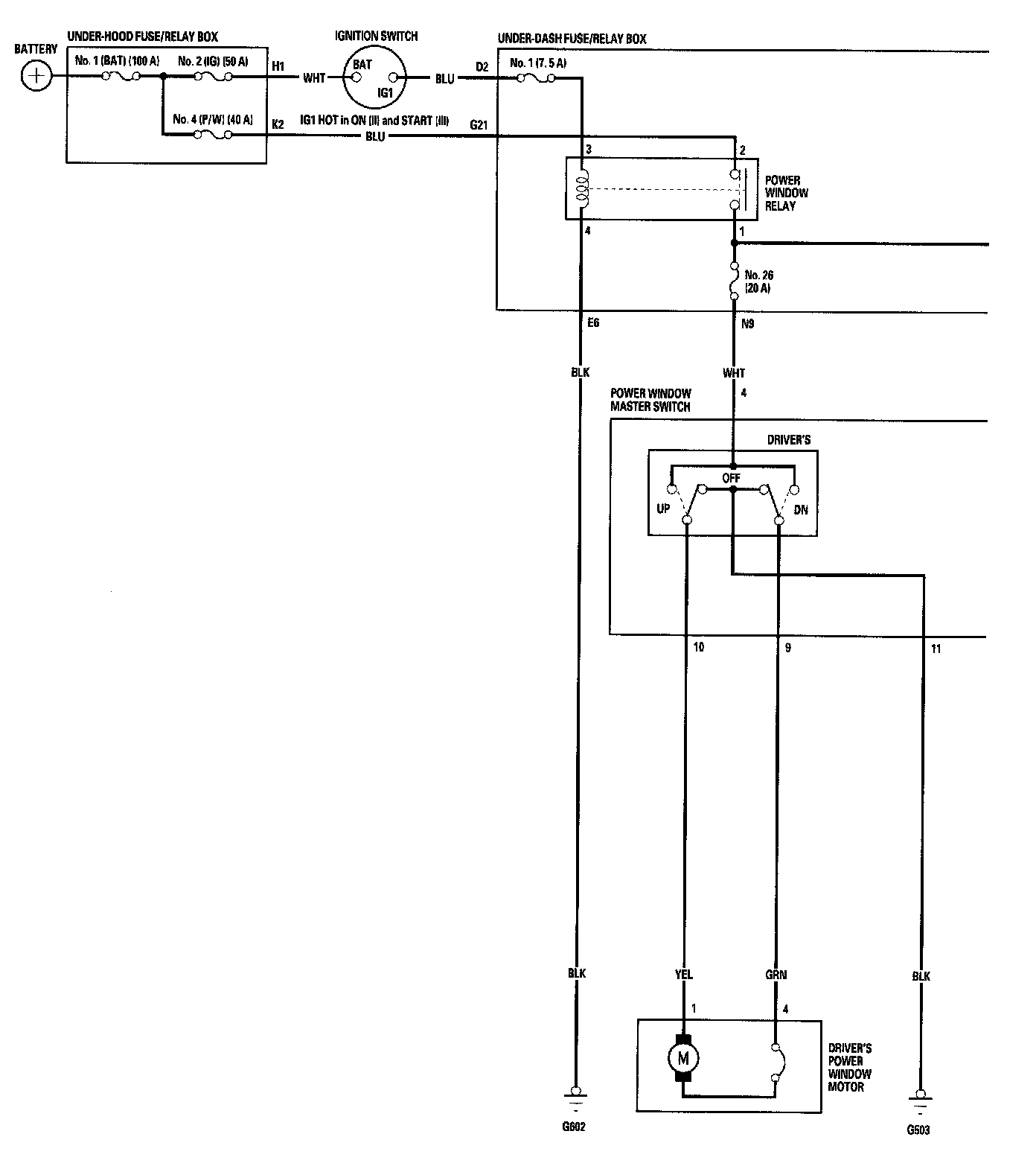

Power Windows Circuit Diagram Part 2:

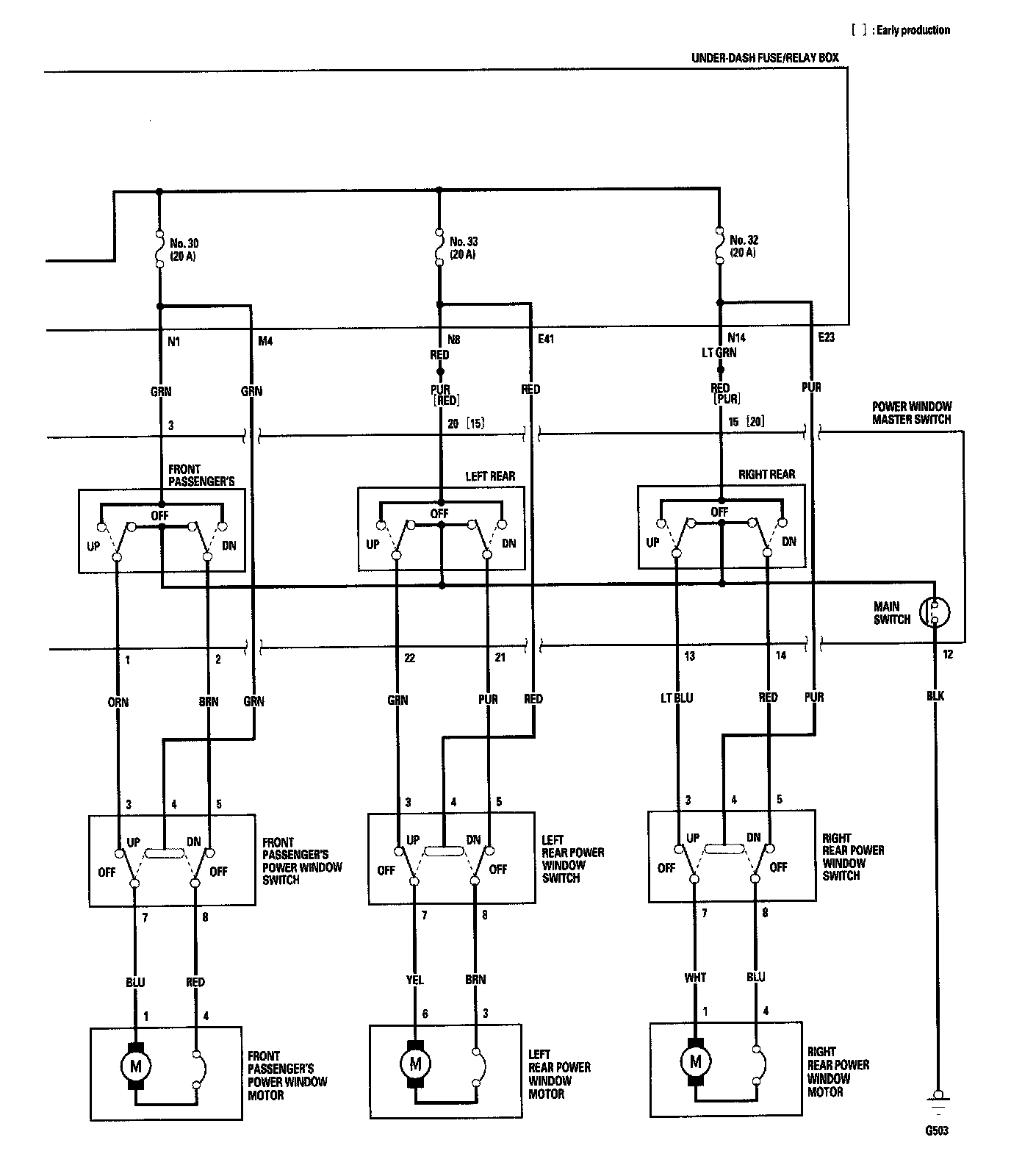

Power Windows Circuit Diagram Part 3:

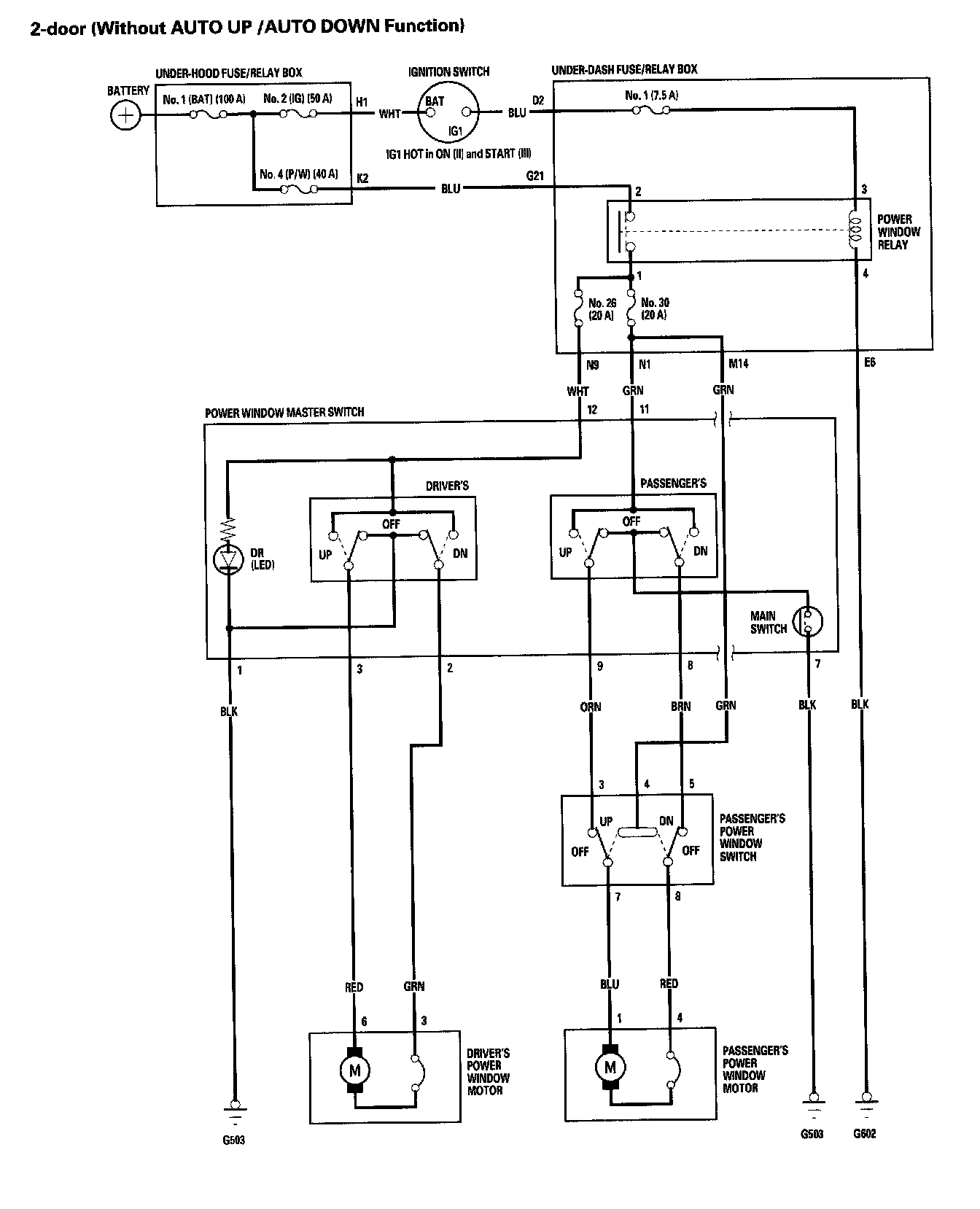

Power Windows Circuit Diagram Part 4:

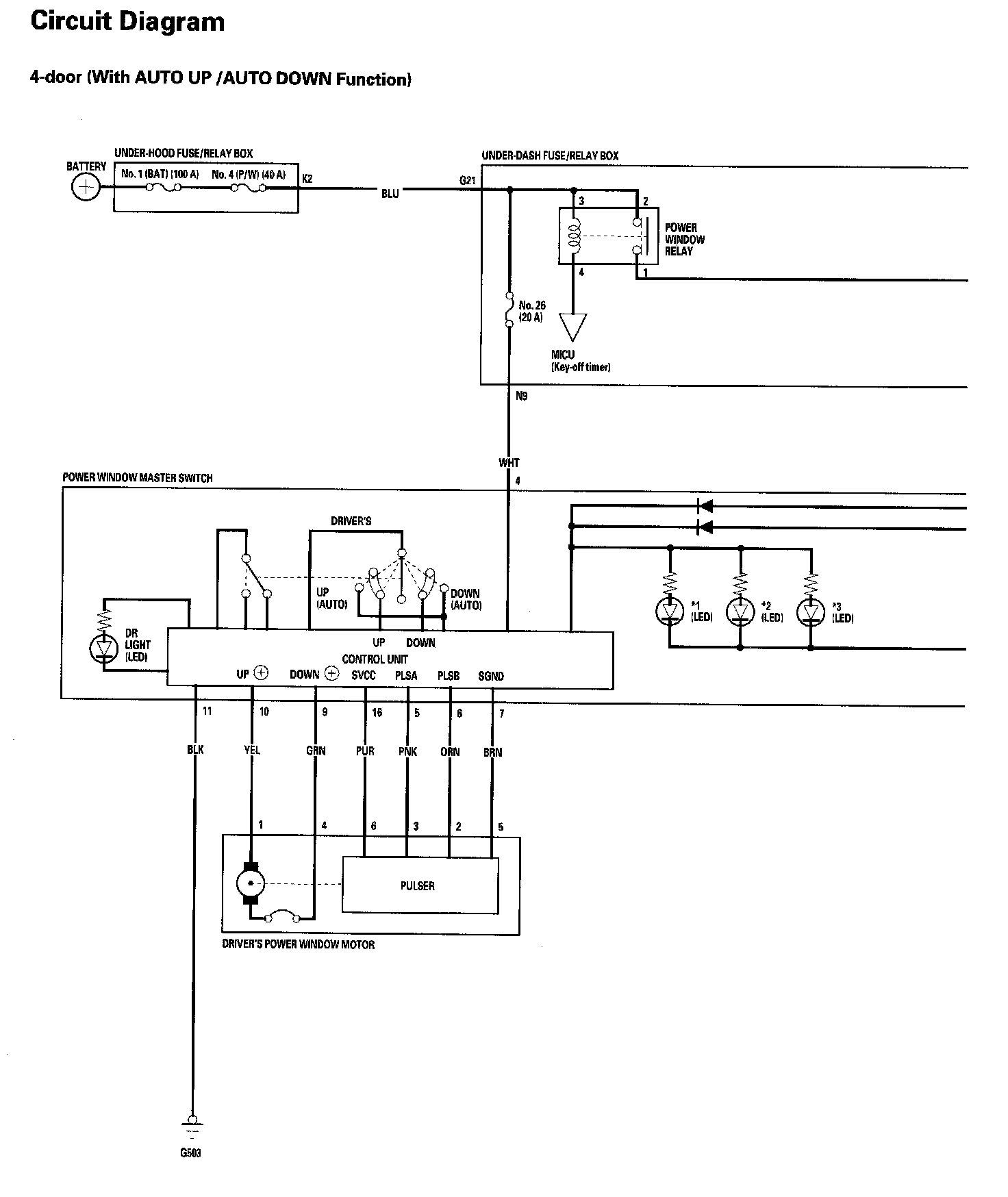

Power Windows Circuit Diagram Part 5:



Power Windows Circuit Diagram Part 6:
