Mainshaft Bearing and Oil Seal Replacement
Mainshaft Bearing and Oil Seal ReplacementSpecial Tools Required
^ Oil seal driver 07JAD-PL90100
^ Adjustable bearing puller, 20 - 40 mm 07736-A01000B
^ Attachment, 42 x 47 mm 07746-0010300
^ Driver 07749-0010000
^ Slide hammer, 3/8"-16 UNF commercially available

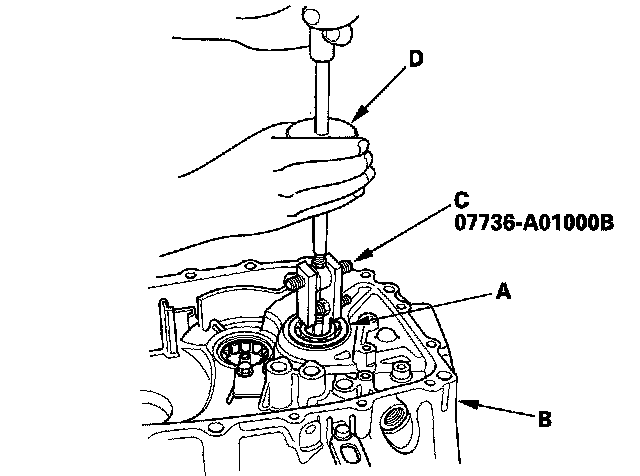

1. Remove the ball bearing (A) from the clutch housing (B) using the 20 - 40 mm adjustable bearing puller (C) and a commercially available 3/8"-16 UNF slide hammer (D).

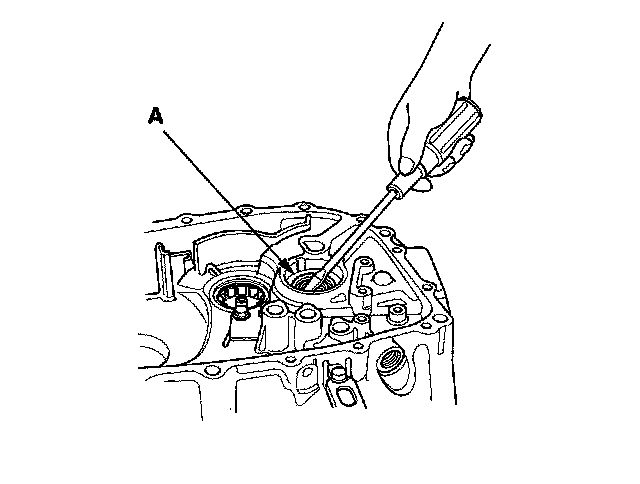

2. Remove the oil seal (A) from the clutch side. Be careful when removing the oil seal so the clutch housing is not damaged.

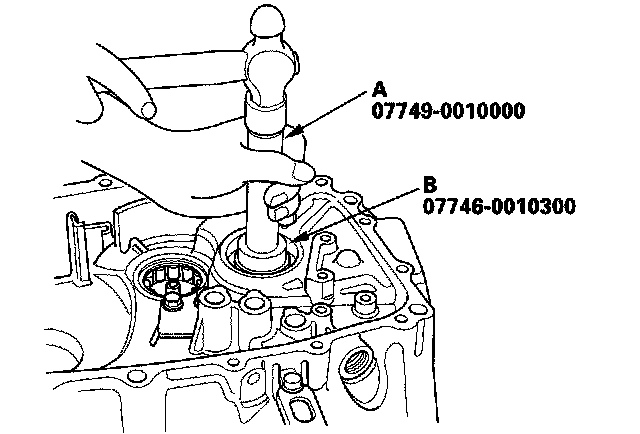

3. Drive in the new oil seal from the transmission side using the driver (A) and 42 x 47 mm attachment (B).

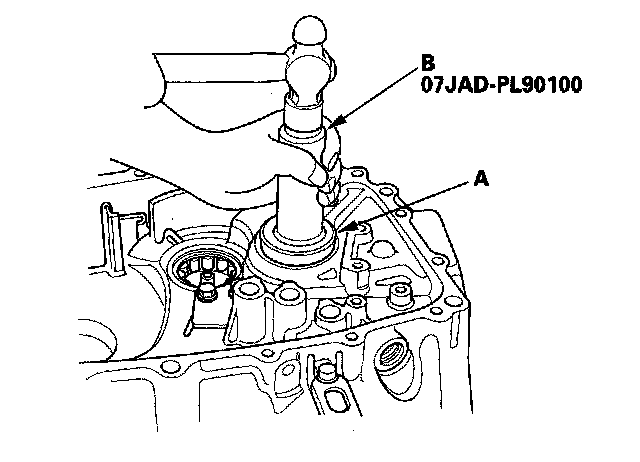

4. Drive in the new ball bearing (A) from the transmission side using the oil seal driver (B).
