Oil Seal Replacement

Oil Seal Replacement

Special Tools Required
^ Oil seal driver attachment 07NAD-P20A100
^ Driver 07749-0010000

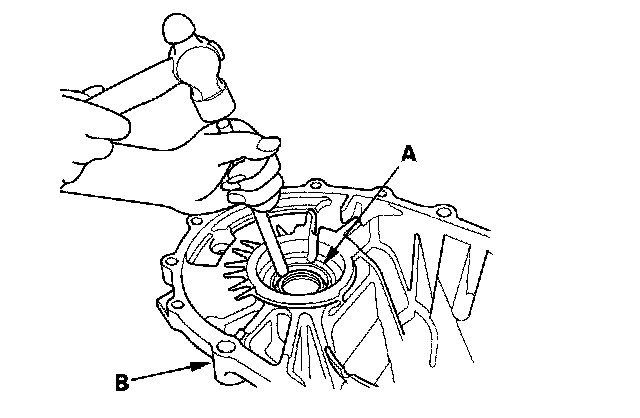

1. Remove the oil seal (A) from the transmission housing (B).

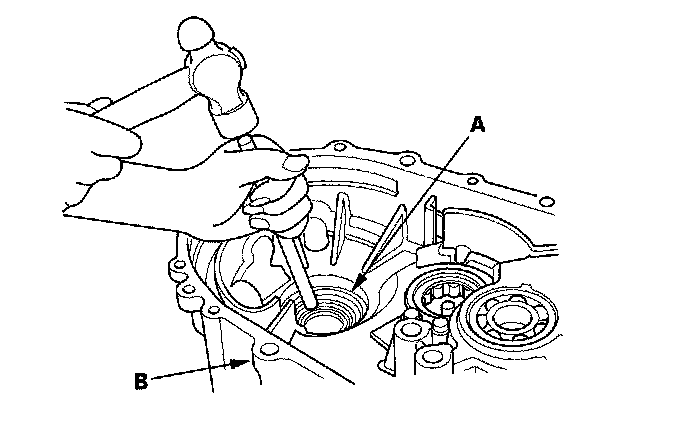

2. Remove the oil seal (A) from the clutch housing (B).

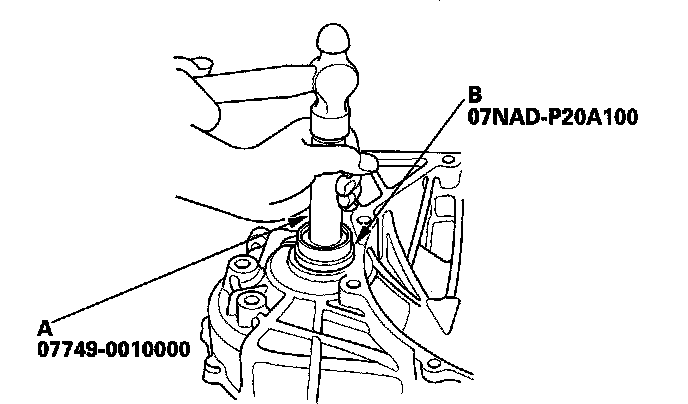

3. Install the new oil seal in the transmission housing with the driver (A) and oil seal driver attachment (B).

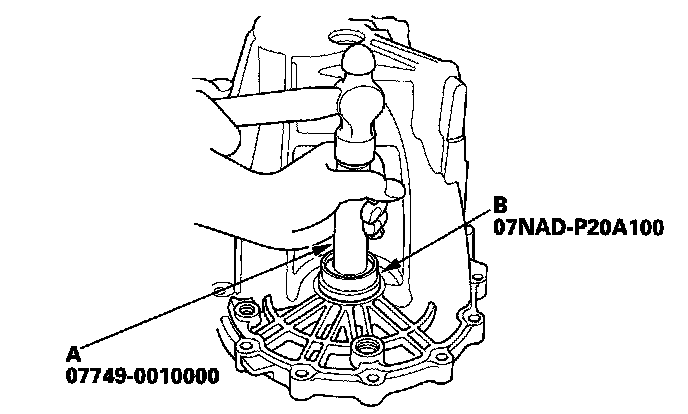

4. Install the new oil seal in the clutch housing with the driver (A) and oil seal driver attachment (B).
