Reverse Lockout Solenoid Test

Reverse Lockout Solenoid Test
1. Remove the reverse lockout solenoid.

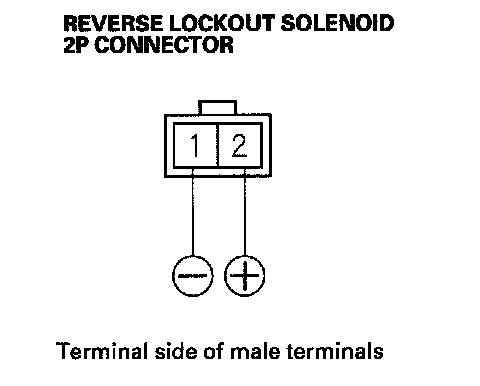

2. Connect battery positive terminal to the reverse lockout solenoid 2P connector No. 2 terminal, and connect the battery negative terminal to the No. 1 terminal.





3. Make sure the reverse lockout solenoid works. If the reverse lockout solenoid does not work, replace it.
