Connector Views

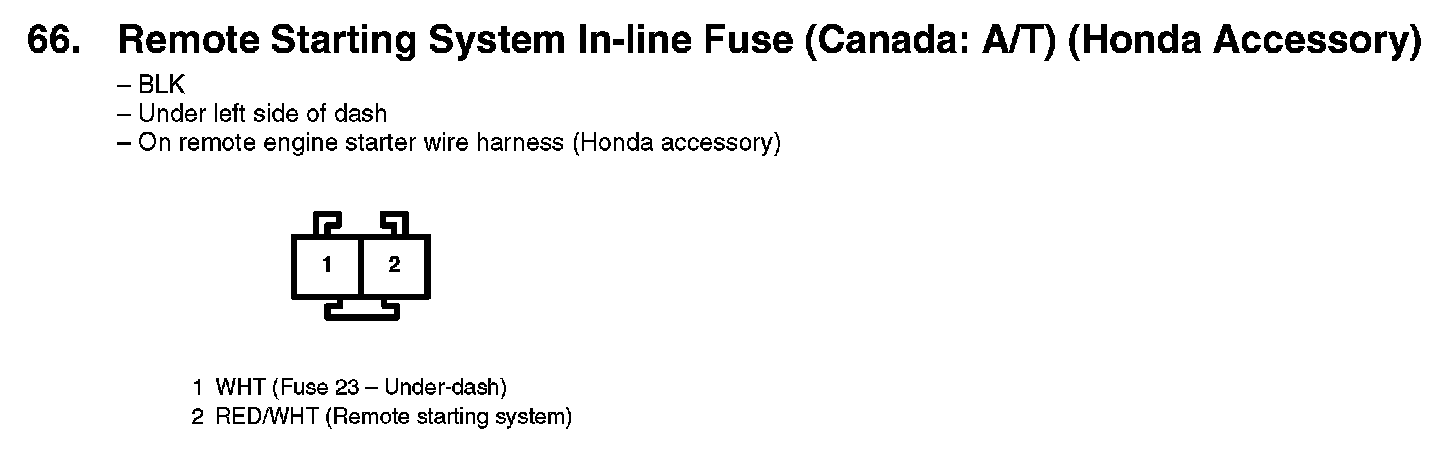

66. Remote Starting System In-line Fuse (Canada: A/T) (Honda Accessory):

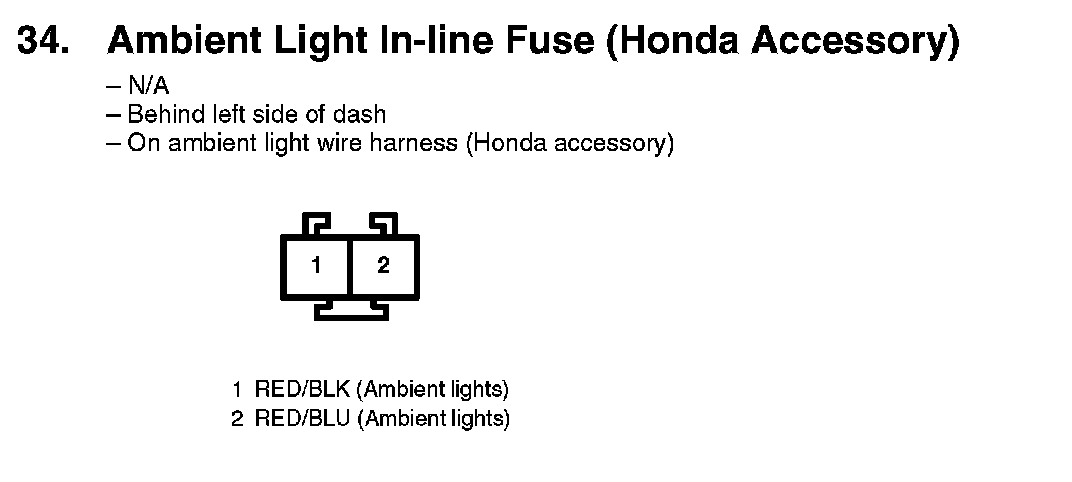

34. Ambient Light In-line Fuse (Honda Accessory):

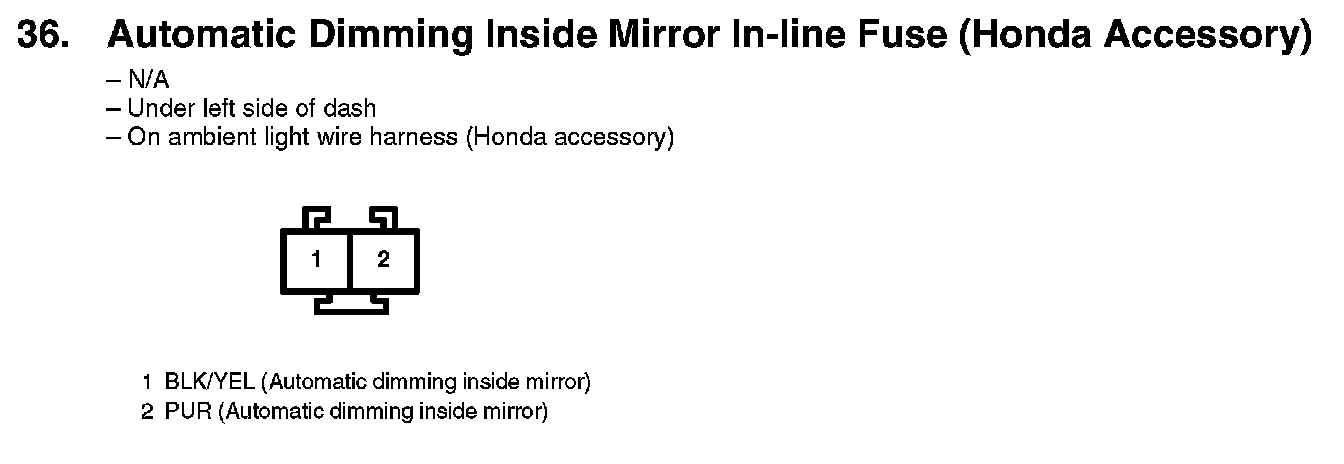

36. Automatic Dimming Inside Mirror In-line Fuse (Honda Accessory):

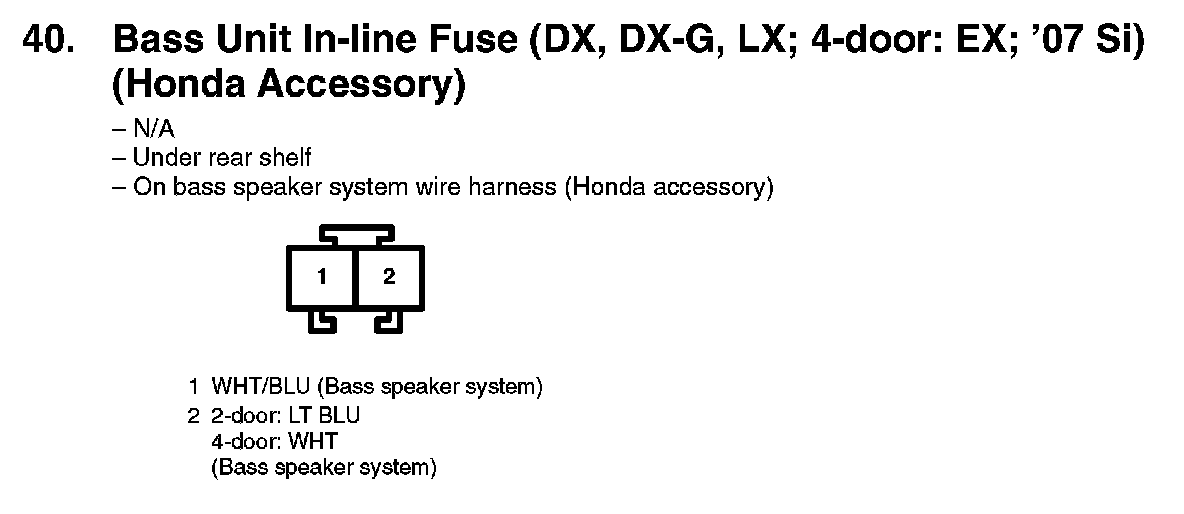

40. Bass Unit In-line Fuse (DX, DX-G, LX; 4-door: EX; '07 Si):
