Connector Views

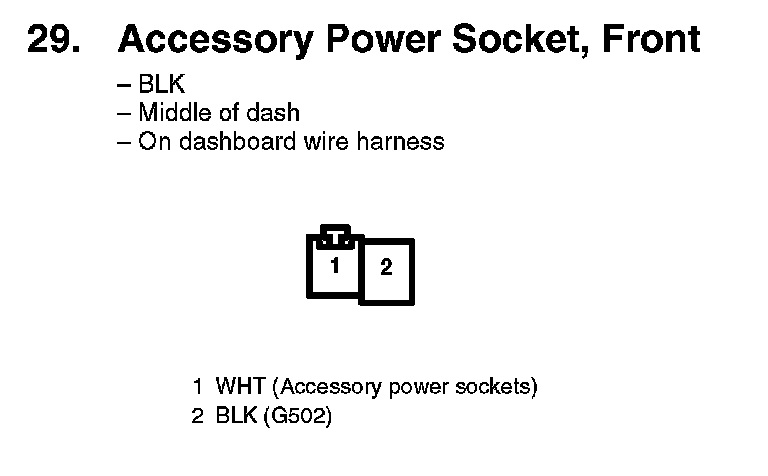

29. Accessory Power Socket, Front:

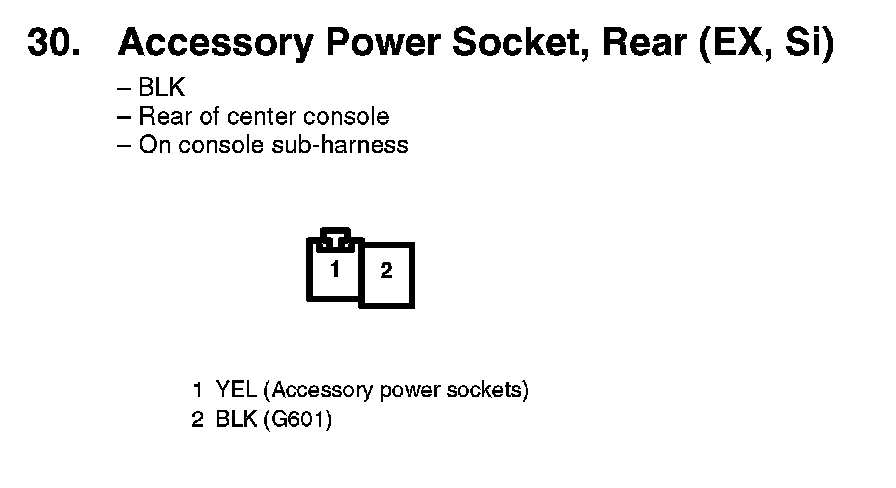

30. Accessory Power Socket, Rear (EX, Si):

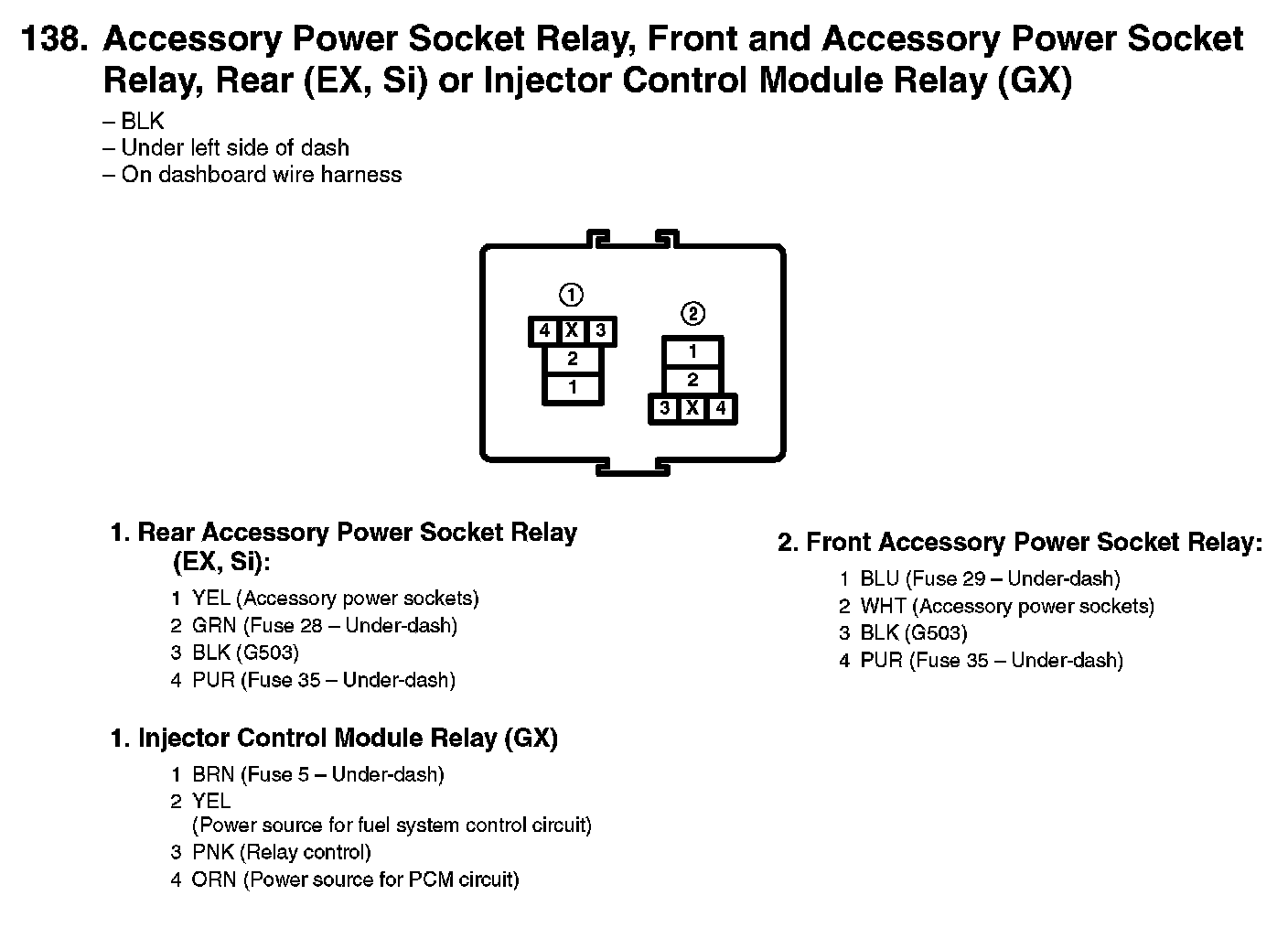

138. Accessory Power Socket Relay, Front And Accessory Power Socket Relay, Rear (EX, Si) Or Injector Control Module Relay (GX):
