Specifications
>>
Mechanical Specifications
>>
Body and Frame
>>
Frame
Frame

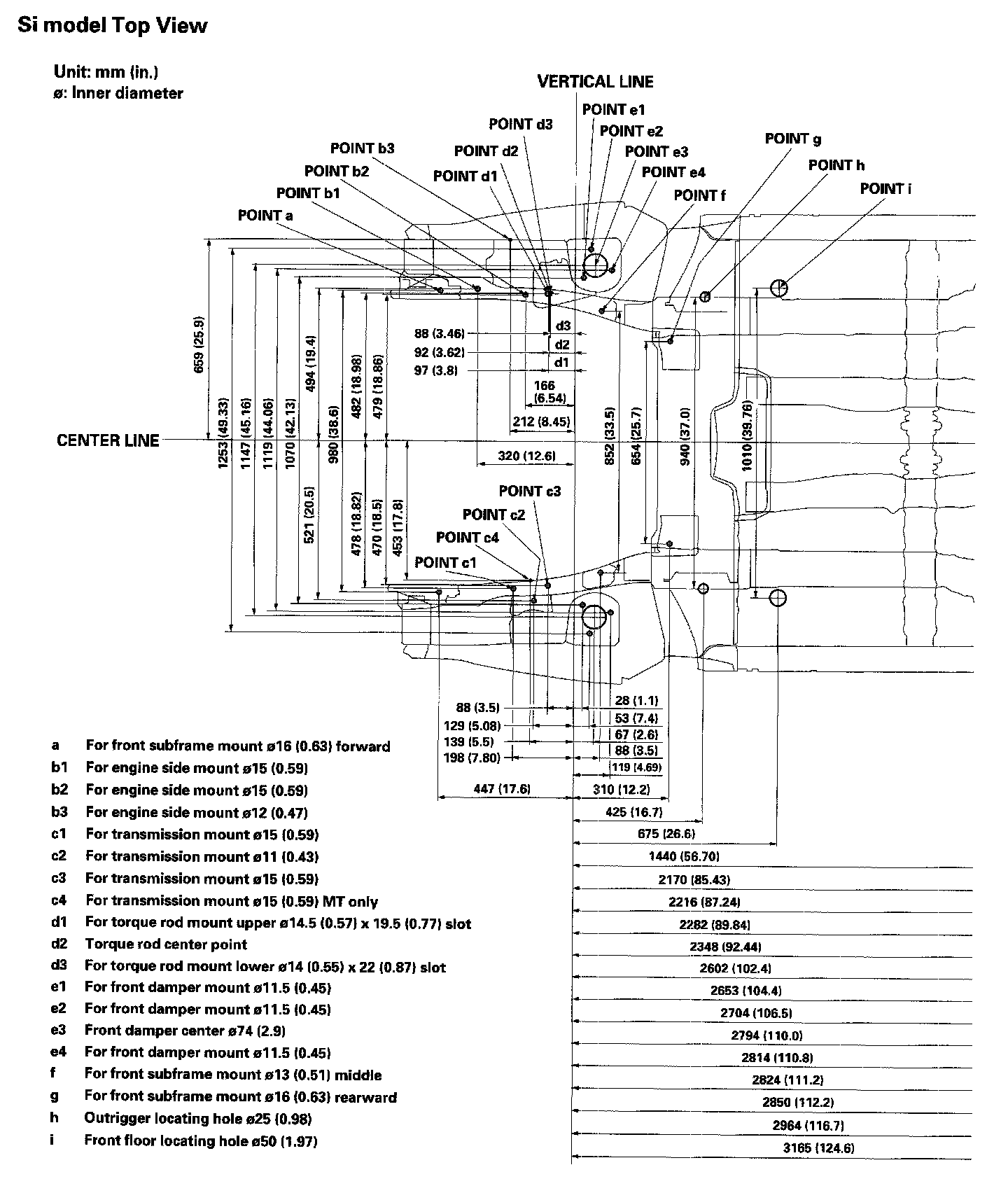

Frame Repair Chart, Top View (Part 1):

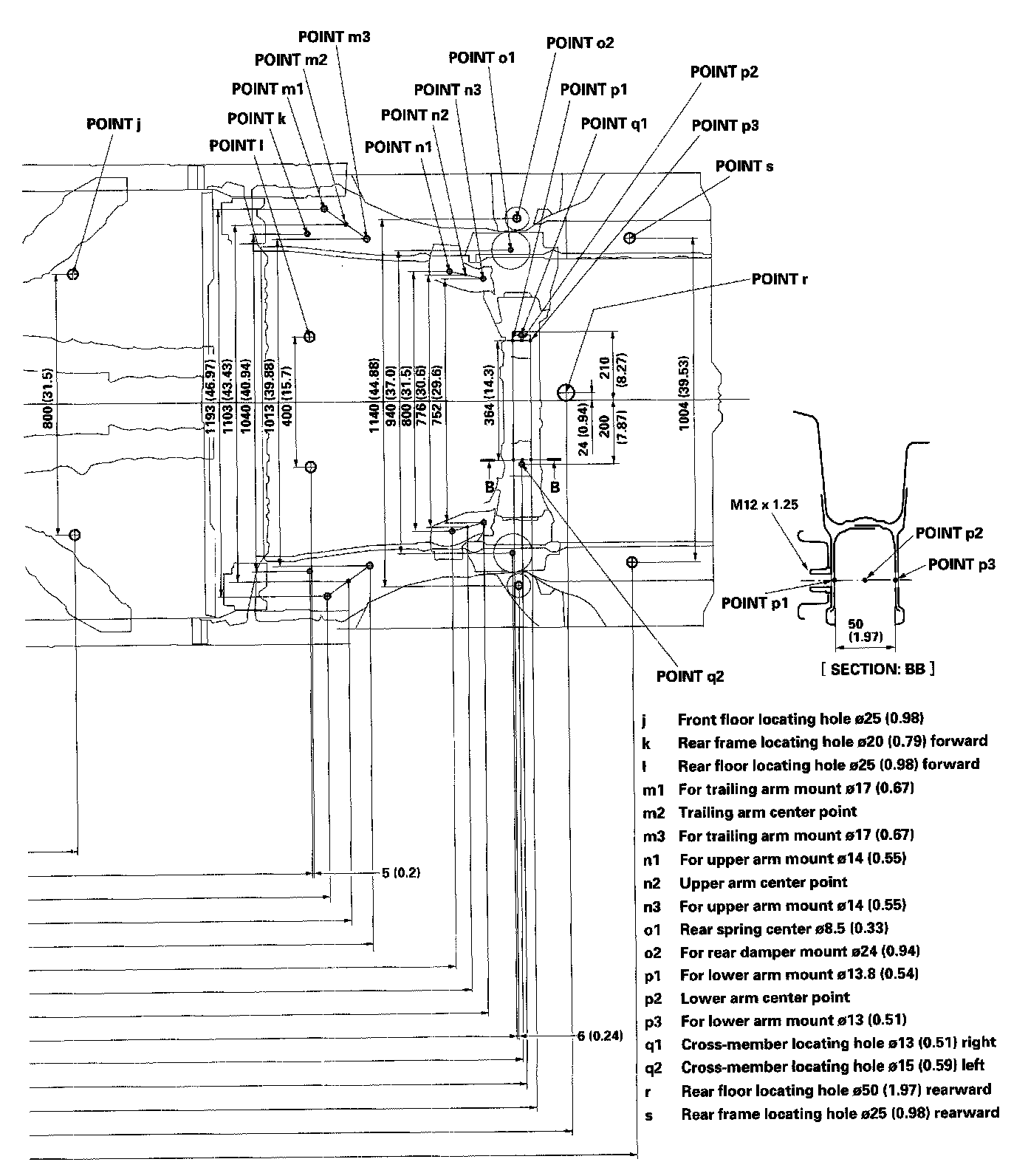

Frame Repair Chart, Top View (Part 2):

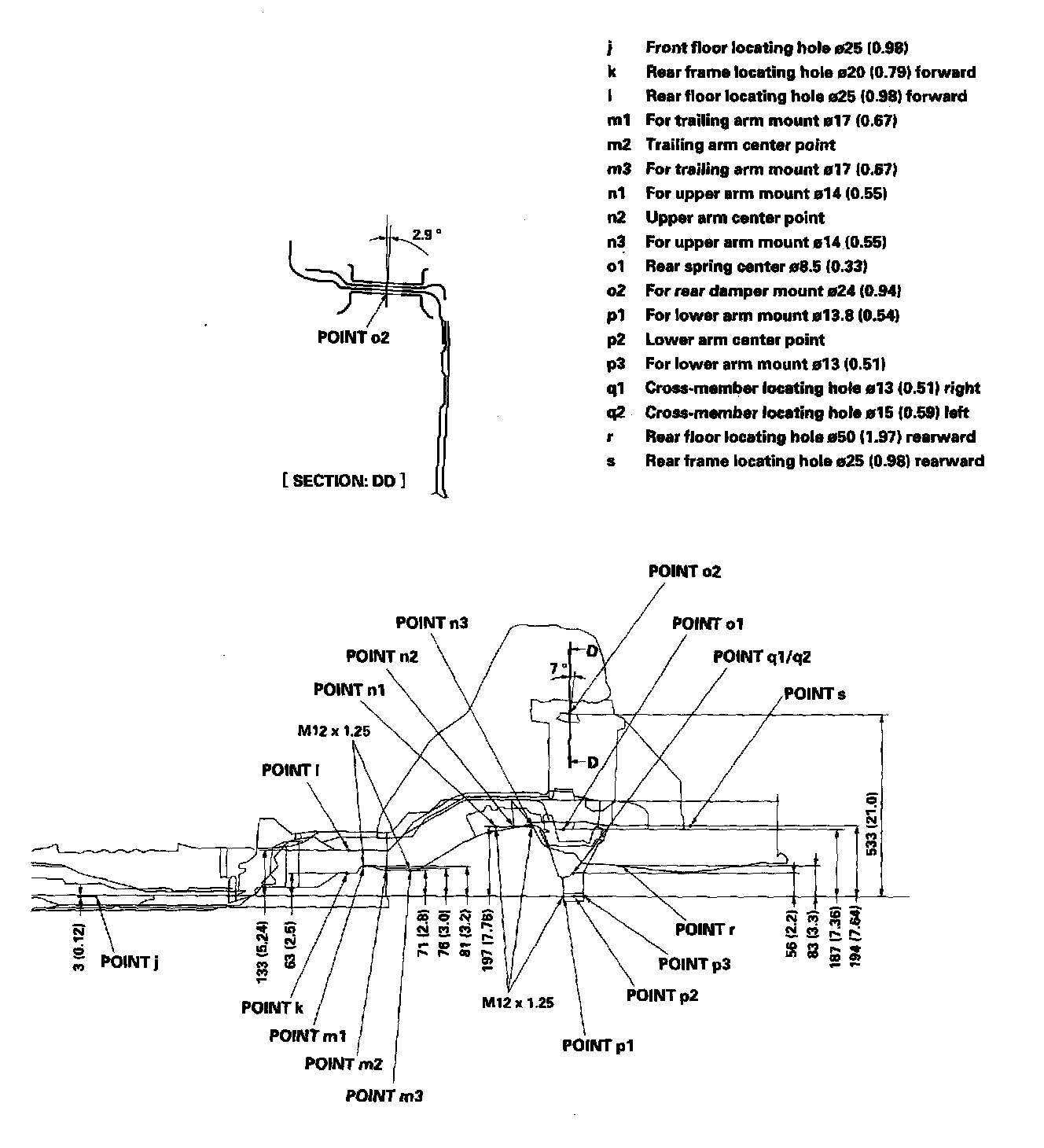

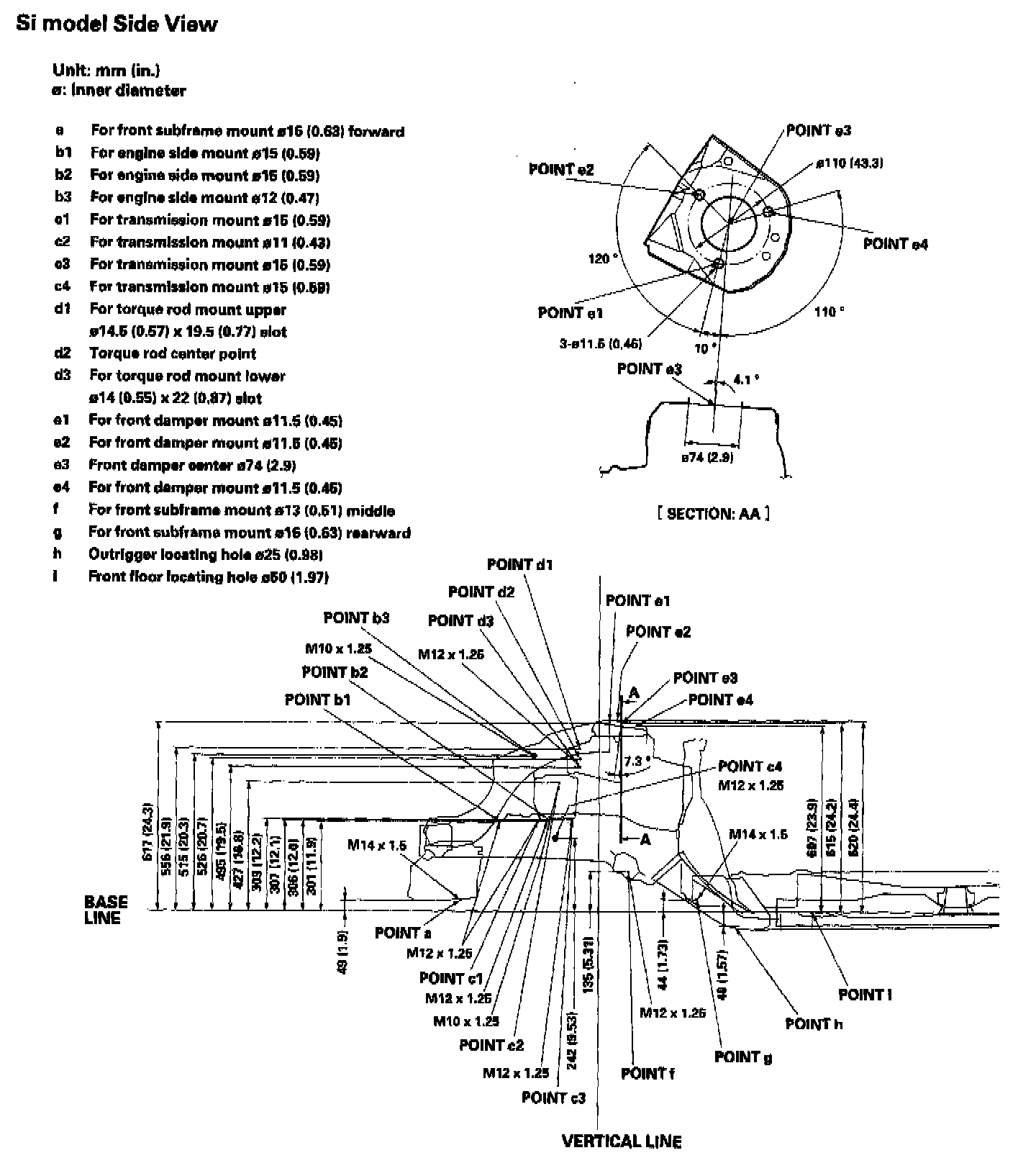

Frame Repair Chart, Side View (Part 1):
Frame Repair Chart, Side View (Part 2):
