Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Seat Occupant Sensor >> Locations >> Component Locations

Component Locations

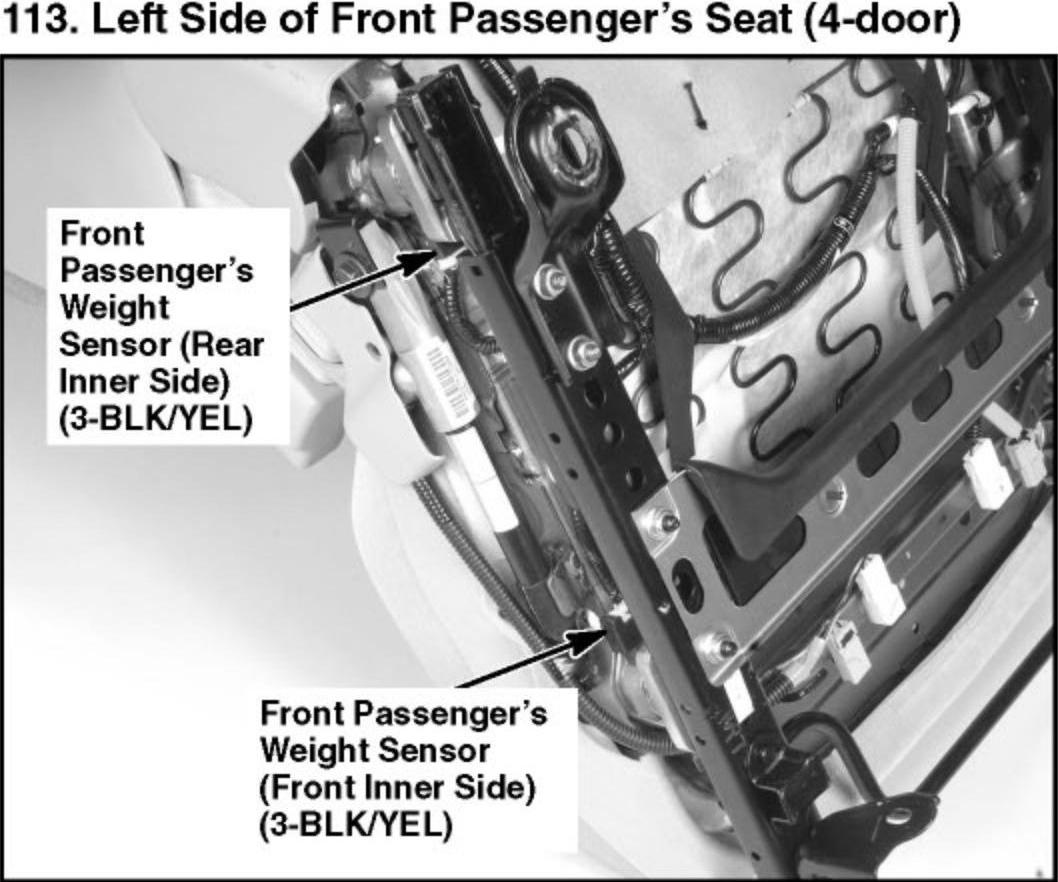

113. Left Side of Front Passenger's Seat (4-door):

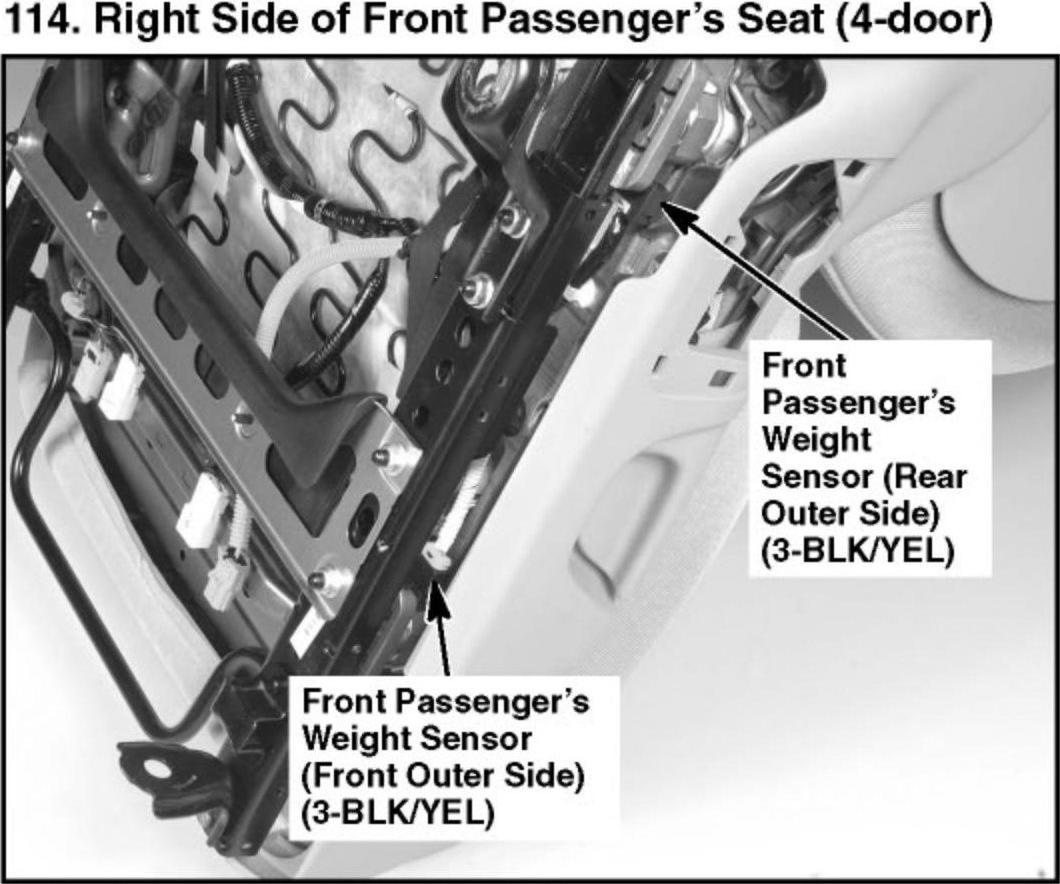

114. Right Side of Front Passenger's Seat (4-door):
