Seat Occupant Sensor: Diagrams

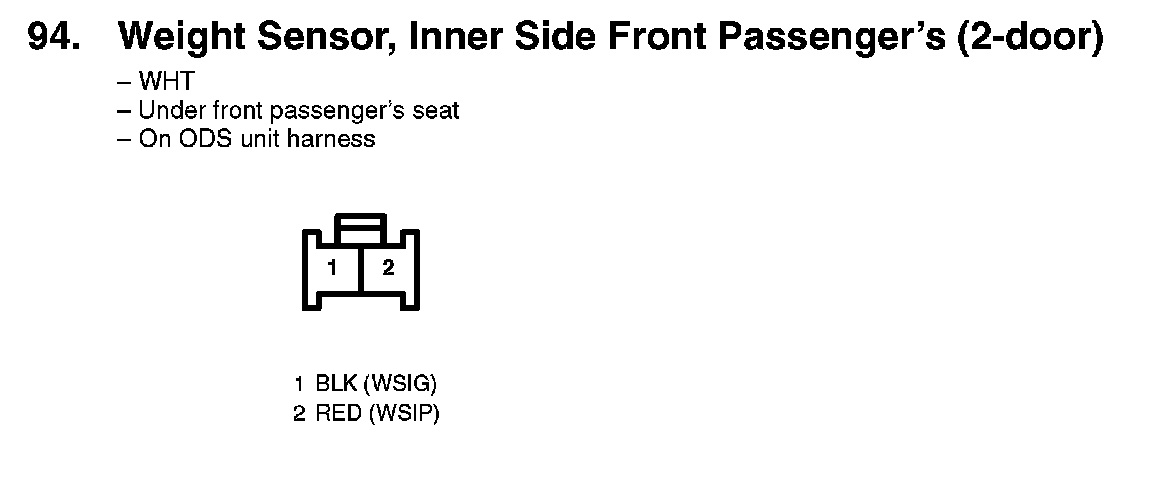

94. Weight Sensor, Inner Side Front Passenger's (2-door):

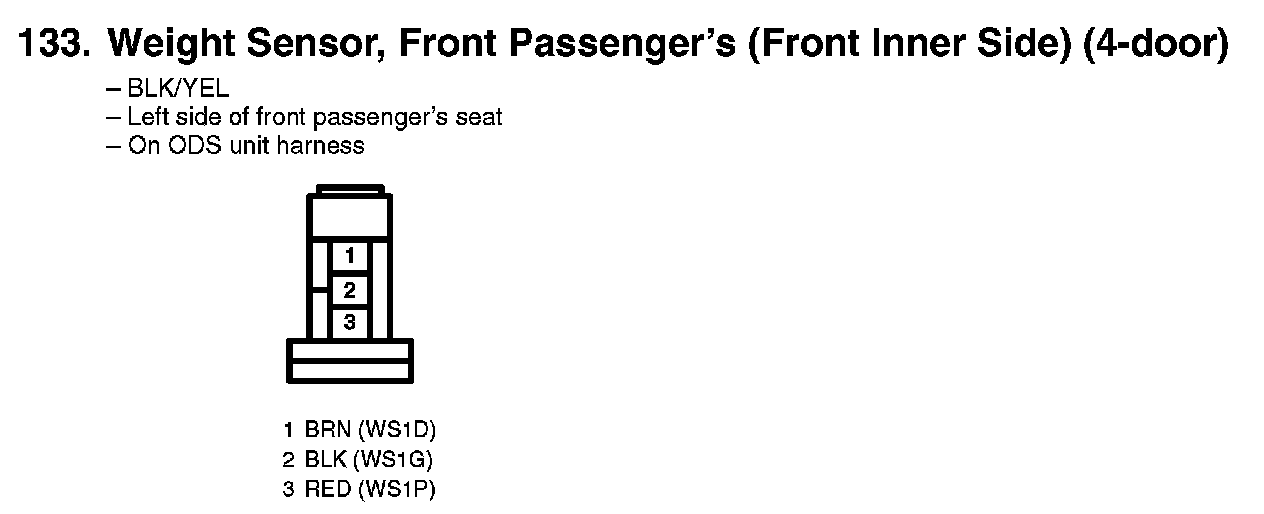

133. Weight Sensor, Front Passenger's (Front Inner Side) (4-door):

134. Weight Sensor, Front Passenger's (Front Outer Side) (4-door):

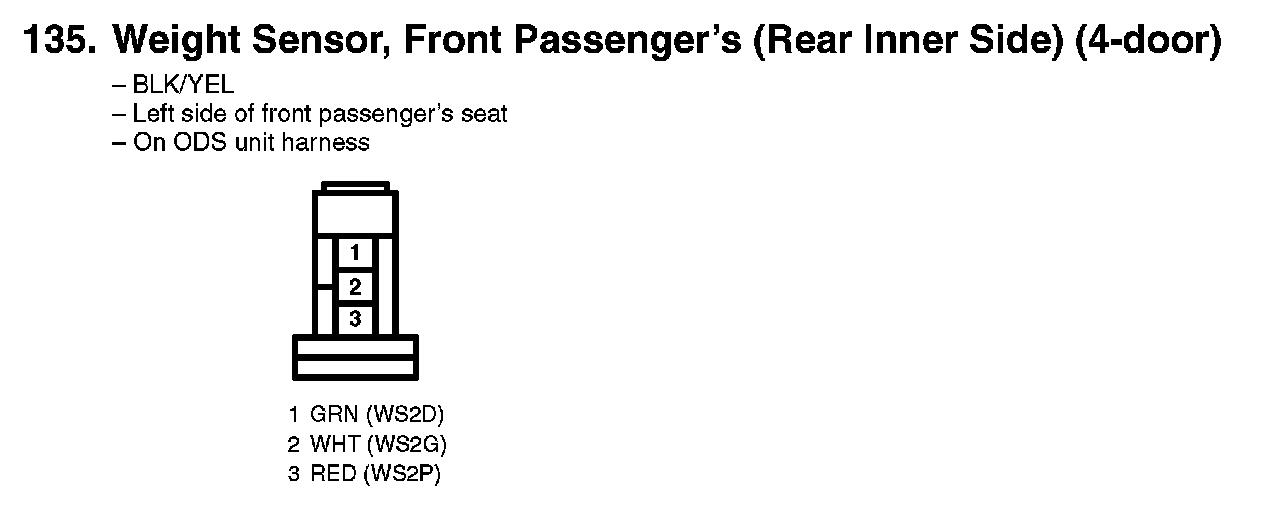

135. Weight Sensor, Front Passenger's (Rear Inner Side) (4-door):

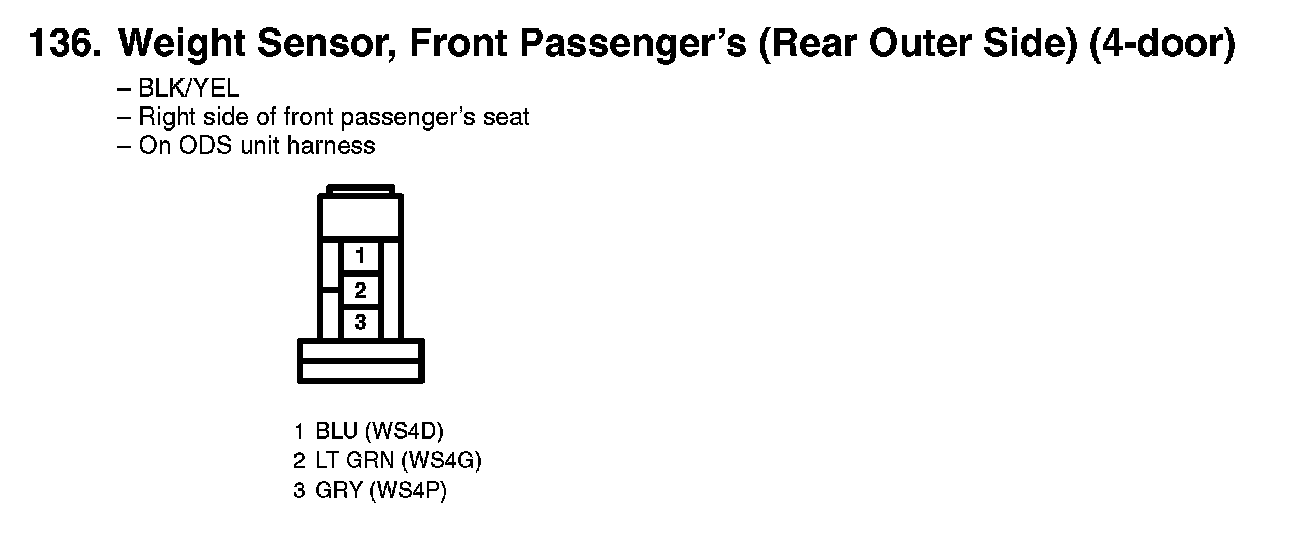

136. Weight Sensor, Front Passenger's (Rear Outer Side) (4-door):

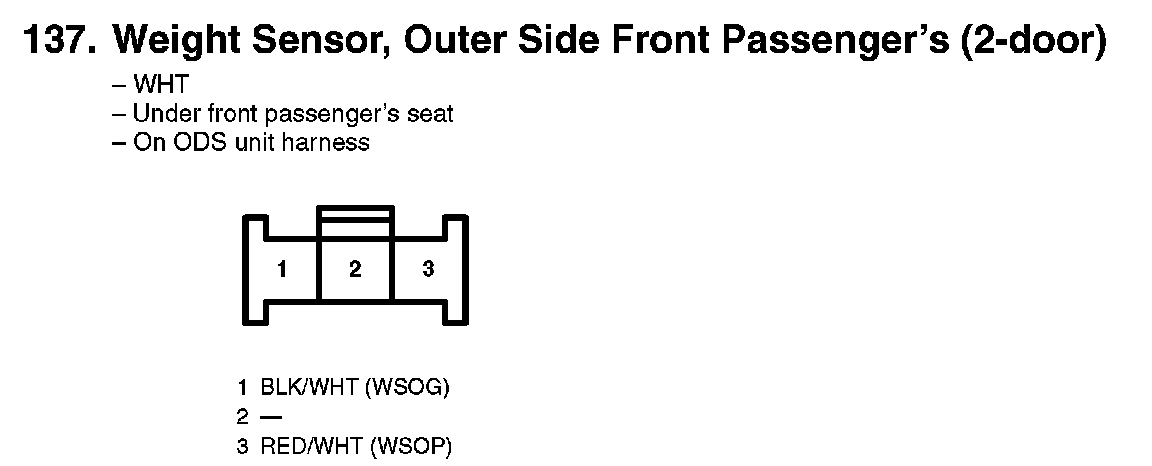

137. Weight Sensor, Outer Side Front Passenger's (2-door):
