Seat Belt Buckle Switch: Diagrams

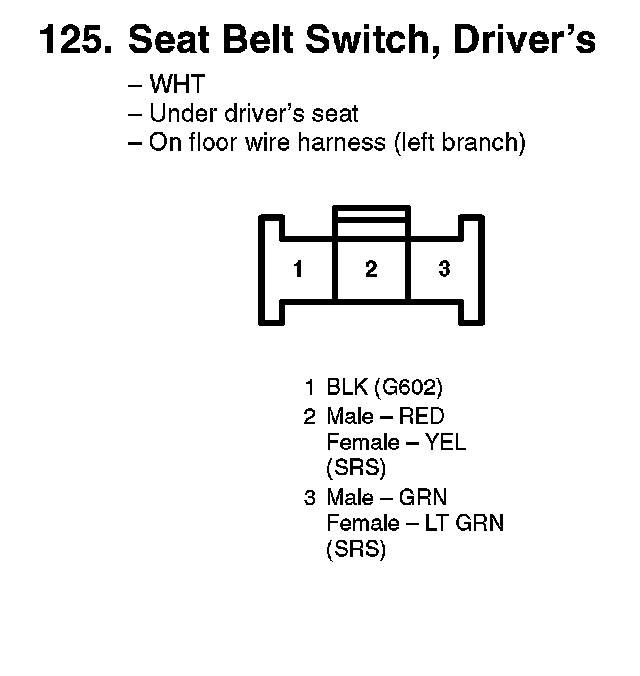

125. Seat Belt Switch, Driver's:

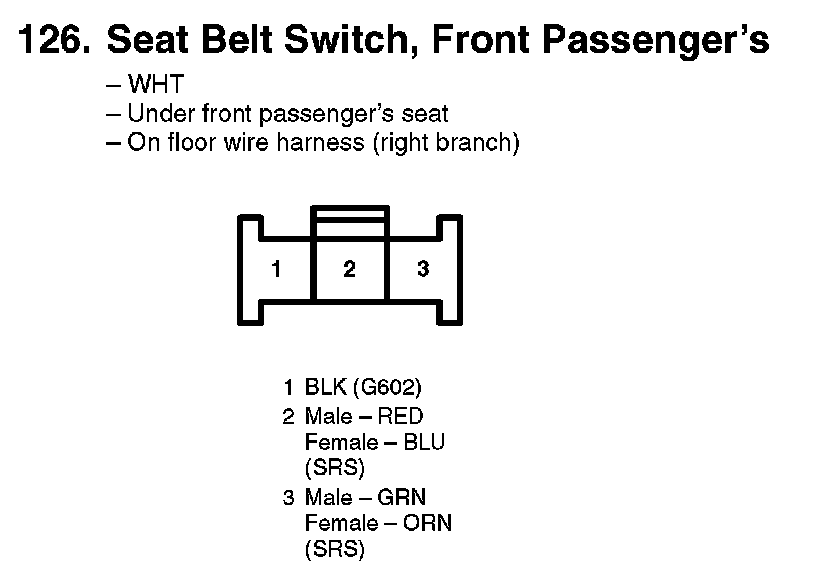

126. Seat Belt Switch, Front Passenger's:
