Door Switch
>>
Locations
Door Switch: Locations

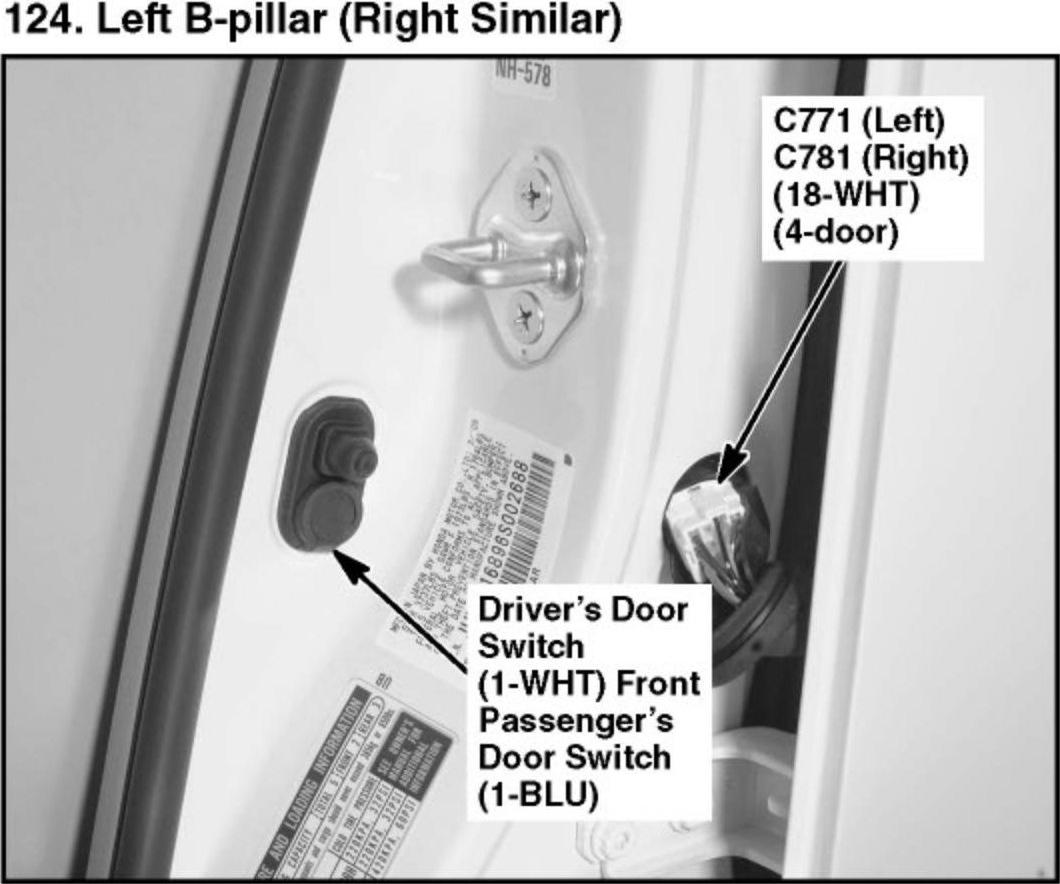

124. Left B-pillar (Right Similar):

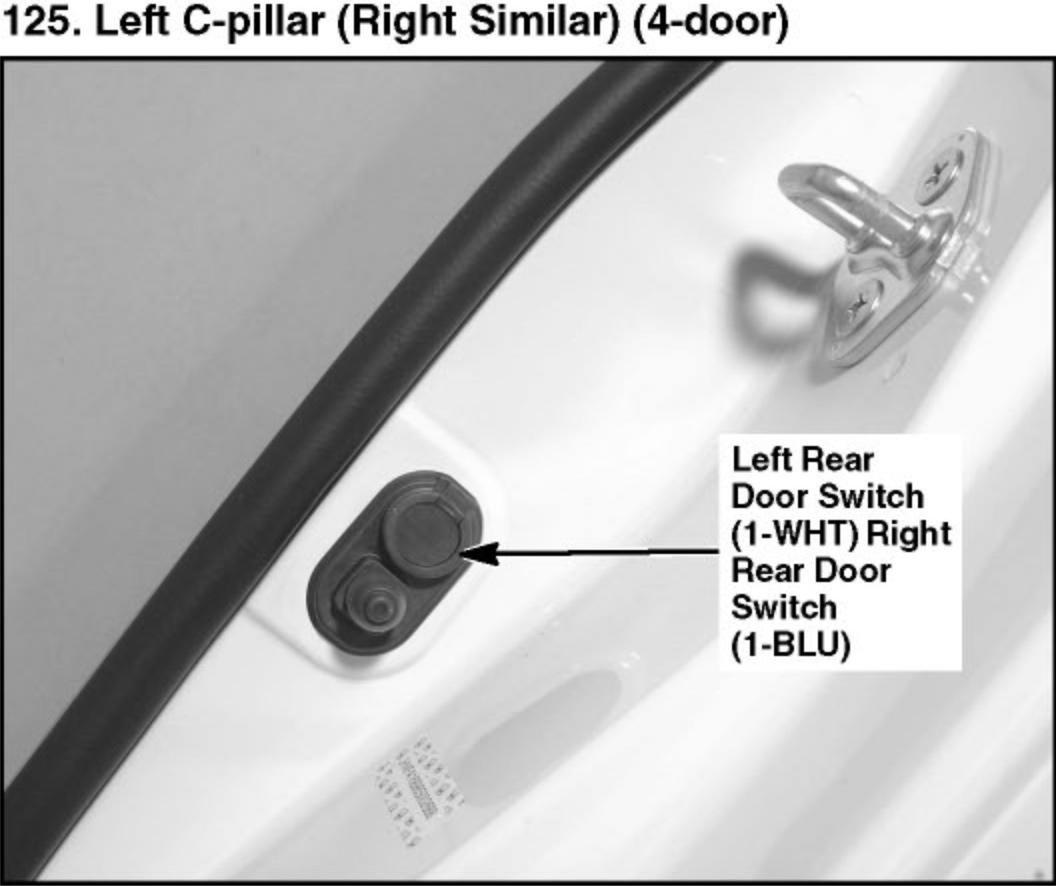

125. Left C-pillar (Right Similar) (4-door):
Keyless/Power Door Locks/Security System Component Location Index:
