Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Sunroof / Moonroof Module >> Diagrams

Sunroof / Moonroof Module: Diagrams

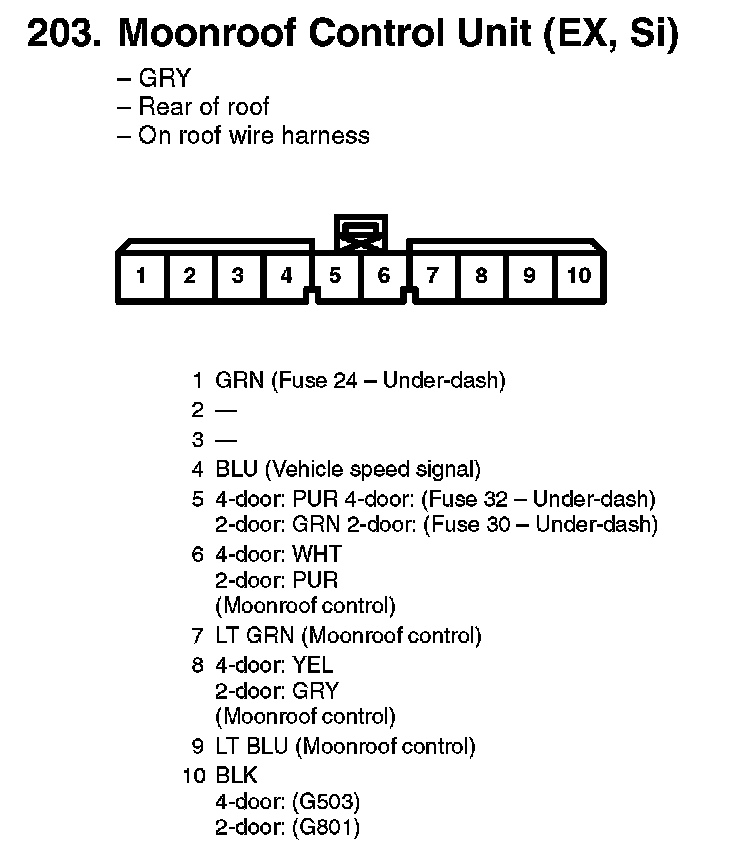

203. Moonroof Control Unit (EX, Si):
