Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Navigation Module >> Locations

Navigation Module: Locations

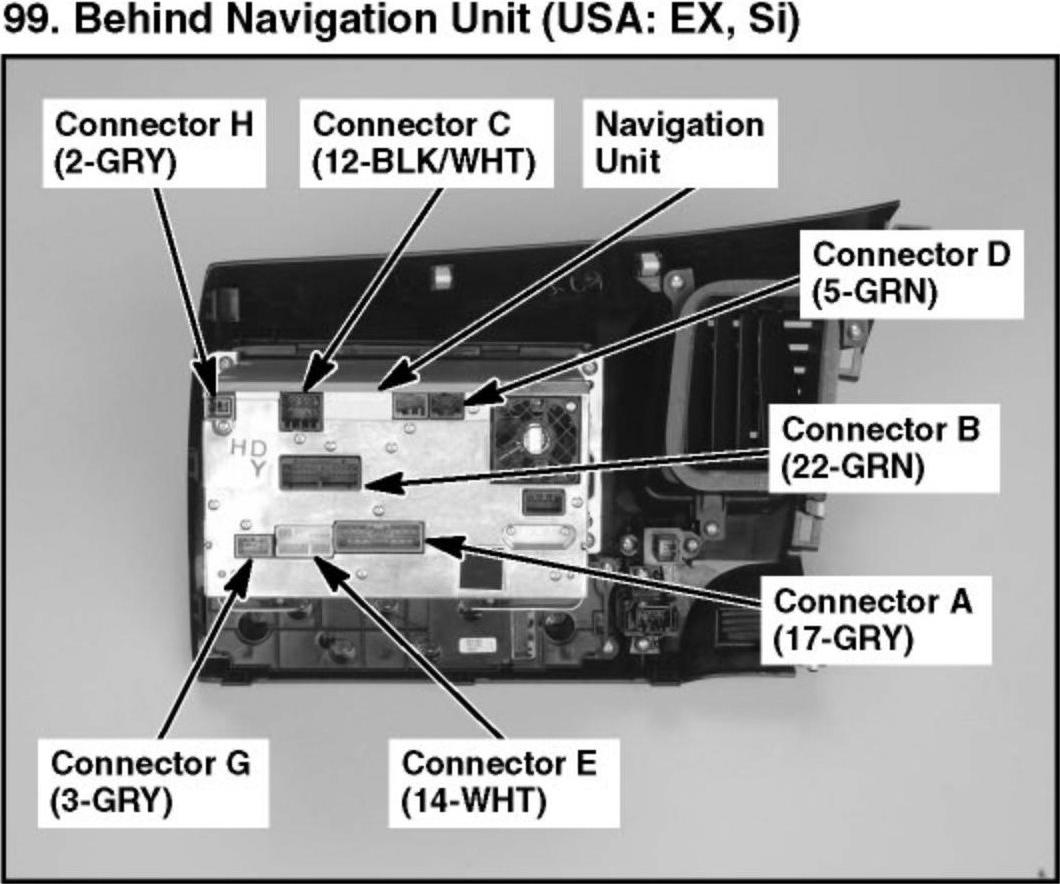

99. Behind Navigation Unit (USA: EX, Si):

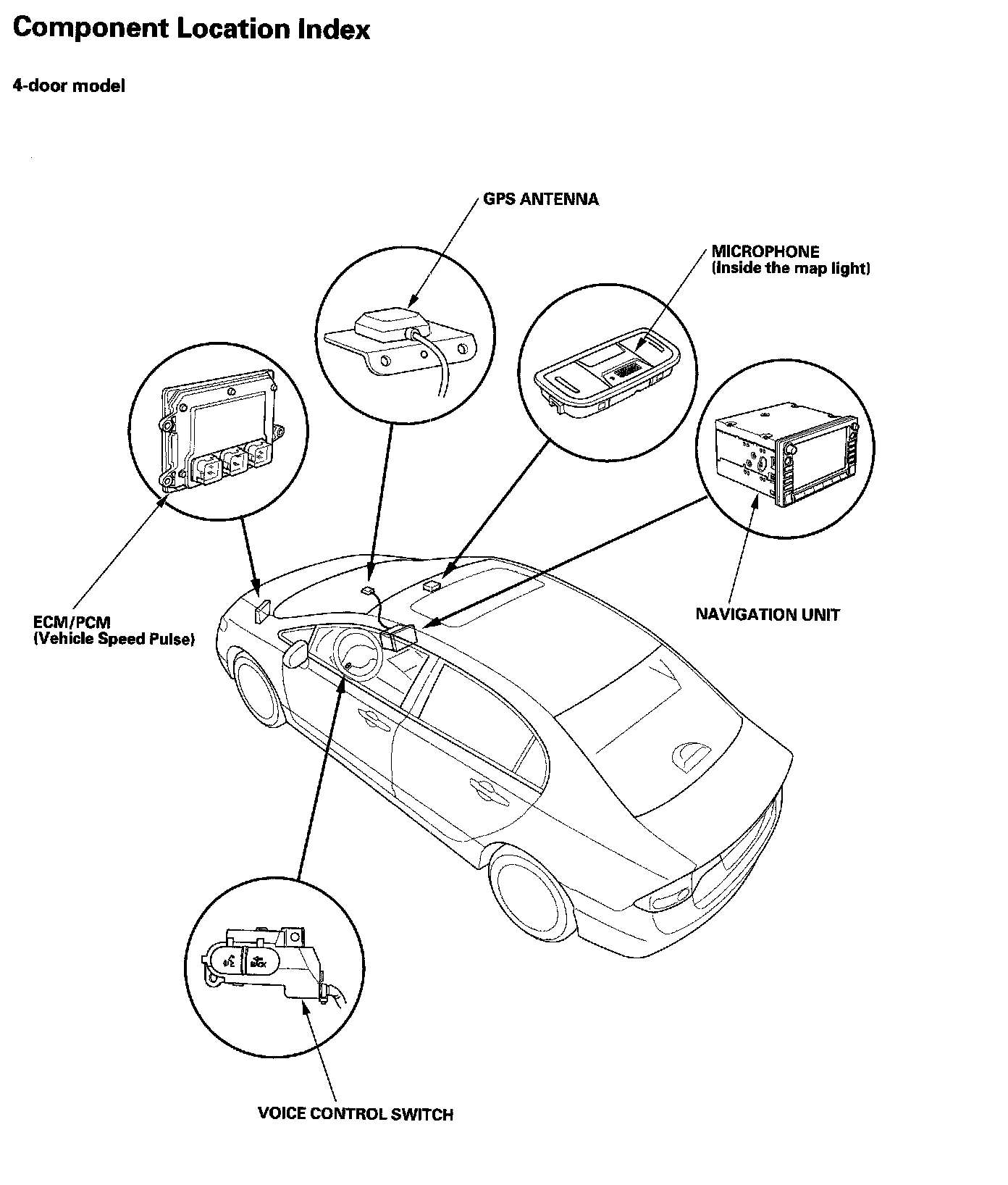

Navigation System Component Location Index:



Navigation System Component Location Index:

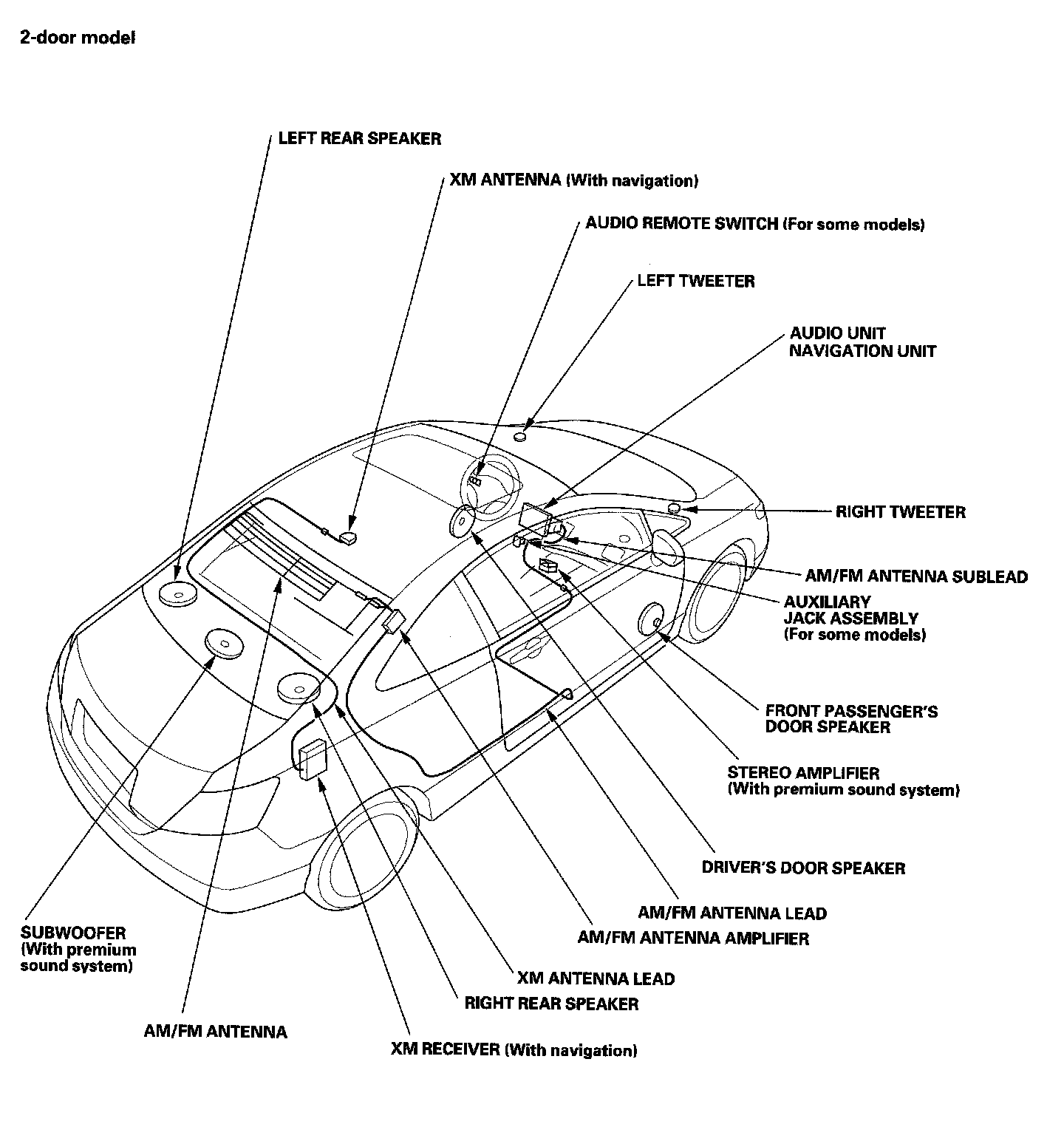

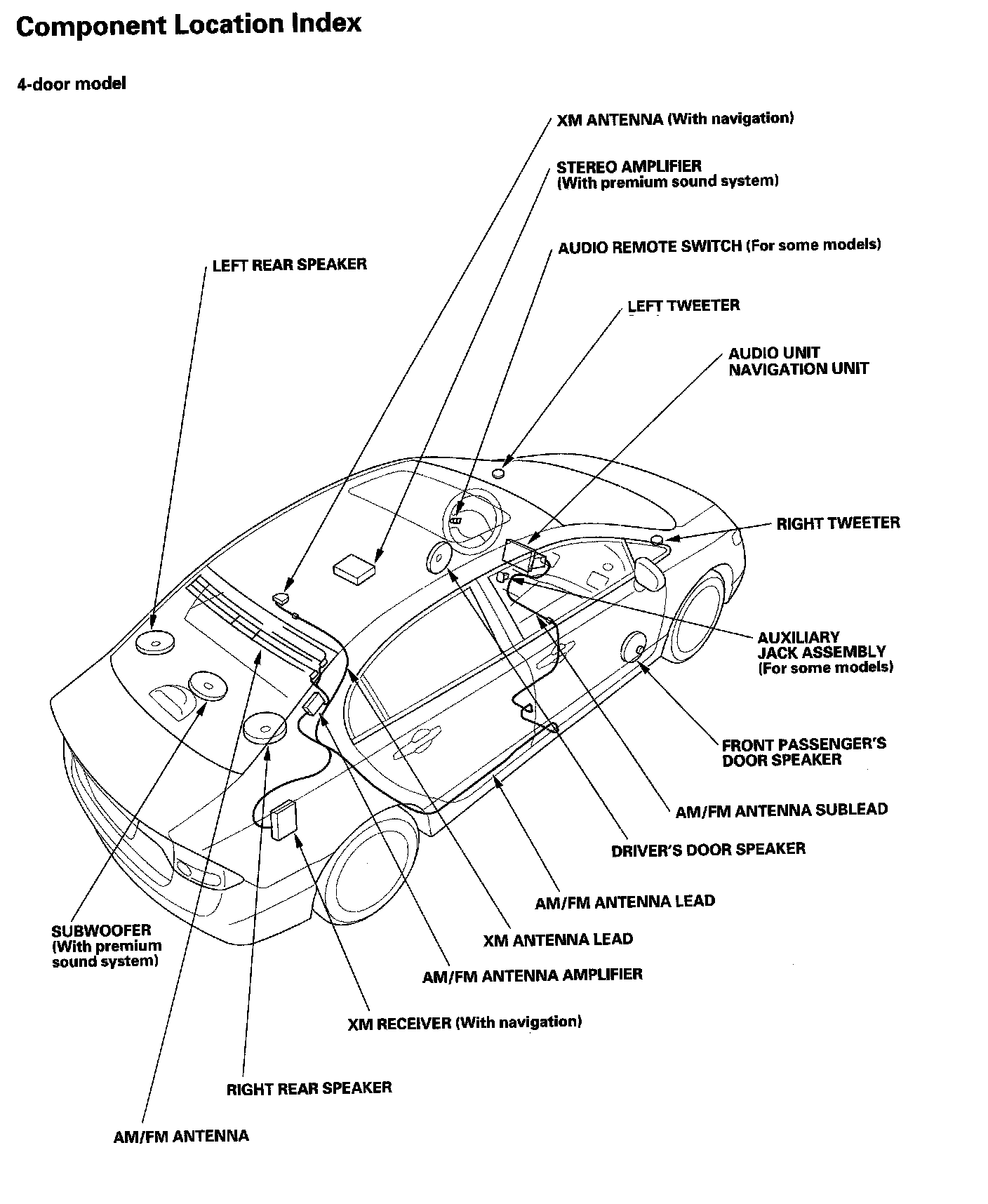

Audio System Component Location Index:



Audio System Component Location Index:
