ECM/PCM Circuit Diagrams

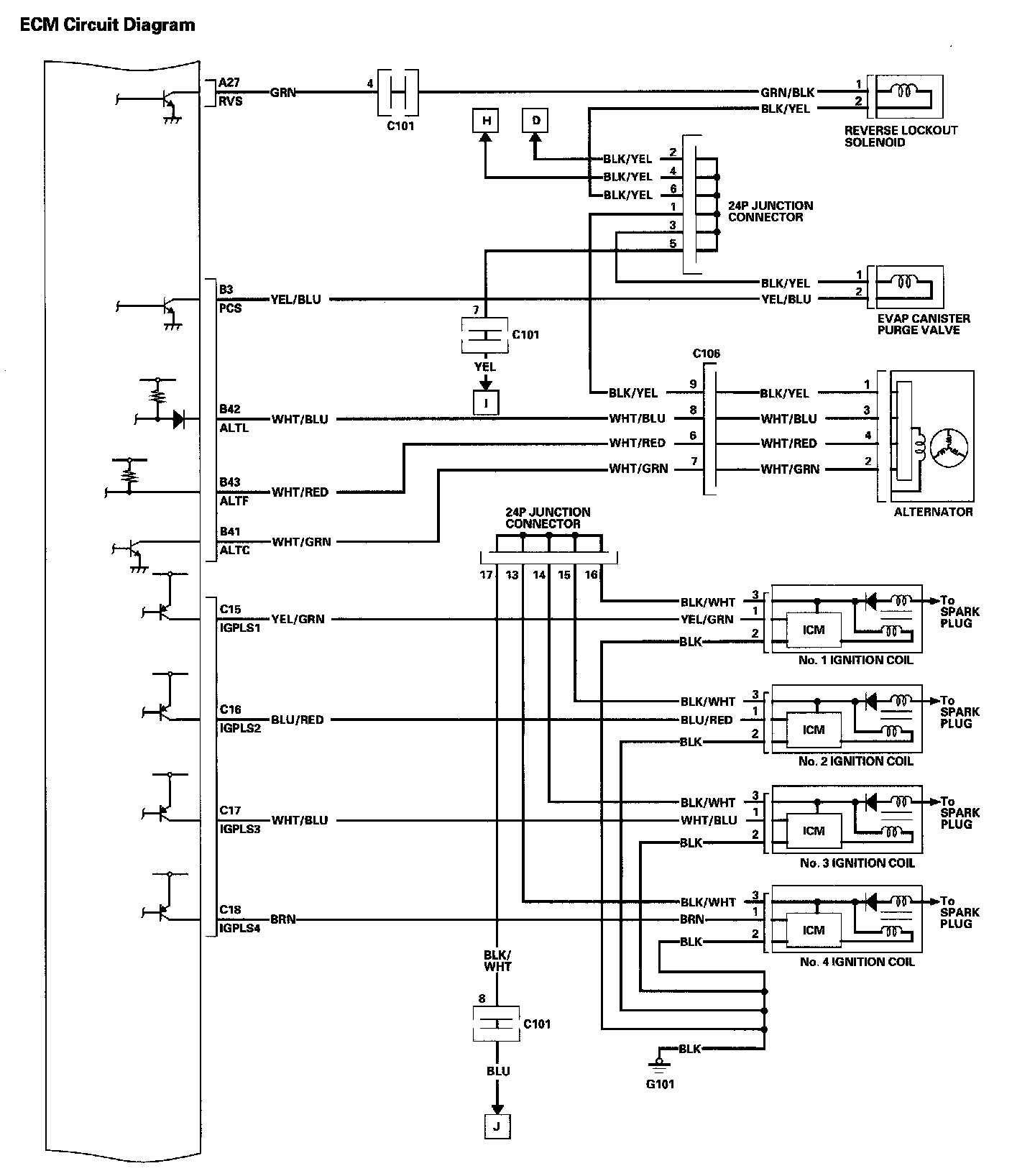

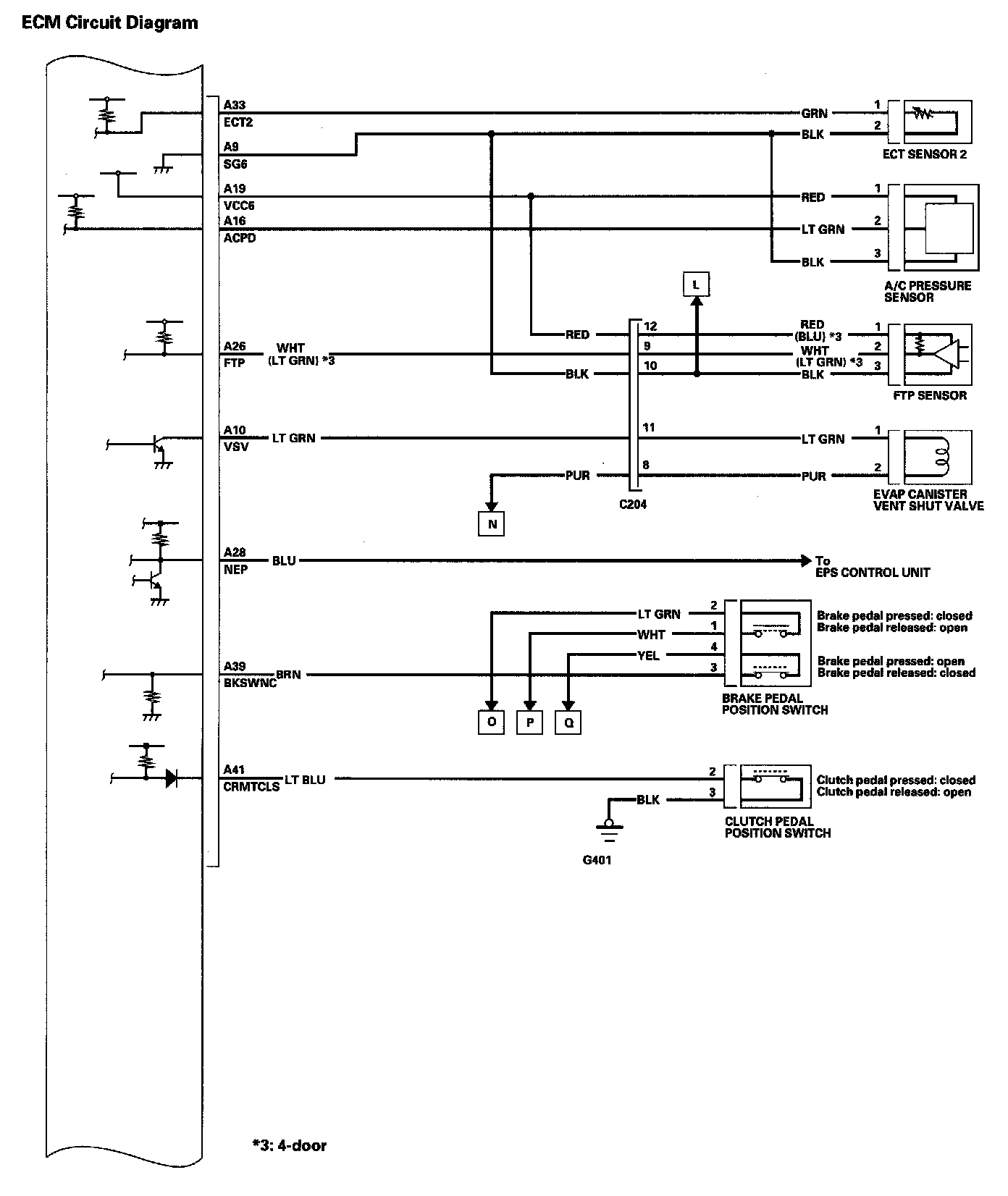

ECM Circuit Diagram (Part 1):

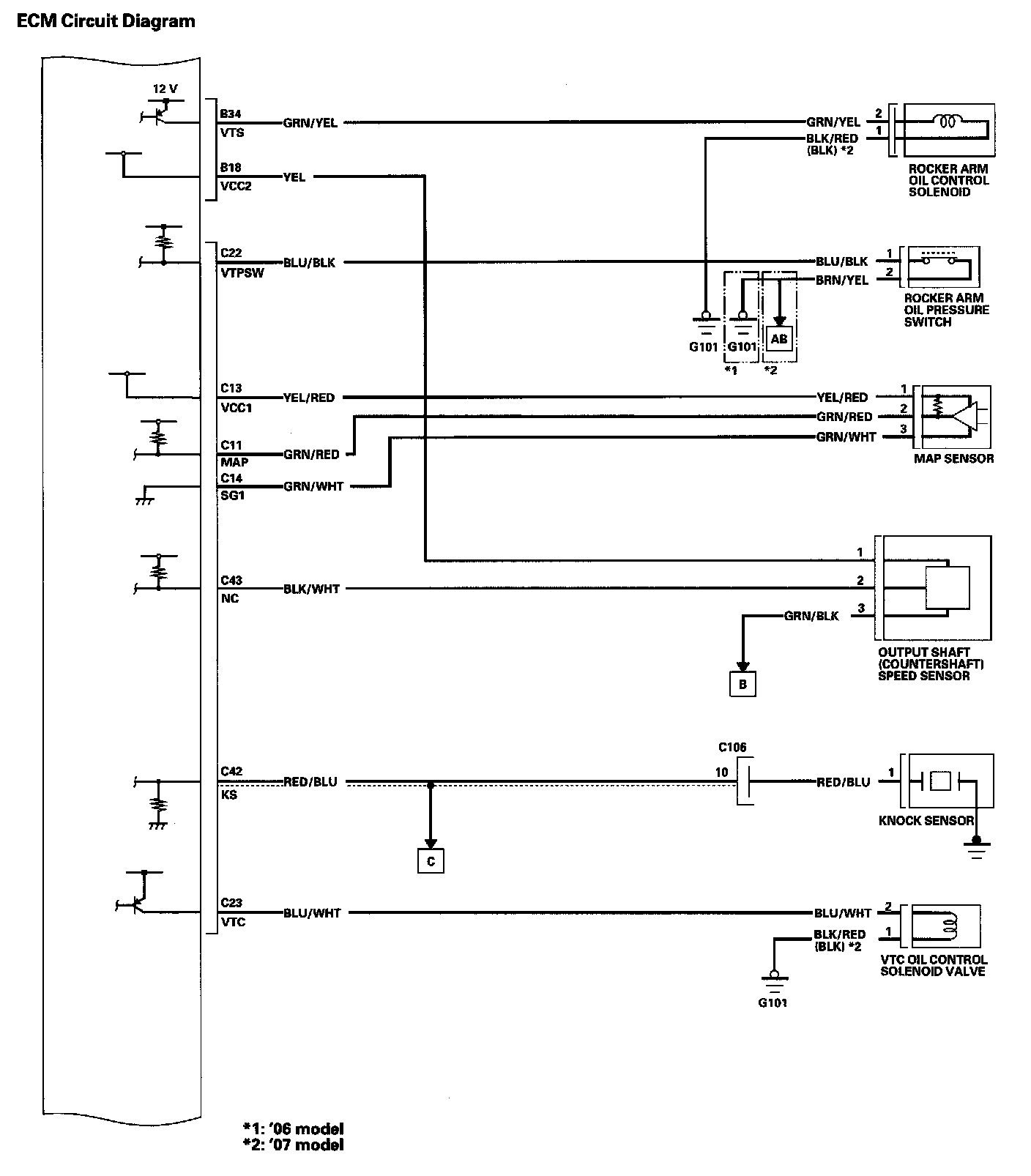

ECM Circuit Diagram (Part 2):

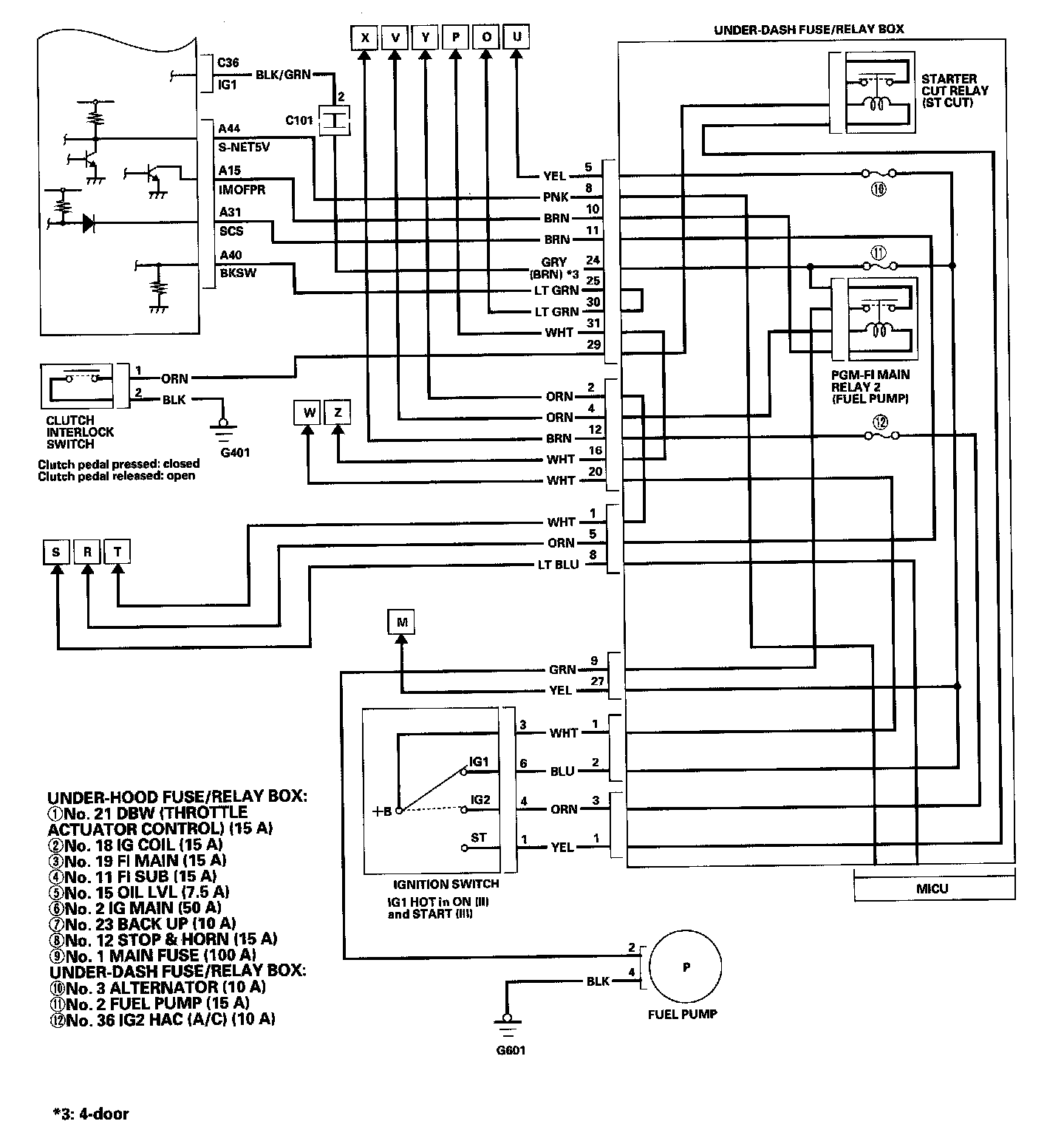

ECM Circuit Diagram (Part 3):

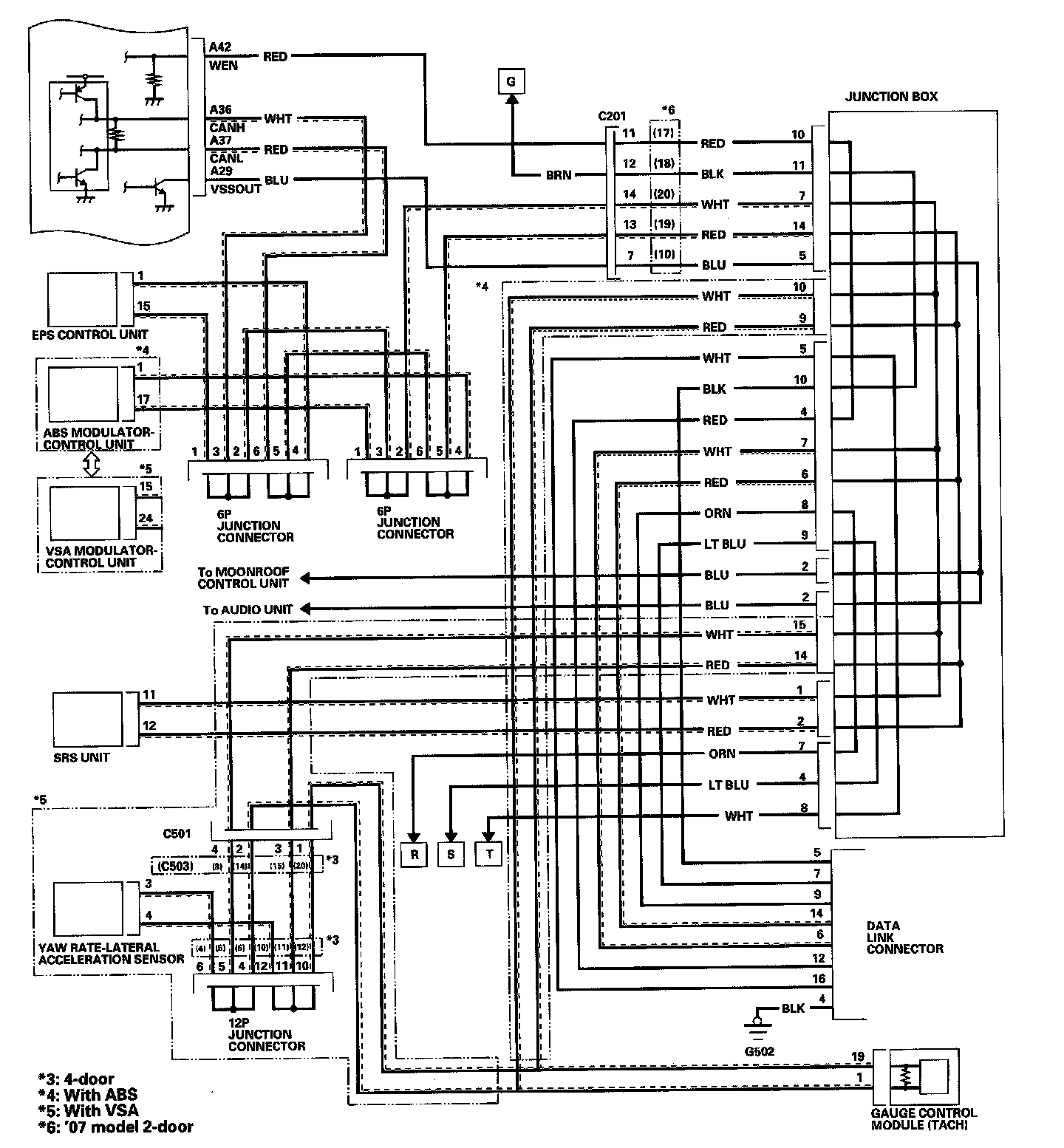

ECM Circuit Diagram (Part 4):

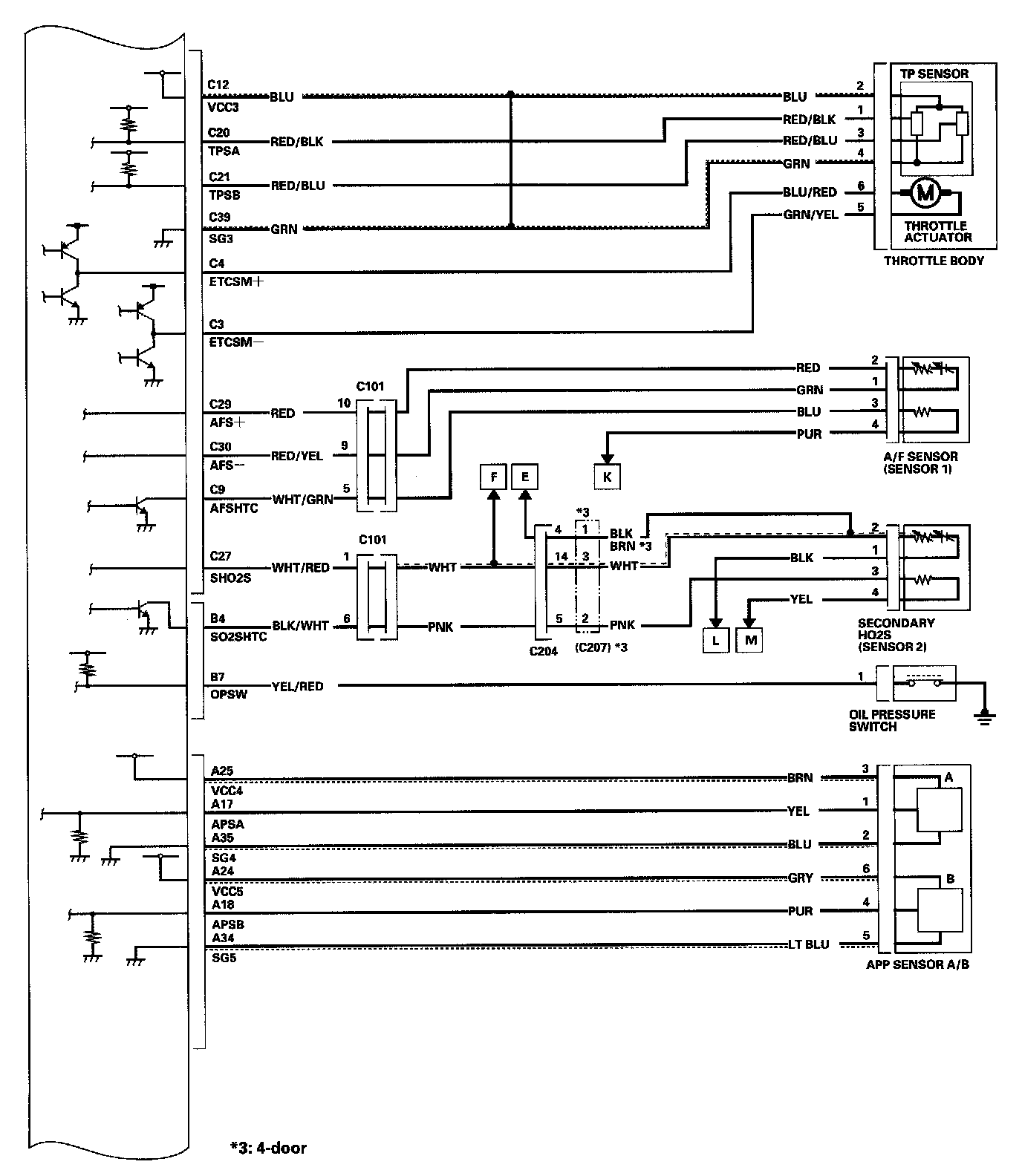

ECM Circuit Diagram (Part 5):

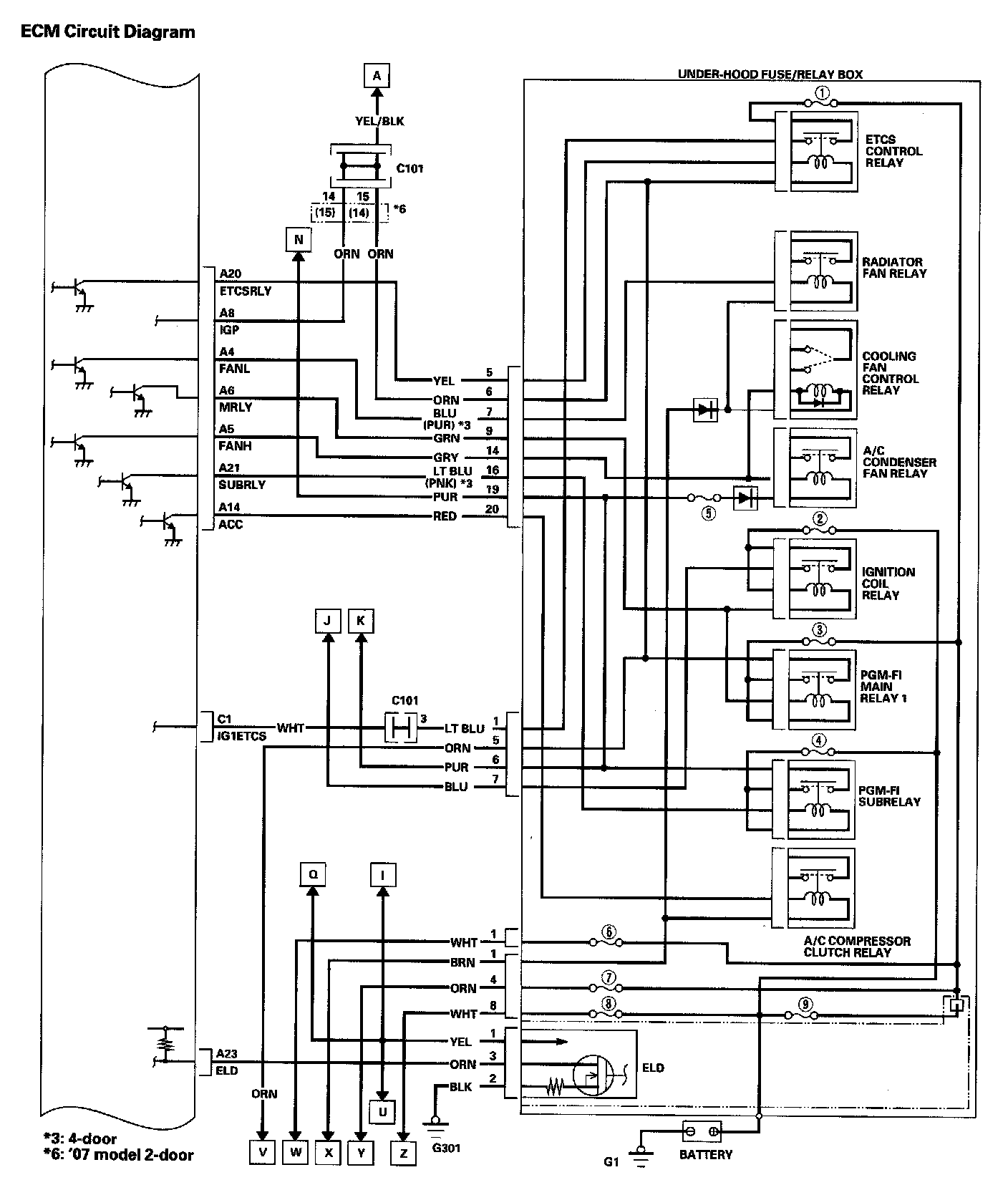

ECM Circuit Diagram (Part 6):

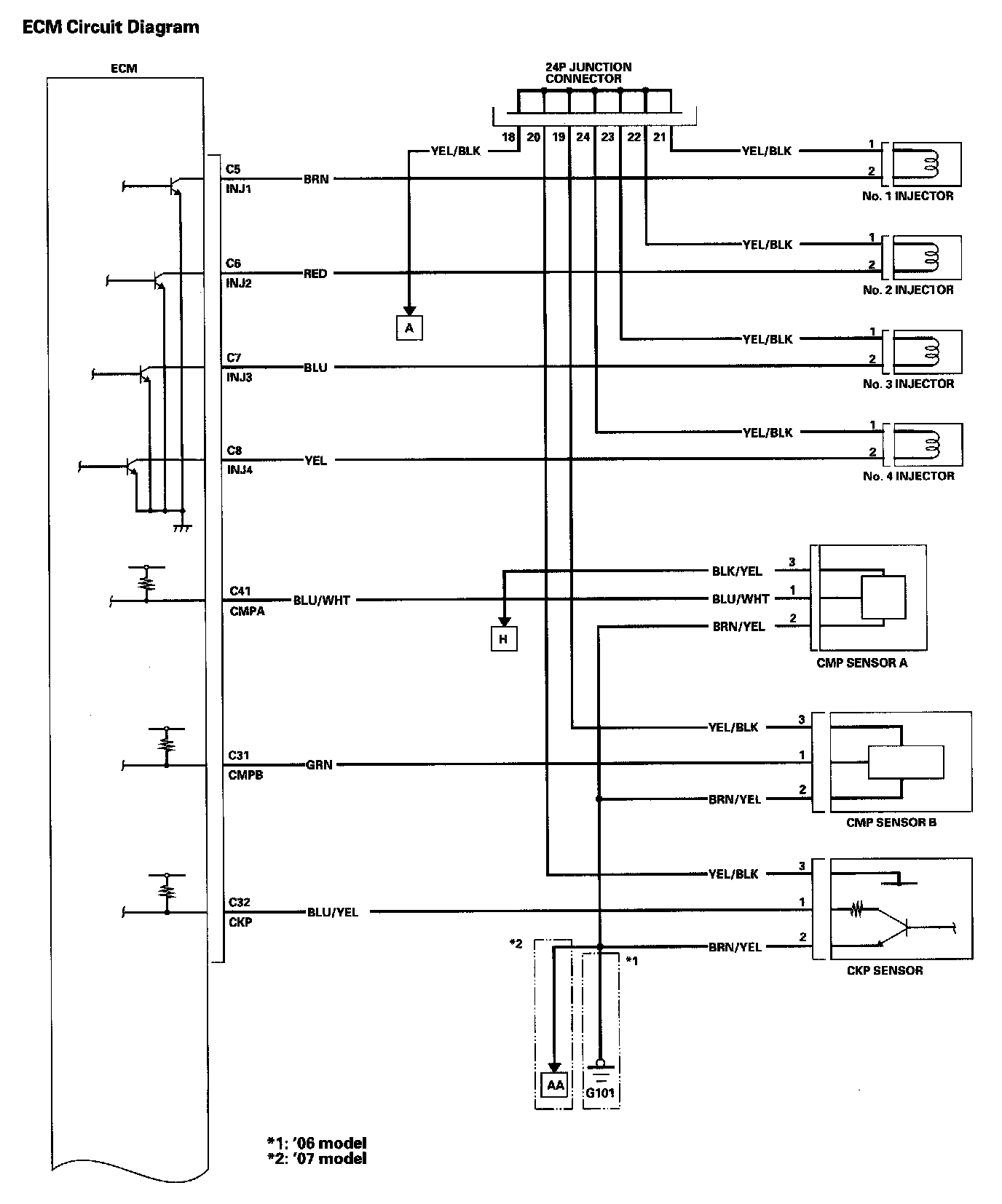

ECM Circuit Diagram (Part 7):

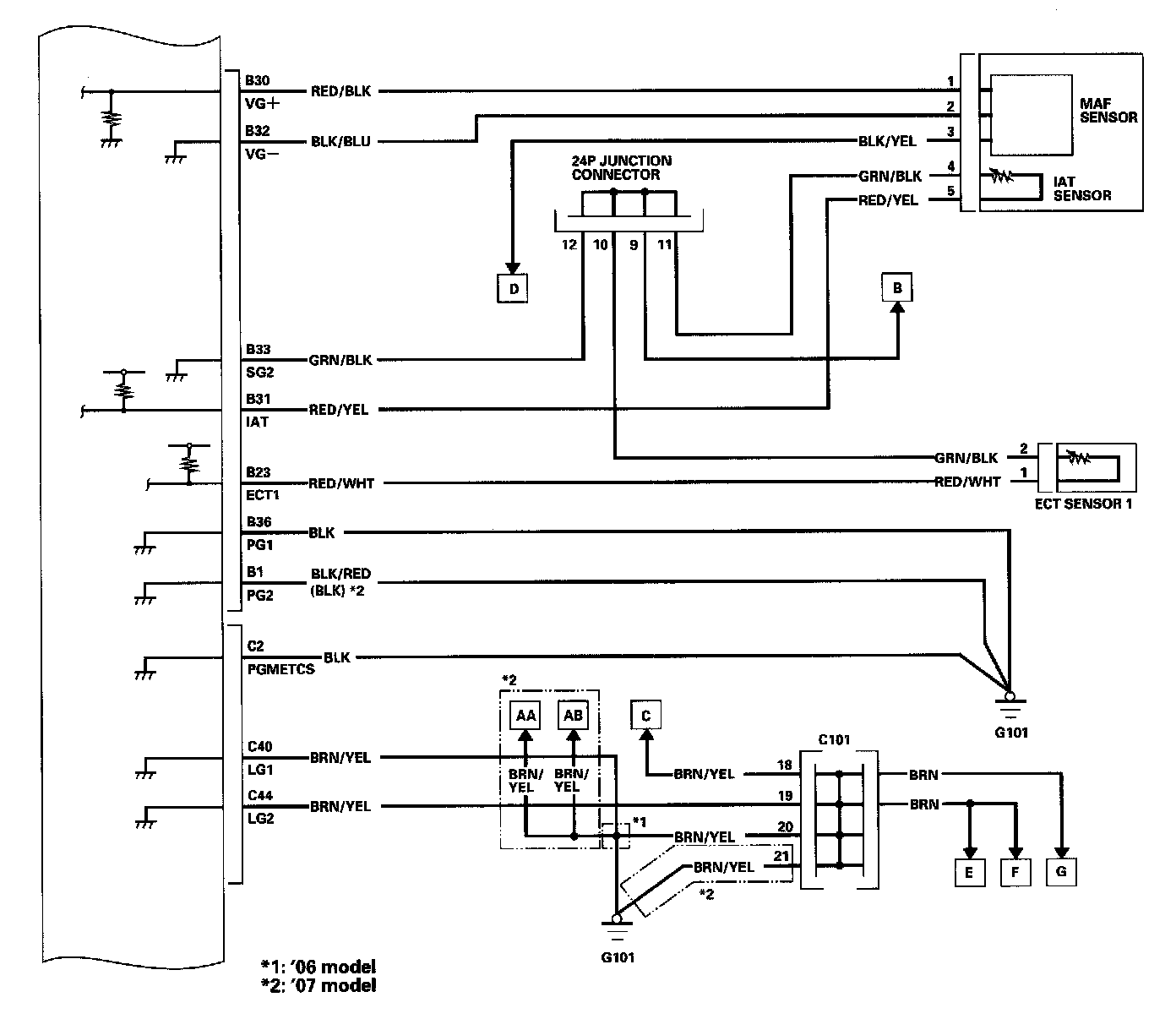

ECM Circuit Diagram (Part 8):

ECM Circuit Diagram (Part 9):
