Home >> Honda >> 2007 >> Civic Si L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Locations >> Heating/Air Conditioning

Heating/Air Conditioning

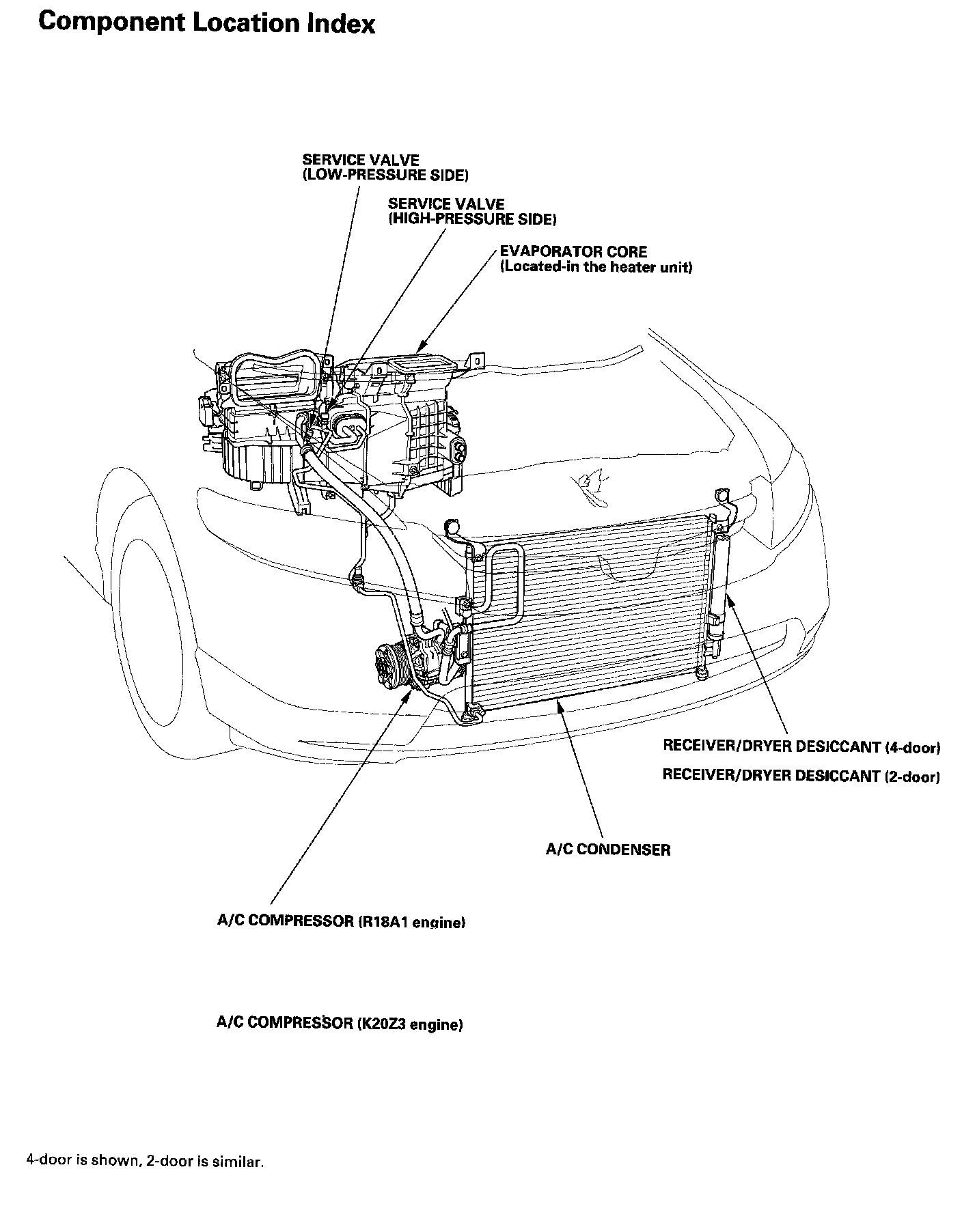

Heating/Air Conditioning Component Location Index:



Heating/Air Conditioning Component Location Index:



Heating/Air Conditioning Component Location Index:
