Starter Subharness (Si Model)
Starter Subharness (Si Model)

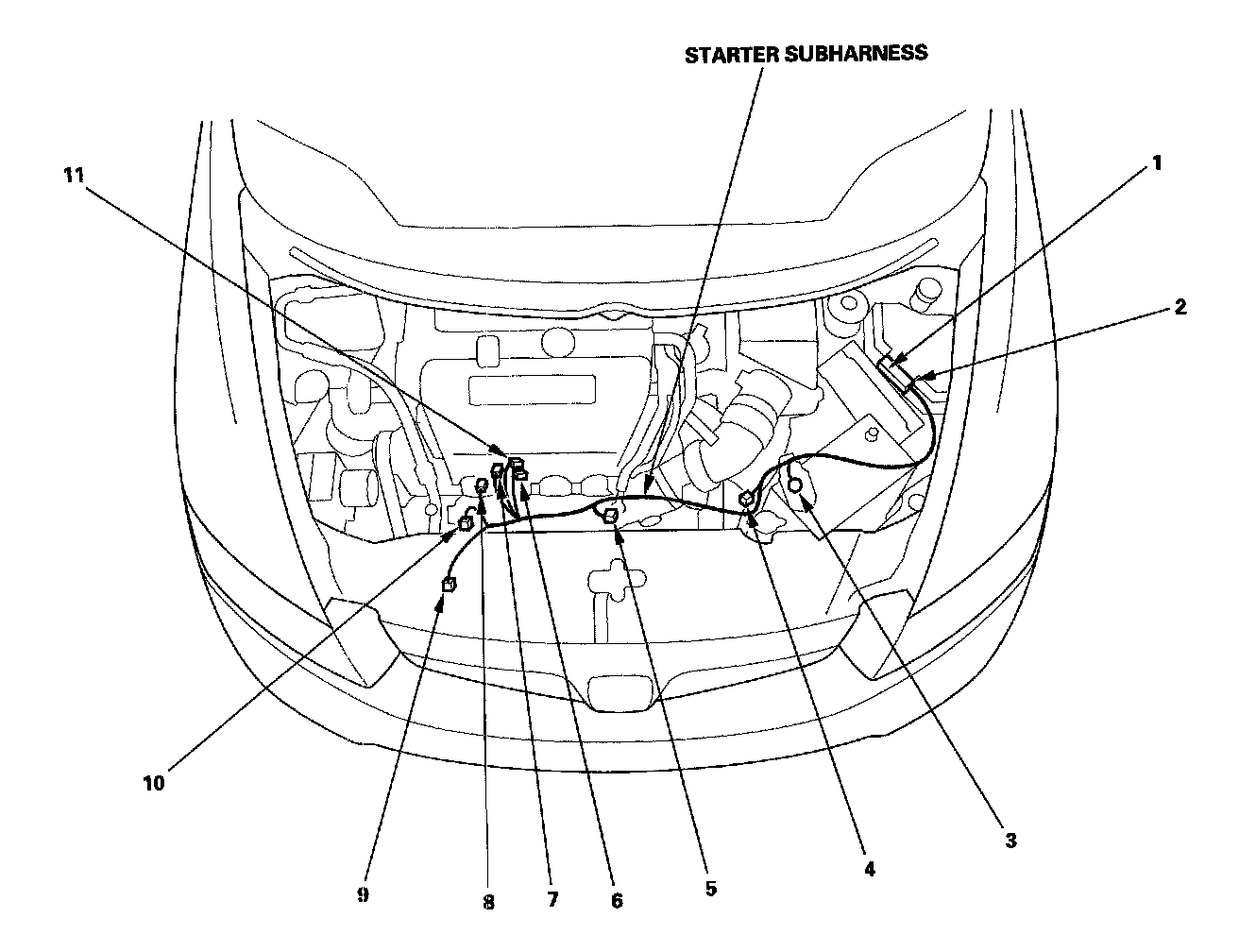

Harness Location View:

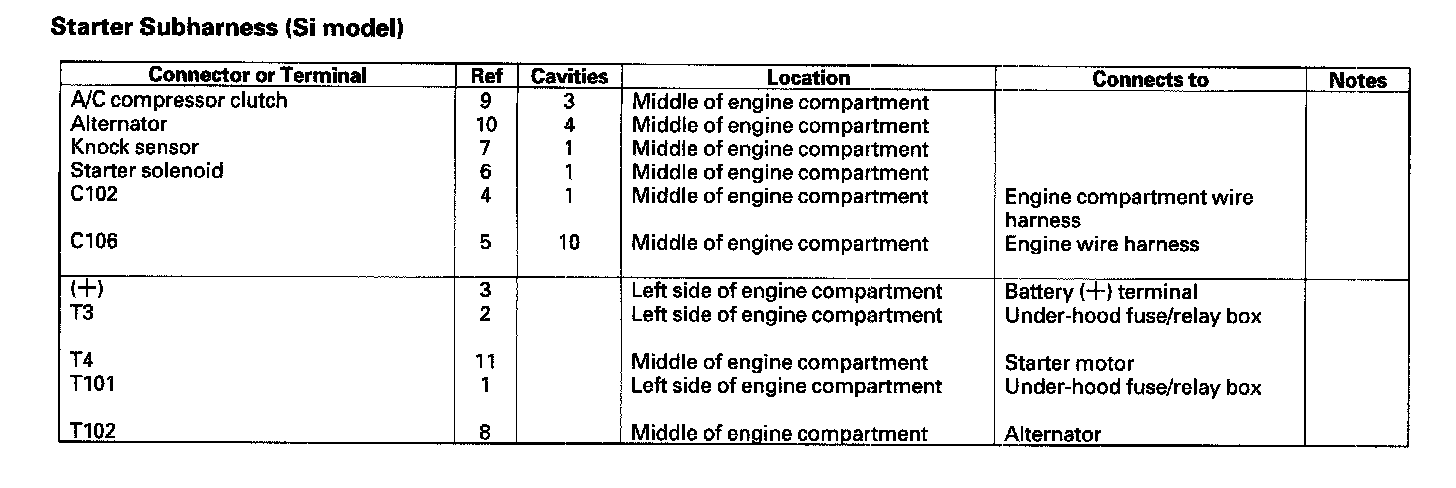

Starter Subharness (Si model):
