Dashboard Wire Harness (View of Middle)

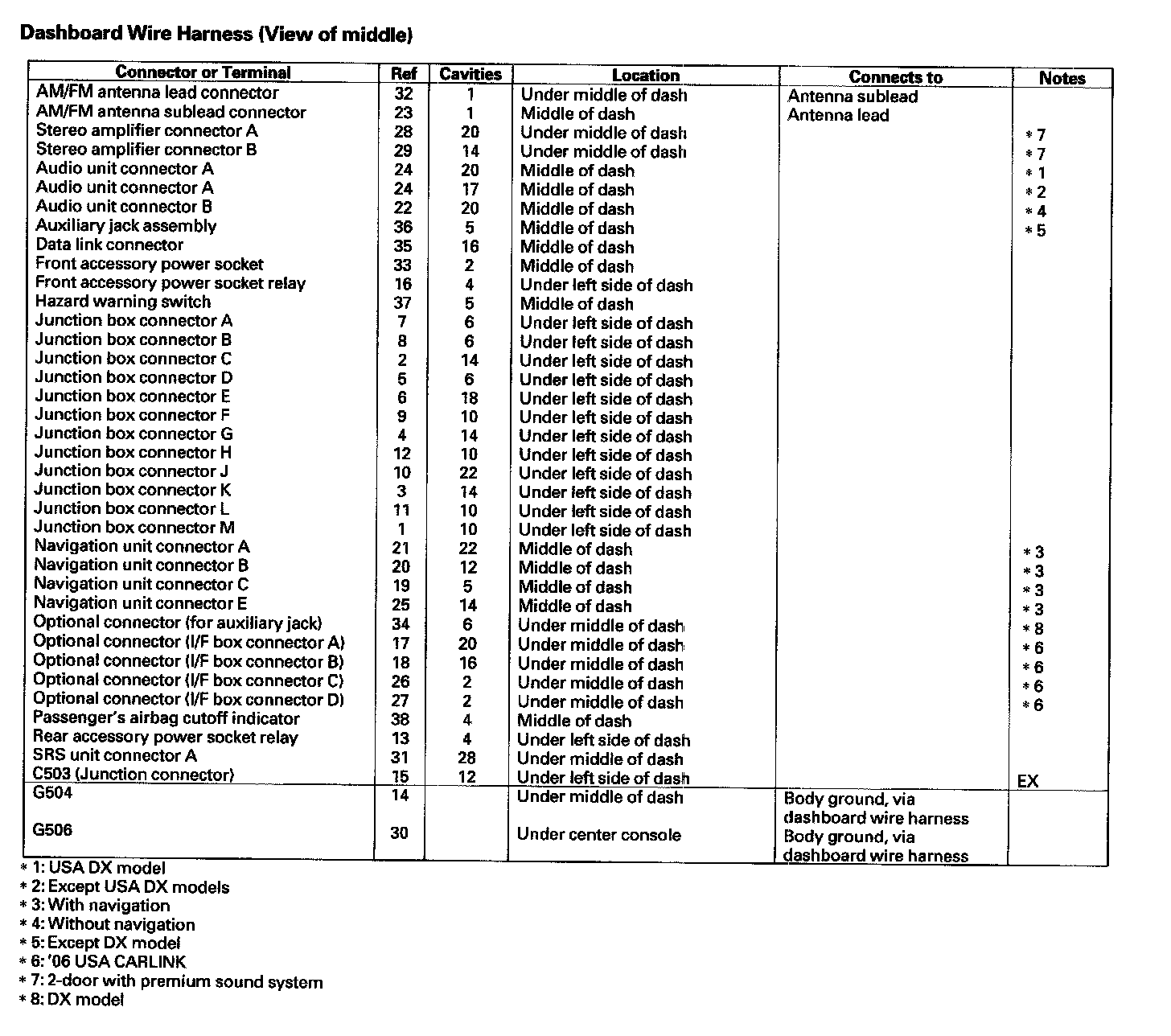

Dashboard Wire Harness (View Of Middle):

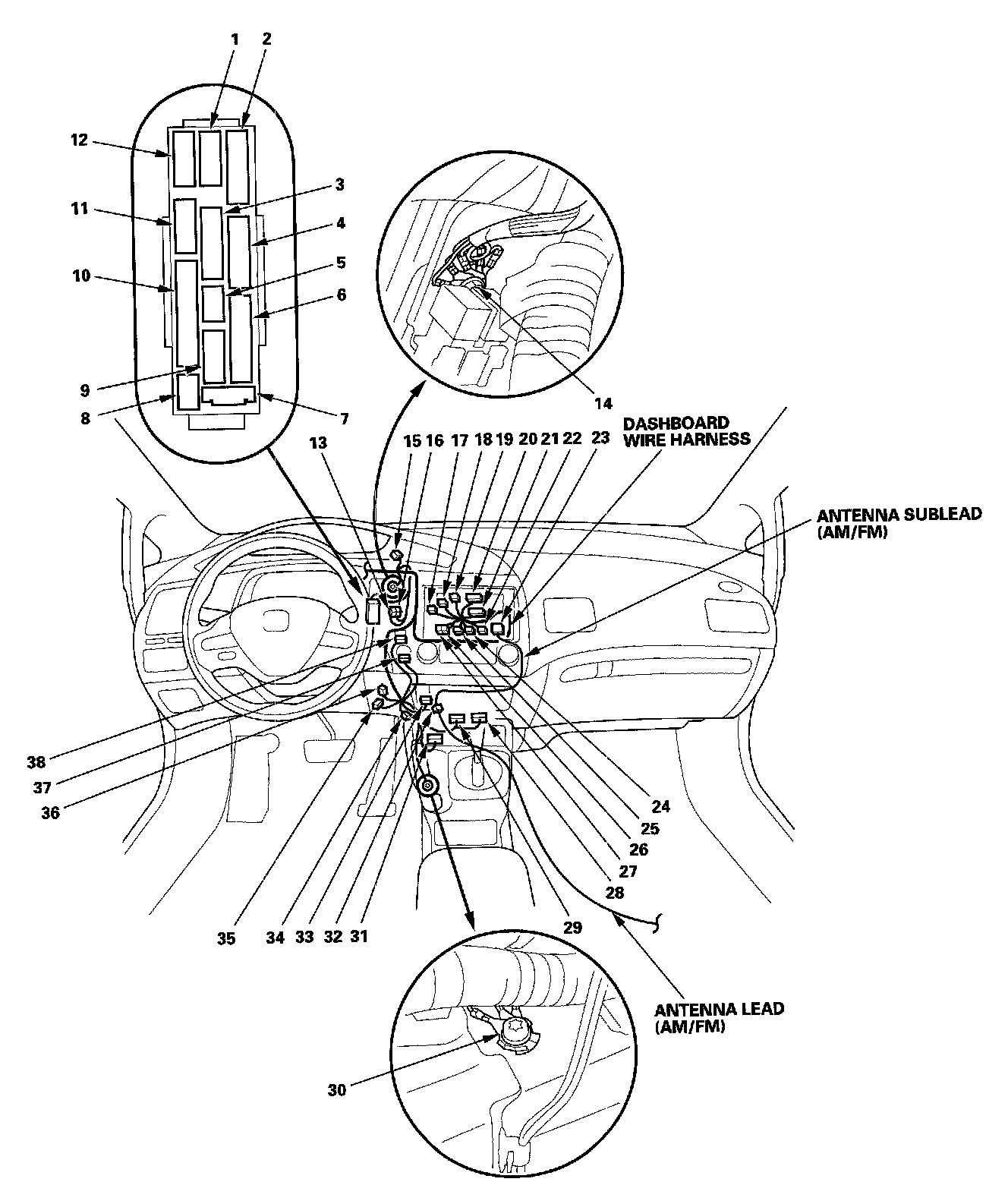

Harness Location View:
