Console Subharness (With Rear Accessory Power Socket)

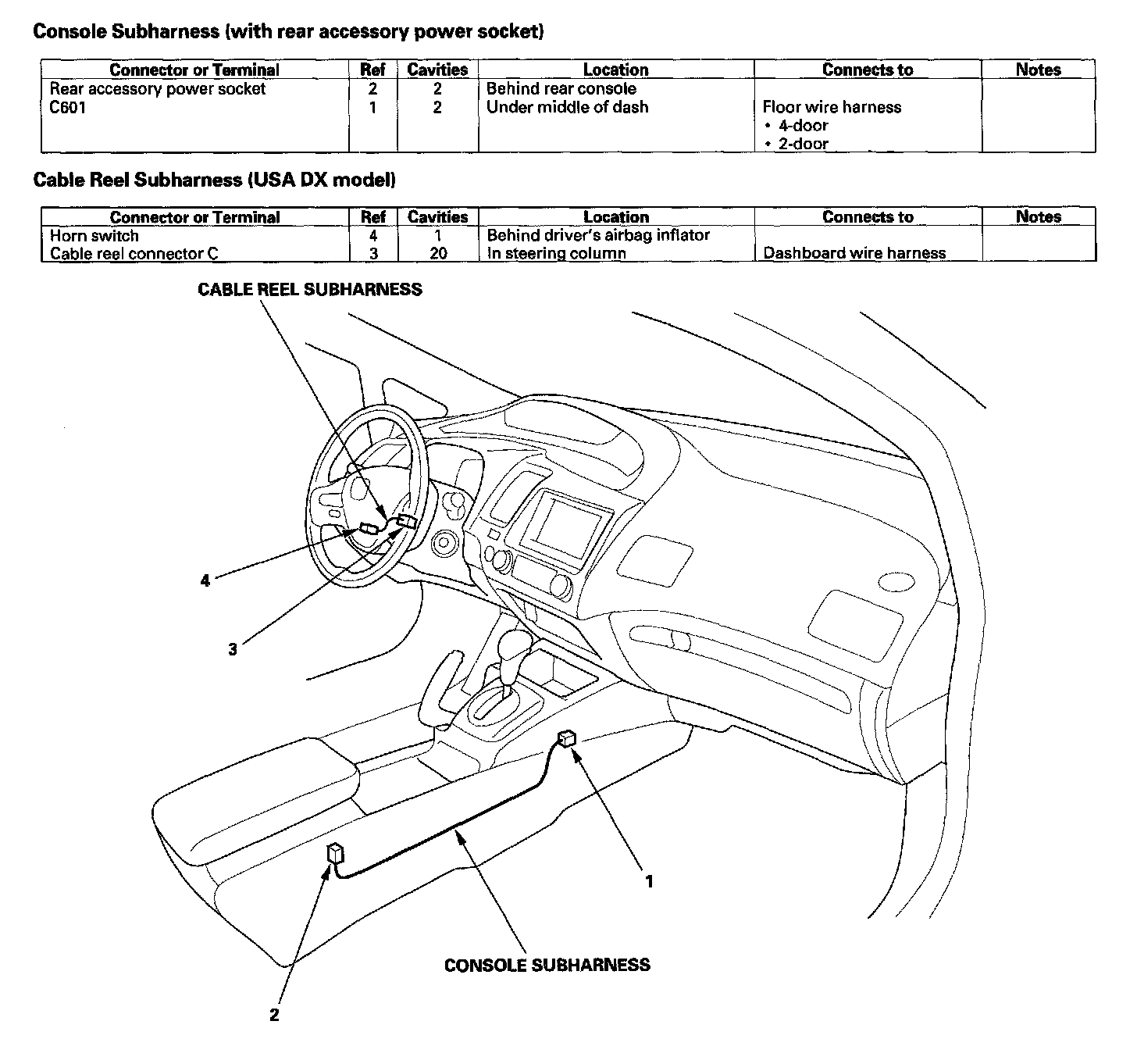

Console Subharness (with Rear Accessory Power Socket) / Cable Reel Subharness (USA OX Model):
