Electrical Power Steering (EPS) Circuit Diagram

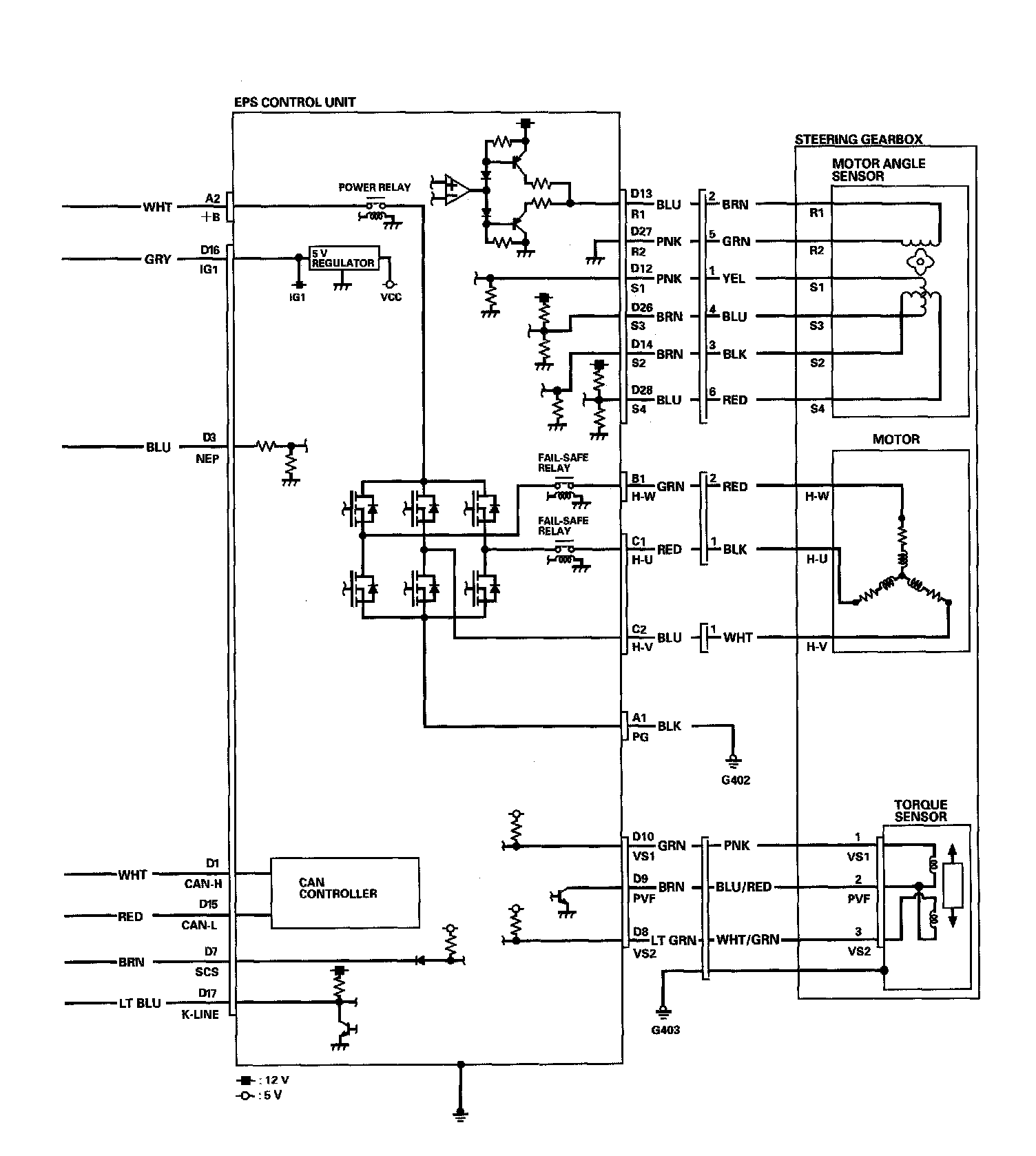

Electrical Power Steering (EPS) Circuit Diagram (Part 1):

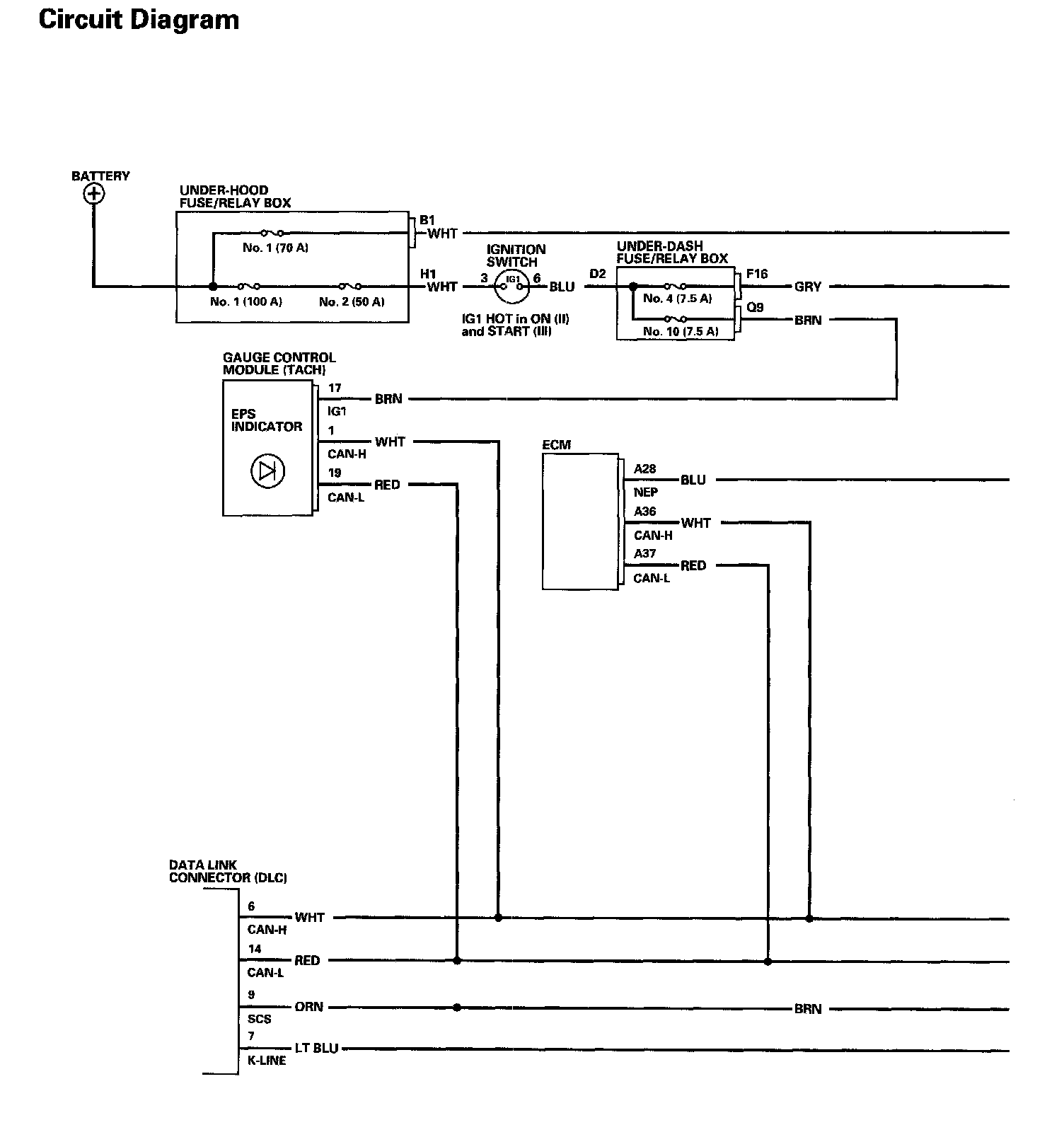

Electrical Power Steering (EPS) Circuit Diagram (Part 2):



Electrical Power Steering (EPS) Circuit Diagram (Part 3):
