System Diagram

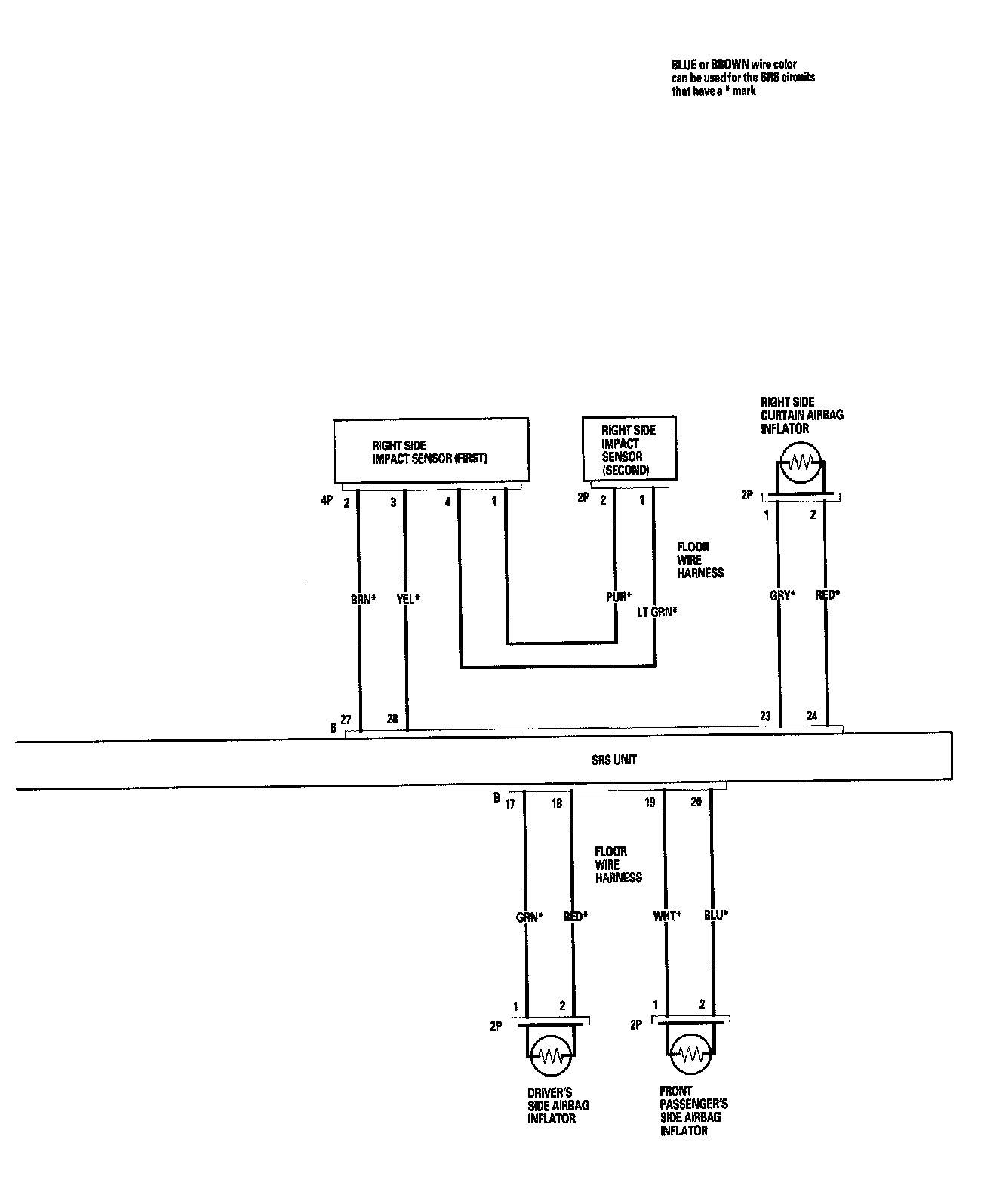

SRS Circuit Diagram Part 1:

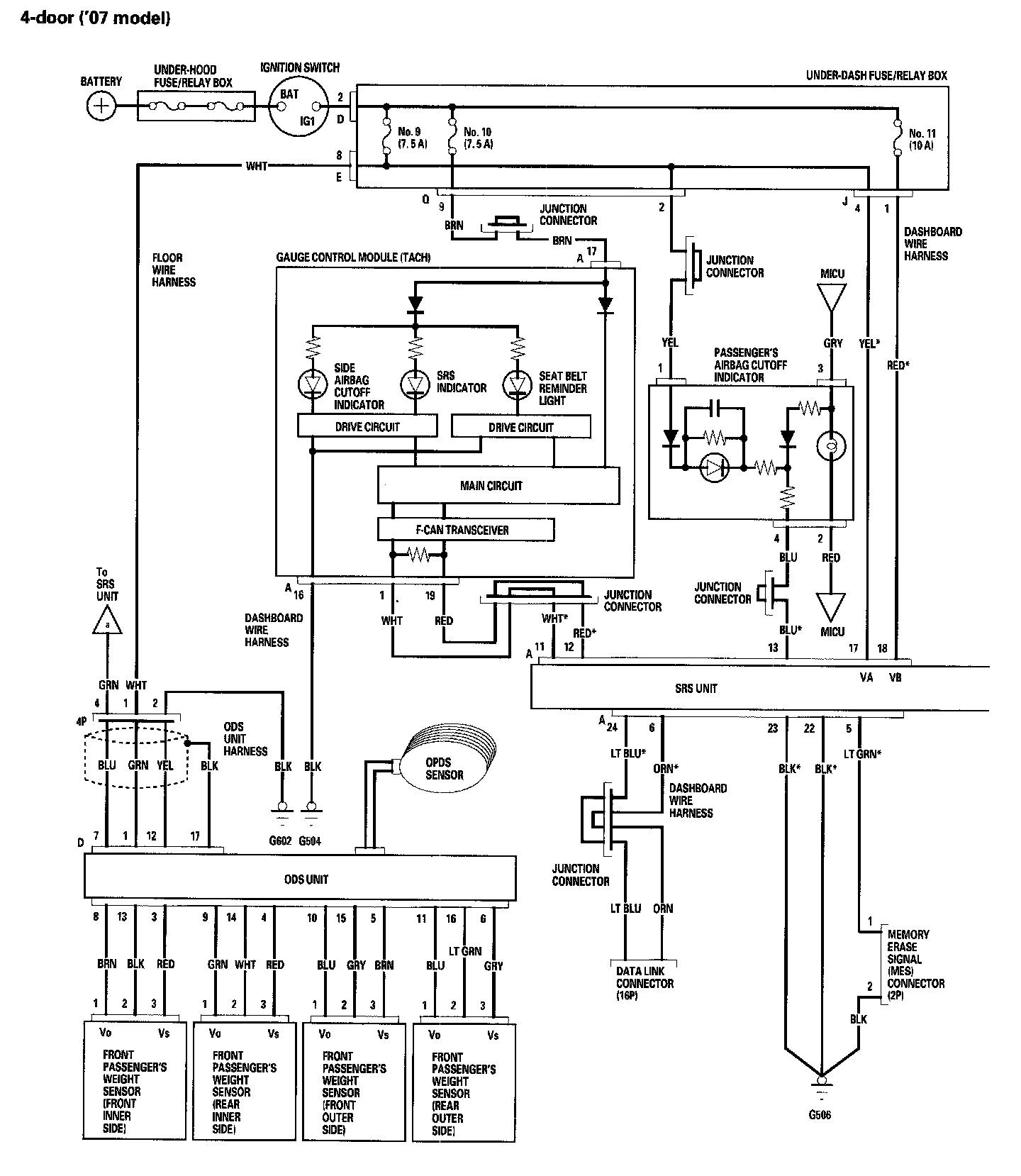

SRS Circuit Diagram Part 2:

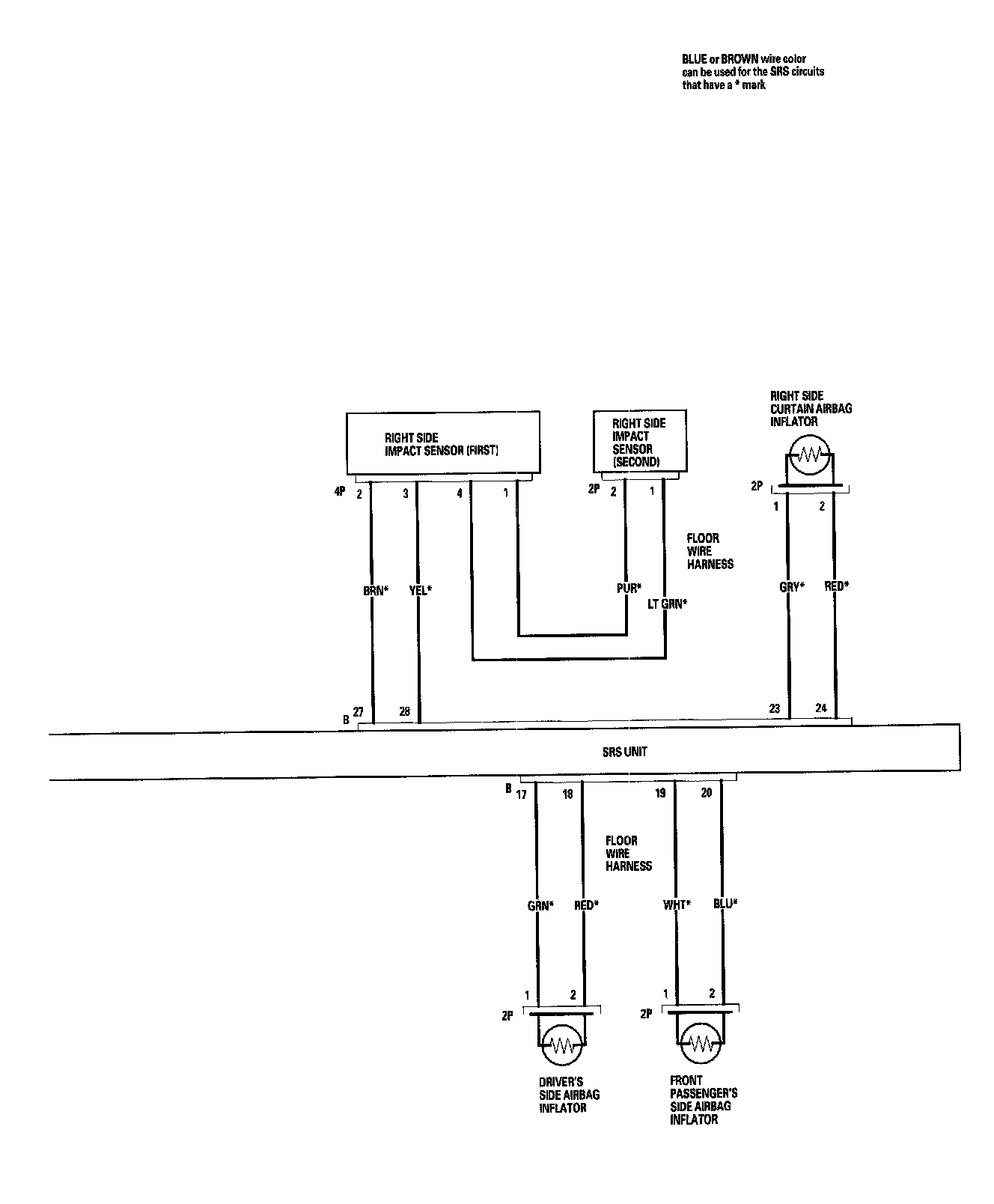

SRS Circuit Diagram Part 3:

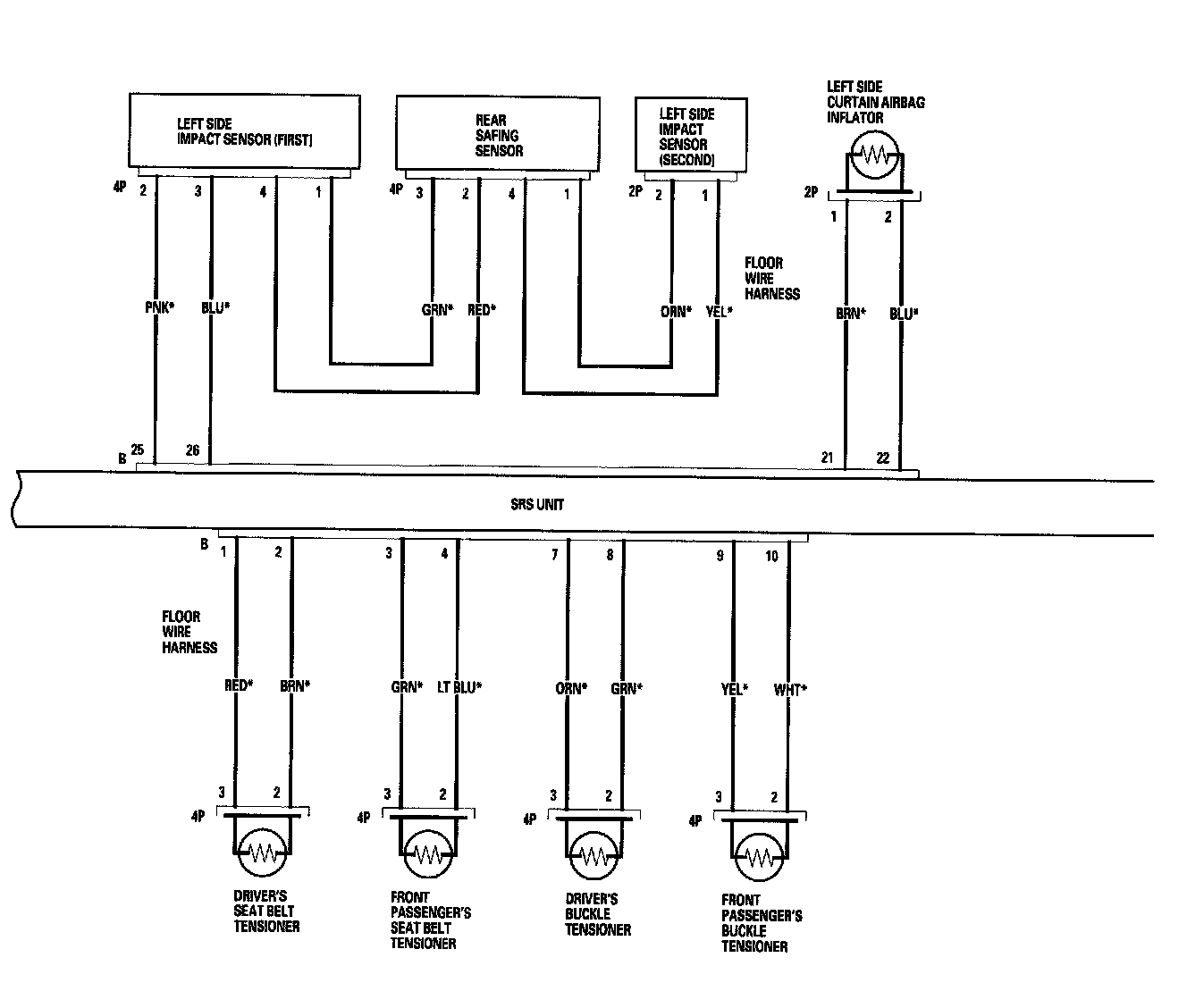

SRS Circuit Diagram Part 4:

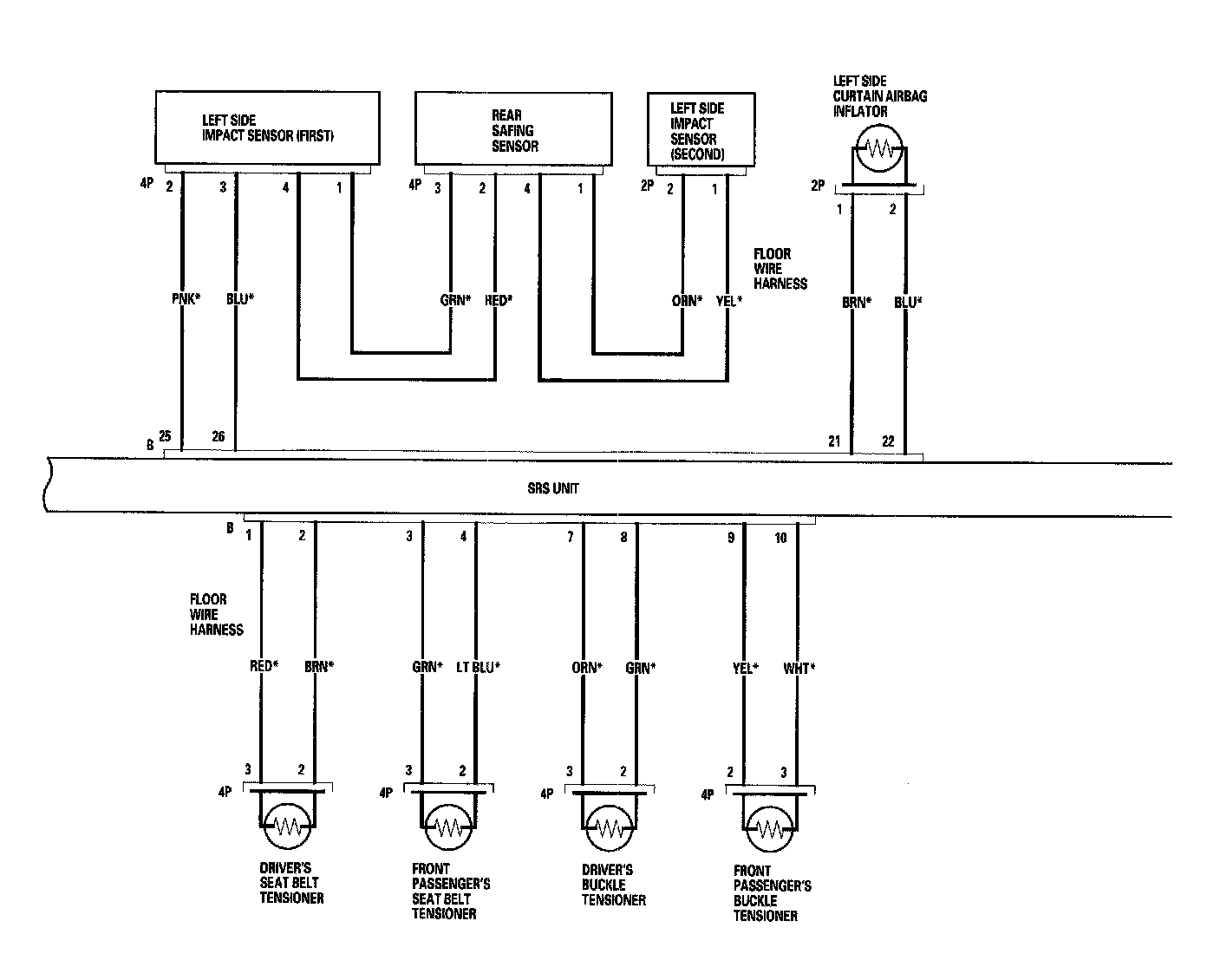

SRS Circuit Diagram Part 5:

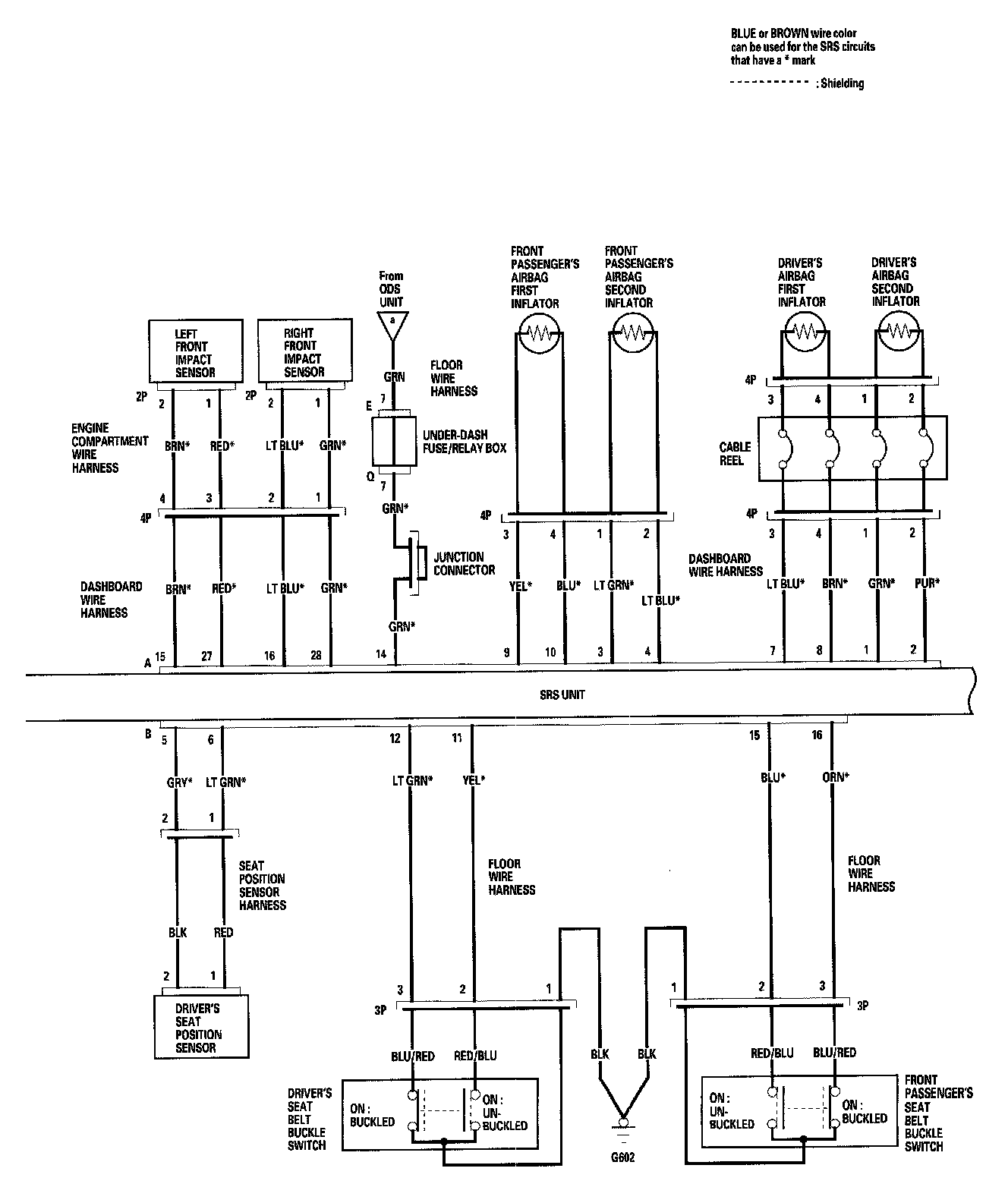

SRS Circuit Diagram Part 6:

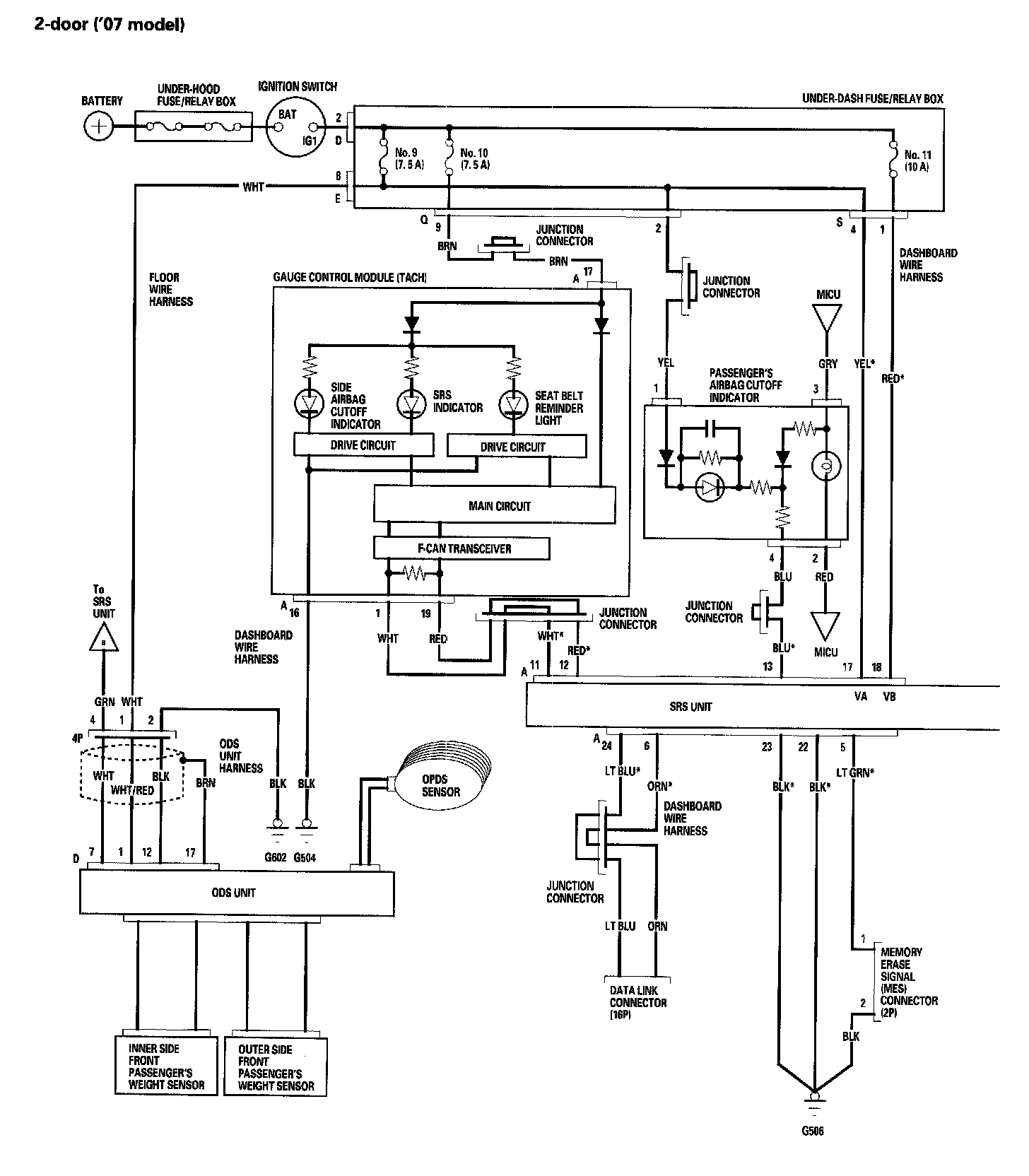

SRS Circuit Diagram Part 7:

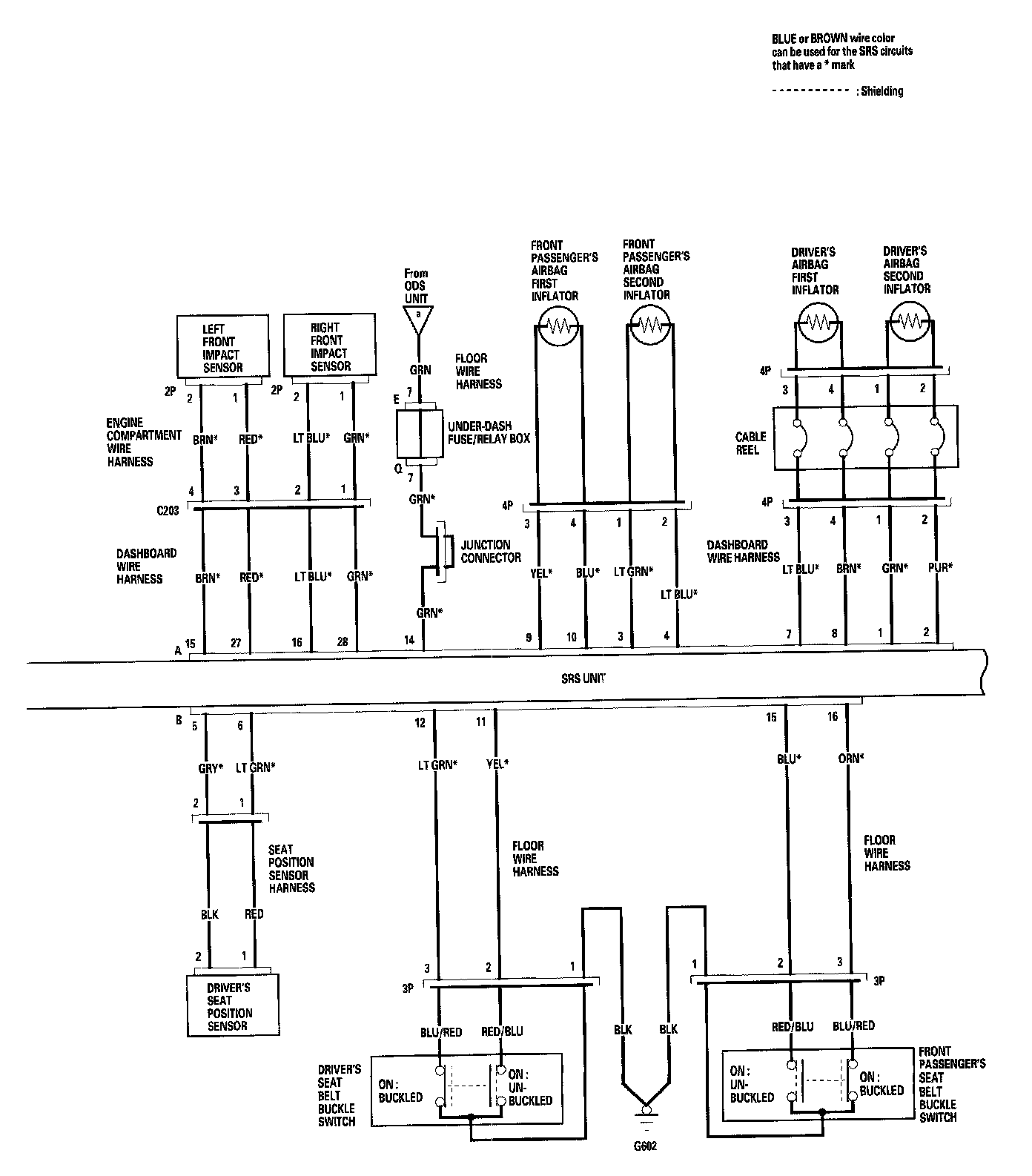

SRS Circuit Diagram Part 8:
