Multiplex Integrated Control System Circuit Diagram
Multiplex Integrated Control System Circuit Diagram

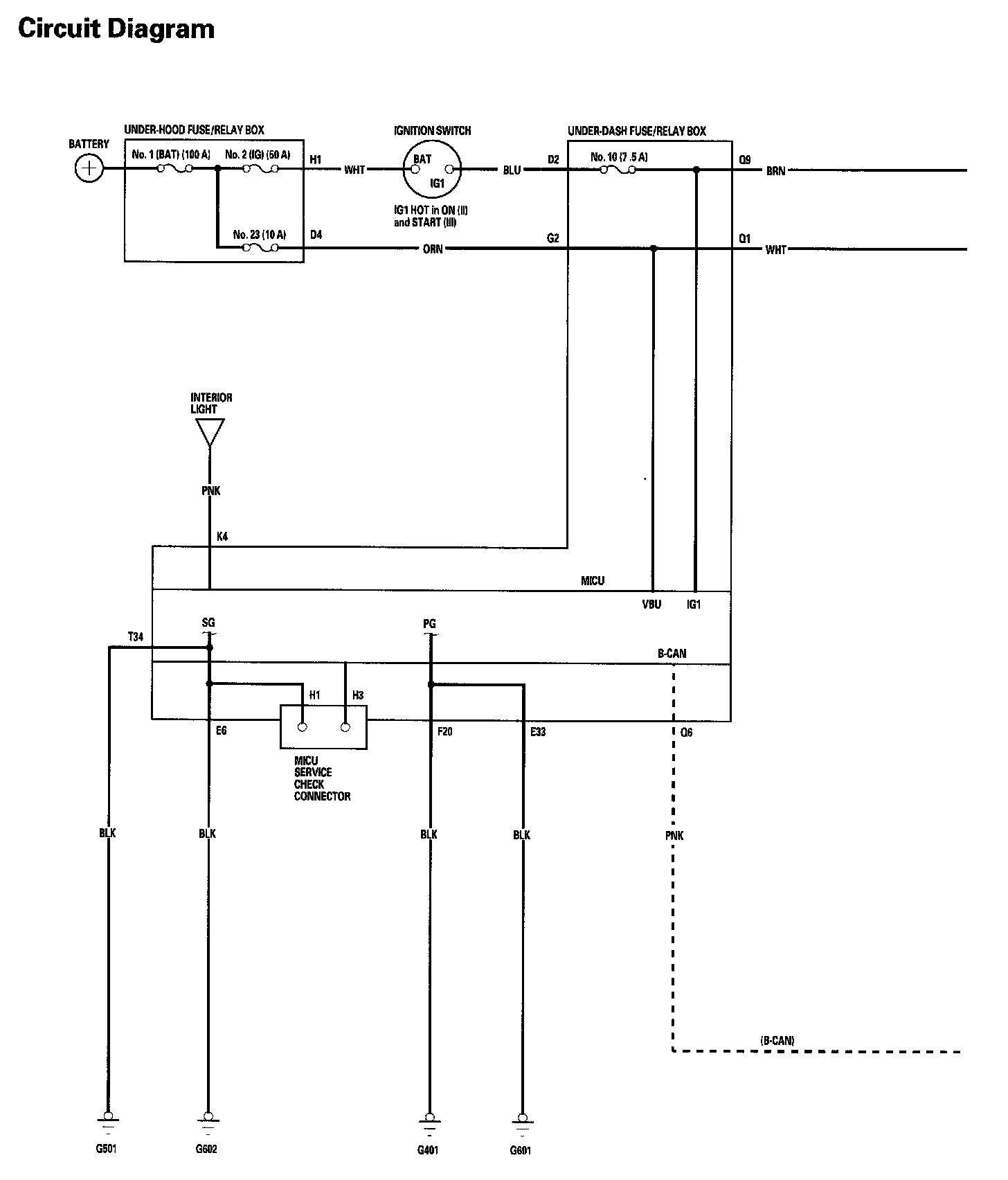

Multiplex Integrated Control System Circuit Diagram Part 1:
Multiplex Integrated Control System Circuit Diagram Part 2:
