Illumination (Negative) - Bulbs

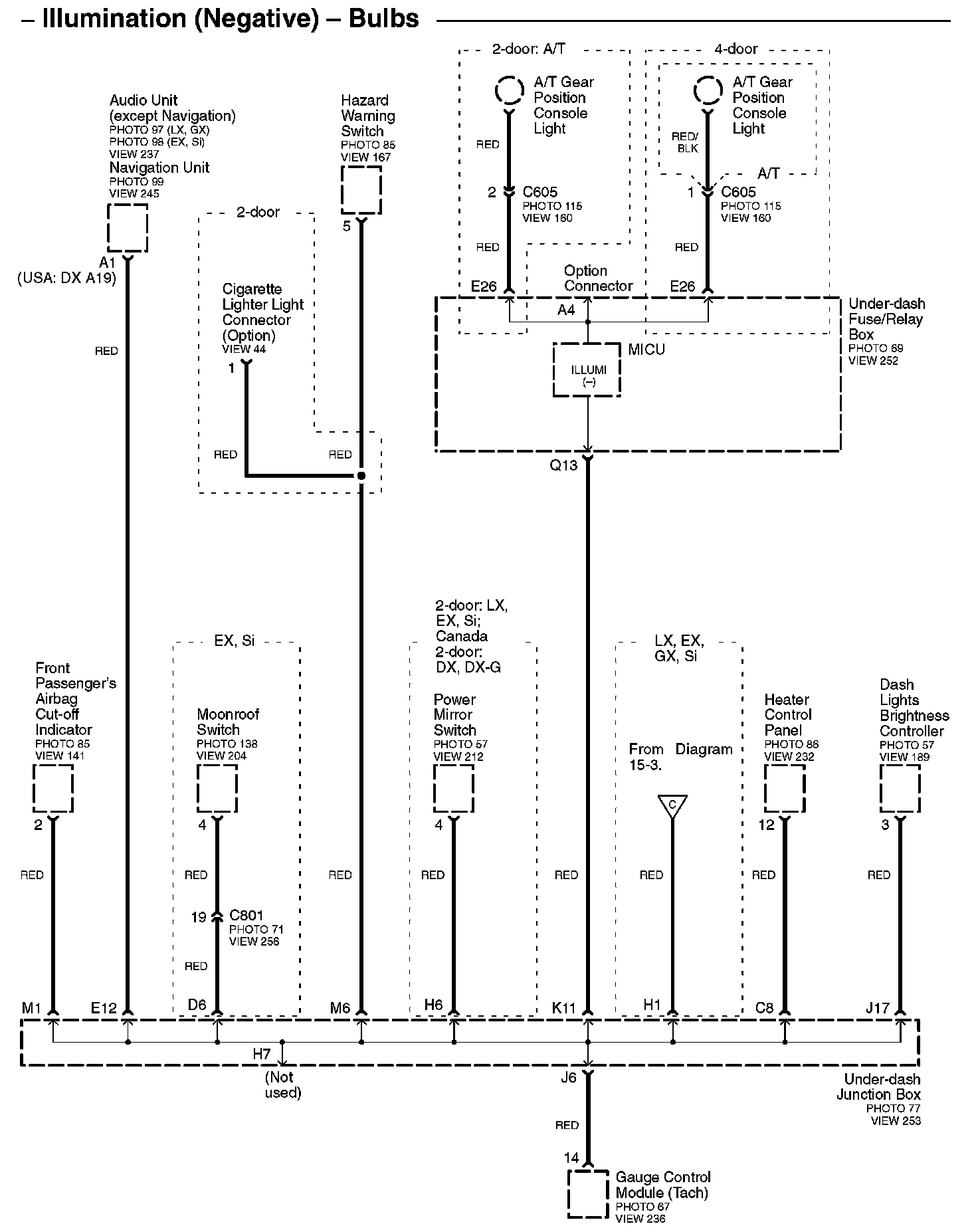

Illumination (Negative) - Bulbs Part 1:

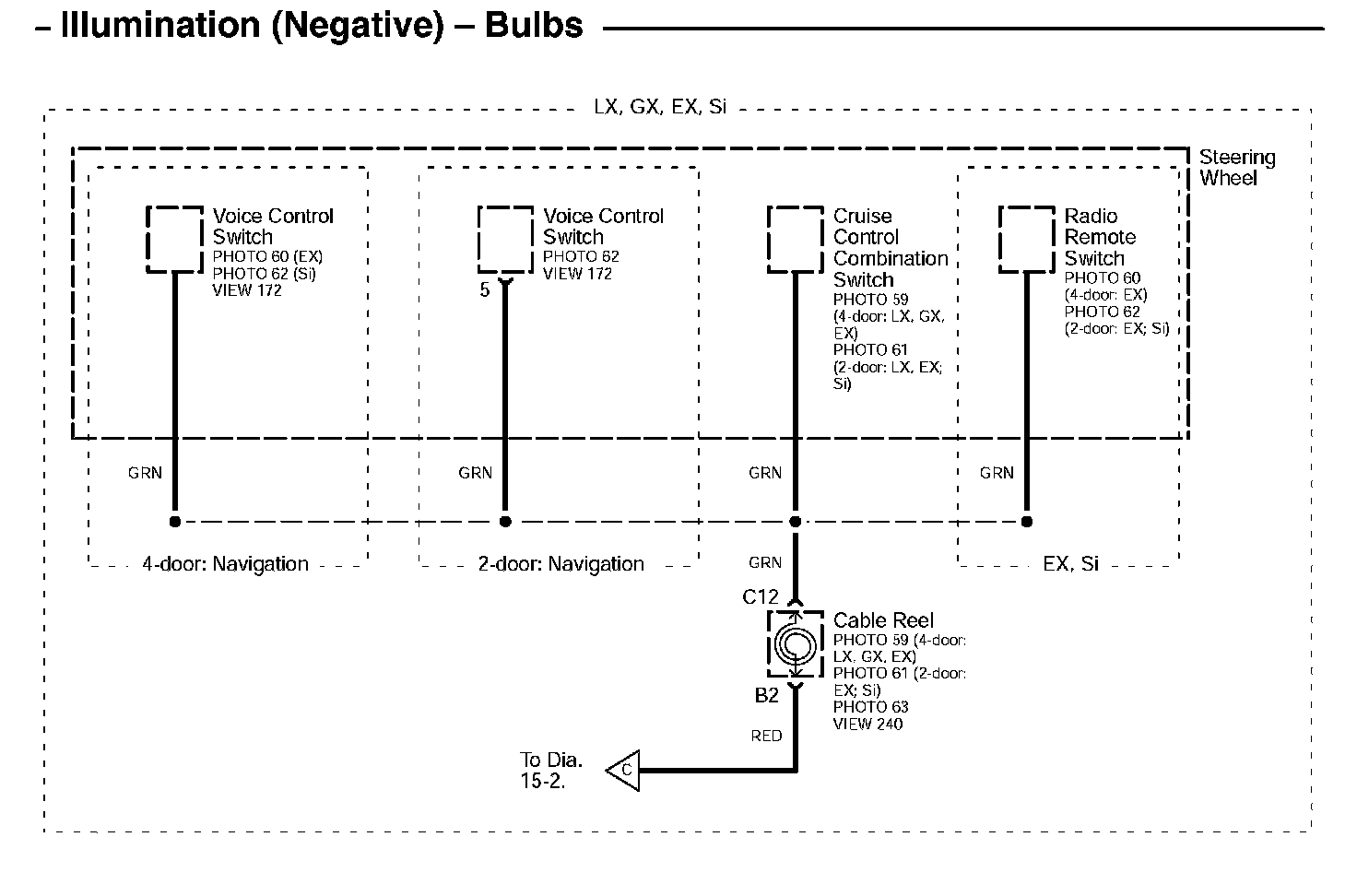

Illumination (Negative) - Bulbs Part 2:
